Tupolev Tu-260 and Tu-360 bombers

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
426
Reaction score
40

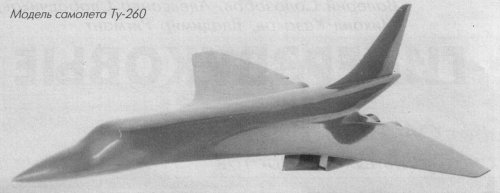

Tupolev Tu-260

Crew: 2
Maximum TO Weight: 180,000 kg
Fuel Load: 106,000 kg
Maximum Speed: Mach 4
Ceiling: 25,000-27,000 m
Maximum Range: 8,000-10,000 km
Endurance: 2.3 hours
Engines: Four Soloviev D-80 turbojets

Design work on the Tu-260, also known as Aircraft 230, began in 1983 with Yu. A. Fazylov as project leader, and A. A. Tupolev and A. L. Pukhov as general managers. Draft design of the aircraft was completed in 1985. The Tu-260 was to be a tailless aircraft with delta wing and four turbojet engines.

Sources
  • Tu-160 'Blackjack', International Air Power Review Vol 2, 2001
  • http://www.testpilot.ru/russia/tupolev/230/230.htm (in Russian)


Attachments

  • Tu-260.jpg
    87.1 KB · Views: 1,945

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
426
Reaction score
40

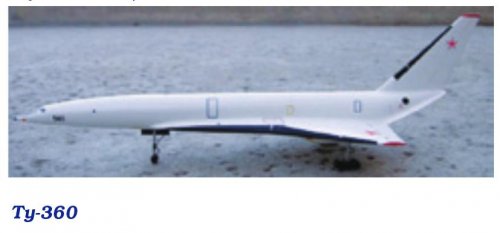

Tupolev Tu-360

Crew: 2
Wingspan: 40.7 m
Length: 100 m
Height: 30 m
Wing Area: 1,250 m2
Empty Weight: 200,000 kg
Maximum TO Weight: 350,000 kg
Fuel Load: 106,000 kg
Maximum Speed: Mach 6
Ceiling: 30,000 m
Maximum Range: 10,000 km
Engines: Six liquid hydrogen fuelled turboramjets
Weapons Load: 10,000 kg

Work on a Tu-160 successor began already in the early 1980s, when the bomber was still in the flight test phase. Tupolev produced two designs with different cruise speeds. Tu-260 (Aircraft 230) was designed for Mach 4 and a range of 10,000 km. The Tu-360 was much more ambitious: it was to carry a 10,000 kg offensive load to a distance of 15,000 km at a speed of Mach 6. The design team was led by V. A. Andreyev, who was in charge of aircraft designs powered by natural gas and liquid hydrogen at Tupolev. The Tu-360 was to be powered by six variable-cycle turboramjet engines fuelled with liquid hydrogen. Armament was to be carried in two weapon bays located in the wingroots. According to the draft design, the range requirement could not be achieved, maximum range at Mach 6 being 9,000-10,000 km.

Development of the Tu-360 was closely connected to the Tu-2000 single-stage aerospace plane similar to the American NASP. The prototype Tu-2000A was planned to test technologies for both vehicles, but only some construction work had been carried out before funding for the project stopped in 1992.

Note that the attached model picture seems to feature a different configuration from the three-view with two separate engine pods.

Sources
  • Tu-160 'Blackjack', International Air Power Review Vol 2, 2001
  • http://www.testpilot.ru/russia/tupolev/360/360.htm (in Russian)


Attachments

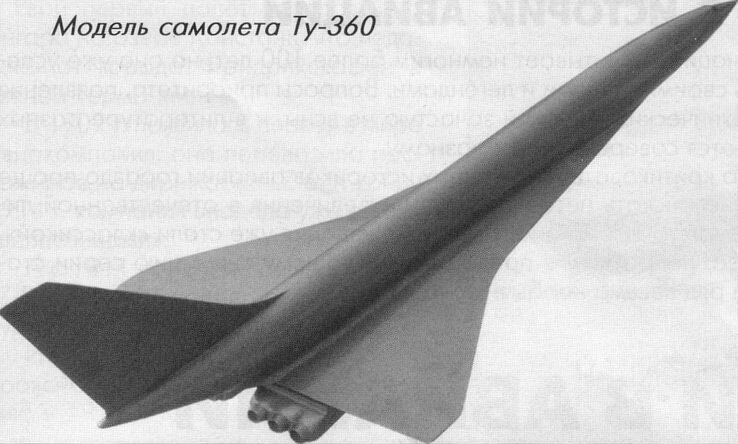

  • Tu-360.jpg
    9.7 KB · Views: 1,888

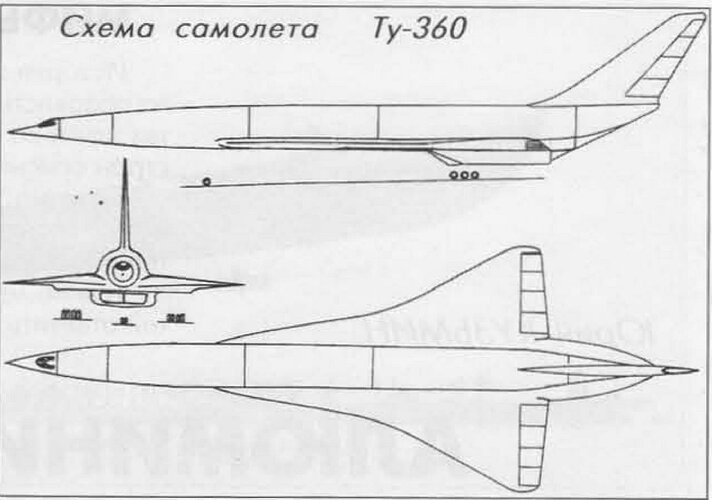

  • Tu-360.gif
    19.7 KB · Views: 1,869

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
426
Reaction score
40
Since pictures of the Tu-360 are few and far between, here are a few "poor man's GCIs".

Ready for takeoff on a cold Siberian morning:

Taking off from Kazan:

At 20,000 meters and Mach 3:

[images are gone - Admin]


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,660
Reaction score
538
Despite I can't read Russian Language It was impossible to resist my desire to own a copy of Bastion Russian Bomber Encyclopedia :D. The contents had to be fabulous :eek: but I enjoy the pics.
On Vol 1 pg 191 there are a couple of drawings depicting advanced bombers. One of it is similar to the "conceptual ATB" apeared in early 80's in the press (which by unconfirmed sources could be based on authentic studies carried by Northrop) and the other it's a 6 engined aircraft.

Can anyone identify this aircraft?. It is any relationship with the Tu-260 program?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,706
Reaction score
8,048
The section you refer to is basically "unconfirmed" stuff.

The two illustrations come from an article in "Техника молодежи" ("Technology - Youth?") No.3 1994 "Thus, it was called “Aurora”" and depict, as far as I can understand, possible "Soviet Stealth bomber" configurations. I doubt it is more than speculation.

The following page of the book has a picture of a possible configuration of the Tupolev subsonic stealth bomber, based on the Tu-404 airliner project, and said to use NK-321V engines.

If you have any other areas of the book to query, I have it all scanned and can machine translate individual pages.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,660
Reaction score
538
Thank you very much Overscan for your help and for the offer.

I would like to give my help too for translations from Spanish, French and Italian to English to everyone in the forum.

Antonio


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887

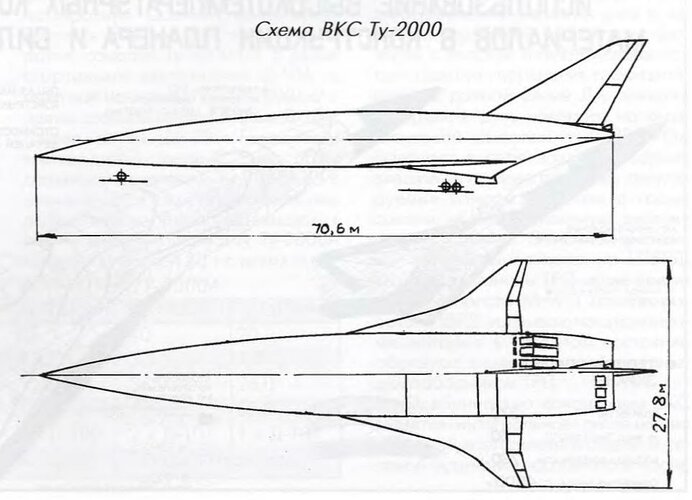

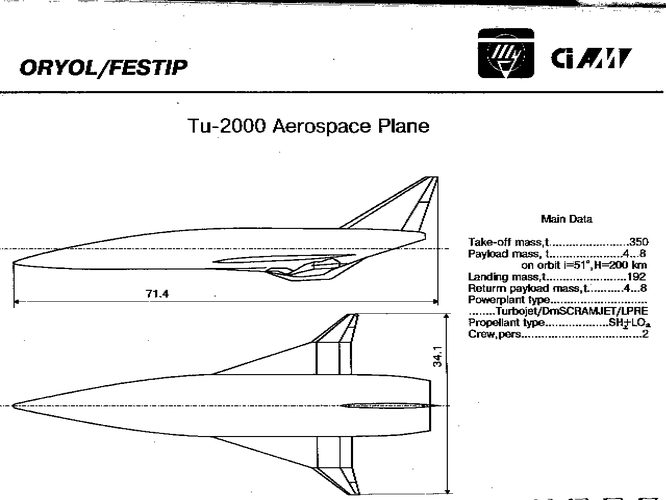

That is seems to be in-firm placard of Tupolev SSTO craft, from V.G. Rigmant's 'Aircrafts of Tupolev OKB' (c) 2001 Rusavia


Attachments

  • tupolev-SSTO.jpg
    89.6 KB · Views: 503

Meteorit

ACCESS: Secret
Joined
Jan 5, 2006
Messages
426
Reaction score
40
Interesting find. Looks like the Tu-2000 as typically depicted with a Space Shuttle nose. Perhaps this is an earlier concept?
Anyway, I think the Tu-2000 / VKS project deserves its own thread.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,174
Reaction score
132
Was there ever a specific weapon system named for the 360? Hard to imagine plain old iron dumb bombs "dropping" up from those wing root weapon bays. ;)

Meteorit missiles, perhaps?


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,086
Reaction score
258
One of the (few) neat things about a Mach 6 platform is the potential stand-off range one can get with unpowered guided munitions (ie. high-speed JSOW equivalents). This increases the warhead weight per kg of warload (effectively transferring some of the weapon system's propulsion from the weapon load to the launch platform). At those speeds, standard defensive systems have much smaller zones of no escape - so you can get a bit closer too.

However, supersonic munitions produce much higher drag (so the efficiency is worse than sub-sonic warheads) and the heat signature of the launch platform makes it easy to design higher speed surface-to-air missiles to counter the reduced ZNE). So, it has a limited attraction. However, it would be really interesting to see if any high-speed guided bombs were planned for such platforms.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
862

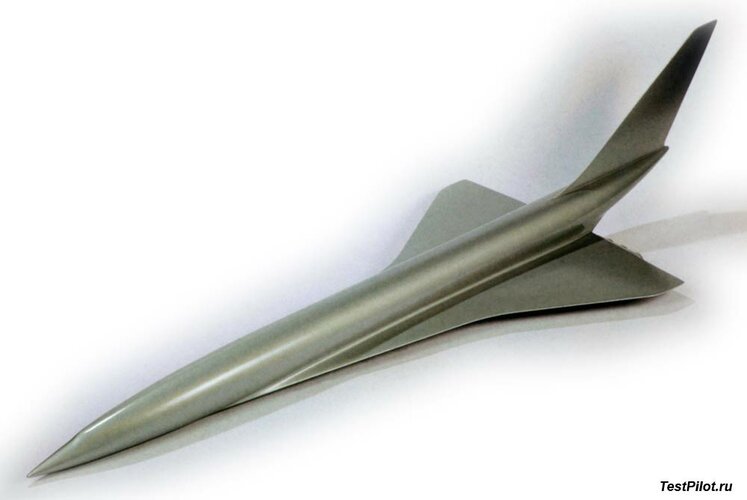

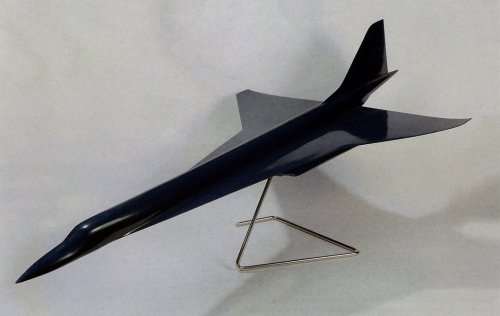

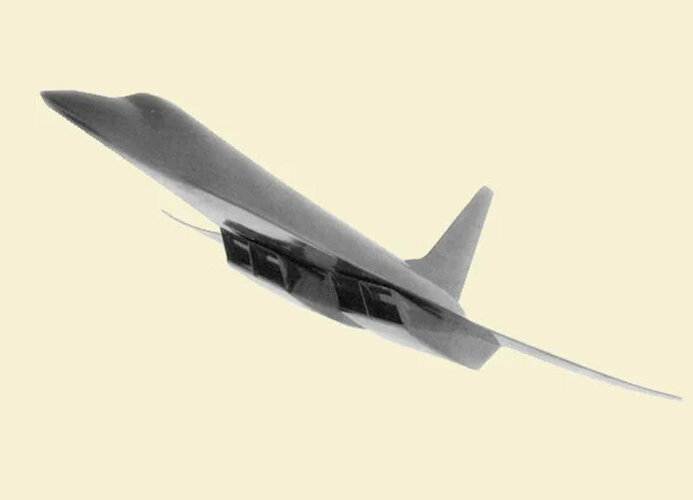

Desktop model of the Aircraft "230" hypersonic long-range strike aircraft of the 1980s:


Attachments

  • Aircraft 230.jpg
    Aircraft 230.jpg
    462.1 KB · Views: 201

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
365
Reaction score
26
Could this be one of those 'ah-ha' moments? This side and front view of a Tu-144 bomber I posted and have had since the early '90s IMHO looks like the Tu-230/260. Considering how much the Tu-230/260 looks like a Tu-144, I wonder if its design was the basis for reports of a Tu-144 based bomber/cruise missile carrier in the early '80s.

index.php


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,112
Reaction score
244

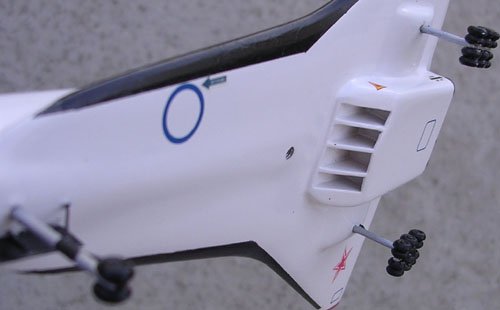

Are there any views of the rear of the models/images showing the engine exhaust arrangement?

And what is the significance of the blue circle on the undersurface of the model? Any ideas? I realise it's purely speculative but obviously that marking was intended to mean something...


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,706
Reaction score
8,048
The Tu-144 based bomber stories date mostly to the 1970s and are most likely based on knowledge of actual Tu-144 bomber projects or, possibly, the early Tu-160 configuration.

In the early 1970s, Tupolev was developing the Tu-144R intended to carry and air-launch up to three solid-fueled ICBMs. The launch was to be performed from within Soviet air space, with the aircraft accelerating to its maximum speed before releasing the missiles. The original design was based on the Tu-144S, but later changed to be derived from the Tu-144D. Another version of the design was to carry air-launched long-range cruise missiles similar to the Kh-55. The study of this version envisioned the use of liquid hydrogen for the afterburners.

In the late 1970s Tupolev contemplated the development of a long-range heavy interceptor (DP-2) based on the Tu-144D also able to escort bombers on long-range missions. Later this project evolved into an aircraft for electronic countermeasures (ECM) to suppress enemy radars and facilitate bomber's penetration through enemy air defenses (Tu-144PP). In the early 1980s this functionality was supplanted with theatre and strategic reconnaissance (Tu-144PR).

The dimmer civil prospects for Tu-144 were becoming, the more Tupolev tried to "sell" the aircraft to the military. One of the last attempts to sell a military version of the Tu-144 was the Tu-144MR, a project for a long-range reconnaissance aircraft for the Soviet Navy intended to provide targeting information to the Navy's ships and submarines on sea and oceanic theaters of operations. Another proposed navy version was to have a strike capability (two Kh-45 air-to-surface cruise missiles), along with a reconnaissance function.

Tupolev 230 is IHMO too late (1983) to be related and is a Mach 4 hypersonic project.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
365
Reaction score
26
I remember seeing mention of a Tu-144 bomber/cruise missile carrier in several issues of AW&ST in the early - mid '80s. I also recall seeing it mentioned in the '70s as well. Also, is the 230 hypersonic or only Mach 4?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,307
From Kryl'ya Rodine 3/2015,

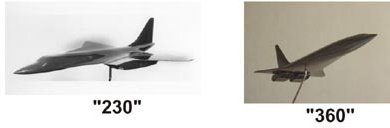

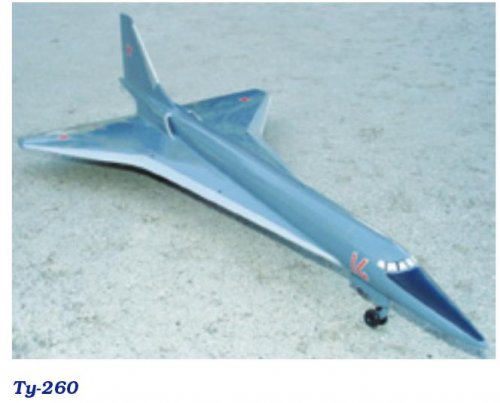

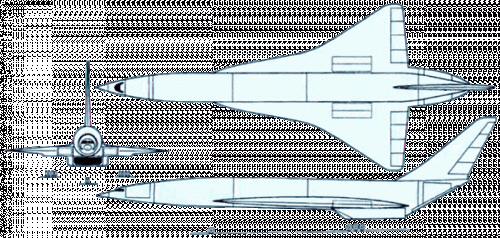

here is a clearer views of Ti-260,Tu-230 & Tu-360,also a shadow to future Russian
bomber should be.


Attachments

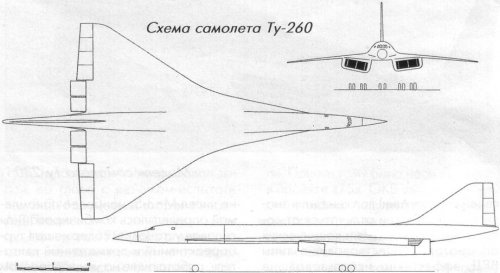

  • 260.JPG
    30.4 KB · Views: 653
  • 230.JPG
    47.9 KB · Views: 629
  • 360.JPG
    24.5 KB · Views: 632
  • untitled.JPG
    15.2 KB · Views: 631

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887

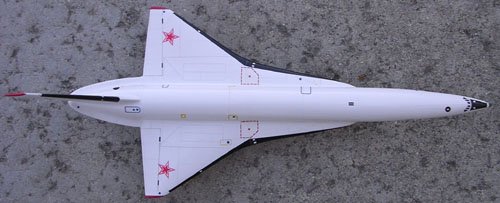

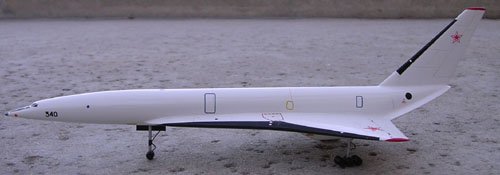

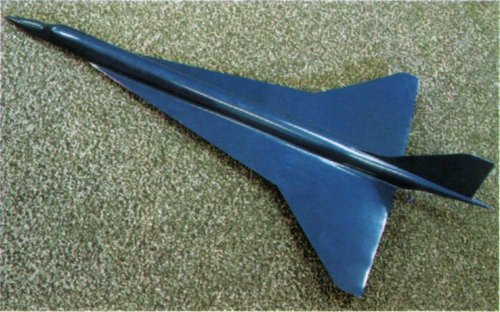

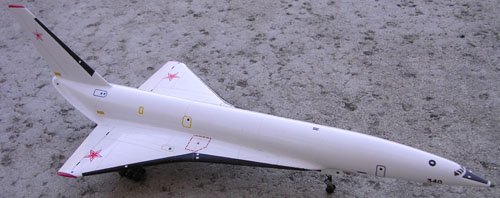

260 and 360 photos are BS from Panchenko model shop.

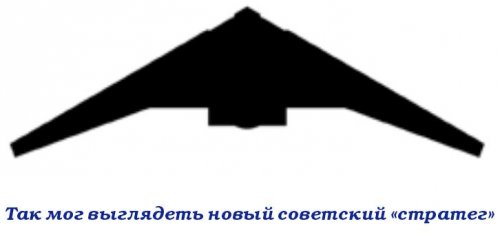

last one should represent advanced Soviet bomber project (silhouette is made from Paralay's rough drawings based on TsAGI WT model).

Pictures are from poorly written article where author has gathered all the myths of advanced Soviet and Russian projects, mixing mostly BS with bits of real info available from other sources years ago, even without proper attribution.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
862
flateric said:
260 and 360 photos are BS from Panchenko model shop.

Is this to say that these were not actual Tupolev designs, or just that you think the models are of rubbish quality?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,563
Reaction score
6,307
thank you my dear Flateric for your explanation.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887
Skyblazer said:
Is this to say that these were not actual Tupolev designs, or just that you think the models are of rubbish quality?
Rubbish is insufficient term.


Attachments

  • 38-2.jpg
    58.7 KB · Views: 592
  • 38-1.jpg
    73.1 KB · Views: 210
  • 360.jpg
    155.9 KB · Views: 216
Last edited by a moderator:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

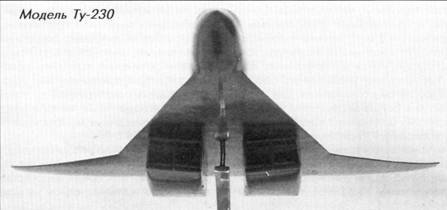

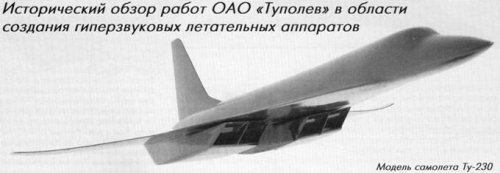

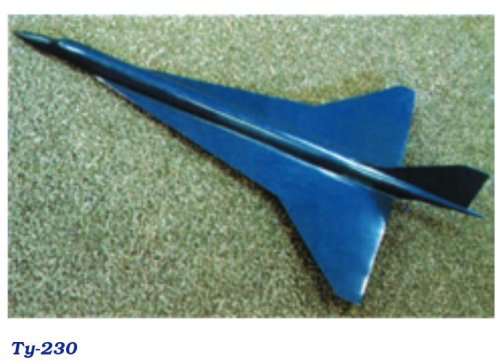

Hi! Tu-230 model pictures.
https://coollib.com/b/114064/read


Attachments

  • pic_82.jpg
    9.4 KB · Views: 137
  • tu-230.jpg
    19.1 KB · Views: 122

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

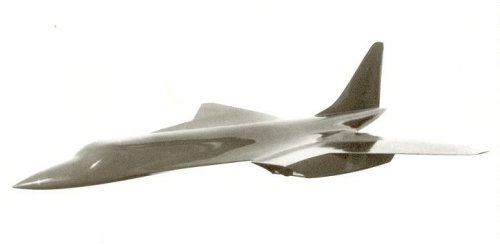

Another Tu-230 model?

"When the T-4MS was declared the winner Tupolev, who were selected as the OKB that would see the new bomber through to production, recieved all the design data from the Myasischev M-18 as well as the Sukhoi design. Tupolev refused to continue with the T-4MS, as you say, but the Tu-160 was in fact based on the Myasischev M-18, not their own Tu-144 derived proposals, which Tupolev continued to refine right up to the 1980's as a separate venture, one of the last versions I am aware of in this line of development being the Tu-230 of 1983. This was supposed to be capable of Mach 4 and be the replacement for the Blackjack beyond the year 2000 (see pic)."


Attachments

  • c3a4ffae.jpg
    19.8 KB · Views: 126

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

"research and design of hypersonic far strike aircraft, designed for cruising flight speed corresponding to m = 4-project "230" (TU-230). The design was started in 1983 by g. draft project was prepared in 1985 g. gross weight of the aircraft was determined within 180 t. powerplant was to consist of four combined d-80 type TURBOJET ENGINE. Maximum fuel (kerosene)-106 t. cruising height of 25000-27000 m, maximum range was determined in 8000-10000 km with duration of flight 2.3 hours (length: 54.15 m, wingspan-26.83 m);
research and design of hypersonic aircraft designed for long-range cruising airspeed corresponding to m = 6-project «260» (TU-260). This was LA with engines running on cruise mode on liquid hydrogen with a range of up to 12000 km at 10 tons payload;
research and design of hypersonic intercontinental aircraft, designed for cruising flight speed corresponding to m = 6, at specified maximum flight range up to 16000 km and with a payload of up to 20 t-project «360» (TU-360). Cruising altitude 30000-33000 m."

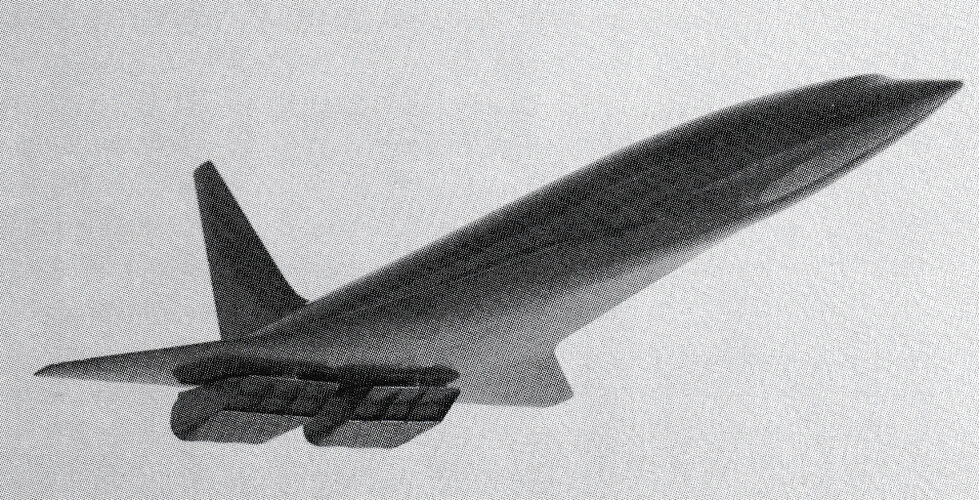

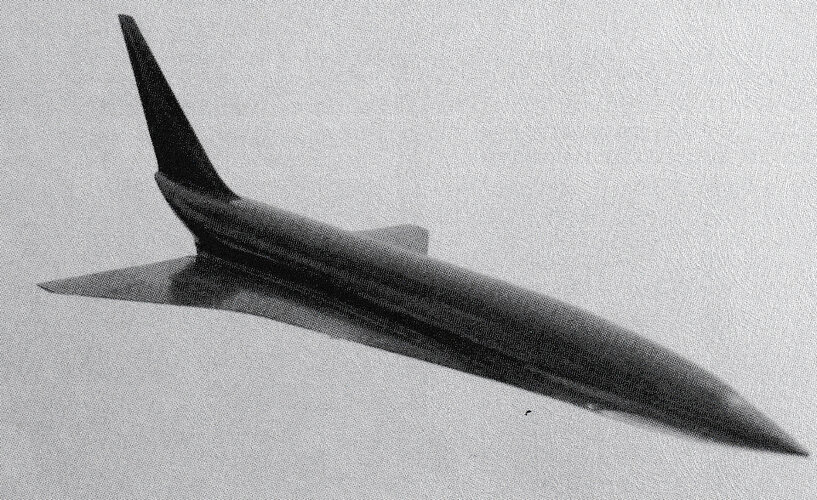

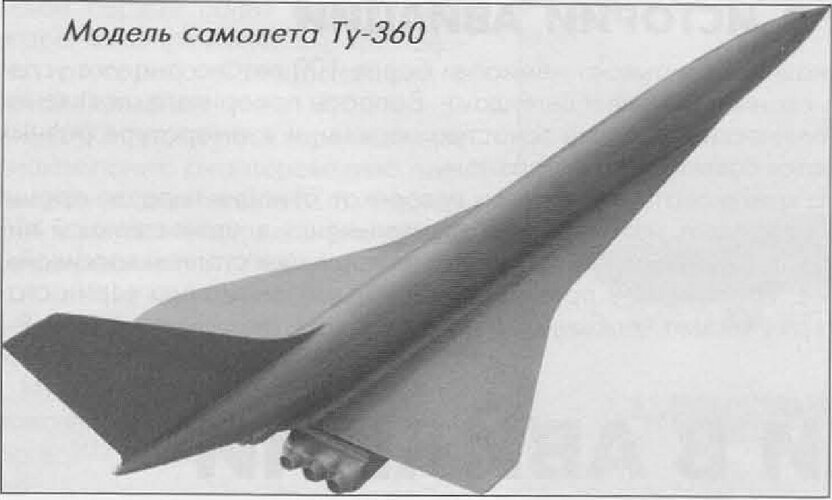

This Tu-360 model is little different from well known three side view drawing.


Attachments

  • tupolev-giperzvukovye-05-04.jpg
    55.5 KB · Views: 39
  • tupolev-giperzvukovye-05-07.jpg
    106.1 KB · Views: 32
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Hi! Tu-230.


Attachments

  • tu-230-image02.jpg
    23.5 KB · Views: 56

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
"Tu-360
In the 80s, design work was carried out at the Tupolev Design Bureau on the topic of the 360 hypersonic intercontinental strike aircraft, designed for a cruising speed corresponding to M = 6.
V.A. Andreev, who was involved in the development of aircraft projects with power plants operating on LNG and liquid hydrogen, was appointed as the head of the project. The developers were tasked with working out the possibility of creating an aircraft capable of providing a flight range of 15,000 km at a speed corresponding to M = 6 with a combat load of 10,000 kg. The layout of the aircraft project was close to the project "230" and differed from it in size, weight and power plant.
According to the draft design, the power plant of the aircraft was to consist of 6 combined turbojet / ramjet engines; cruising fuel is liquid hydrogen.
The estimated specific fuel consumption of the ramjet engine in cruising mode was 1.04 kg / kgf. For booster turbojet engines, it was supposed to use kerosene.
The selected aerodynamic layout made it possible to obtain the calculated quality values of 5.2 - 5.5. The armament was housed in two large fuselage compartments. The takeoff weight of the aircraft was about 350,000 kg. According to OKB estimates, at a cruising flight speed corresponding to M = 6, the flight range was 8000 km.
Probably in the West, this project was known as the Tu-2000B.

Designation "360" (Tu-360), Type Hypersonic strike aircraft, Crew : 2.
Wing area : 1260 m2, Fuselage diameter : 8square meter
Takeoff weight : 350,000kg, Payload : up to 20,000kg
Power plant : Number of engines 6, Turbojet / ramjet engines
Engine thrust : 6 x 22000kgf / -
Full fuel supply : 106000kg
Cruising flight speed : M = 6, Cruising altitude : 30000-33000m, Practical range : 8000km"

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Hi! Two air intake shapes. Number of engines were 6.


Attachments

  • Tu-360.jpg
    203.4 KB · Views: 53

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887

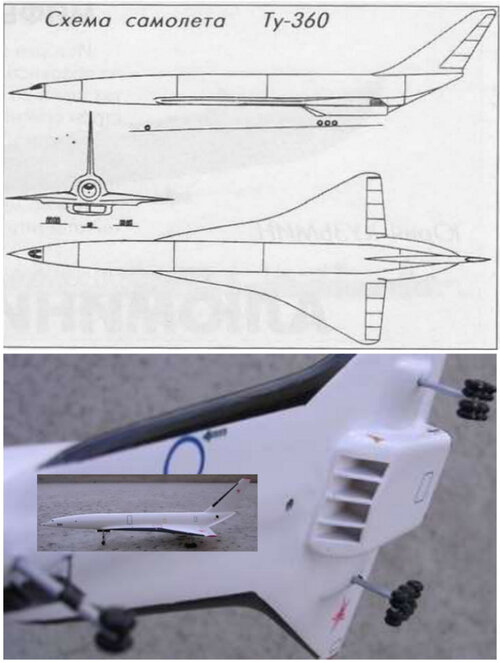

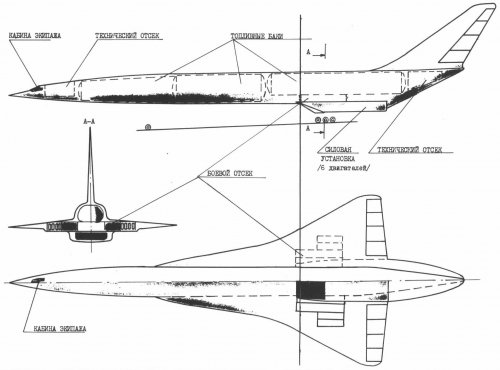

There were six engines in two packs under wings. Drawing and amateur model based on it are completely wrong.


Attachments

  • 39-1.jpg
    73.7 KB · Views: 53

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

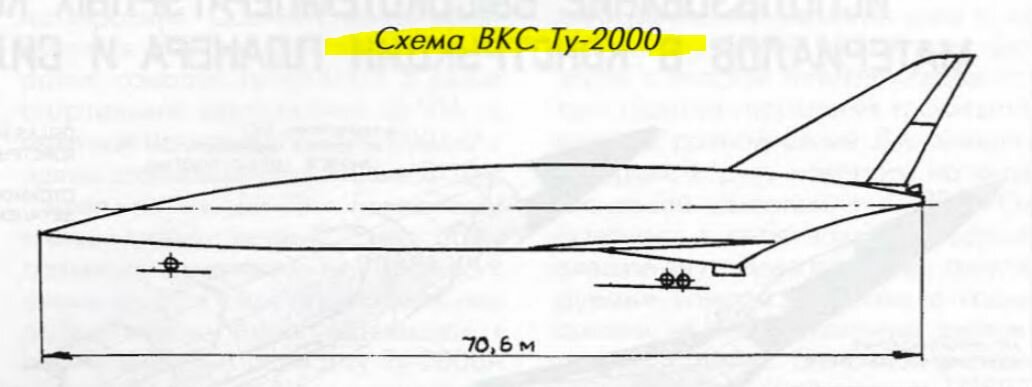

"Tu-2000
Russian winged orbital launch vehicle. This Soviet equivalent to the US X-30 single-stage-to-orbit scramjet aerospaceplane began development in1986.
Three versions were planned:
(1) A Mach 6 test vehicle, under construction at cancellation of the program in 1992. (Tu-2000A)
The Tu-2000A was to be an experimental design to test the many advanced technologies required.
It would have been 55 to 60 m long, have a 14 m wingspan, and a takeoff mass of 70 to 90 metric tons.
It would have only been capable of Mach 6.
Before work was stopped in 1992, some development work was completed: a wing torque box of nickel alloy had been built, as well as fuselage elements, cryogenic fuel tanks, and composite fuel lines.
The Tu-2000A would have used a variable cycle turboramjet engine using methane or hydrogen fuel.

(2)
A Mach 6 intercontinental bomber. (Tu-2000B)

(3) A single-stage-to-orbit launch vehicle."
"However, to increase efficiency and increase the fuel stock, a variant with a combined power plant of a turbojet engine, ramjet engine, and a liquid rocket engine was soon adopted, which became the prototype of the Tu-2000.

The aircraft was designed as a tailless aircraft, and had an engine and triangular wing low extension located under fuselage. The core of the design was the power plant, which included:
  • 4 turbojet engines in the rear fuselage;
  • 1 main accelerating wide-range ramjet (located at the rear of the fuselage);
  • 2 liquid fuel rocket engines for maneuvering in vacuum (installed between the turbojets)."
Wikipedia

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280

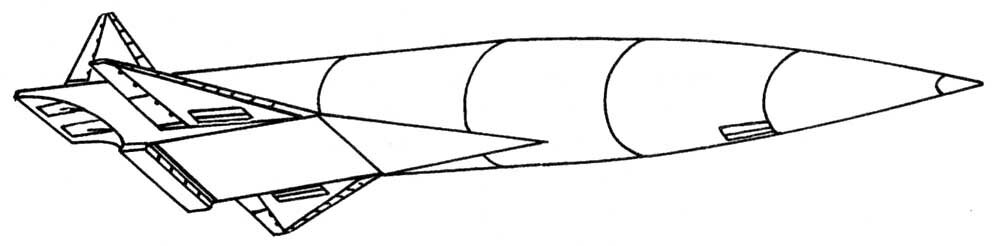

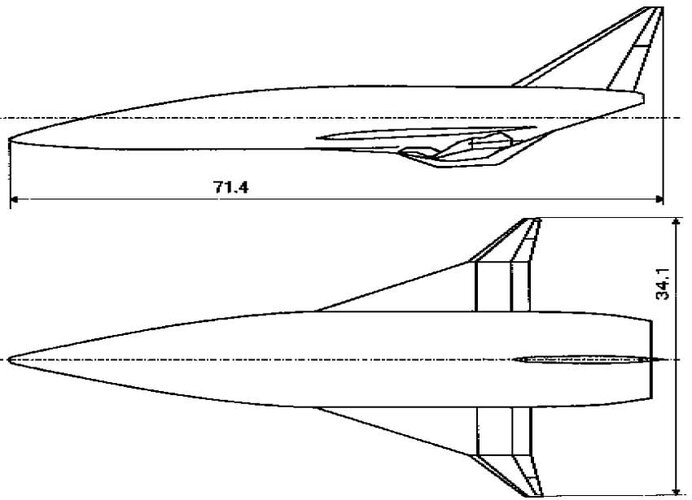

What are these drawings?


Attachments

  • aerospace plane.jpg
    aerospace plane.jpg
    36.5 KB · Views: 41
  • tupolev-giperzvukovye-04-01.jpg
    60.9 KB · Views: 45

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Hi! Tu-2000B (Tu-360) Mach 6 intercontinental bomber model pictures.
Source : OKB TUPOLEV, Yefim Gordon and Vladimir Rigmant, MIDLAND.


Attachments

  • Tu-2000B model pic1.jpg
    Tu-2000B model pic1.jpg
    1 MB · Views: 43
  • Tu-2000B model pic2.jpg
    Tu-2000B model pic2.jpg
    1.2 MB · Views: 51
Last edited:

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,887
Damn. Once more - Tu-360 is not "Tu-2000B"
Is it too hard to notice differences starting from drawings and ending with performance data?
Don't start hoax from a phrase from an old site that "possibly, Tu-360 was known on the West as Tu-2000B". This is just plain BS


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,280
Thanks a lot flateric-san. It's a very valuable information for me.
According to OKB TUPOLEV, this model is the Tu-2000 aerospaceplane (page 328). Apparently strange explanation.

Now perhaps I can understand what is Tu-2000A and waht is Tu-2000 spaceplane.
But I can't understand waht is Tu-2000B.

Last edited:
Top
