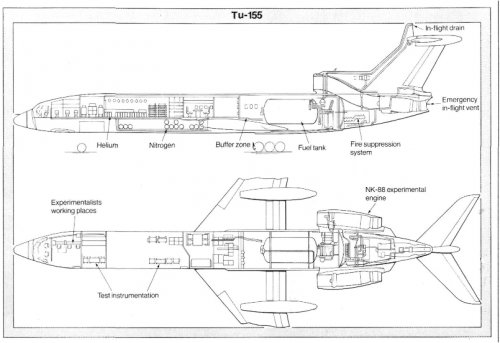

Tu-155 internal layout

http://www.flightglobal.com/PDFArchive/View/1990/1990%20-%201312.html


Attachments

  • Tu-155 internal.jpg
    Tu-155 internal.jpg
    200.8 KB · Views: 859

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
18
pometablava said:
Tu-155 internal layout

http://www.flightglobal.com/PDFArchive/View/1990/1990%20-%201312.html

Thanks, been looking for this for a while. Very surprising, actually.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,274
Reaction score
1,802

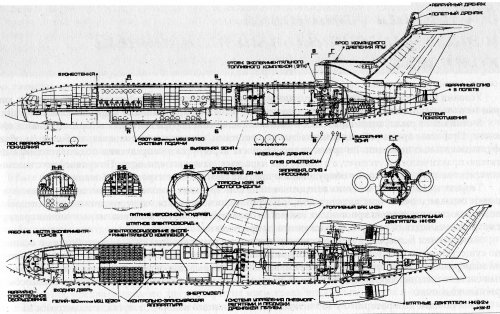

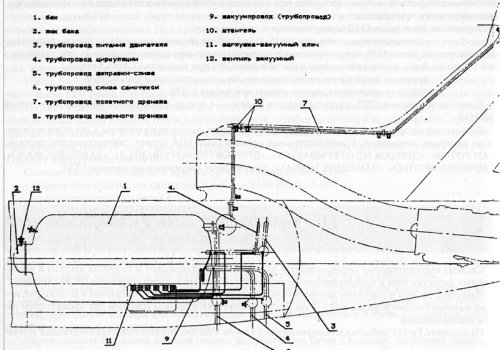

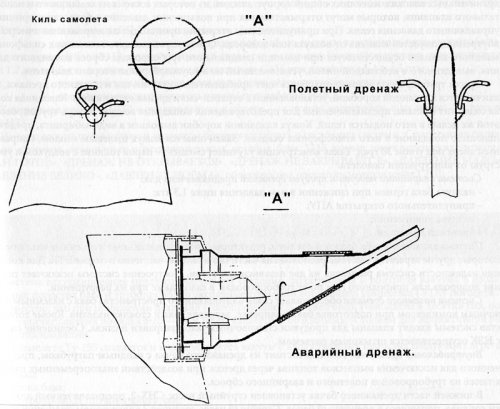

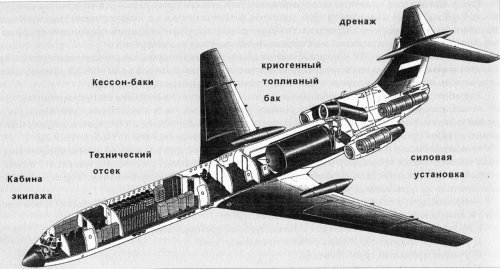

Some of original Tupolev OKB drawings and diagrams. Interesting thing to note is armor plate behind crew and experimentators' compartment. *Divans* would not survive the blast.


Attachments

  • 155-1.jpg
    384.8 KB · Views: 665
  • 155-2.jpg
    470.9 KB · Views: 614
  • 155-3.jpg
    151.7 KB · Views: 451
  • 155-4.jpg
    152.5 KB · Views: 409

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,067
Reaction score
606
slightly OT, from NTRS,

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19740024319_1974024319.pdf

a preliminary report on hydrogen and methane fuelled airliners, the main conclusion seems to be that methane holds no advantage over hydrogen, or indeed, conventional jet fuel.

cheers,
Robin.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,218

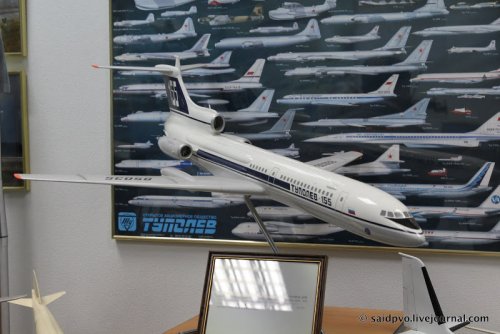

Hi! Tu-155 model.
http://saidpvo.livejournal.com/172879.html


Attachments

  • IMG_6627.JPG
    110.5 KB · Views: 167

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,880
Reaction score
6,509
Came across this old JPRS excerpt from an 1988 PRAVDA article on the first flight of the Tu-155:
Test of TU-155 Airplane with Cryogenic Fuel
System


18610189a Moscow PRAVDA in Russian No 108,
Apr 88p 3

[Excerpt] The world's first airplane capable of using
cryogenic fuels took off on April 15. Thus began flight
tests of an experimental aircraft, the TU-155, which uses
liquid hydrogen and liquefied natural gas as fuels.

This airplane was developed by personnel of the Design
and Experimental Bureau imeni Tupolev in collaboration
with the Scientific Research Institute of the Aviation
industry. Installed in the airplane is an NK-88
engine designed by the bureau which academician N.D.
Kuznetsov heads. A large number of enterprises and
scientific research institutes took part actively and creatively
in the development of systems of the airplane.

Its crew, which is headed by V. A. Sevankayev, a
meritorious test-pilot of the USSR, has opened a new
page in the history of Soviet and world airplane building.

In our country, work on the development of airplanes
using cryogenic fuels began with the development of an
experimental aircraft.

The TU-154, which has already been introduced, was
chosen as the base model. A special section in the rear of
the passenger compartment of such an airplane was
equipped for the installation of a liquid-hydrogen tank.

Scientific research work was done, and more than 30
onboard systems which ensure operation of the airplane's
cryogenic propulsion plant, fire safety and explosion
proofing, were designed and produced.

A unique ground complex was developed for the support
of fueling and maintenance of the airplane.

02291
http://www.dtic.mil/dtic/tr/fulltext/u2/a347247.pdf


Zoo Tycoon

ACCESS: Top Secret
Senior Member
Joined
May 27, 2008
Messages
645
Reaction score
1,026
Does anyone have any test flight descriptions or reports for the TU155. I would be very grateful if you could post any links.

GreyHavoc
The link in your last post seems to be broken. I really appreciate if you could post an update.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,880
Reaction score
6,509
Looks like it may have been a victim of one of the ongoing purges, sorry, 'upgrades' of DTIC. I'll see if I can find an alternate link somewhere. I don't think though that there is anything else in that old JPRS report that mentions that Soviet development apart from what I already posted.
