Hi,

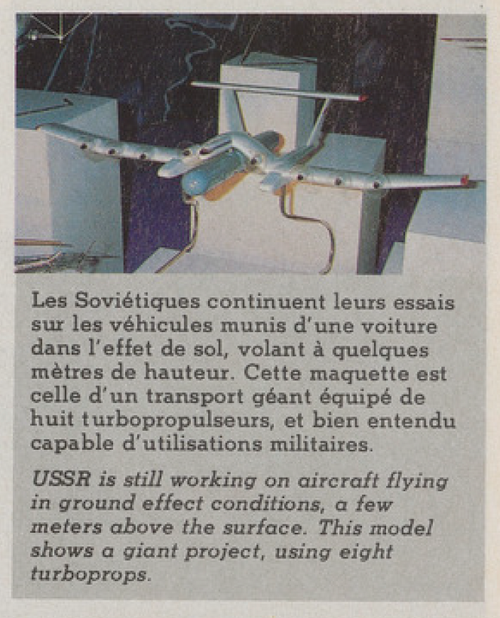

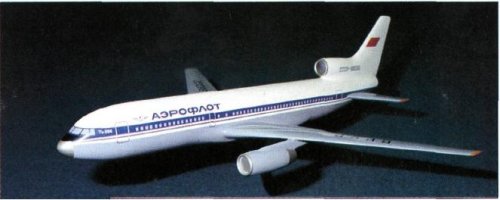

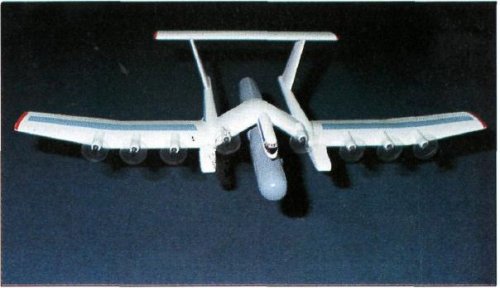

in Flightglobal of 1990,they displayed a tri-jet Tu-204 and eight-engined
heavy lifter,I check all my sources,I didn't find any version of Tu-204
with three-engined nor a heavy lifter with eight-engined,I can't ID
them.
http://www.flightglobal.com/pdfarchive/view/1990/1990%20-%201205.html


Attachments

  • Tu-204.JPG
    24.8 KB · Views: 265
  • heavy lifter.JPG
    heavy lifter.JPG
    30.5 KB · Views: 261

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,477
Reaction score
206
found nothing about the first but think it could be a Yakovlev design.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
104
________________________________________________________________________

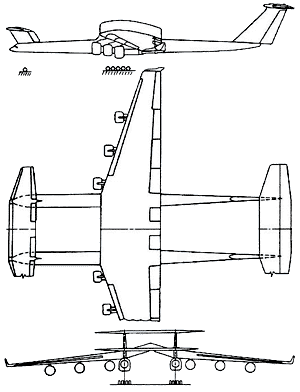

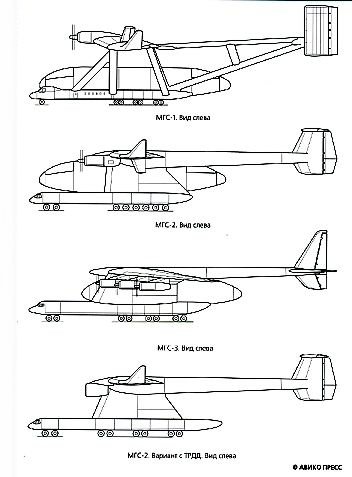

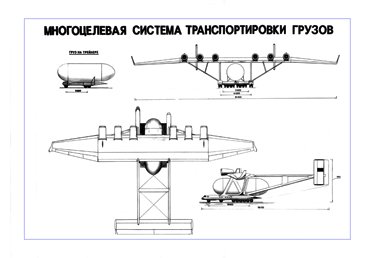

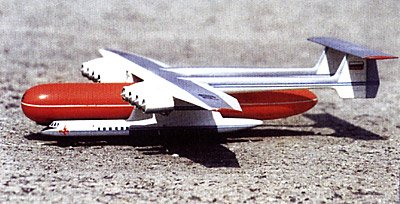

One option MGS/МГС (Многоцелевой Грузовой Самолет=Multipurpose Cargo Aircraft) program M-90
/ knows more Ukon /


Attachments

  • M-90  MGS.jpg
    M-90 MGS.jpg
    56.4 KB · Views: 259

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49

Attachments

  • item_1712.jpg
    31.3 KB · Views: 72
  • item_1711.jpg
    21.3 KB · Views: 72
  • item_1710.jpg
    45 KB · Views: 50
  • item_1709.jpg
    12 KB · Views: 41
  • item_1708.jpg
    10.1 KB · Views: 180

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49

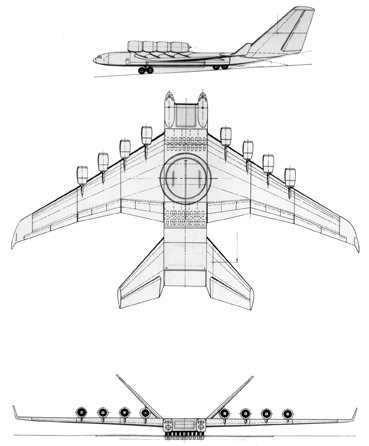

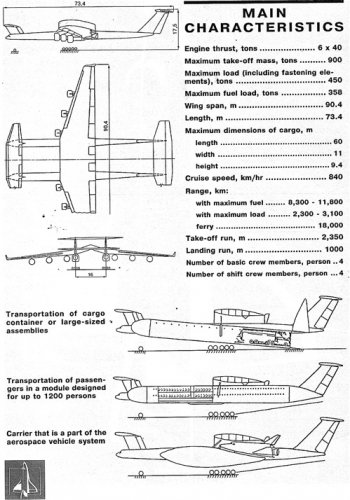

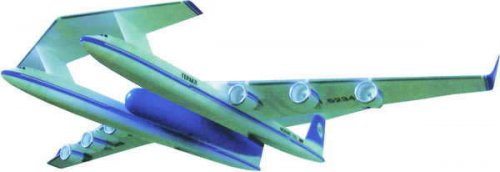

The M-90 resembles another proposed Russian leavy lifter, the M-1000 Gerakl (Hercules) designed by Gleb Lozino-Lozinskiy at NPO Molniya in 1995-96. The Gerakl was also twin-fuselage aircraft, but with six extra-powerful turbofans (400 kN each). It was similar to An-225 Mriya in dimensions, but could carry 1.5x larger payload - up to 450 tons. For example, it could be a passenger module for 1200 seats, or some bulky cargo with maximum dimensions 60 x 11 x 9.4 m. Also the Gerakl could be used for launching some space systems such as MAKS-OS.

Wingspan - 90.4 m
Length - 73.4 m
Height - 17.5 m
Crew - 4
Maximum takeoff weight - 900 000 kg
Maximum payload - 450 000 kg
Maximum fuel capacity - 358 tons
Cruise speed - 840 km/h
Flight range: 8300 to 11 400 km (with maximum fuel), 2300 to 3100 km (with maximum payload), 18 000 km (ferry range)
Takeoff run - 2350 m
Landing run - 1000 m

Source: http://www.testpilot.ru/russia/molniya/1000/geracl.htm


Attachments

  • herc2.jpg
    76.1 KB · Views: 55
  • herc_3.gif
    11.4 KB · Views: 54
  • M-1000.gif
    35.8 KB · Views: 51
  • hercules.jpg
    15 KB · Views: 776

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
34

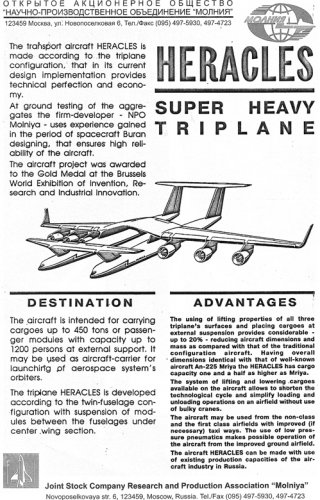

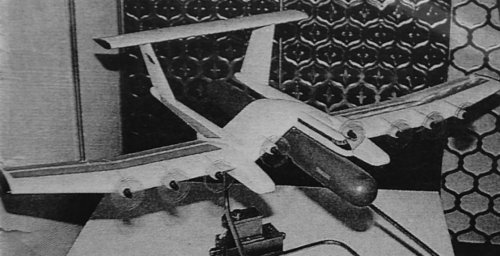

A leaflet I got at the "le Bourget " 2003


Attachments

  • r.jpg
    200.2 KB · Views: 104
  • r".jpg
    262 KB · Views: 85

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458
Why do they call this a triplane? Since when does the tailplan count as a third wing? Also I think the term "triplane" applies to designs with superimposed wings, not sesquiplane (offset) second wing...


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
34
Maybe because the 3 "wings" were flying surfaces ,(surfaces portantes in french ;) )


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,680
Reaction score
311
richard said:
Maybe because the 3 "wings" were flying surfaces ,(surfaces portantes in french ;) )

Is the same principle of the Piaggio P-180 "Avanti" the Italian turboprop commuter.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,968
Reaction score
83
Canard equiped Sukhoi's have also been refered to as "triplanes". It seems to be a concept that has varying definitions in different countries. ;)


Madurai

ACCESS: Confidential
Joined
Aug 17, 2009
Messages
97
Reaction score
7
"Tandem Triplane" became part of Sukhoi's marketing lexicon on or about the development of the Su-27K. It seems to be spreading.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,260
Reaction score
162
Personally I like the "three lifting surfaces" term. This is often used in technical literature.
Otherwise, using the same rationale, a biplane and a tandem wing are biplanes. Is a Eurofighter a biplane?


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49
Yes, here in Russia the aircrafts with both classic horisontal tail and canards are sometimes called "triplanes", "modern triplanes" or "tandem triplanes". I think it's possible because classic triplane configuration isn't used now for aircraft design, so it's hard to confuse.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,046
Reaction score
876

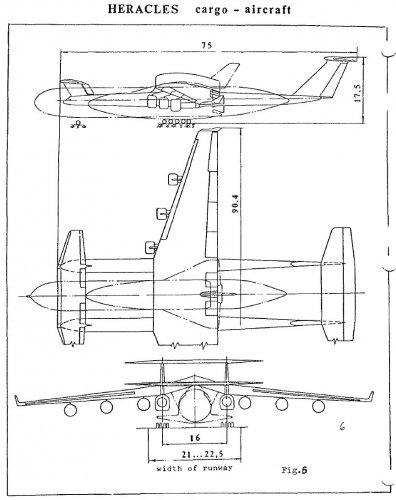

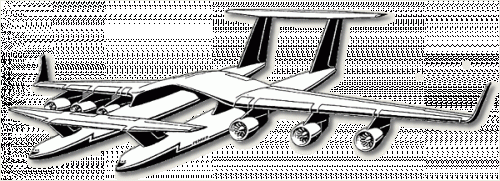

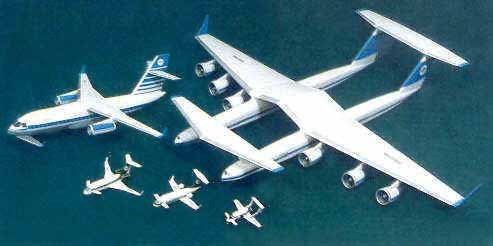

from dusty partitions of my HDD


Attachments

  • Heracles.jpg
    117.4 KB · Views: 241

igor-mich

ACCESS: Secret
Joined
May 10, 2010
Messages
211
Reaction score
49
In 1974, after the appointment of VP Glushko for the post of Chief Designer of NPO Energy in the Soviet Union started work on the heavy transport space system with a reusable orbital vehicle. Everyone understands that the winged spaceship is impossible without Minaviaproma only forces and means Minobschemasha, and among the pilots to do so can only G.E.Lozino-Lozinski, with its unique experience of the helix.
To create a glider orbiter (OK) "Buran" by the Minister PV EI Dementieva on the basis of three CB (CB "Lightning" CB "Petrel" and EMZ headed Myasischev) in 1976 was established a specialized company - Scientific-Production Association "Molniya", which became the lead on the development of airframe OK "Buran". Established NGO headed G.E.Lozino-Lozinski - Managing Director and General Designer.
Despite the offer of "Lightning" to apply the scheme of the orbital plane "spiral" in the "Buran", head developer of NPO Energia insisted on using the layout, close to the American shuttle. Nevertheless, the experience of working on "Spiral" significantly facilitate and accelerate the creation Burana. In domestic practice, rocket and space technology had no analogues in the complexity of the ship equal storm: a member of the JC over 600 units of the installation of onboard equipment, skompleksirovannyh in more than 50 on-board systems, combined into a single airborne, over 1500 pipes, more than 2500 assemblies ( harnesses) cable network, comprising about 15000 electrical connectors. The main result of intensive multi-year effort is a triumph dvuhvitkovy unmanned flight Burana with automatic landing November 15, 1988.
As now designed multi-purpose light aircraft Stork-2 and Lightning, a multi-purpose aerospace system MAKS etc. Developed under the guidance of Gleb Yevgen'yevich family aircraft triplanov (on six-airplane-taxi Lightning-1 to the super triplane Hercules carrying up to 500 m) is the greatest constructional achievements in aviation and aerospace technology.


ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
551
Reaction score
83
Website
www.avicopress.ru
Hi all!
M-1000 never was MDB project.
In MDB there were some heavy lifters, main of them were M-90 (Samson, Air ferry) and M-52 - great family of heavy lifters.
M-52 - about 22 variants
M-90 - about 10 variants

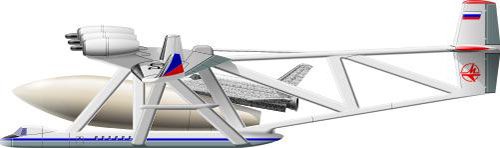

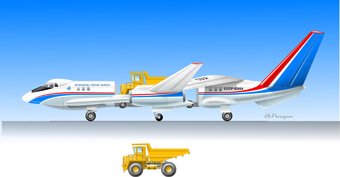

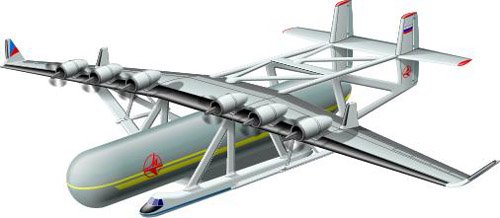

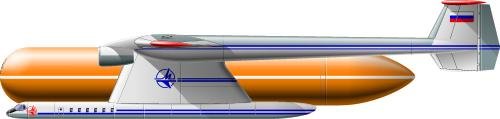

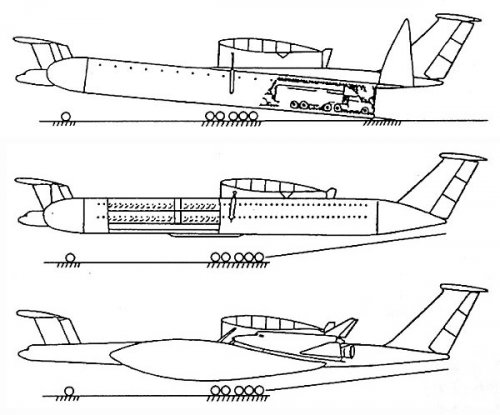

Attachments

  • M-52 variant.jpg
    M-52 variant.jpg
    62.4 KB · Views: 202
  • M-52 variant 21.jpg
    M-52 variant 21.jpg
    50.3 KB · Views: 99
  • M-90 variant.jpg
    M-90 variant.jpg
    54.9 KB · Views: 68

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458
ucon said:
M-1000 never was MDB project.

Yes, it was a Molniya project, but wasn't Molniya created on the remains of the Myasishchev design bureau, anyway?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,390
Reaction score
2,580
Hi M-90.
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Falternathistory.com%2Faviatsionnaya-sistema-mgs-mnogotselevoy-samolet-m-90okb-myasishcheva&sandbox=1
