Tupolev post 1945 civil and military transport projects

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,371
Reaction score
50
Another technology that never progressed to the series production was the Tu-156

In Flight International 23-29 May 1990 we can read:

"Aeroflot is "sure" to buy the Tu-156 airliner (a derivative of the experimental Tu-155 shown at Hannover airshow. Tupolev is manufacturing the first of 5 prototypes to be completed by 1995. The NK-89 engines will burn methane initially, but later aircraft might use hydrogen."

April 2006...still burning fossil fuel at 75$/barrel. Brilliant! :eek:


Meteorit

CLEARANCE: Secret
Joined
Jan 5, 2006
Messages
428
Reaction score
5
Yeah, I think its great shame that so little progress has been made with LNG/LH2 propulsion for aircraft.
Tupolev had several proposals for such aircaft, up to the Tu-160V strategic bomber! Below are model pictures of Tu-156 and Tu-206 (based on Tu-204).


Attachments

Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,371
Reaction score
50
Tu-160V?. Totally new for me.

Could you please post some info and pics?

Thanks a lot!


Meteorit

CLEARANCE: Secret
Joined
Jan 5, 2006
Messages
428
Reaction score
5
pometablava said:
Tu-160V?. Totally new for me.

Could you please post some info and pics?
No. ;D They don't exist in public domain, as far as I know at least, unfortunately. :(


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
Tu-160 projects discussion: http://www.secretprojects.co.uk/forum/index.php?topic=26.0


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,371
Reaction score
50
Overscan,

I'm sorry


Meteorit,

Thanks a lot for the info


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,806
Reaction score
265
They are extract from PDF or PPT presentation that's somwhere on my harddrive but lost among other 800 Gb of stuff. If I'll find it, I will send you info.


Schorsch

CLEARANCE: Restricted
Joined
Jan 17, 2006
Messages
26
Reaction score
2
Meteorit said:
Yeah, I think its great shame that so little progress has been made with LNG/LH2 propulsion for aircraft.
Tupolev had several proposals for such aircaft, up to the Tu-160V strategic bomber! Below are model pictures of Tu-156 and Tu-206 (based on Tu-204).
The Hydrogen Aircraft would not bring any environmental gain, less CO2 maybe, but that's all. The climatic effects are much more than just CO2, the net energy consumption would rise and the cost increase would be dramatic. The technical problems that have to be overcome before a passenger enters a certified hydrogen aircraft are enormuos.


Meteorit

CLEARANCE: Secret
Joined
Jan 5, 2006
Messages
428
Reaction score
5
Schorsch said:
The Hydrogen Aircraft would not bring any environmental gain, less CO2 maybe, but that's all.
Not only less CO2, but less NOx, soot, particles etc. Actually the only product would be H2O. However I do admit that at those altitudes even it is a problem, not even a small one actually.

the net energy consumption would rise and the cost increase would be dramatic.
Using current power and hydrogen production technologies, yes. But I would envision large-scale use of hydrogen with electric power from fusion power plants and so forth. However that is still quite far in the future...

The technical problems that have to be overcome before a passenger enters a certified hydrogen aircraft are enormuos.
And that's why some effort should be put into solving those problems already now. :)


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,371
Reaction score
50
Quote
The technical problems that have to be overcome before a passenger enters a certified hydrogen aircraft are enormuos.

And that's why some effort should be put into solving those problems already now
I agree, there is no future for cowards ;)


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
10
flateric said:

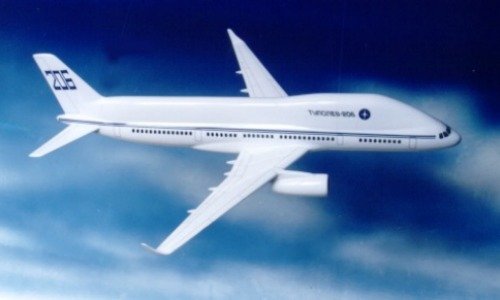

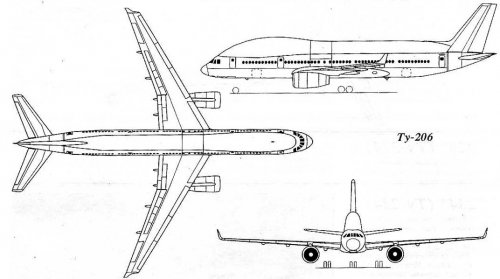

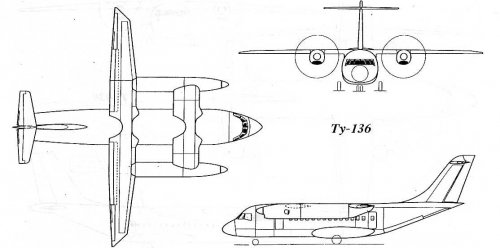

Tupolev cryogenic program overview, Tu-206 and Tu-136

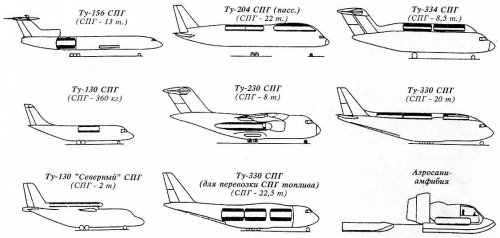

The most interesting part of your post is Tupolev-cryo.jpg, which shows profiles of the Tu-130, Tu-230 and Tu-330 transport aircraft.

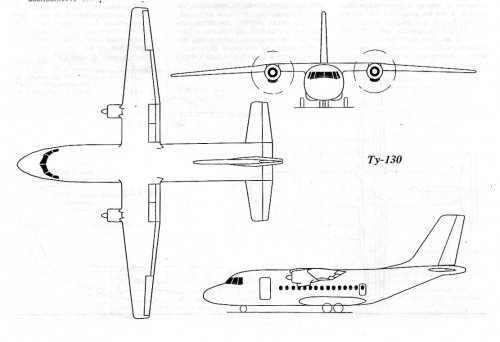

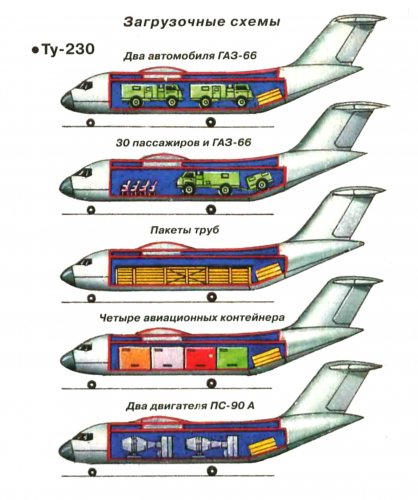

The Tu-130 is a sort of Russian CN-235, while the Tu-230 is the Tupolev equivilent to the Il-214/MTA.

Periodically, the Tu-330 is still mentioned as a replacement for the moribund An-70.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,806
Reaction score
265
While they seems quite usual I think that unusual thing behind them that they are designed by guys with average salary of 200-300 bucks per month.


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,806
Reaction score
265
BTW, GenDyn experts found that Tupolev's model shop creation design quite plausable :) I wonder what GRU analytics would conclude about, say, Monogram's Orient Express kit ;D ;D ;D


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092
Hi,


here is the Tupolev transport projects;

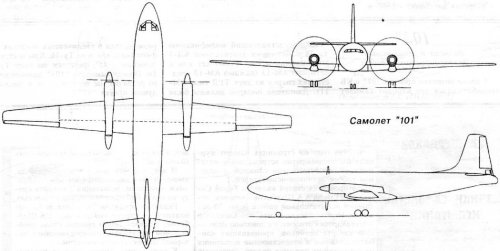

Tu-101 assault transport project.

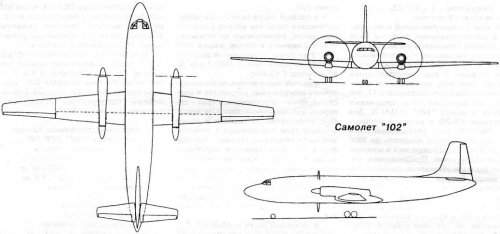

Tu-102 passenger transport twin engined aircraft project.

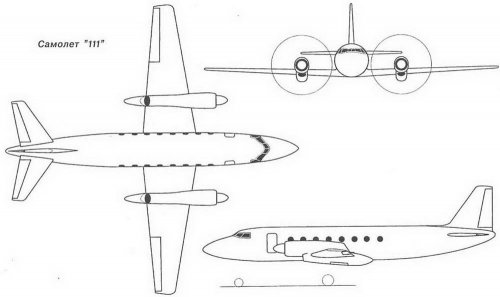

Tu-111 24-seat passenger transport project.

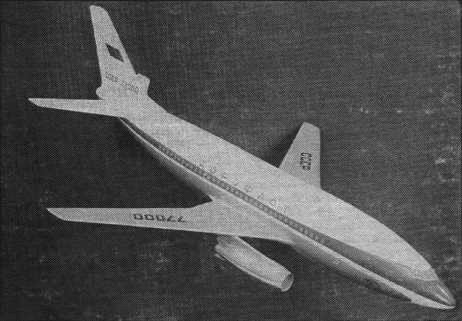

Tu-184 jet airliner project.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092

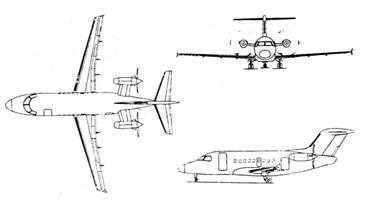

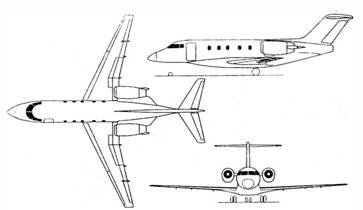

Hi,


here is some Tupolev transport and business aircraft projects;


1) Tu-20 two pusher turboprop business aircraft,designed with co-operation of
the Yakovlev company.
2) Tu-118 a turboprop version of Tu-117,as military cargo aircraft.
3) Tu-400 10-passenger business jet aircraft
4) Tu-424 30-passenger aircraft developed from Tu-414 (no drawing).


Attachments

Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
519
Reaction score
15

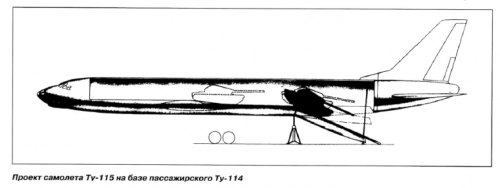

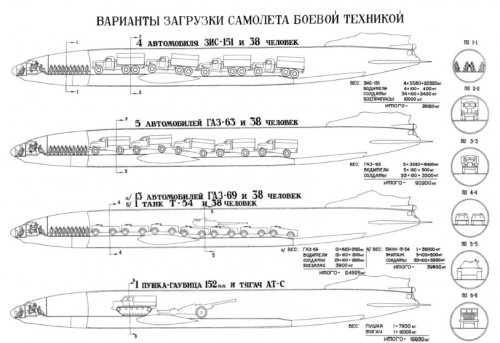

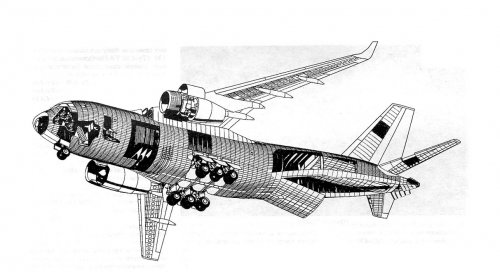

The Tupolev Tu-115 (Tu-114VTA?) was military cargo project version of Tu-114 passenger transport.
It was under consideration to fulfill the role ultimately taken on by the Antonov An-22 .

Source
Military Transport Giant - An-22 Antei by Nikolai Yakubovich (Eksmo 2013) ISBN 9785699632015


Attachments

Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
519
Reaction score
15
The above image tied in nicely with this image I have had for some time (unknown origin)...


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092

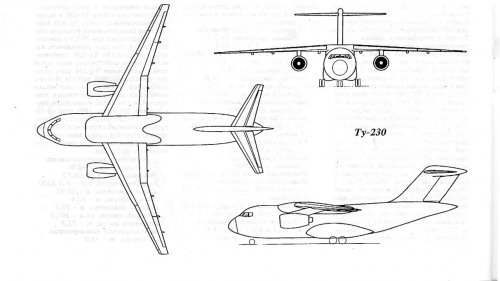

flateric said:
While they seems quite usual I think that unusual thing behind them that they are designed by guys with average salary of 200-300 bucks per month.

So weird,

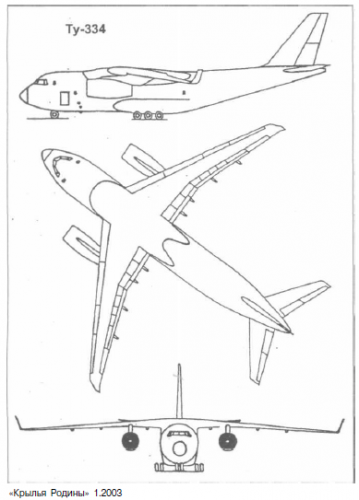

I have the same drawing from Kryl'ya Rodine 1/2003,as a Tu-334 aircraft ?!.


Attachments

flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,806
Reaction score
265

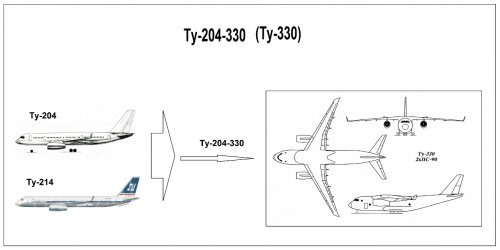

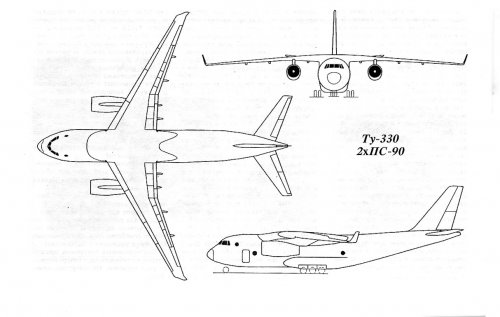

That's not weird, because this is Tu-334-100 aka Tu-330 on your drawing.
That's NOT Tu-230 which has twice as low MTOW as Tu-330.


igor-mich

CLEARANCE: Confidential
Joined
May 10, 2010
Messages
189
Reaction score
12
Обозначение [/ размер] [/ COLOR] [/ размер] Ту- [/ COLOR] [/ размер] 334 [/ COLOR] [/ размер] [/ COLOR] [/ размер] не является правильным. [/ COLOR] [ / размер] Из этого источника следует этот проект имеет обозначение Ту-204-330 (старое обозначение Ту-330). Имеет высокую степень унификации конструкции (75%) с семьей Ту-204/214. [/ COLOR]


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092
Thank you my dears Flateric and Igor.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
221
Website
deeptowild.blogspot.com

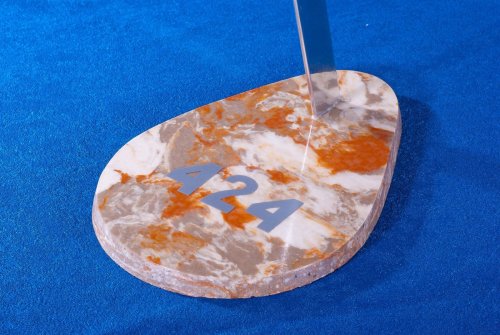

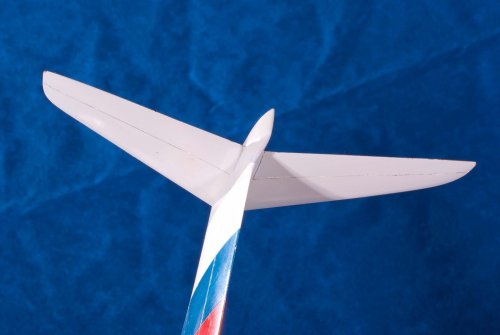

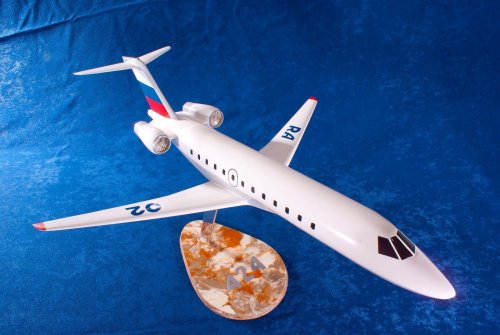

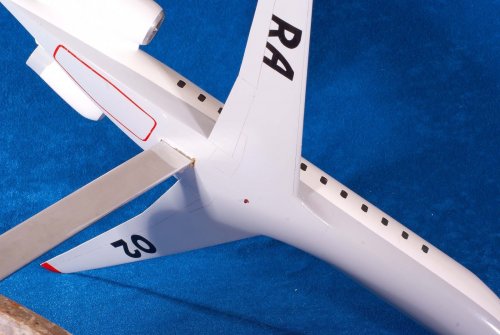

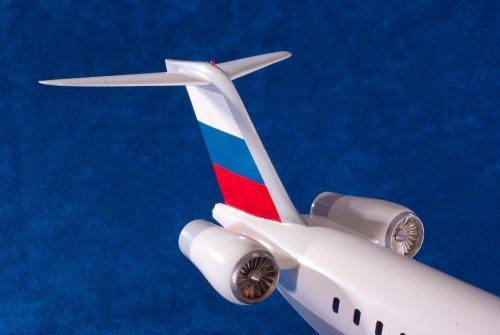

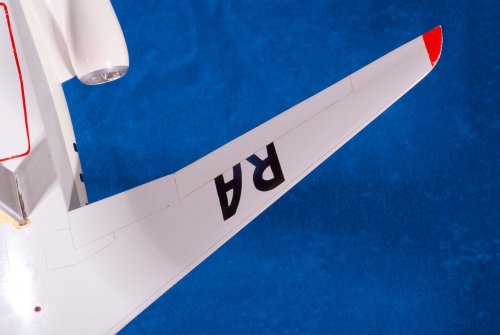

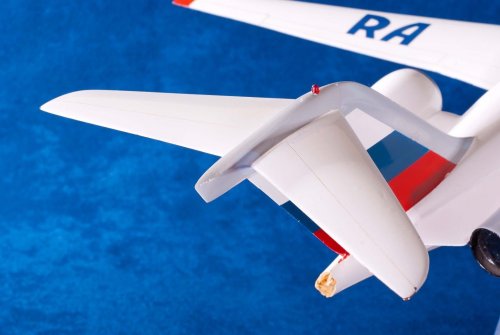

Model of Tupolev Tu-424 found on eBay. Real?

According to the inscription is probably the TU-424
TU-424 is the next upgrading TU-324 and TU-414.
All of these aircraft did not go into a series (not produced).
TU-324 was established a working layout.
Source:
http://www.ebay.com/itm/rare-TU-424-model-plane-TU-414-TU-324-TU-134-TU-144-TU-154-/111658967546?hash=item19ff64a1fa


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092

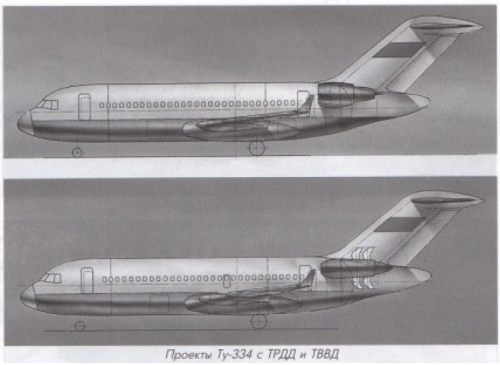

From Авиация и космонавтика 3/2009,

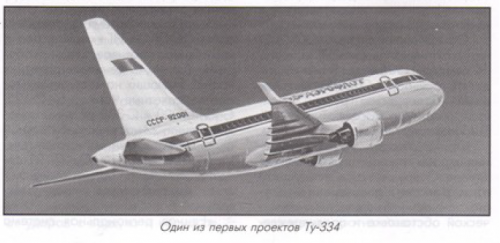

here is a Tupolev Tu-334 Projects.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092
Hi,

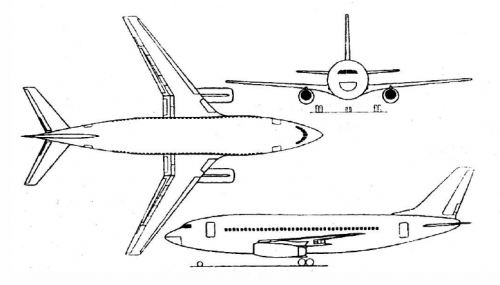

the Tu-164 (First allocated) was a Tu-134 with a new fuselage airliner Project of 1967,powered by
two D-30 engines.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092
hesham said:
Hi,

the Tu-164 (First allocated) was a Tu-134 with a new fuselage airliner Project of 1967,powered by
two D-30 engines.
Here it's.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092
Hi,

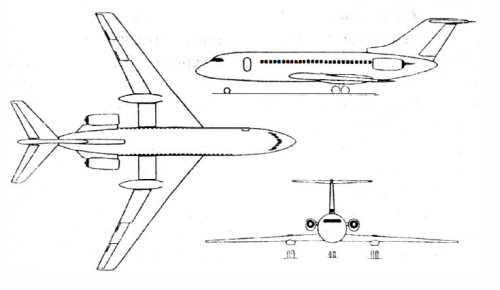

here is a 3-view to early Tu-164 and Tu-184.


Attachments

Caravellarella

CLEARANCE: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,026
Reaction score
122
Is this "TU-164" effectively a shortened TU-154 fuselage with the wings/empennage/engines of a TU-134?

Terry (Caravellarella)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092
Caravellarella said:
Is this "TU-164" effectively a shortened TU-154 fuselage with the wings/empennage/engines of a TU-134?

Terry (Caravellarella)
No my dear Caravellarella,

it was developed in 1960s from Tu-134,and there is no relationship between the recently Tu-154.


redstar72

Soviet Aviation enthusiast
Joined
Jun 7, 2009
Messages
518
Reaction score
19
Caravellarella said:
Is this "TU-164" effectively a shortened TU-154 fuselage with the wings/empennage/engines of a TU-134?
No (while it would be practical, I think). Tu-164 project had fuselage diameter 3.3 m, while Tu-154 had 3.8 m (Tu-134 - 2.9 m).


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,372
Reaction score
226
'Unflown Wings' has a relatively large entry on the Tu-164.
To paraphrase; began mid-1960s as a 'small' airbus based on Tu-134 with two D-30 turbofans with a wide 3.3m fuselage for 83-93 passengers. Routes were to be 1-3,000km. Specs are given for the 1968 version.
By the early 1970s the Tu-164 became a Tu-134M airbus with three D-30 Srs 2 (later Srs 3) for 125-152 passengers over 1,700km. Used Tu-154 fuselage (3.8m) married to Tu-134A wings of greater area with leading edge root extensions and improved high-lift devices.
Then it evolved again into a 120-130 seat (80 in a 'destretched' version) twin-engine design with a range of 1,700km (500-700km for 80-seat version). It retained high commonality with Tu-134 and was planned to fly it in 1974 and begin production in 1975. By then was in parallel with Tu-184 studies.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092
Hi,

there was two Tu-184 and two Tu-194,Tu-184/I was a twin engined airliner with 140-160 passenger
of early 1970sand powered by with two D-30KP engines,Tu-184/II was a three engined airliner of late
1970s,with 200-220 seat,powered by three D-18 engines.

The Tu-194 twin engined airliner for 116 passenger of 1973,and powered by two D-30A engine,and
the Tu-194 three engined airliner,powered by three D-18 engines.


TSARb

CLEARANCE: Restricted
Joined
Mar 8, 2011
Messages
4
Reaction score
0
Some projects:

Low Boom SSBJ

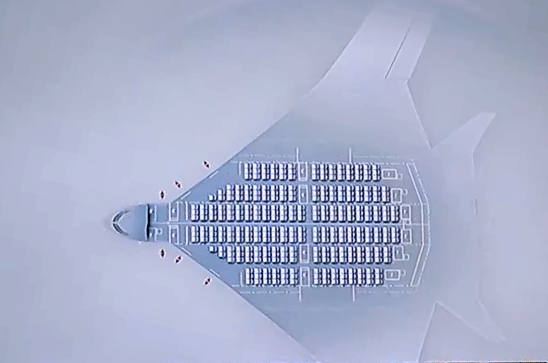

330-seat BWB passenger jet.

via UAC https://www.facebook.com/UAC.RUSSIA/videos/1526905047324739


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,337
Reaction score
1,092
Wow,great find,welcome aboard TSARb.


FighterJock

CLEARANCE: Top Secret
Joined
Oct 29, 2007
Messages
1,078
Reaction score
34
I like the Tupolev Blended Winged Body passenger jet design. Let's hope that Tupolev get the funding to build it. B)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,090
Reaction score
446

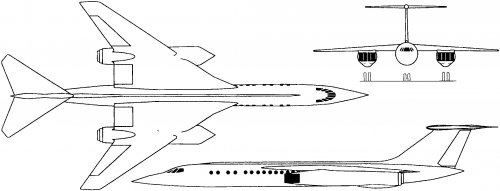

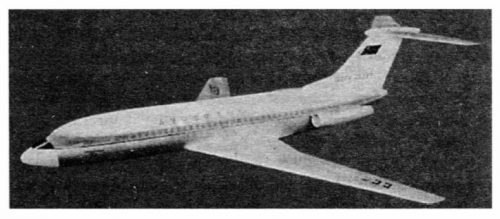

Hi! Tu-134 SST. (Sorry perhaps it's not a military transport.)

http://aviadejavu.ru/Site/Arts/Art2725.htm

Model pictures by Triton-san.
http://www.secretprojects.co.uk/forum/index.php/topic,3126.30.html

"This early 60-s project aircraft was under development in department of S.Eger in OKB Tupolev.Based on bomber project Tu-106 with two NK6 engines."

Tu-106.
http://www.secretprojects.co.uk/forum/index.php/topic,850.msg299778.html#msg299778


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,090
Reaction score
446

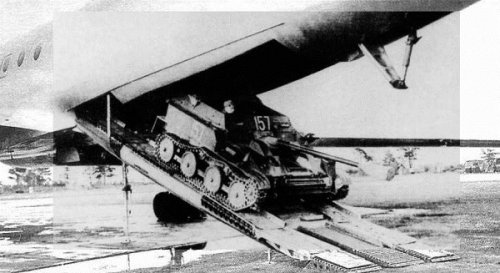

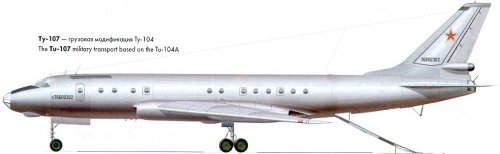

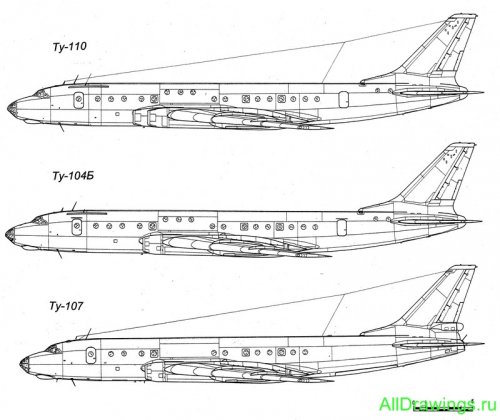

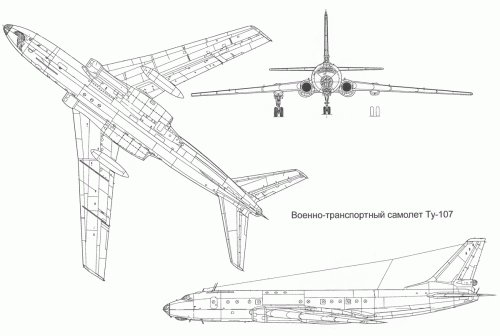

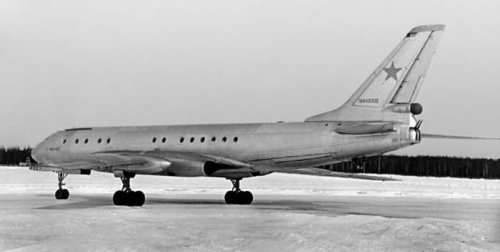

Hi! Tu-107.

http://alldrawings.ru/risunki/item/%D1%82%D1%83%D0%BF%D0%BE%D0%BB%D0%B5%D0%B2-%D1%82%D1%83-104-%D1%87%D0%B5%D1%80%D1%82%D0%B5%D0%B6%D0%B8-%D1%80%D0%B8%D1%81%D1%83%D0%BD%D0%BA%D0%B8-%D1%81%D0%B0%D0%BC%D0%BE%D0%BB%D0%B5%D1%82%D0%B0

Wikipedia.
https://en.wikipedia.org/wiki/Tupolev_Tu-107
"The Tupolev Tu-107 was a prototype Soviet military transport aircraft developed from the Tupolev Tu-104. It featured a rear ramp loading door and was intended to carry light vehicles, artillery pieces, or up to 70 paratroopers. The fuselage was unpressurized, which meant that passengers would have to use oxygen masks. A single prototype was built and flown, but the aircraft was not put in production."

http://wp.scn.ru/en/ww4/f/727/1/0

http://www.airwar.ru/enc/craft/tu107.html

https://www.youtube.com/watch?v=LXdo5QF-ERo


Attachments
