Tupolev Tu-135

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,087
Reaction score
457
It's a version of the Tupolev Tu-135 strategic bomber project, the "flying wing" project of 1960 :

-Span : 34,8 m
-Length : 50,7 m
-wing area : 417 m²
-max weight : 175 to 205 tons
-powerplant : 4 x 19 600 kn with reheat
-max speed : 3 000 km/h
-armament : 1 x cruise missile or various other stores
-other Tu-135 projects had a range from 7 850 to 8 300 km at 22 500 m

(source : Soviet secret projects : bombers since 1945 (Buttler/Gordon); p.134, 135, 136 and 143)


JJC

ACCESS: Restricted
Joined
May 2, 2009
Messages
27
Reaction score
1

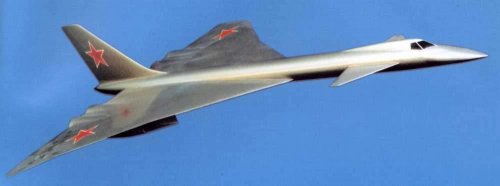

is this the same?


Attachments

  • rusky secret plane.jpg
    rusky secret plane.jpg
    50.8 KB · Views: 699

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125

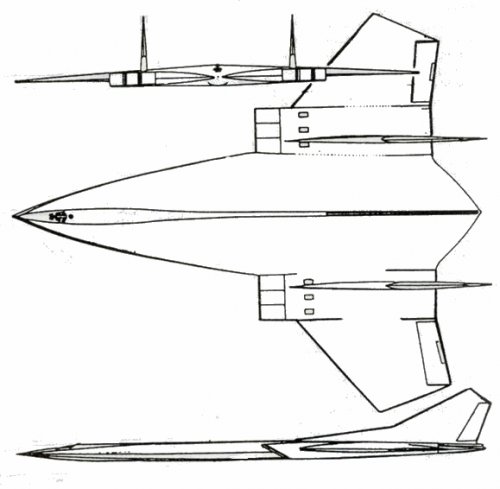

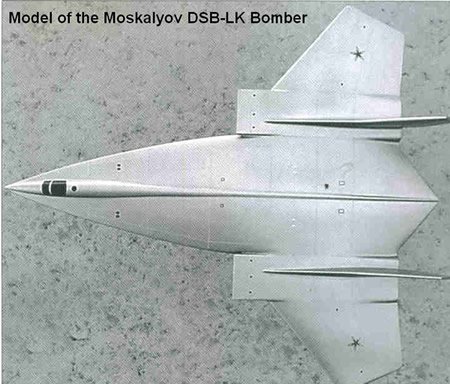

This is a draft long-range strategic bomber (on a flying wing shem's) DSB LK by A.S.Moskalyov
/ 1957-1960 /
____________________________________________

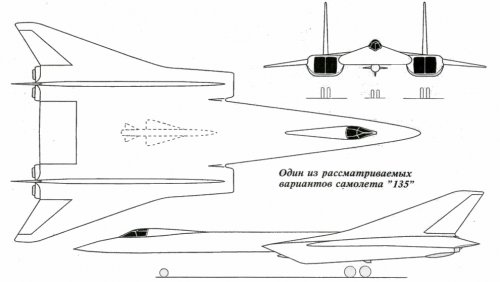

One of the iterations of the aircraft "135" OKB-156 Tupolev / 1960 /

Compare yourself ;)
Source of illustrations: "Aviation & Cosmonautic" 11/1999
"Bastion. Vol-1"


Attachments

  • Moskalyov DSB LK.jpg
    Moskalyov DSB LK.jpg
    74.3 KB · Views: 637
  • Tu-135 (4 NK-6) variant.jpg
    Tu-135 (4 NK-6) variant.jpg
    113.6 KB · Views: 660

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,003
Reaction score
688

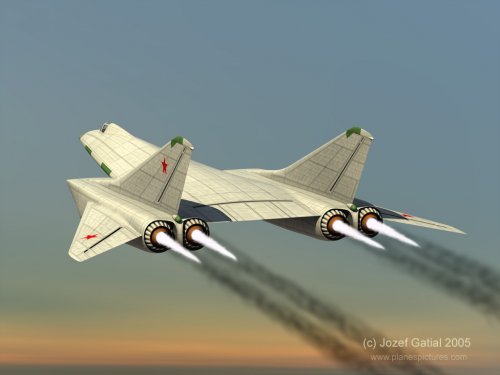

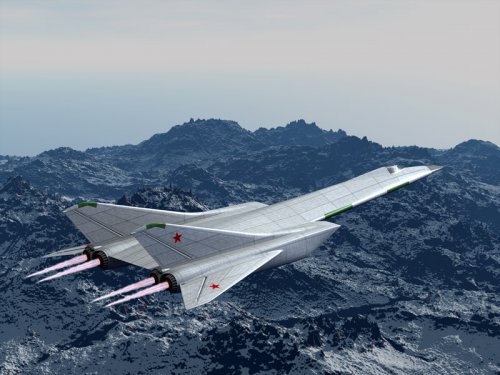

I've done on Tu-135 3D model small errors and I will need at first to fix them and reexport full model again to be fully satisfied with it. Two old (2005) not published pictures


Attachments

  • Tu-135_x1.jpg
    82.1 KB · Views: 816
  • Tu-135_x2.jpg
    165 KB · Views: 448

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,984
Hi Jozef! Wonderful bomber and excellent work!


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,749
Reaction score
455
Outstanding artwork Jozef, anyway this bird seems like a russian intrepretation of the A12/SR-71 family.....


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,918
Reaction score
290
An A-12/SR-71 on Steroids

Regards
Pioneer


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
It seems I can never find two Tu-135 projects that are the same... Here is yet another configuration that was studied:


Attachments

  • Tu-135.jpg
    38.7 KB · Views: 103
