Tupolev Tu-135

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985

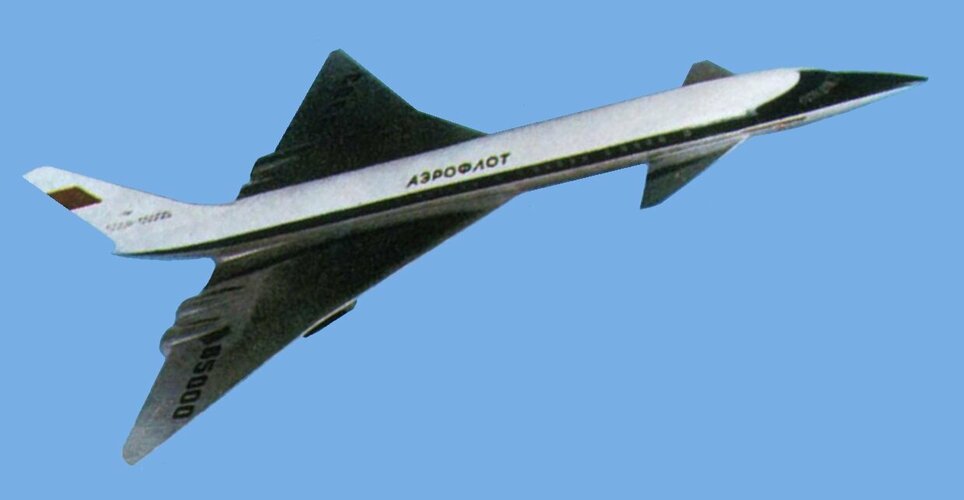

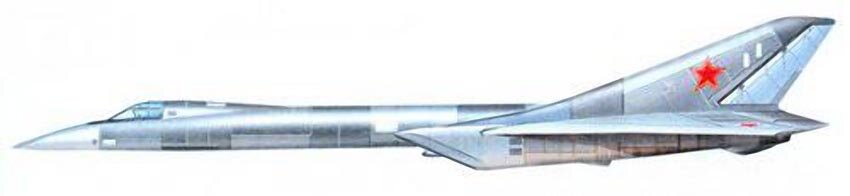

Attachments

  • 1.jpg
    109.4 KB · Views: 250
  • 2.jpg
    117.3 KB · Views: 163
  • 3.jpg
    102.5 KB · Views: 157
  • scale_2400.jpg
    39.1 KB · Views: 161
  • tu135-c1.jpg
    23.3 KB · Views: 158
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985
https://itexts.net/avtor-neizvesten...ika-2005-04-avtor-neizvesten/read/page-1.html

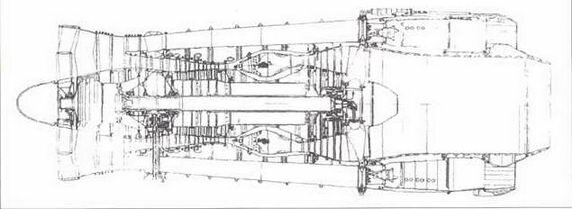

"For the propulsion system of the aircraft "135" the following types of engines were considered:
NK-6 (maximum take-off thrust - 23,000- 23,500 kg, specific fuel consumption on the cruising supersonic jet - 1.5-1.7 kg/kg.h);
NK-6B 22,480 kgs; 1.5-1.75 kg/kg);
?NK-6B 118700 kgs; 1.7-1.9 kg/kg.h);
?NK-6C 122500 kgs; 1.6-1.7 kg/kg;
NK-10 24,000 kgs; 1.4-1.6 kg/kg.h);
P15B-300 15,000 kgs; 1.8 kg/kg/kgch);
P23-300 21,000 kgs; 1.6-1.75 kg/kgs-h);
VD-19R 13,500 kgs; 2.0-2.5 kg/kg-h);
P17-117 17,000 kgs; 1.7-1.1.8 kg /kgs-h).
The number of engines, depending on the parameters of the particular engine and the aircraft project, varied from four to six."


Attachments

  • NK-6 engine.jpg
    NK-6 engine.jpg
    24 KB · Views: 160
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985

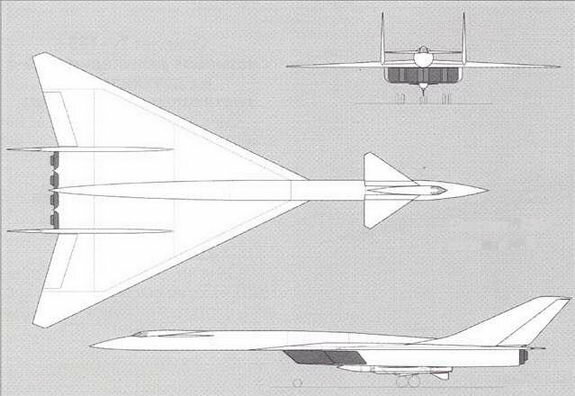

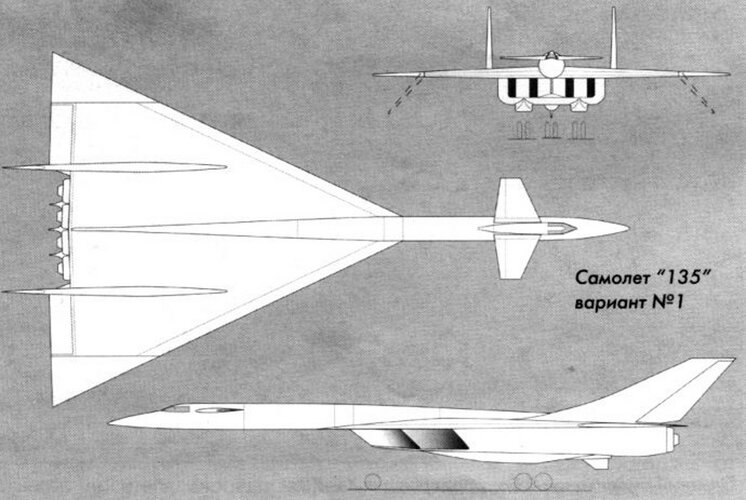

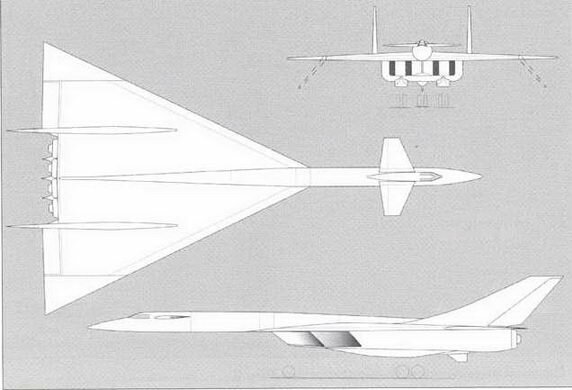

Option number 1
Aircraft "135" with the central location of engines
This variant almost completely repeats the scheme of the American aircraft B-70.
The "duck" scheme, triangular wing with arrow-shaped at the front edge - 65 degrees, console wing endings, deflected in flight, two-keel vertical plumage, four NK-6 engines (maximum take-off thrust of each 23,000 kgs) in the general package in the tail part of the aircraft.
Air intakes are multi-mode separate with a vertical wedge. The armament in the variant of the missile carrier is one X-22 missile.
Preliminary data on this project were as follows:
Wingspan : 28.00m, Fuselage length : 46.80m, Height of the plane in the parking lot : 10.00m, wing area : 380sq.m
take-off weight : 190,000kg, cruising speed : 2500km/h, practical range at 2500 km/h : 7950km.
flight altitude over the target : 22500m


Attachments

  • Aircraft135 option No1.jpg
    Aircraft135 option No1.jpg
    31.1 KB · Views: 133

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985

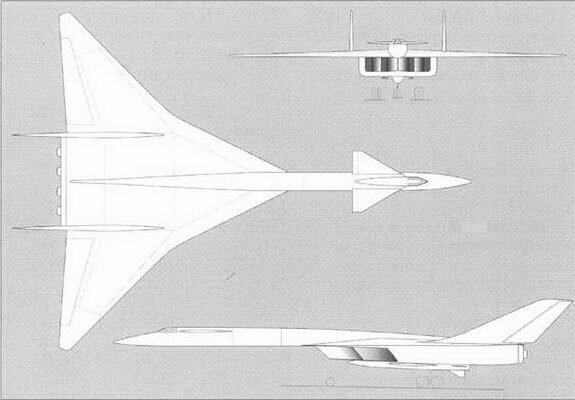

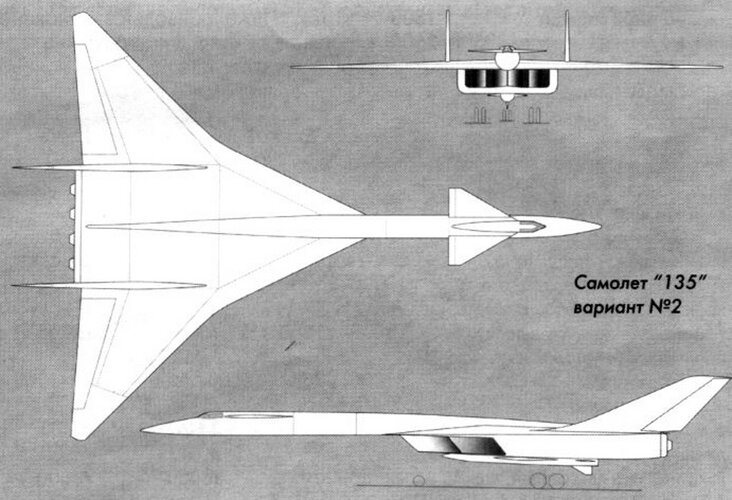

Airplane "135" with a central arrangement of engines (option No. 2)
Modification of the scheme of option No. 1.
The shape of the wing in the plan has been changed, the sweep shape of the cantilever parts of the wing has been reduced to 45 degrees, the shape in the plan has been changed.
The preliminary data for this project were as follows
wingspan : 35.50m, fuselage length : 43.80m, aircraft height in the parking lot : 9.80m, wing area : 380m2
takeoff weight : 188000kg, cruising speed : 2500km / h
practical flight range at a speed of 2500 km / h : 7850km, Flight altitude over the target : 22700m. takeoff run : 1800m


Attachments

  • Aircraft 135 option No2.jpg
    Aircraft 135 option No2.jpg
    32.6 KB · Views: 95

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985

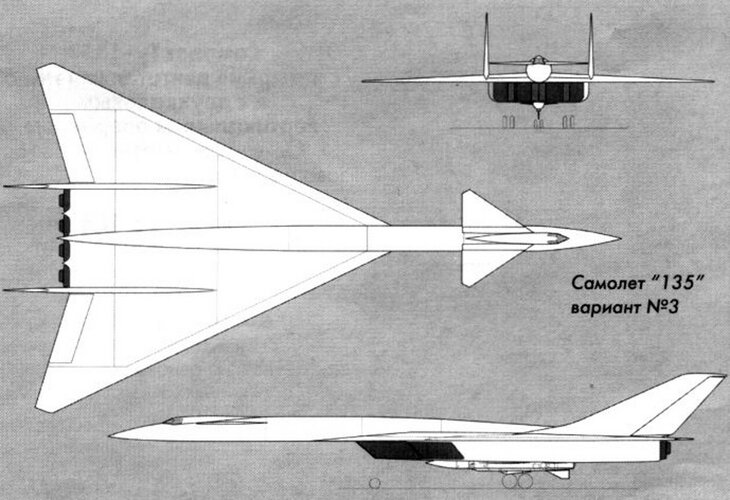

Airplane "135" with a central arrangement of engines (Option No. 3)
Modification of the scheme of option No. 1.
The shape of the wing in the plan and the shape in the plan of the PGO have been changed.
The preliminary data for this project were as follows
wingspan : 28.00m, fuselage length : 44.80m, aircraft height in the parking lot : 9.40m, wing area : 380m2
takeoff weight : 188000kg, cruising speed : 2500km / h
practical flight range at a speed of 2500 km / h : 8300km, flight altitude over the target : 22700m, take-off run : 2300m


Attachments

  • Aircraft 135 option number 3.jpg
    Aircraft 135 option number 3.jpg
    38.8 KB · Views: 112

youROKer

ACCESS: Confidential
Joined
May 15, 2013
Messages
54
Reaction score
75
Hmm, is it okay to post pirated content? As far as I know, the book "Стратегический бомбардировщик-ракетоносец Ту-160" was not available for free access? Correct if I'm wrong?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985
Hi!

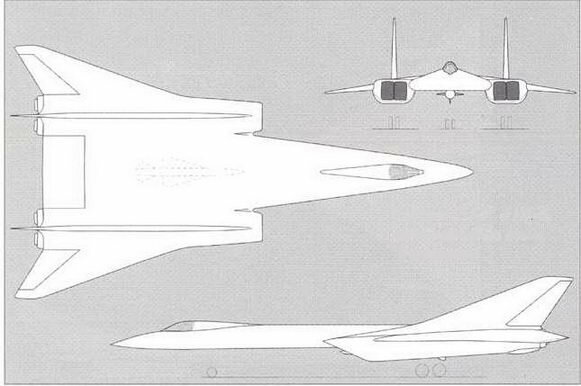

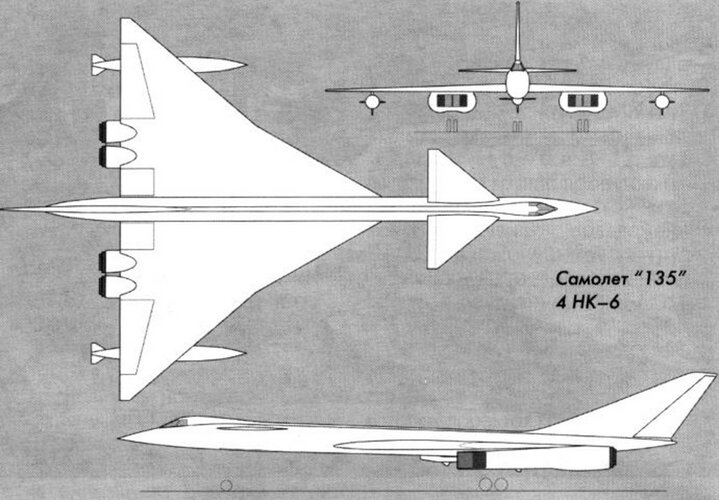

Aircraft "135" with four NK-6 engines under the wing and without horizontal tail stabilizer.
The overall layout resembles American A-12. The NK-6 engines stood in pairs in two nacelles.
The fuselage sweep back angle is 80 degrees and the wing sweep back angle are 70 degrees.
The armament in the variant of the missile carrier is one X-52 missile.
Preliminary data on this project were as follows
Wingspan : 27.00m, Fuselage length : 54.60m, Height of the plane in the parking lot : 10.50m,
Wing area : 490sq.m, take-off weight : 190,000kg, cruising speed : 2500km/h
practical range at 2500 km/h : 7900km, flight altitude over the target : 23500m,
length of takeoff : 2300m


Attachments

  • Aircraft 135 four NK-6 engines tailless shape.jpg
    Aircraft 135 four NK-6 engines tailless shape.jpg
    33.7 KB · Views: 94

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,003
Reaction score
688
Hi!
Aircraft "135" with four NK-6 engines under the wing and without horizontal tail stabilizer.
The overall layout resembles American A-12. The NK-6 engines stood in pairs in two nacelles.
The fuselage sweep back angle is 80 degrees and the wing sweep back angle are 70 degrees.
The armament in the variant of the missile carrier is one X-52 missile.
Preliminary data on this project were as follows
Wingspan : 27.00m, Fuselage length : 54.60m, Height of the plane in the parking lot : 10.50m,
Wing area : 490sq.m, take-off weight : 190,000kg, cruising speed : 2500km/h
practical range at 2500 km/h : 7900km, flight altitude over the target : 23500m,
length of takeoff : 2300m

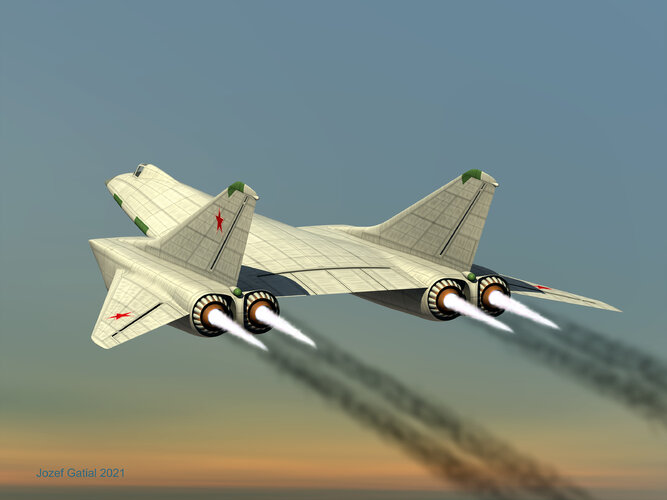

one old scene


Attachments

  • Tu-135_sc1.jpg
    1.6 MB · Views: 104

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,003
Reaction score
688
Hi!
Aircraft "135" with four NK-6 engines under the wing and without horizontal tail stabilizer.
The overall layout resembles American A-12. The NK-6 engines stood in pairs in two nacelles.
The fuselage sweep back angle is 80 degrees and the wing sweep back angle are 70 degrees.
The armament in the variant of the missile carrier is one X-52 missile.
Preliminary data on this project were as follows
Wingspan : 27.00m, Fuselage length : 54.60m, Height of the plane in the parking lot : 10.50m,
Wing area : 490sq.m, take-off weight : 190,000kg, cruising speed : 2500km/h
practical range at 2500 km/h : 7900km, flight altitude over the target : 23500m,
length of takeoff : 2300m

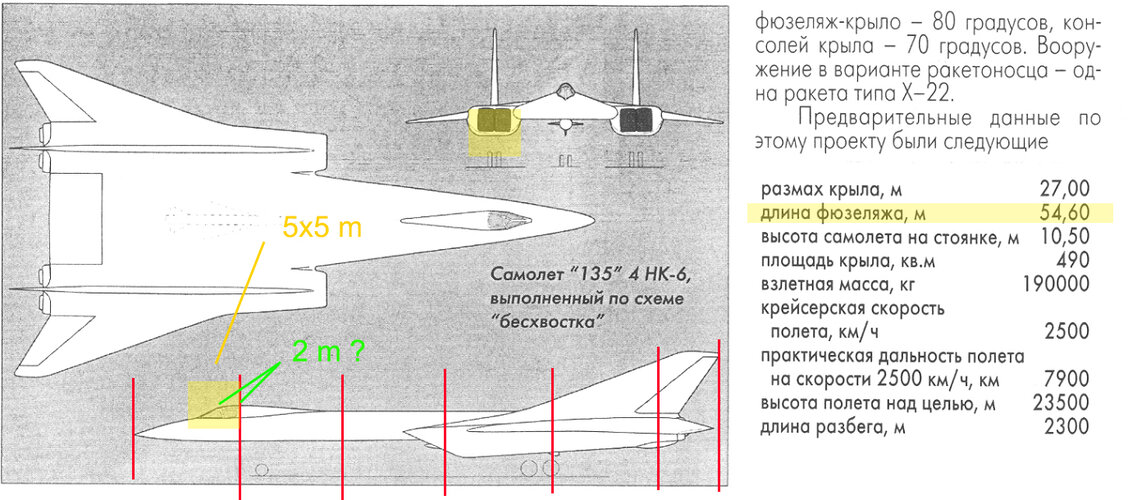

I think length of this Tu-135 version 54.6 m is wrong. On attached picture yellow square has size 5x5 meters. Length of glazes cockpit 4 meters? No


Attachments

  • Tu-135 length.jpg
    Tu-135 length.jpg
    511.7 KB · Views: 117

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,003
Reaction score
688
Hi!
Aircraft "135" with four NK-6 engines under the wing and without horizontal tail stabilizer.
The overall layout resembles American A-12. The NK-6 engines stood in pairs in two nacelles.
The fuselage sweep back angle is 80 degrees and the wing sweep back angle are 70 degrees.
The armament in the variant of the missile carrier is one X-52 missile.
Preliminary data on this project were as follows
Wingspan : 27.00m, Fuselage length : 54.60m, Height of the plane in the parking lot : 10.50m,
Wing area : 490sq.m, take-off weight : 190,000kg, cruising speed : 2500km/h
practical range at 2500 km/h : 7900km, flight altitude over the target : 23500m,
length of takeoff : 2300m

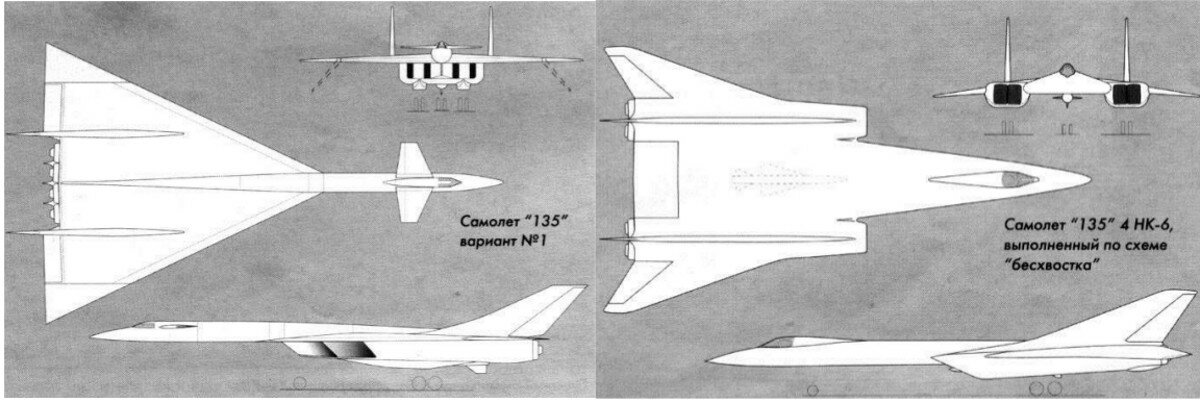

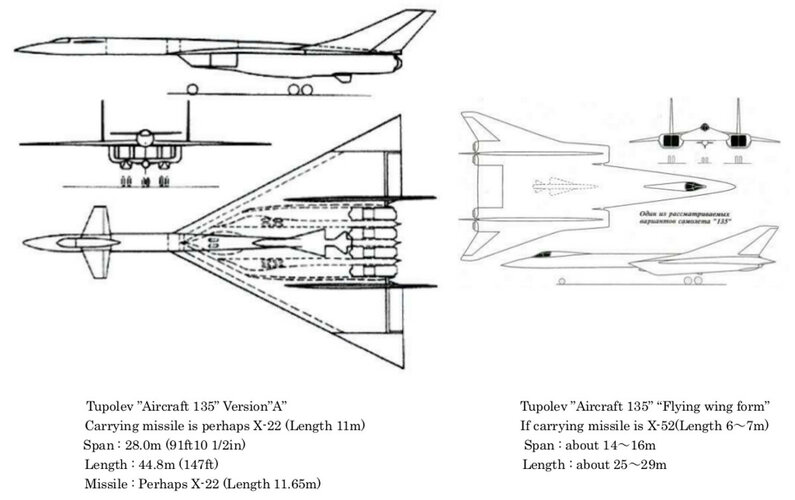

I think length of this Tu-135 version 54.6 m is wrong. On attached picture yellow square has size 5x5 meters. Length of glazes cockpit 4 meters? No

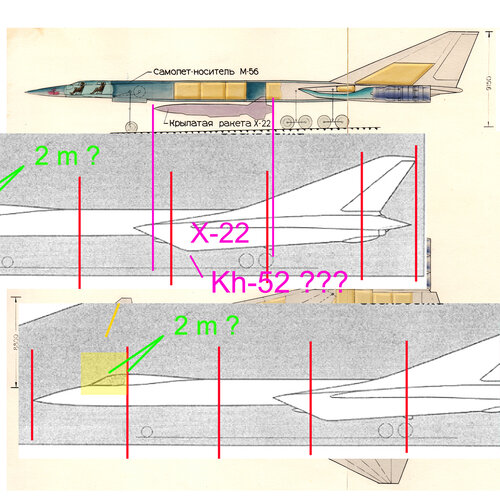

There are two sources on missile under this Tu-135 version - X-22 and X-52 (Kh-52). Size of first one is near to 11 m, second one 6-7 m. On attached picture is drawing of one version of M-56 with length near 44 m with X-22 missiles. When we suppose under Tu-135 is the same missile then really size of Tu-135 could be 54 m. But when we compare cockpits on both planes then it is clear that cockpit for Tu-135 is extremely huge for plane of that size. My tip for Tu-135 length is 33-37 meters
Flateric, can you help us?


Attachments

  • M-56 Tu-135 X-22 size.jpg
    M-56 Tu-135 X-22 size.jpg
    3.3 MB · Views: 117

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985
Hi!

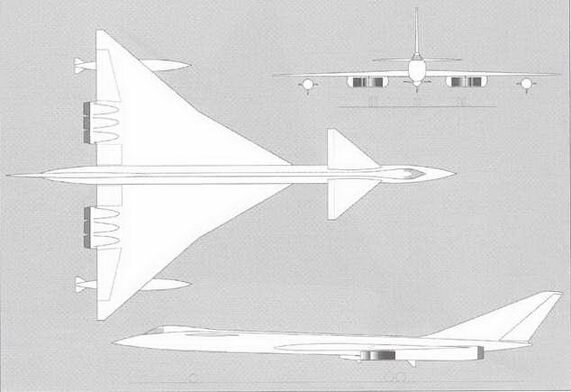

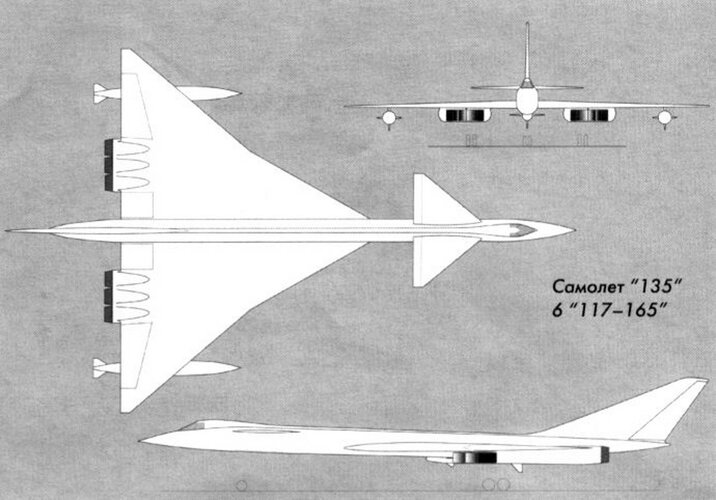

Tu-135 aircraft with six engines "117-165" or P15BF-300
The engines were placed three in two packages under the wing.
Key project data
Wingspan : 34.80m, Fuselage length : 50.70m, height of aircraft in the parking lot : 10.70m
takeoff weight : normal 175,000kg, reloading : 230,000kg
fuel tanks : 20600kg
cruising flight speed : 2650 km/h
range at 2650 km/h : 7600km
range at 920km/h : 5300km
flight altitude over target : 23500m
length run normal variant : 1800-2000m, overload option (with accelerators) : 2500-3000m


Attachments

  • Aircraft 135 6 117 165.jpg
    Aircraft 135 6 117 165.jpg
    28.1 KB · Views: 88

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,661
Reaction score
4,262

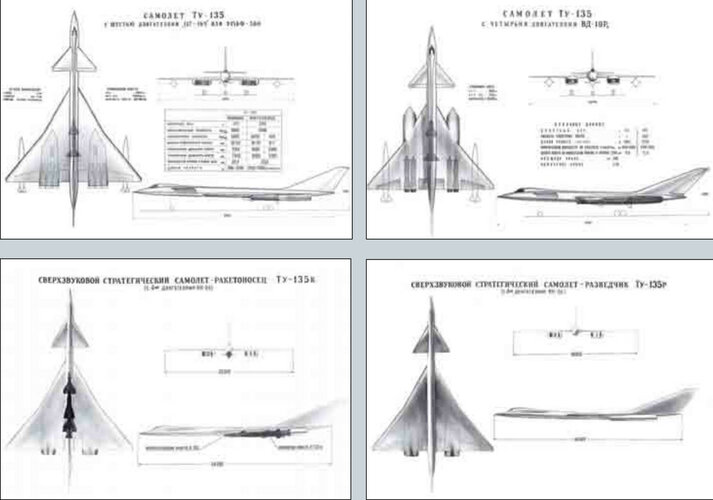

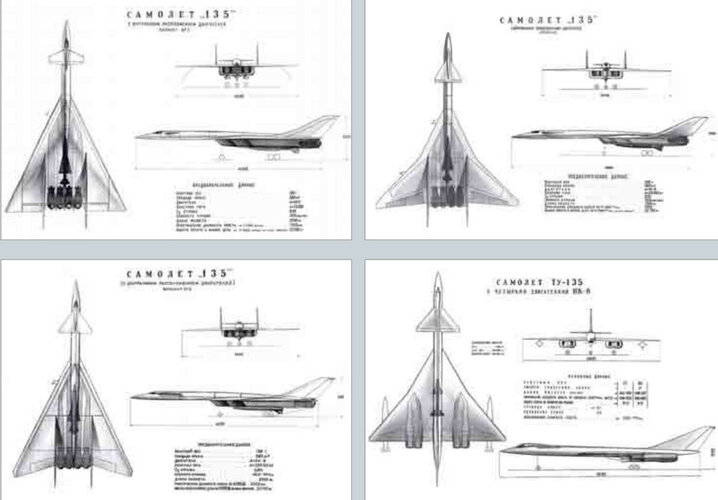

There's no need to guess, original Tupolev drawings are in the Rigmant Tu-160 book published by Polygon (the pics 1,2,3.jpg posted by Blackkite above are from there). This confirms the length is 54.6m for this version.

I've removed the PDF copy of this recent book posted by blackkite above. DO NOT post entire books here and especially don't upload to forum. This is a serious rules infraction and has resulted in a 7 day ban.

Last edited:

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,003
Reaction score
688
And what from book is picture "Tupolev 135"? Under the scheme of the Tu-135 "Flying wing form" is its length of 25-29 meters?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985

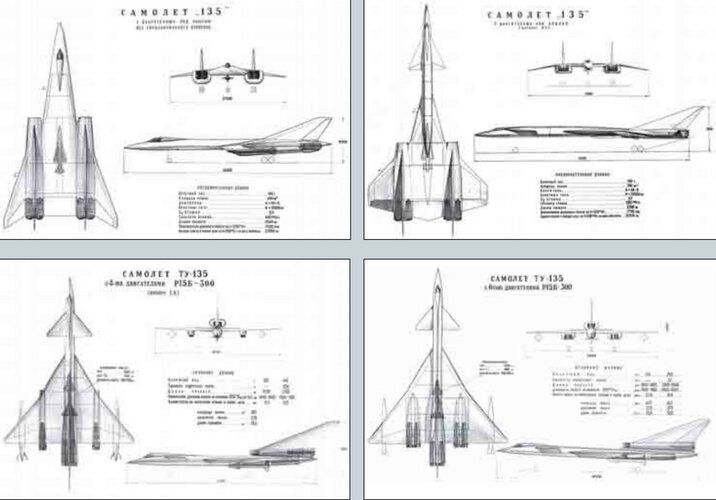

Attachments

  • Aircraft 135 version No.1.jpg
    Aircraft 135 version No.1.jpg
    173.3 KB · Views: 25
  • Aircraft 135 version No.2.jpg
    Aircraft 135 version No.2.jpg
    189 KB · Views: 24
  • Aircraft 135 version No.3.jpg
    Aircraft 135 version No.3.jpg
    187 KB · Views: 24
  • Aircraft 135 4× NK-6 engines.jpg
    Aircraft 135 4× NK-6 engines.jpg
    186.7 KB · Views: 19

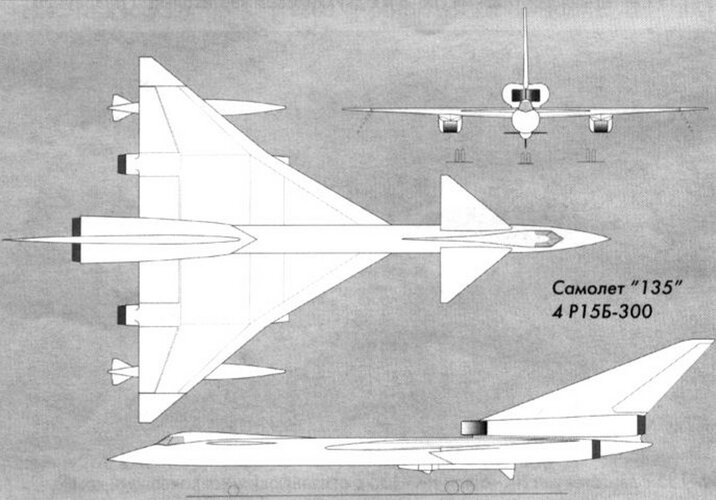

  • Aircraft 135 4× P15B-300 engines.jpg
    Aircraft 135 4× P15B-300 engines.jpg
    152.5 KB · Views: 19

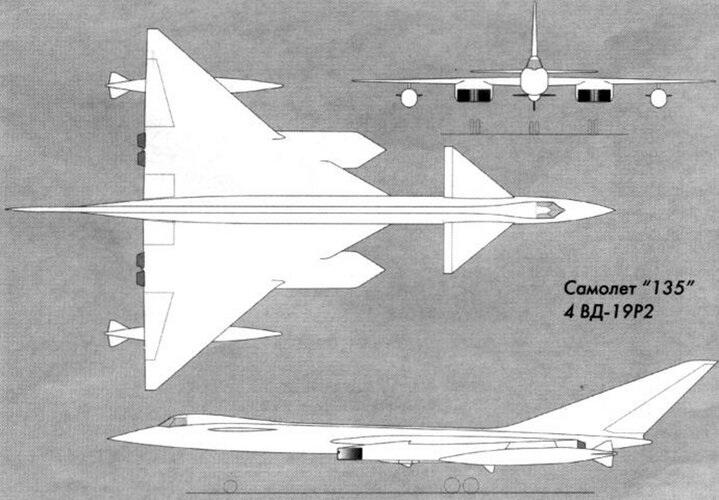

  • Aircraft 135 4× VD-19R2 engines.jpg
    Aircraft 135 4× VD-19R2 engines.jpg
    185.8 KB · Views: 19

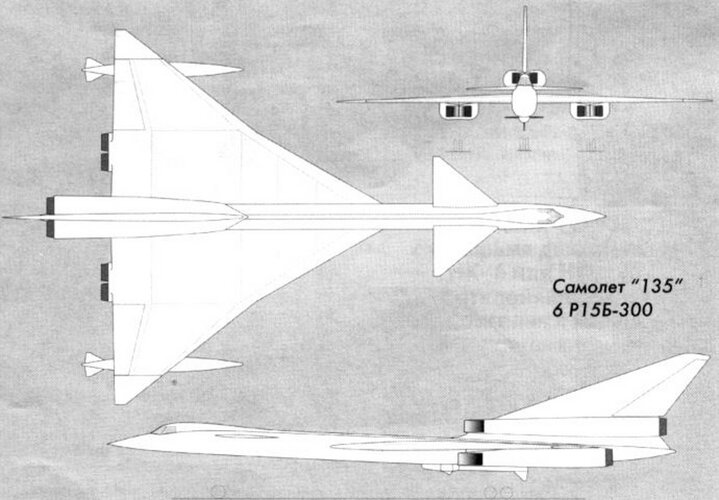

  • Aircraft 135 6 ×P15B-300 engines.jpg
    Aircraft 135 6 ×P15B-300 engines.jpg
    152.4 KB · Views: 19
  • Aircraft 135 6× 117-165 engines.jpg
    Aircraft 135 6× 117-165 engines.jpg
    162.7 KB · Views: 29

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985

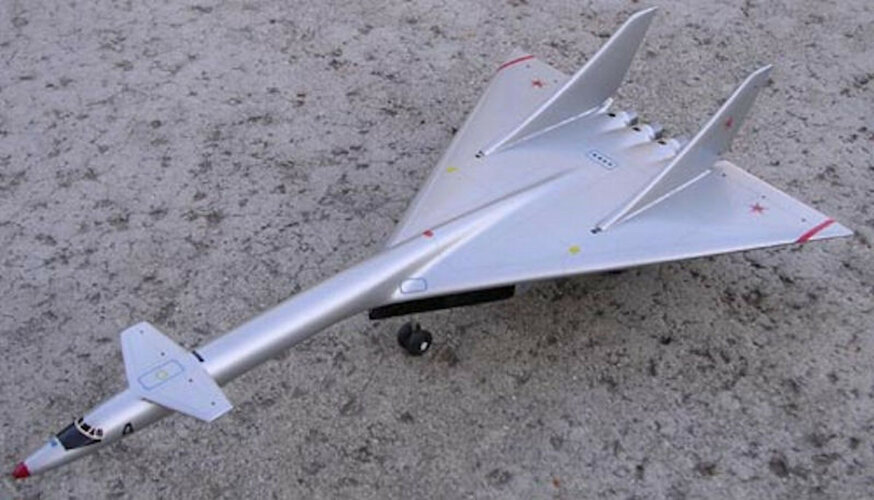

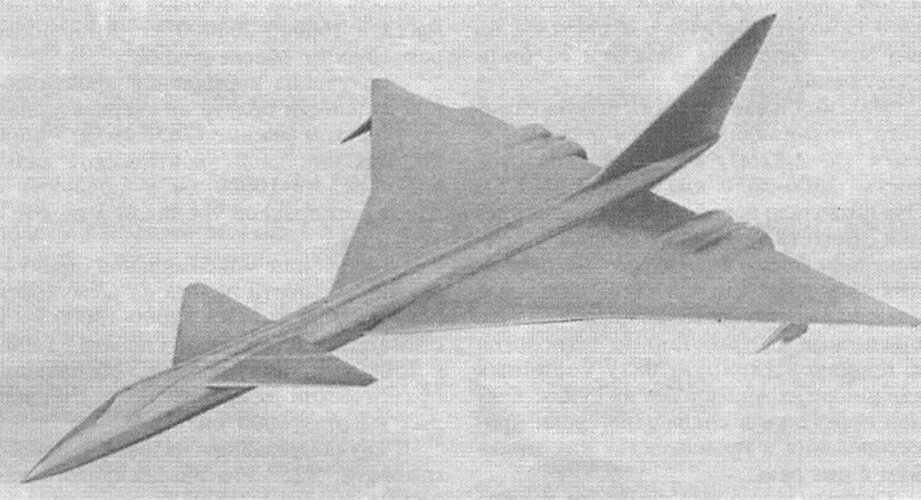

Hi!


Attachments

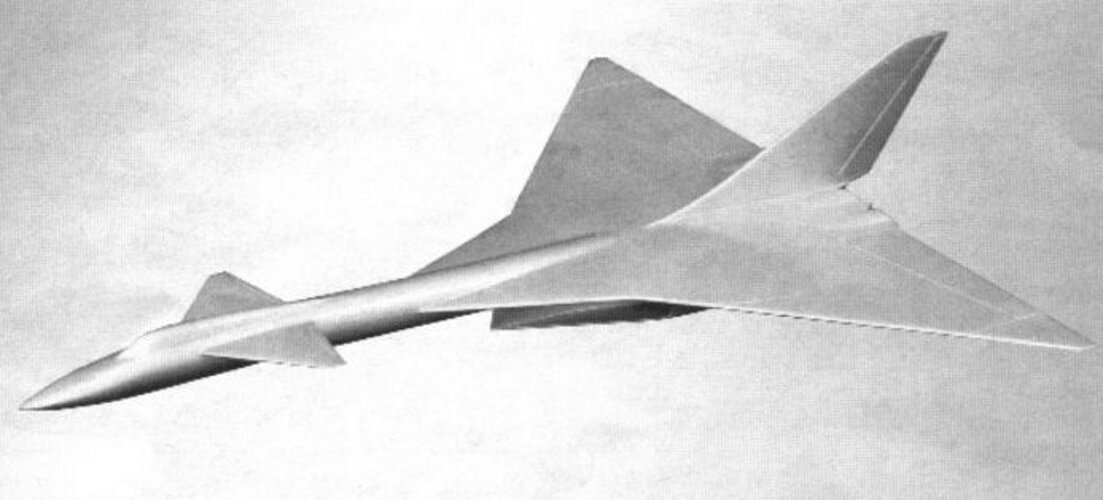

  • Model of Another Aircraft 135 with four NK-6 engines.jpg
    Model of Another Aircraft 135 with four NK-6 engines.jpg
    144.4 KB · Views: 14

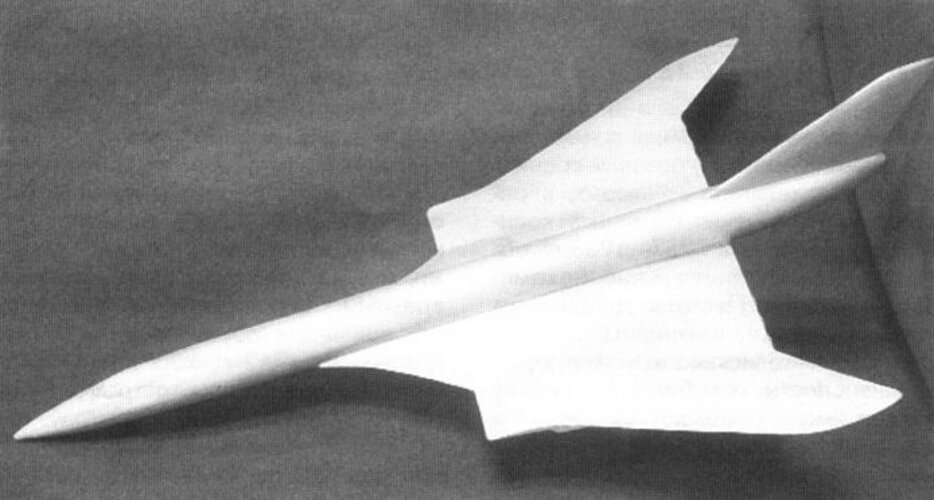

  • Model of one of the variants of the Tu-135 aircraft.jpg
    Model of one of the variants of the Tu-135 aircraft.jpg
    110.4 KB · Views: 16

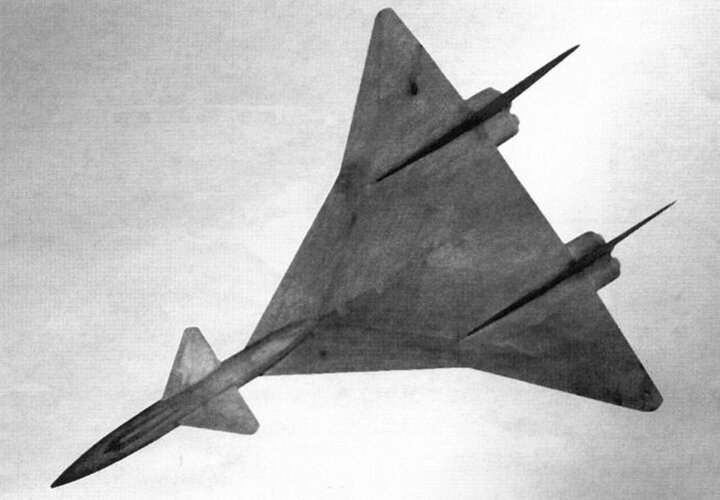

  • Model of the Aircraft 135 version No.1.jpg
    Model of the Aircraft 135 version No.1.jpg
    151.1 KB · Views: 14
  • Model of the aircraft 135 with 4× NK-6 engines.jpg
    Model of the aircraft 135 with 4× NK-6 engines.jpg
    185.6 KB · Views: 15
  • Model of The Tu-135K aircraft with 4×NK-6 engines.jpg
    Model of The Tu-135K aircraft with 4×NK-6 engines.jpg
    171.1 KB · Views: 14
  • Tu-135 with NK-6 or NK-135 engines with deflected wing consoles.jpg
    Tu-135 with NK-6 or NK-135 engines with deflected wing consoles.jpg
    85.2 KB · Views: 31

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,566
Reaction score
2,985
Hi!

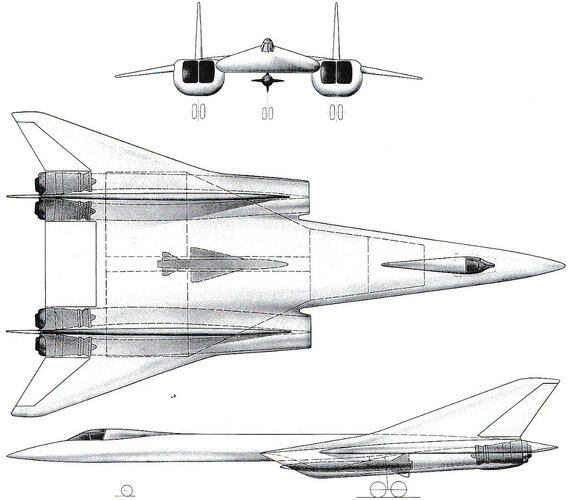

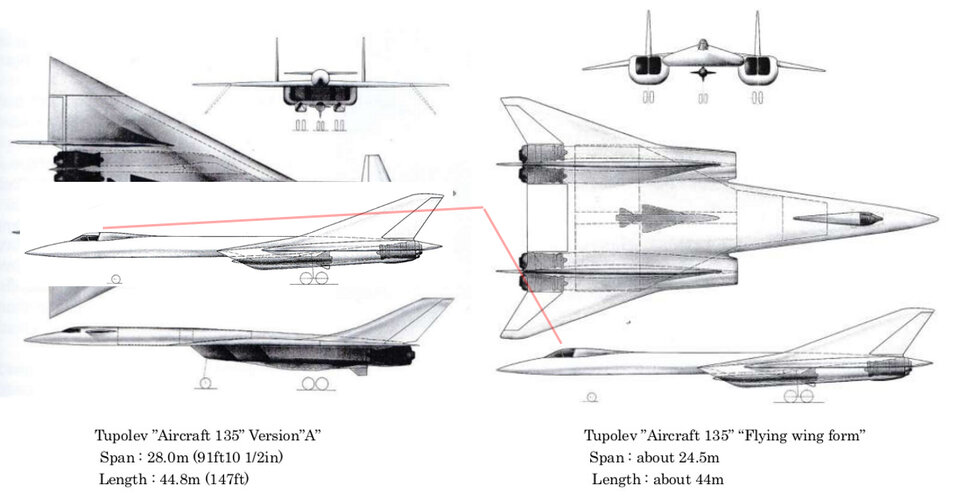

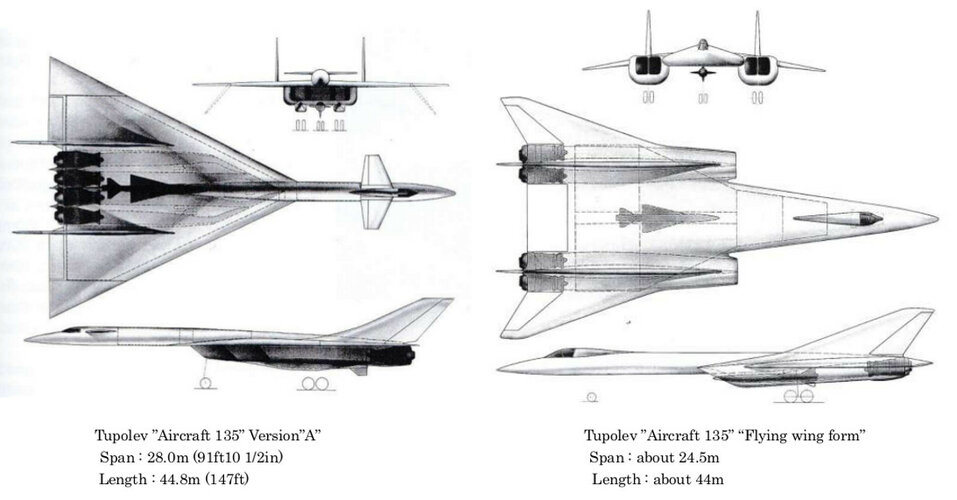

I estimated Tu-135 flying wing version dimension based on NK-6 engine inner exhaust nozzle size.


Attachments

  • 135 comparison.jpg
    135 comparison.jpg
    293.3 KB · Views: 20
Last edited:
