Sukhoi T-37

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

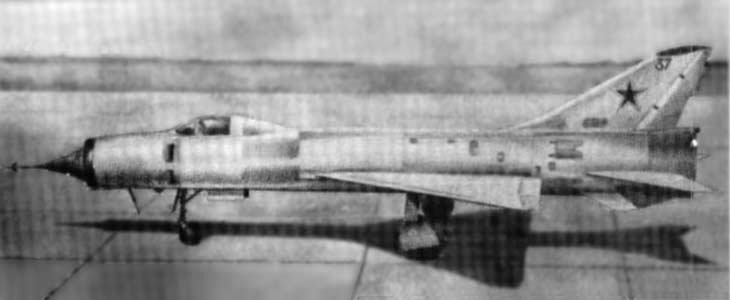

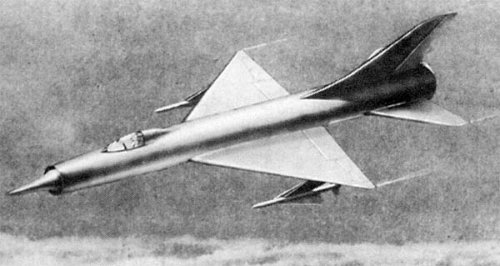

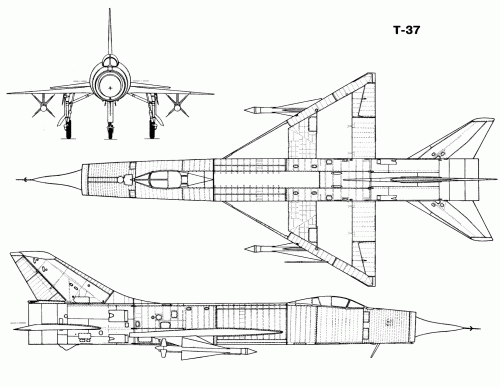

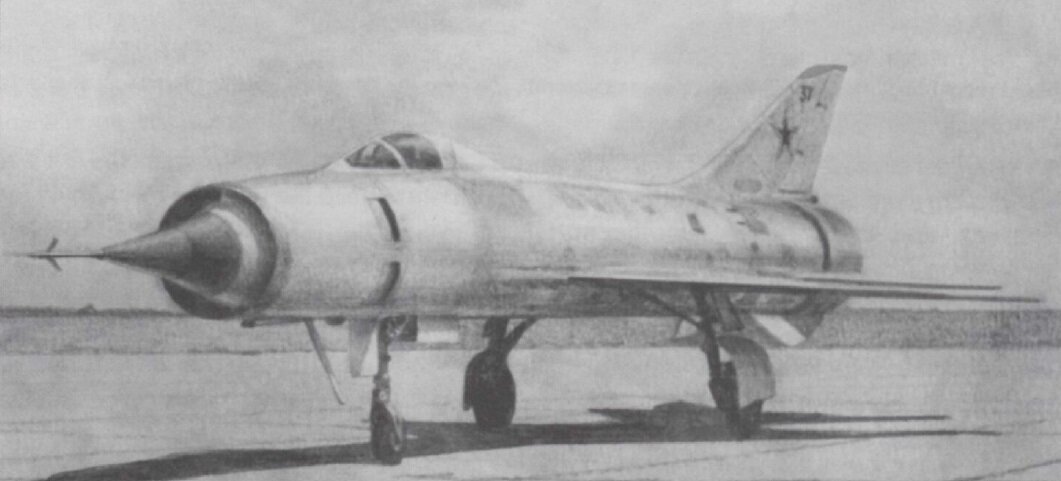

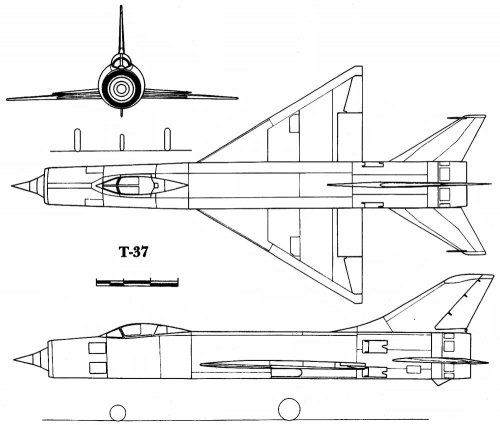

Excellent information, Triton-san. :D Amazing drawings.
http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=http%3A%2F%2Fwww.airwar.ru%2Fenc%2Fxplane%2Ft37.html&sandbox=1


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi! Another information.

http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=http%3A%2F%2Fwww.xliby.ru%2Ftransport_i_aviacija%2Fsamolety_mira_2000_04%2Fp3.php&sandbox=1

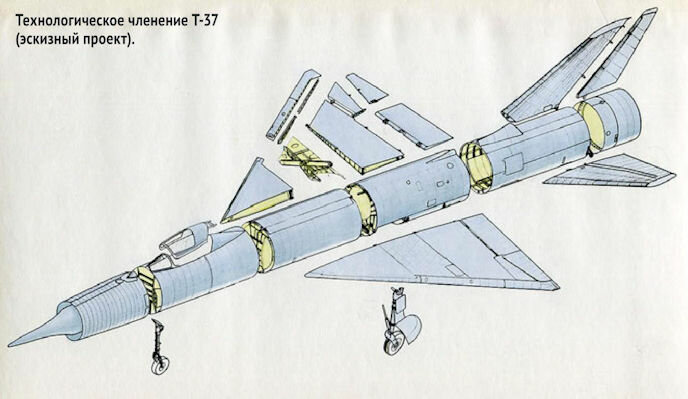

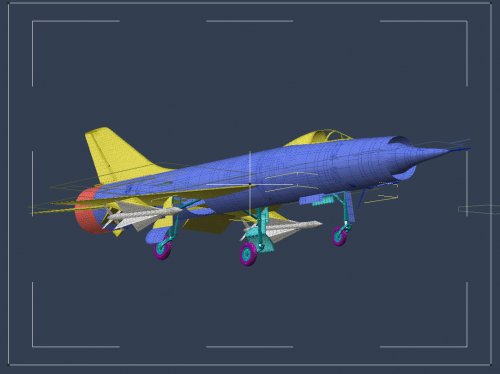

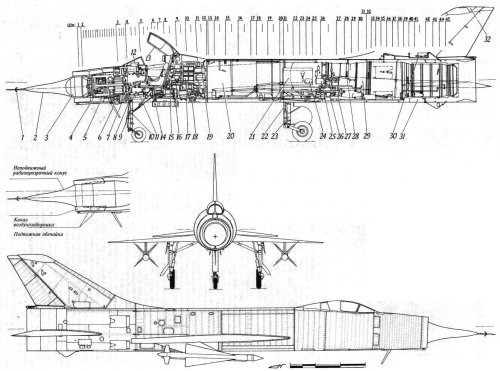

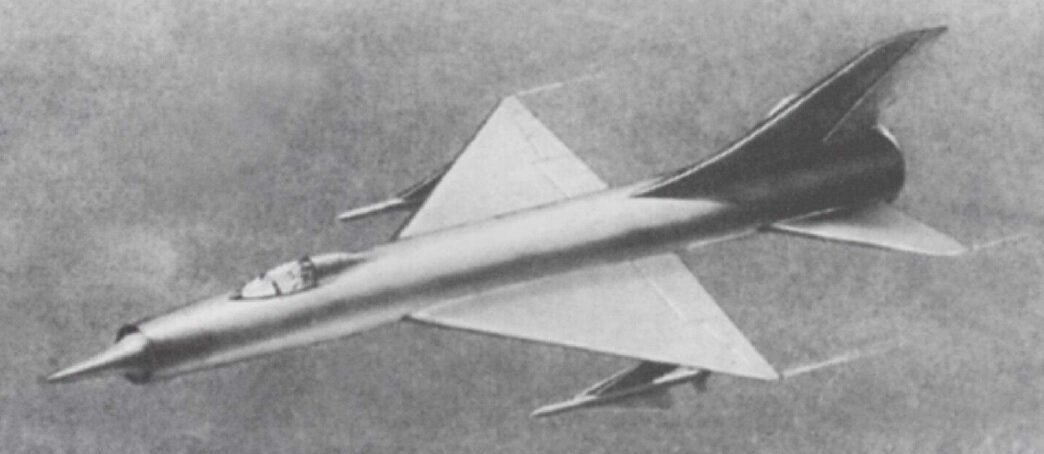

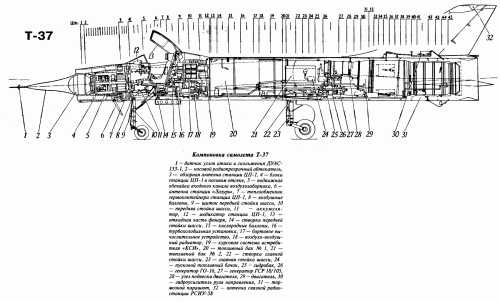

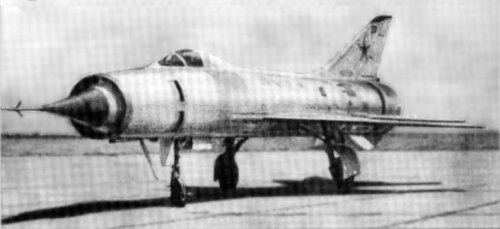

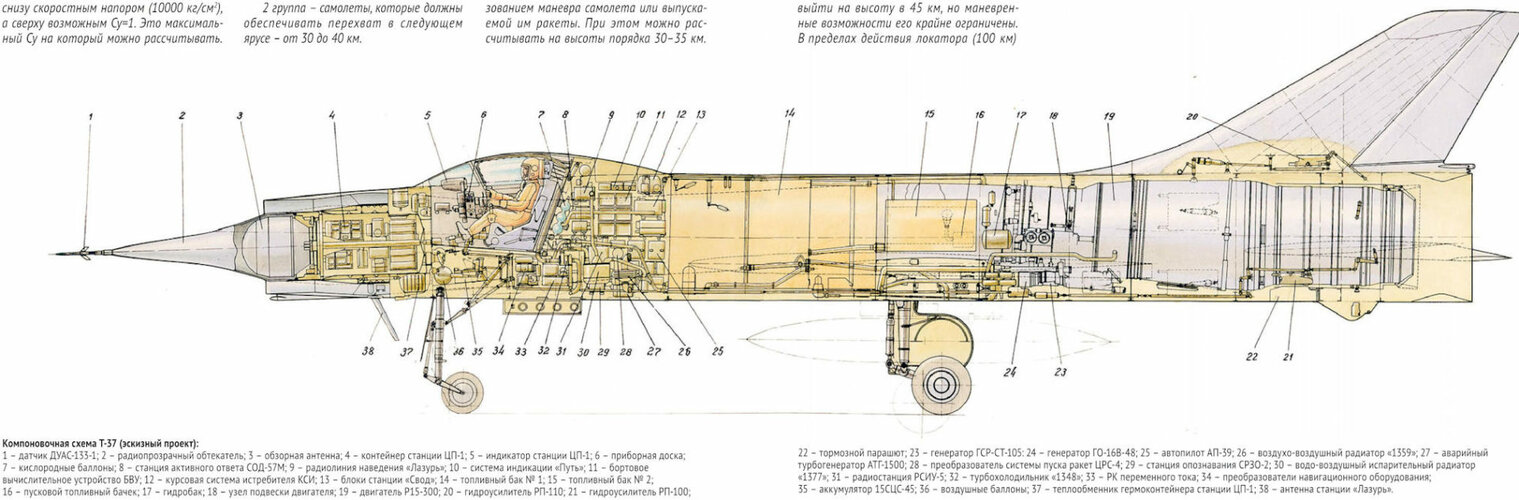

The arrangement plane T-37

" I - sensor angle of attack and slip DUAS- 133-1,2 - nose radome, 3 - Review antenna CP-1 station, 4 - blocks of the station CP-1 in the nose compartment, 5 - the mobile input channel inlet shell is 6 - Antenna "Lazur" station, 7 - heat exchanger germokonteinera CPU-1,8-station air cylinders, 9 - guard the front landing gear, 10 - nose landing gear, 11 - battery 12 - LED CPU-1 station 13 - hinged part of the canopy, 14 - leaf front landing gear, 15 - oxygen cylinders, 16 - Turbo-refrigerating plant, 17 - on-board computing device 18 - air-airy-tion radiator, 19 - exchange rate system fighter "CSI", 20 - fuel tank number 1, 21 - fuel tank №2, 22 - fold the main landing gear, 23 - the main landing gear, 24 - the starting fuel tank, 25 - oil tank, 26 - generator CS-16, 27-generator GSR 18/105, 28 - the engine mount assembly 29 - engine, 30 - steering rudder 31 - braking parachute 32 - antenna connected PC station and U-58 "


Attachments

  • pic_29.jpg
    171 KB · Views: 80

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

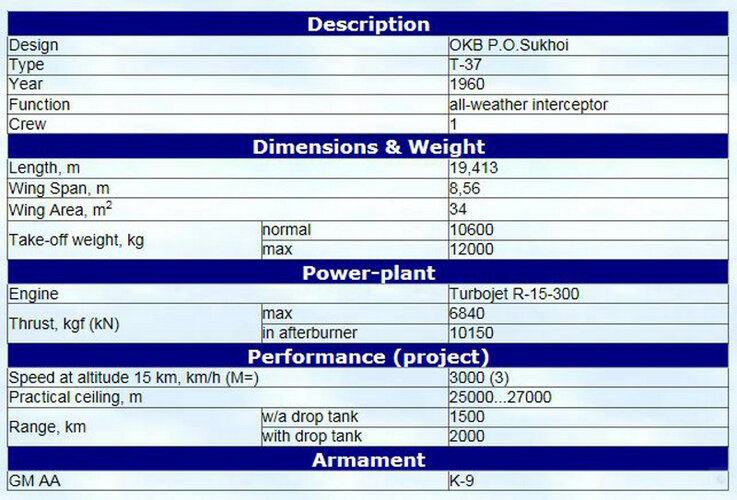

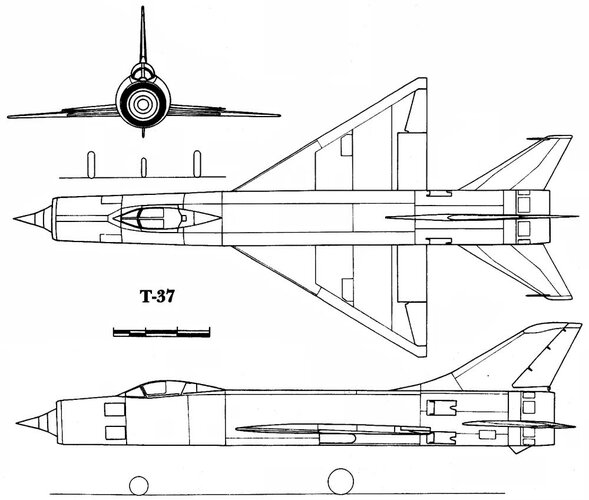

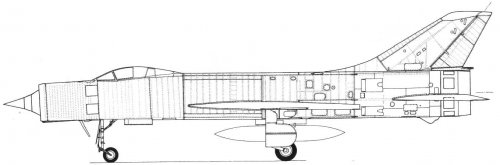

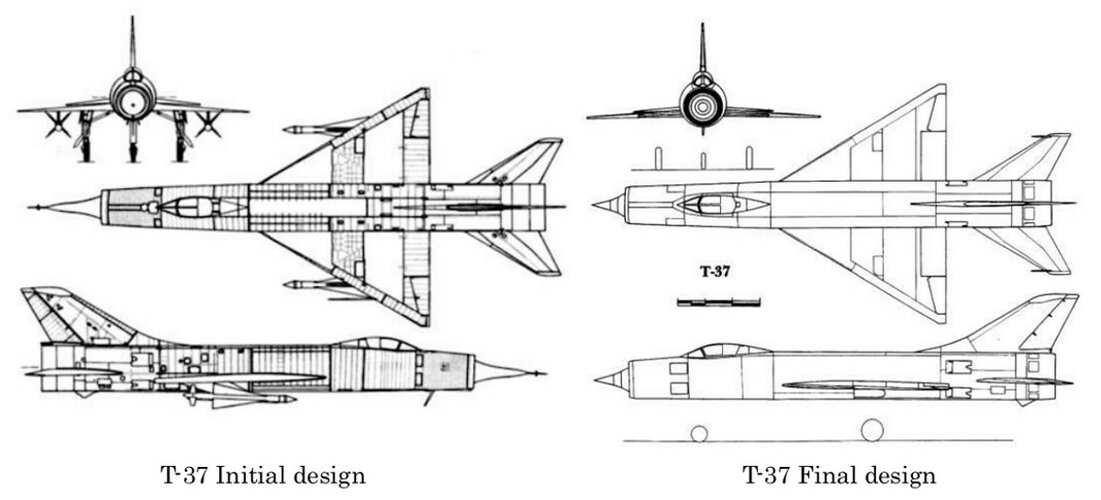

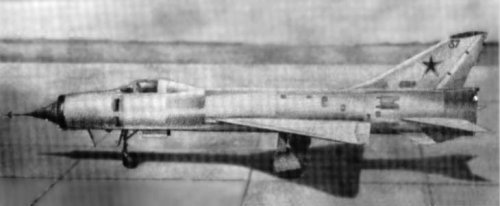

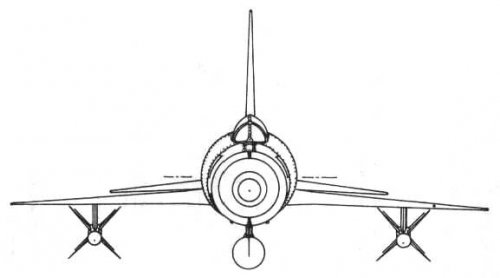

And...


Attachments

  • pic_30.jpg
    198 KB · Views: 79
  • pic_31.jpg
    10.8 KB · Views: 70
  • pic_32.jpg
    56.2 KB · Views: 51

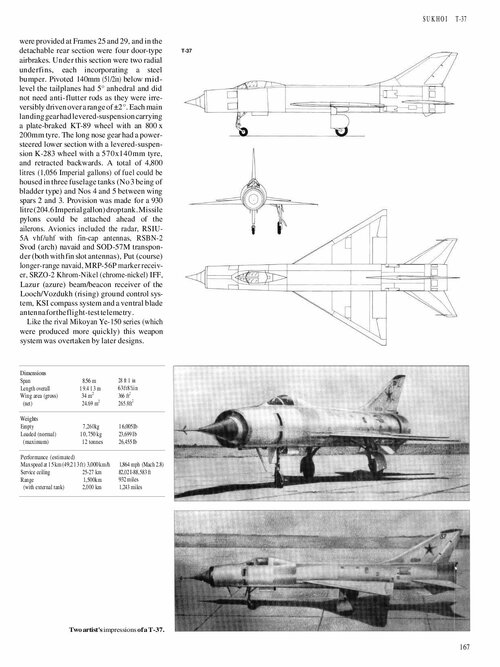

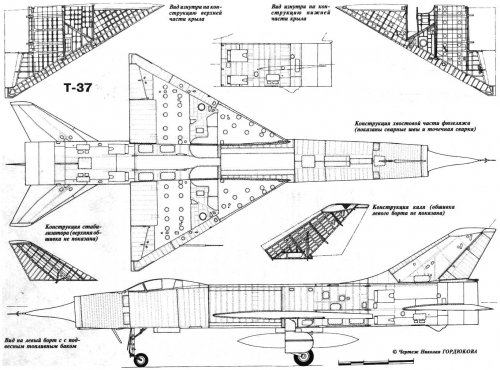

  • All-welded tail section of the fuselage of the aircraft, the t-37.jpg
    All-welded tail section of the fuselage of the aircraft, the t-37.jpg
    25.6 KB · Views: 58

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Yes!!This fighter has a very virile outline indeed. ;)
