Early Versions for Tupolev Tu-105 & Tu-106

[hesham]

Hi,

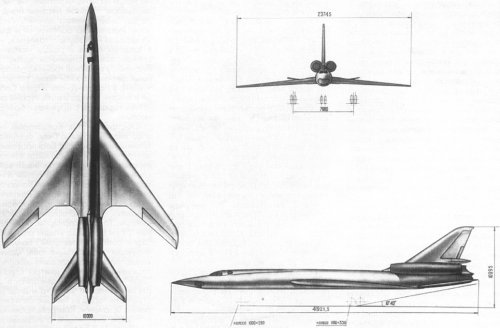

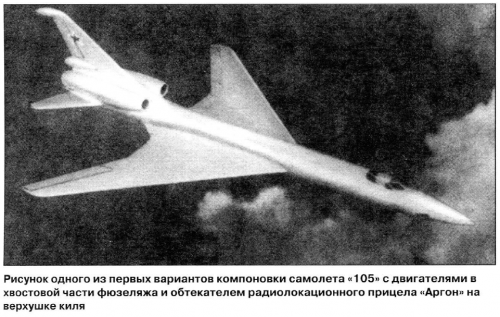

here is the early version to Tupolev Tu-105;

Туполев Ту-22



[blackkite]

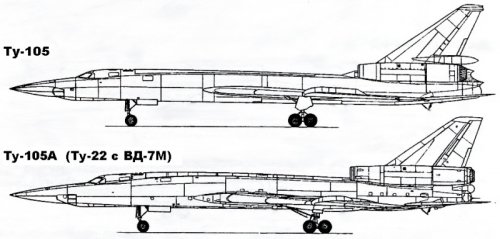

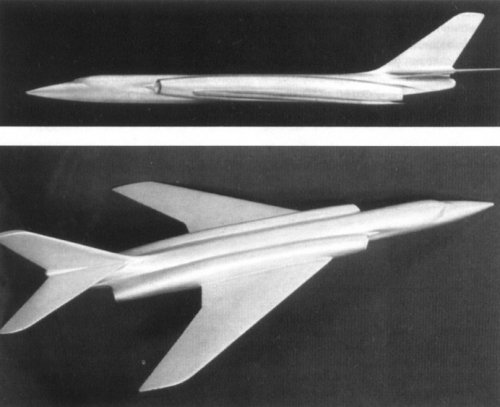

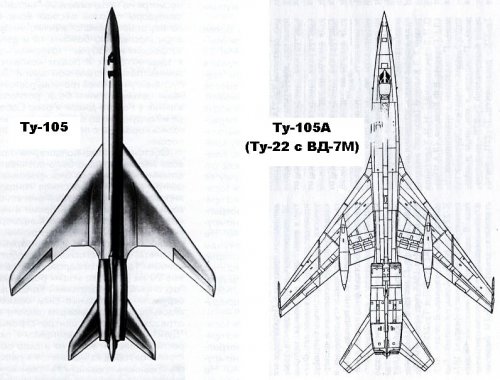

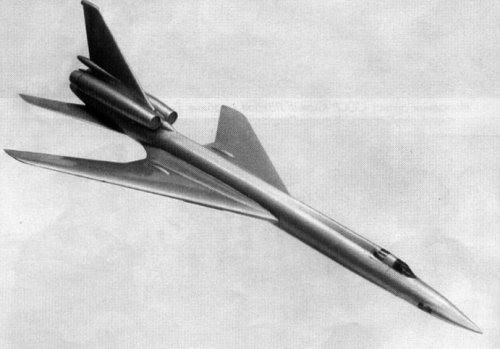

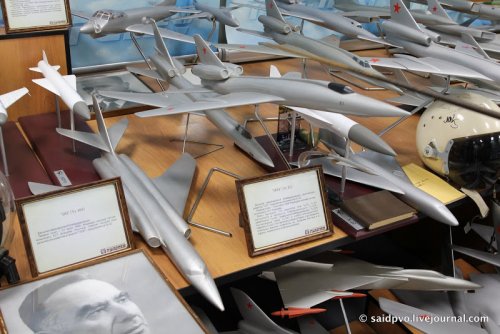

Hi! "105" model.(Left)
The model of one of the first versions of the draft "105" with VD-5 engines.

This picture also include "105A" with VD-7 m engines and one of the first versions of the draft "105".(middle)

And "132"?(middle top)
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=6360.0;attach=67760;image

Picture source
http://oao-tupolev.livejournal.com/50351.html



[hesham]

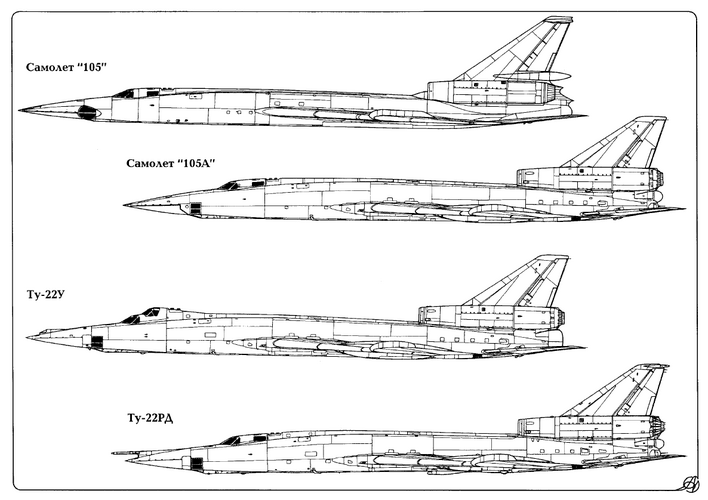

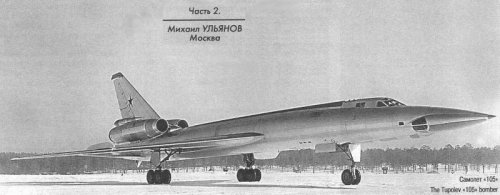

From; Ту-22. Стратегический бомбардировщик, ракетоносец, разведчик



[blackkite]

Hi!

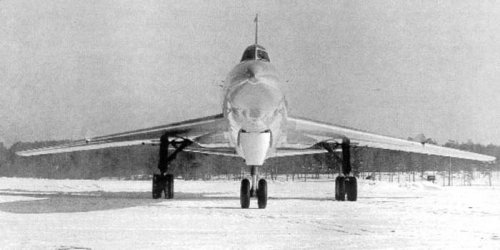

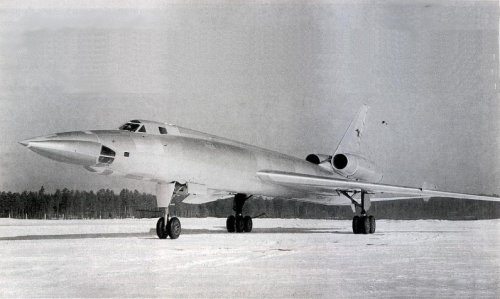

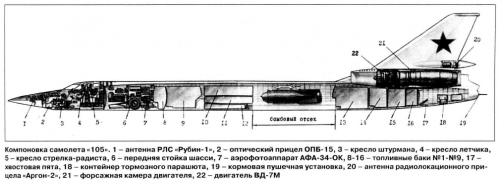

Ty-105 did not have wing pod for undercarriage. Perhaps wing root is thick to accomodate undercarriage.

http://vfk1.narod.ru/IVVAIU/105.htm

http://aviadejavu.ru/Site/Arts/Art3018.htm



[hesham]

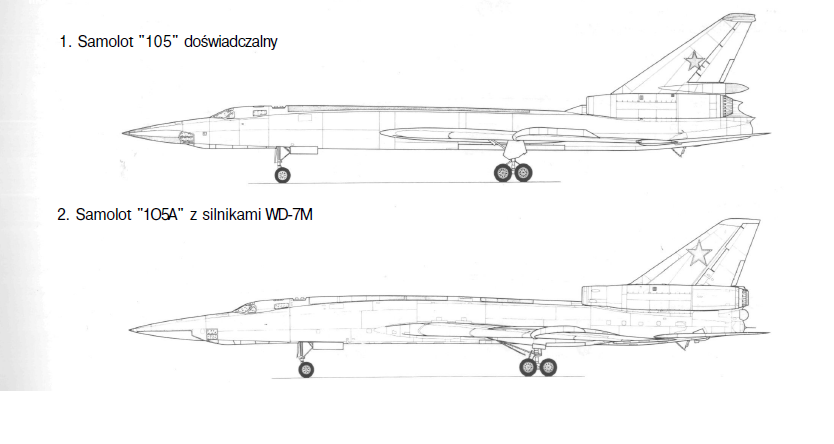

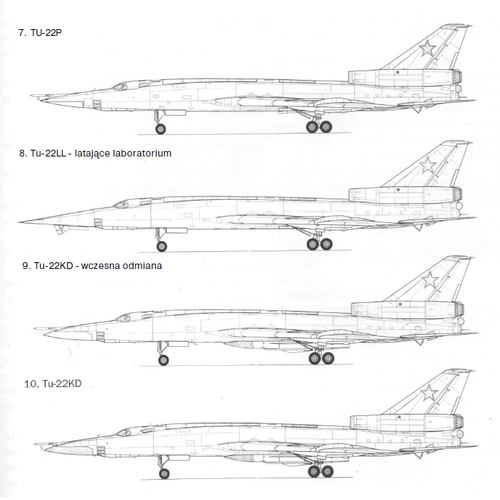

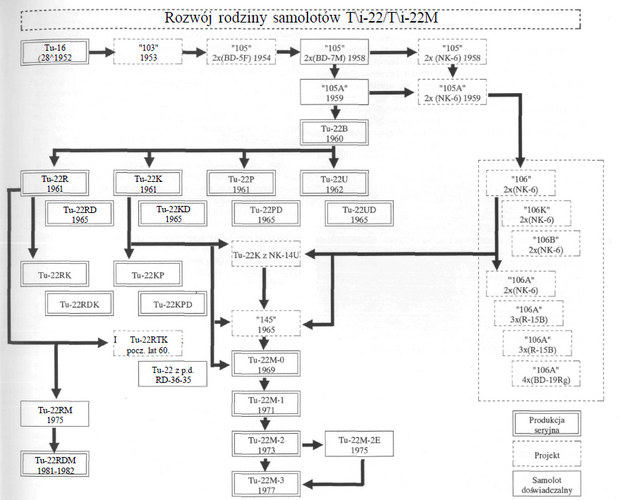

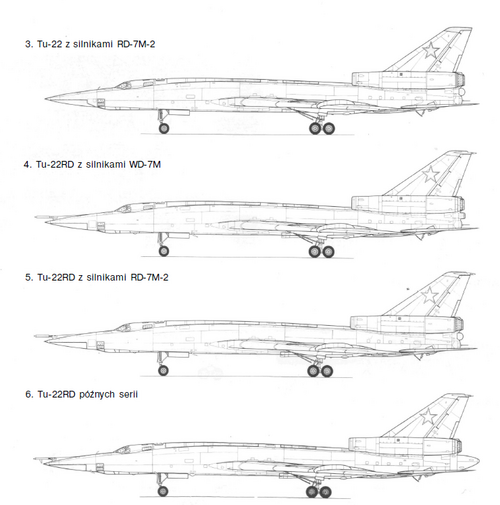

From, Tu-22 i Tu-22M - naddzwiekowe bombowce Rosji



[Ironman]

Such elegant aircraft, shame that it doesn't enter production



[hesham]

Such elegant aircraft, shame that it doesn't enter production

That's right Ironman.



[hesham]

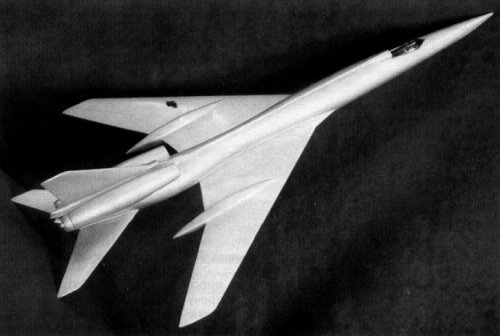

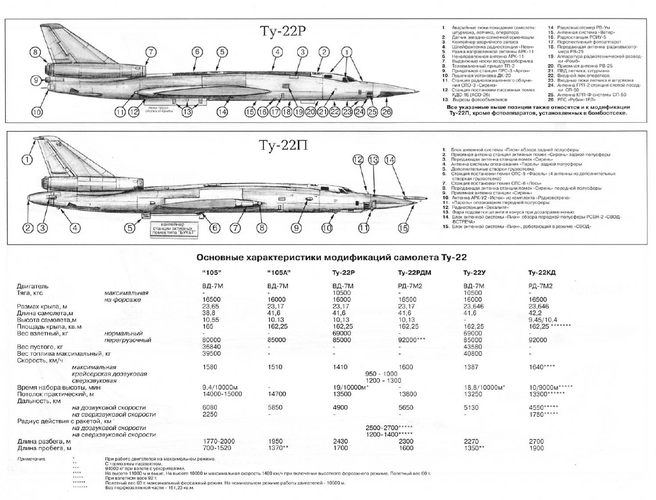

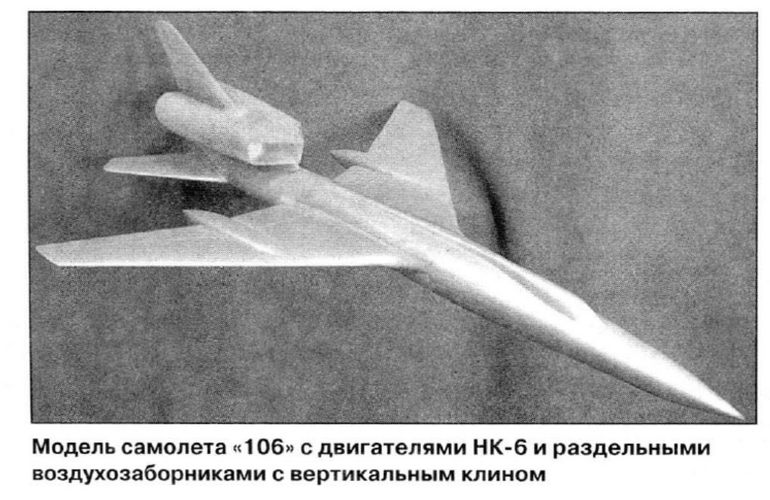

From this Russian book.



[hesham]

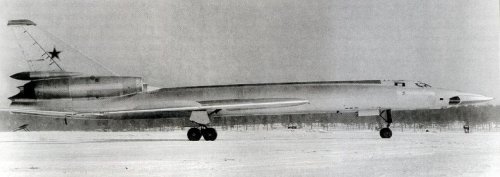

From this book.



[hesham]

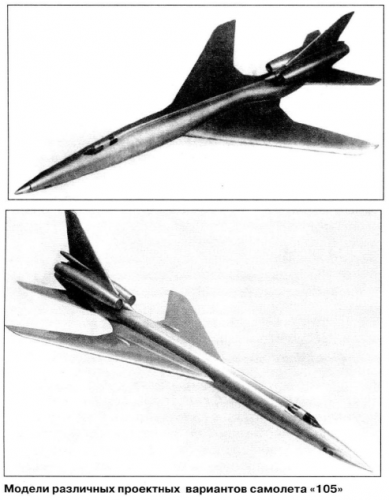

From; Ту-22. Стратегический бомбардировщик, ракетоносец, разведчик

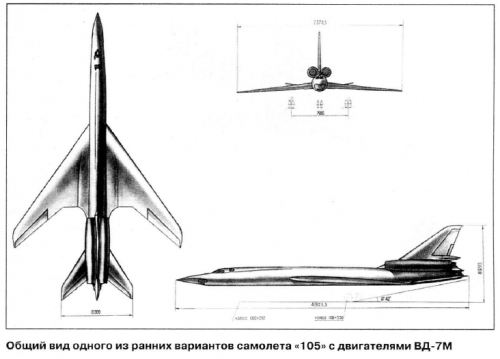

The same source.
