TsAGI windtunnel models related to I-90/MFI program?

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,983
Reaction score
5,325

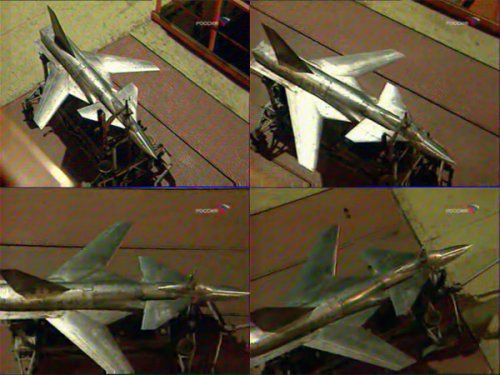

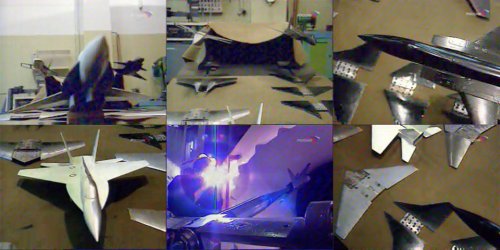

Shown on Russian TV, video posted online by Paralay

Looks like basic planform research for fighters.


Attachments

  • MFI.jpg
    163.5 KB · Views: 672
  • S-22.jpg
    128 KB · Views: 521

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,983
Reaction score
5,325
One of those wing configurations looks somewhat like the Dornier Rautenflugel...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Dear overscan,

what is the Dornier Rautenflugel ?.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,983
Reaction score
5,325

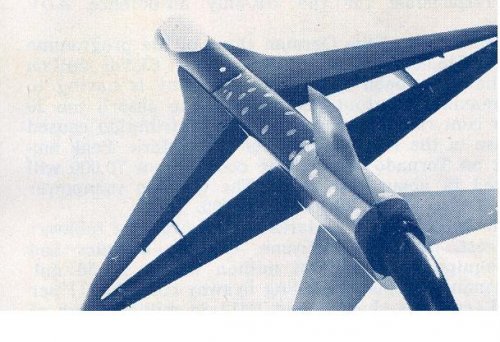

Here- its made from two wings joined together, like a high tech biplane.


Attachments

  • Rautenflugel.jpg
    60.1 KB · Views: 405

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,967
Reaction score
5,253
Dear overscan,

the wing of Dornier Rautenflugel was like UTVA-71 project of light aircraft.


Gavin

ACCESS: Confidential
Joined
Apr 4, 2006
Messages
59
Reaction score
5

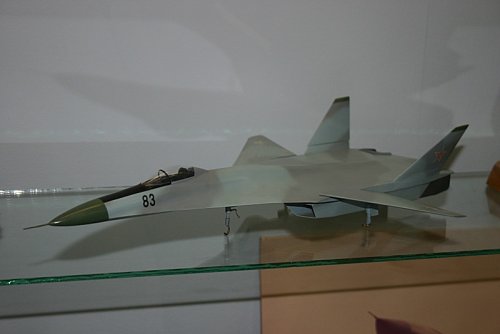

I'm fascinated by the design seen on the top- and bottom left, of the first set of photos. Planform alignment suggests a significant degree of stealth. Tail configuration reminds me of the MiG-25. Forward fuselage could be mistaken for an advanced version of the MiG-29. Air intakes looks similar to what we would have expected for the production 1.42. However, the scale might seem a little small for the I-90/MFI. It's wild speculation, but I can't help but wonder if it might be related to PAK FA.

Has anyone seen anything like it before?

Also, it's hard to tell, but in the middle-bottom picture, could the design being tested be similar to this?


Attachments

  • mai_20.jpg
    79.2 KB · Views: 482

paralay

ACCESS: Confidential
Joined
Mar 2, 2006
Messages
172
Reaction score
121

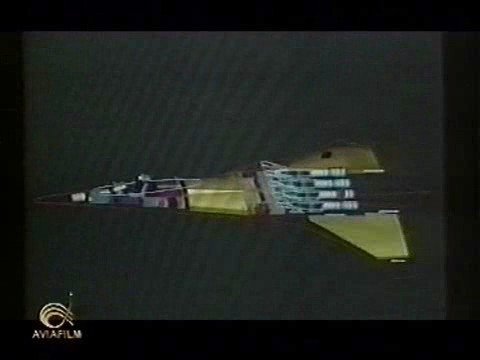

http://paralay.narod.ru/sh90.html ;)


Attachments

  • i.jpg
    18.5 KB · Views: 475

Deino

ACCESS: Top Secret
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,919
Reaction score
927
What's this ??? :eek:


Attachments

  • Ru TsAGI T-103.jpg
    Ru TsAGI T-103.jpg
    184.5 KB · Views: 99

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,177
Reaction score
1,393

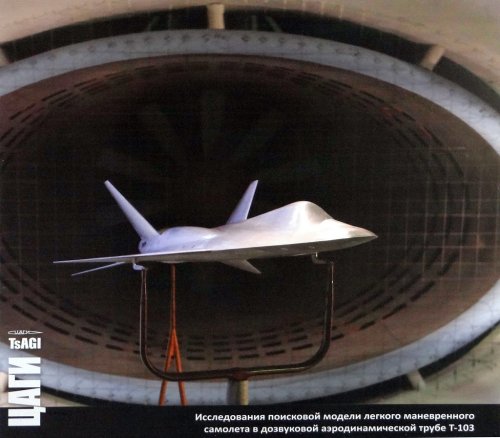

It has no any relation to MFI. This is from TsAGI booth backstage at MAKS 2015.
Another in-house 'thematic model' of generic advanced fighter design
