Supermarine Type 319 advise please

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Hi All.
I need a little advise please if anyone can help out?

I've started a profile for the 319 and have just realised I can't tell what kind of exhausts it would have had, bearing in mind the proposed engines would have been RR Griffons.

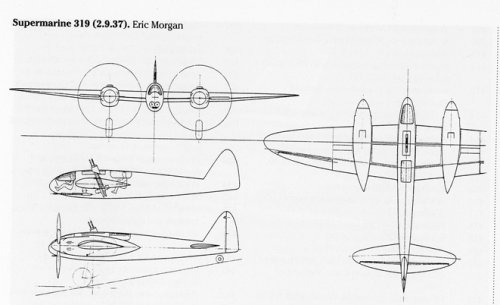

The basic 3-view I'm using is that of Eric Morgan's from Tony Butler's book British Secret Projects Fighters and Bombers 1935-50 Page 234.
The front view shows four slight bulges to each engine fairing and what appears to be a scoop on the top.

Any ideas please?

Many thanks.
Peter
;D ::)


Attachments

  • S:M 319031.jpg
    S:M 319031.jpg
    136.9 KB · Views: 389

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,226
Reaction score
1,870
Hi Peter

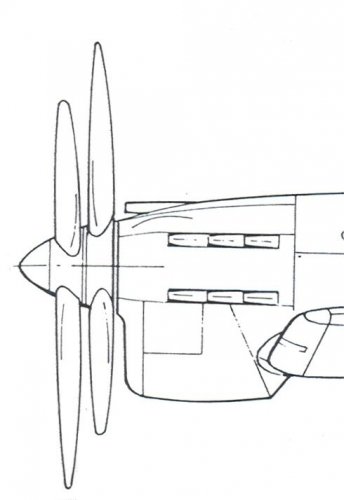

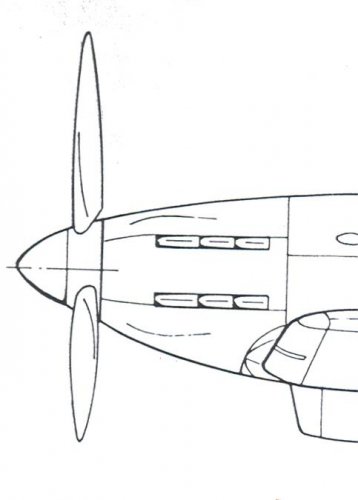

Engines for the 319 are Vultures with four bulbs
Cheers
Justo


Attachments

  • Escanear0003.jpg
    33.1 KB · Views: 211
  • Escanear0001.jpg
    21.6 KB · Views: 198
  • Escanear0002.jpg
    25.2 KB · Views: 204

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
188
Reaction score
14
Hi Flitzer!

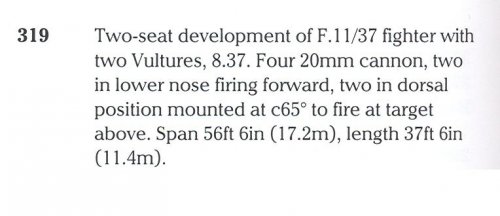

I was looking in my copy of Supermarine Aircraft Since 1914, (by C.F. Andrews and E.B. Morgan), and on pg. 349 of Appendix I, Supermarine Type List, it says that this aircraft was to have two (2) Vulture engines.

I hope this is of some help!


Chuck


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Many thanks
I griffed when I should have vulted.

Now it explains the four little bumps on the nacelles.

Again many thanks, I can press on with it now.

Much appreciated.

Peter
;D


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Hi again...
Apart from the bit in Tony B's book, I can't seem find any other info on the 319.

I'm assuming the construction method was all metal, and wondered if anyone had other thoughts on the matter?

Many thanks
Peter
;D


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,226
Reaction score
1,870

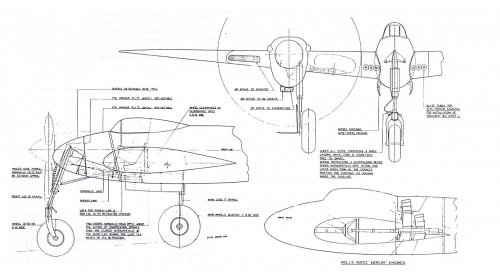

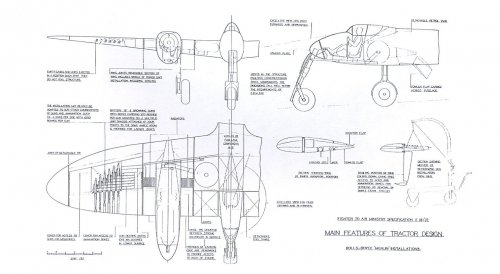

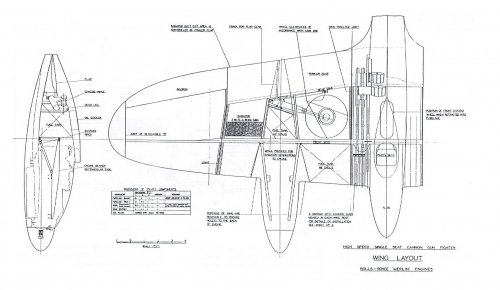

Here some drawings of the Supermarine 324/327 Spec F.18/37 , metallic structure


Attachments

  • Escanear0001.jpg
    135.9 KB · Views: 290
  • Escanear0002.jpg
    145.5 KB · Views: 151
  • Escanear0003.jpg
    141.4 KB · Views: 148
