Sud-Est (SNCASE) missiles and projects

cardonet

ACCESS: Confidential
Joined
Feb 23, 2009
Messages
87
Reaction score
45
(Sud Est) SE 4300 - Montendre aerodrome

(Sud Est) SE 4300 - Thouars aerodrome


Attachments

  • SE4300-M.jpg
    76.8 KB · Views: 226
  • SE4300-T.jpg
    68.5 KB · Views: 210

cardonet

ACCESS: Confidential
Joined
Feb 23, 2009
Messages
87
Reaction score
45
SE 4300 was a high subsonic anti-aircraft missile intended to intercept targets in the 20-30 km range. It used a liquid rocket sustainer (nitric acid + furaline) derived from the Maruca's engine giving a thrust of 540 kN. Different solutions were used for boosting the missile: a cluster of five STRIM solid motors (70 kNs each) later replaced by a SEPR 5053 motor (304 kNs) or two lateral SEPR 685 boosters (160 kNs) used in the SE 4350 variant. The guidance system used radar homing then an internal seeker.
Vehicle testing began in February 1954 at the Sahara range and interception tests started in October 1956. At the program cancellation in spring 1957, 84 SE 4300 and 41 SE 4350 had been launched of about 175 manufactured.

Drawings, dimensions in mm


Attachments

  • SE4300-r.gif
    27.2 KB · Views: 223

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
703

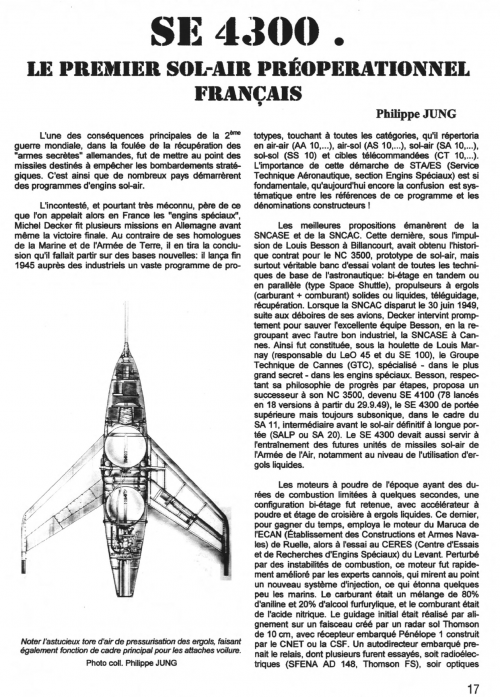

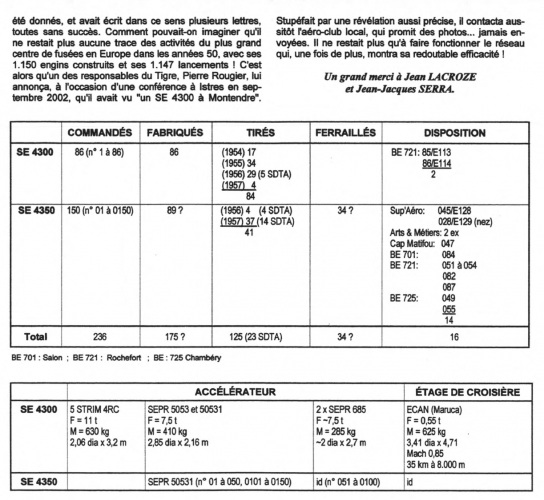

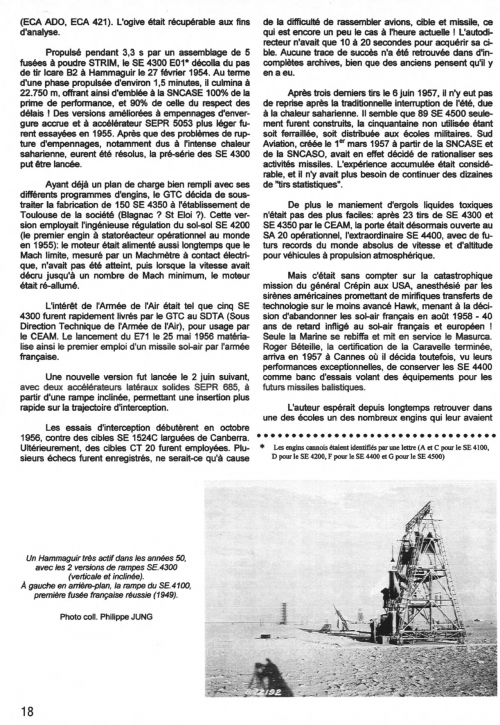

The S.E. 4300 from an old French S.E.P.R. publication:


Attachments

  • SE 4300.jpg
    SE 4300.jpg
    313.8 KB · Views: 168

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
703
From a 1960s magazine:


Attachments

  • SE rocket sled.jpg
    SE rocket sled.jpg
    148.8 KB · Views: 56
  • SE 4500.jpg
    SE 4500.jpg
    134.5 KB · Views: 55
  • SE 4400.jpg
    SE 4400.jpg
    177.9 KB · Views: 59
  • SE 4350.jpg
    SE 4350.jpg
    153.6 KB · Views: 57
  • SE 4300.jpg
    SE 4300.jpg
    184 KB · Views: 60
  • SE 4100 on ramp.jpg
    SE 4100 on ramp.jpg
    201.3 KB · Views: 60
  • SE 4100.jpg
    SE 4100.jpg
    208.7 KB · Views: 149

pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
1,007
Reaction score
293
The layout seems to have been inspired by the Enzian E 5.

I was about to say "For a French missile, that looks very German".

This is what World War 2-era guided missiles look like. However, if you look at early French missiles in their own right, they too have their own particular appearance - which is different from British (e.g. Fireflash, early Folland Red Dean), Russian (AA-1 Alkali) and American (BW-0 Terrier, early Falcon, prototype Sidewinder, Sparrow I) missiles of the same basic generation.

I'm unsurprised that it was cancelled. For a missile that got axed in 1957, it looks at least 12 years older than that.


T. A. Gardner

ACCESS: Confidential
Joined
Feb 18, 2021
Messages
107
Reaction score
208
The layout seems to have been inspired by the Enzian E 5.

I was about to say "For a French missile, that looks very German".

This is what World War 2-era guided missiles look like. However, if you look at early French missiles in their own right, they too have their own particular appearance - which is different from British (e.g. Fireflash, early Folland Red Dean), Russian (AA-1 Alkali) and American (BW-0 Terrier, early Falcon, prototype Sidewinder, Sparrow I) missiles of the same basic generation.

I'm unsurprised that it was cancelled. For a missile that got axed in 1957, it looks at least 12 years older than that.
I'd say it looks far more like the US JB-3 Tiamat when ground launched.
