Strange air intake shape

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,135
Reaction score
5,655
Hi,

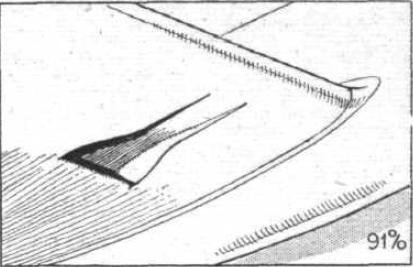

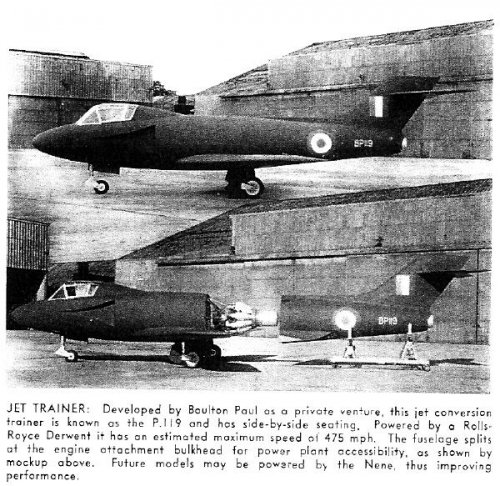

here is very strange air intake shape,it was from the wing,but I never
see like this before.
http://www.flightglobal.com/pdfarchive/view/1949/1949%20-%201979.html


Attachments

  • untitled.JPG
    18 KB · Views: 46

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,798
Reaction score
2,184
It's called a NACA duct or scoop. The design is actually very common for auxiliary applications: bringing in cooling air for avionics, for example. It's not as common as a jet engine intake, but has been used occasionally, mainly on missiles for some reason. I'm pretty sure Matador/Mace used one. Harpoon may as well. I'm sure there are others I'm forgetting.


bipa

ACCESS: Confidential
Joined
Feb 11, 2008
Messages
80
Reaction score
2
Harpoon definitely, and AGM-129, Tomahawk Bk IV as well.
The reason is probably a space-saving trade-off...?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379

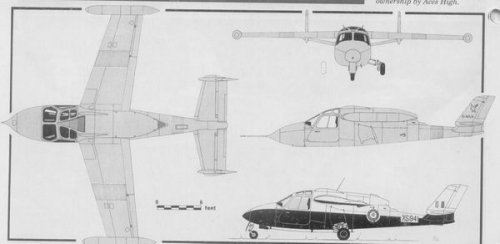

The NACA intake was used in the Miles M.100 student, too, not
a missile or for an auxiliary engine, but a very real aircraft. ;)
(from Aeroplane Monthly 9.97)


Attachments

  • Miles100.jpg
    20.2 KB · Views: 101

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,186
Reaction score
2,720
And don't forget the North American F-93

http://en.wikipedia.org/wiki/North_American_YF-93


Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,219
Reaction score
653
AFAIK it quite simply doesn't work as well with large mass flows. So it is a viable solution for scooping cooling air or for a small engine on a cruise missile but not for a modern fighter.

The Russian Klub-series missiles also use this design, an obvious choice for a missile which is supposed to launch from torpedo tubes since it is flush with the airframe.


Loon

ACCESS: Restricted
Joined
Feb 20, 2008
Messages
8
Reaction score
0
The BD-5J (AKA the coors light silver bullet at air shows) uses them.
