Fiat G.91 With Side Air Intakes ?!

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
you are talking of the side gun bays I suppose?


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,654
Reaction score
683
is a mistake

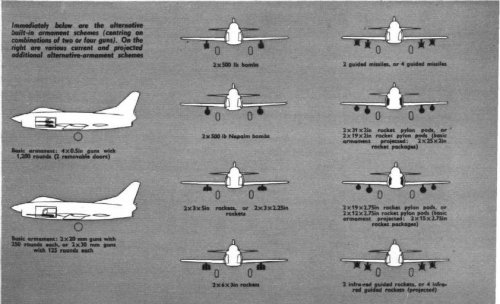

the graphic show postion of Weapons on G.91
in this case "side air intakes" they are the aircraft guns...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,482
Thank you my dears,I misunderstand it.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
128
Is a mistake.. and it isn't. The early project of the G-91 had side intakes like the G-80. I have a photo of the model somewhere.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
128
Finally found them: as you may notice, even early chin intake configuration had different vertical tail. The project switched to chin intakes during summer 1954.


Attachments

  • G-91_dual.jpg
    8.1 KB · Views: 480
  • G-91_chin.jpg
    11.2 KB · Views: 429

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,482
Thank you my dear Skybolt very much.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
flateric said:
you are talking of the side gun bays I suppose?

By the way, do you have any idea whether the Italian G.91s actually used in service the alternate weapon packs in the side bays? According to the picture there were four options for each bay: 2 .50 machine guns, one 20mm or 30mm cannon, or 25 2-in rockets, or 15 2.75-in rockets. Obviously the Italians didn't use the cannon option (the DEFA 30mm guns appeared only in G.91Y), but I wonder if they adopted the rocket packs.

Piotr


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
https://www.youtube.com/watch?v=Ks92fdrWfyU

Here you've got an Italian film on the G.91. It contains footage of (I suppose) field trials of the aircraft where you may see armament details (including French AA.20 guided missile that was not eventually adopted) as well as G.91s operating from a grass field.

Piotr


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235

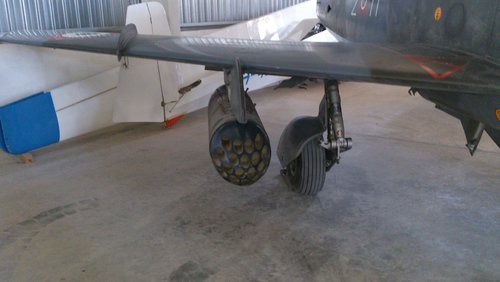

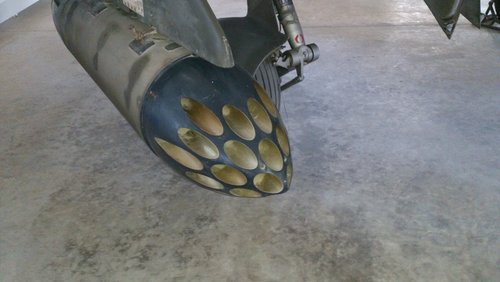

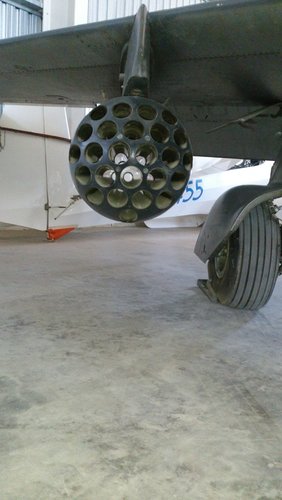

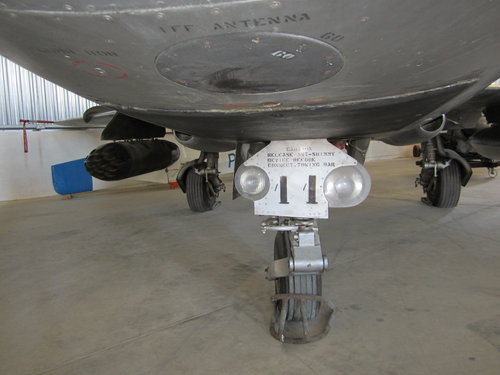

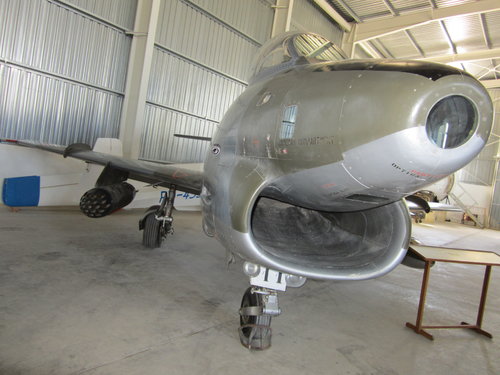

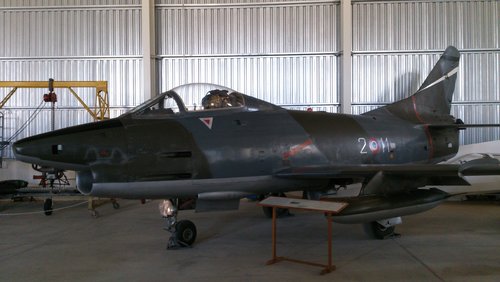

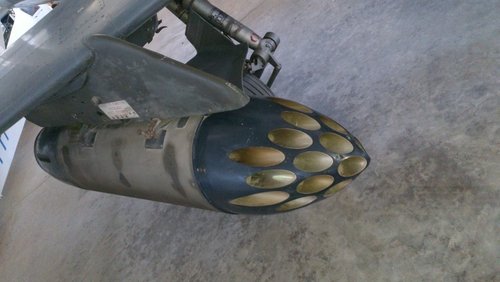

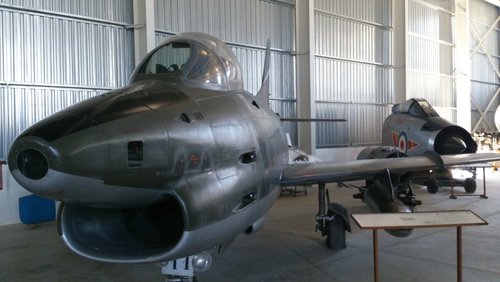

Here are some photos of the G.91 that I took in the Malta Aviation Museum in 2014. They show a 25-tube rocket launcher for 2-inch rockets. Intestingly the G.91 displayed in the musem has the rocket launcher under its right wind and a drop tank under the left wing. I have no idea if the Italian Air Force actually used such an asymmetrical arrangement.
As far as I know there was also a 31- or 30-round laucher for the 2-inch rockets that was to arm the G.91. Again I am not sure whether the bigger laucher was actually adopted and used. Perhaps someone else knows anyting on that?

Piotr


Attachments

  • DSC_0401.JPG
    1.7 MB · Views: 49
  • DSC_0402.JPG
    1.1 MB · Views: 27
  • DSC_0404.JPG
    1.6 MB · Views: 23
  • DSC_0411.JPG
    1.4 MB · Views: 27
  • DSC_0418.JPG
    1.6 MB · Views: 28
  • DSC_0423.JPG
    1.7 MB · Views: 22
  • DSC_0424.JPG
    1.7 MB · Views: 20
  • IMG_0329.jpg
    2.3 MB · Views: 21
  • IMG_0332.jpg
    2 MB · Views: 56

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
And here is a photo of the G.91 (prototype I suppose), in which you may see the 30-tube rocket pods. The photo is quite well known and has been reproduced in many publications, but frankly I don't think the pod was adopted by the Italian Air Force. Do you have any info on that?

As for the other rockets, the largest are certainly the HVARs, and those under the wings are probably the British 3-inch rockets (however I'm not so sure).

(Source: http://www.airwar.ru/enc/attack/g91r.html)

Piotr


Attachments

  • g91r1-11.jpg
    176.1 KB · Views: 50

Rokker

I really should change my personal text
Joined
Apr 7, 2016
Messages
1
Reaction score
0
Does anyone know what these 2 inch rockets might be? Perhaps have any info on them? The only thing I can think of is the Gimlet, but this is way too late for the Gimlet.


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
Does anyone know what these 2 inch rockets might be? Perhaps have any info on them? The only thing I can think of is the Gimlet, but this is way too late for the Gimlet.

There was an Italian indigenous 2-in/51-mm rocket developed sometime in the 1950s/1960s:


Flugzeugbewaffnung der Welt
Raketen​
Italien
Flagge

51mm ARF/8M2




Beschreibung:

Eine einfache Rakete zur Bekämpfung von Bodenzielen, die in Raketenbehältern zum Einsatz kommt. Durch ihr leichtes Gewicht ist sie für leichte COIN Flugzeuge und Hubschrauber geradezu ideal. Mehrere Gefechtsköpfe stehen zur Auswahl, die alle 2,2 kg wiegen: HEI, PFF, Nebel, farbiger Nebel, Leuchtkörper und AT-AP (HEAT mit Splittermantel). Die Rakete ist drallstabilisiert und verfügt über ein Klappleitwerk.




Technische Daten:
Hersteller:
SNIA-BPD​
Kaliber:
51 mm​
Gewicht:
4,8 kg​
Länge:
1,048 m​
Geschwindigkeit:
515 m/s​
Reichweite:
Gefechtsköpfe:
siehe Text! je 2,2 kg​

Source: http://waffen-der-welt.alices-world.de/flugzeugwaffen/rockets/i_51arf-8m2.html

Piotr
