SNCAC (Aérocentre) NC.270/271

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,149
Reaction score
629
This Nord 2500 seems to be an earlier project of the Nord 270 2 x Nene bomber (never finished), or maybe a pre-model for the 271 test-planes (models of the Nord 270. Only one flied, without engine)


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
Hesham,

that Nord 2500 it is also a mistery for me. I haven't found it at Jean Cuny's "Les Avions de Combat Françaises".
Besides, I'd like to point out a typo error. The aircraft above Nord 2500 it is not a Nord 1601, it is Nord 2200 Naval Fighter which was the rival design to SNCA NC 1080 and Arsenal VG 90 for "Chasseur d'interception embarqué à réaction" (29th-March-1946) requirement.

http://www.aviastar.org/air/france/nord_2200.php

Nord 1601 was a research aircraft to study the swept wing configuration.

http://www.aviastar.org/air/france/nord_1601.php

The link you posted is also interesting because that NC 1080 model shows an early configuration which is slightly different from the final product

http://www.aviastar.org/air/france/sncac_nc-1080.php

Regards,

Antonio


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
thank you my dears Deltafan and pometablava,

and dear Deltafan,do you have a drawing to Nord N.270 ?.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,350
Website
www.amazon.com
hesham said:
thank you my dears Deltafan and pometablava,

and dear Deltafan,do you have a drawing to Nord N.270 ?.

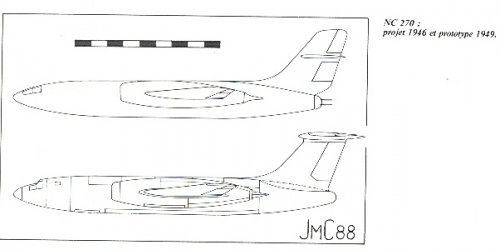

From "Les avions de combat français 1944-1960" by Jean CUNY , DOCAVIA Nº 30


Attachments

  • Escanear0003.jpg
    72.1 KB · Views: 1,025
  • Escanear0004.jpg
    44.3 KB · Views: 992

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
The drawing really looks very similar to NC.270, but this design wasn't from
Nord, but from SNCAC (Aerocentre). And the designation N.2500 for a Nord
design was used for the prototpe of the Noratlas, although this isn't a hard
evidence, as sometimes there were doublets among the french designations
(and among the Nord designations,too ).
But I'm pretty sure, that it's just a typo, especially as the aircraft on the right
seems to be misinditified, too, as it quite probably isn't the all-weather/night fighter
NC.1072, but the forerunner, the torpedo/attack bomber NC.1070 .


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,149
Reaction score
629
hesham said:
thank you my dears Deltafan and pometablava,
and dear Deltafan,do you have a drawing to Nord N.270 ?.

Justo has the same source as me ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
Hi,

I suggest that it was NC.250,and the Nord N.2500 was misprint.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
Hi,


here is a model for SNCAC NC.270.


Attachments

  • NC.270 model.JPG
    NC.270 model.JPG
    70.1 KB · Views: 636

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
Hi all

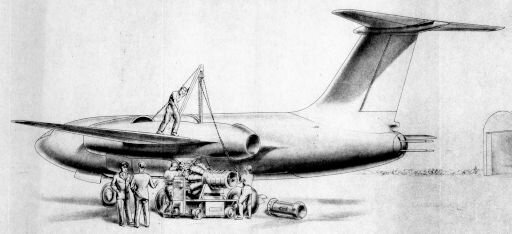

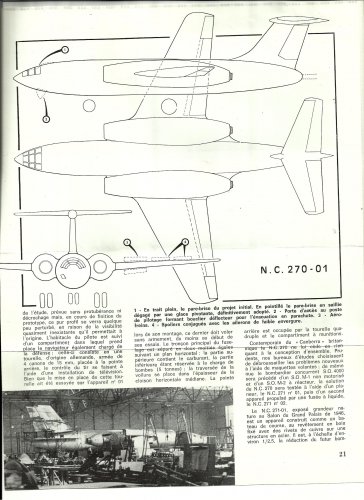

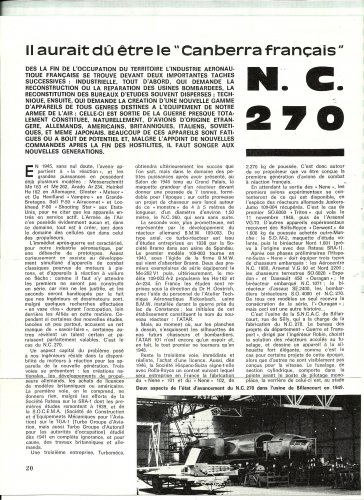

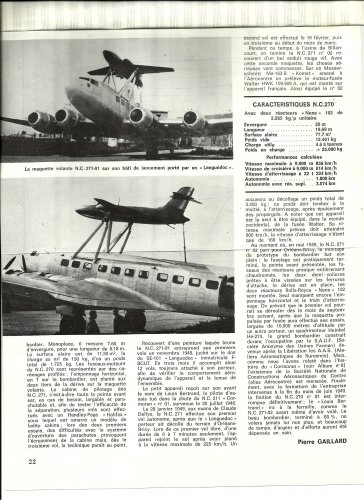

From an old "le Fana de l'aviation"


Attachments

  • nc 2701.jpg
    nc 2701.jpg
    998.4 KB · Views: 595
  • nc 270 2.jpg
    nc 270 2.jpg
    568.7 KB · Views: 126
  • nc 270 3.jpg
    nc 270 3.jpg
    803.5 KB · Views: 118

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
Great articles and drawings my dear Toura.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Sorry, completely overlooked the error in the title. Work on the NC.270 and the NC.271 aerodynamical testbed started
in 1946 still under the aegis of the "Société Nationale de Constructions Aéronautiques du Centre" (Aérocentre), recognisable
by the designation "NC". So I changed the title and moved the post about the Nord N.2200 here: http://www.secretprojects.co.uk/forum/index.php/topic,16058.msg199363.html#msg199363

drawings modified and to be found here http://www.secretprojects.co.uk/forum/index.php/topic,3474.msg201413.html#msg201413


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
What a beautiful set of plans for a beautiful postwar design! You've outdone yourself once again, Jens! Thanks a lot for sharing these.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Jemiba said:
... and the -02 with a rocket engine:

BTW, is there an evidence, that the -02 was ever actually flown with this rocket ?


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
Guten tag Jens

Perhaps

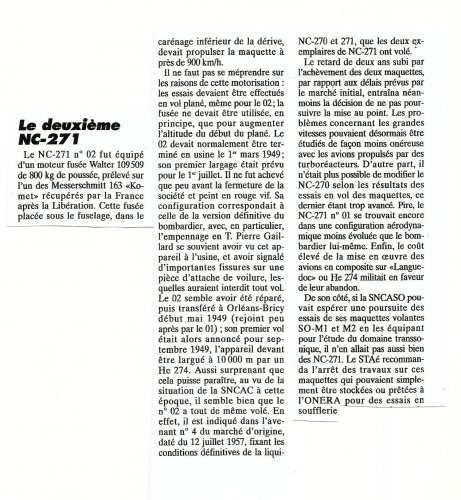

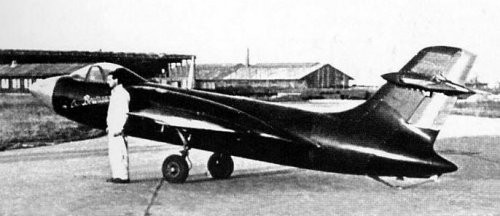

From an article " le fana de l aviation"
december 1998 ???????


Attachments

  • nc 271.jpg
    nc 271.jpg
    330.7 KB · Views: 835

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Thank you Paul !

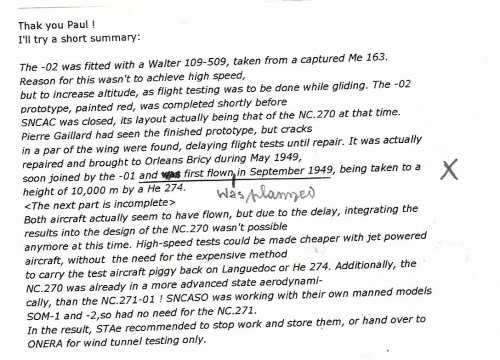

I'll try a short summary:

The -02 was fitted with a Walter 109-509, taken from a captured Me 163. Reason for this wasn't to achieve high speed,
but to increase altitude, as flight testing was to be done while gliding. The -02 prototype, painted red, was completed shortly before
SNCAC was closed, its layout actually being that of the NC.270 at that time. Pierre Gaillard had seen the finished prototype, but cracks
in a par of the wing were found, delaying flight tests until repair. It was actually repaired and brought to Orleans Bricy during May 1949,
soon joined by the -01 and was first flown in September 1949, being taken to a height of 10,000 m by a He 274.
<The next part is incomplete>
Both aircraft actually seem to have flown, but due to the delay, integrating the results into the design of the NC.270 wasn't possible
anymore at this time. High-speed tests could be made cheaper with jet powered aircraft, without the need for the expensive method
to carry the test aircraft piggy back on Languedoc or He 274. Additionally, the NC.270 was already in a more advanced state aerodynami-
cally, than the NC.271-01 ! SNCASO was working with their own manned models SOM-1 and -2,so had no need for the NC.271.
In the result, STAe recommended to stop work and store them, or hand over to ONERA for wind tunnel testing only.


If I got it wrong, please tell me. To fit that rocket engine was a courageous decision, judging the experiences suffered by the Germans !


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
Hi Jens

GOOD ! Just a little correction.

If the nc 271 02 flow, i never see photo of
this plane with the HE 274 ? Bye


Attachments

  • test.jpg
    157.1 KB · Views: 744

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Thanks !

Just one more question: Can somebody decypher the writing on the nose (photo from http://xplanes.free.fr/so4000/so4000-3.htm) ?
Looks like "La Brau...", or "La Prau ...", maybe you know, where to find a clearer photo.


Attachments

  • nc271_04.jpg
    35.4 KB · Views: 661

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Many thanks !
And the colour overall probably was red, as for the second prototype. Seem to have
been a SNCAC habit, the NC.2001 Abeille was painted red, too.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
Hi Jens

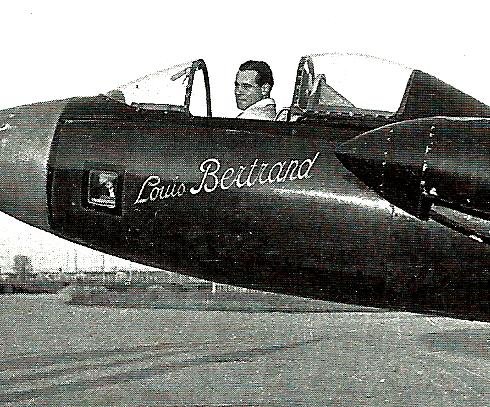

Here the name


Attachments

  • test.jpg
    223.1 KB · Views: 625
  • l bert.jpg
    l bert.jpg
    64.5 KB · Views: 555

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Paul, you came to my rescue ! Will show the result during the weekend, I think. Many thanks indeed !
I already had confirmed the name, but it was just a blurry photo, too. Now I know: The nearest font
to this writing is "Fedra serif" ... ;)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Comparing the photos posted by toura with my 3-views, some of you probably already noticed my
fault: The landing gear is shown incorrectly, it obviously was retracting forward into the mock-up
engine fairings and not into the wings. Will post corrected drawings soon, sorrs for any inconvenience !
Reason for this error simply was, that good photos , especially those with the gear extended, seem to
be rare.
But here's a small compensation :


Attachments

  • NC-271-01_CP.jpg
    99.3 KB · Views: 151

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

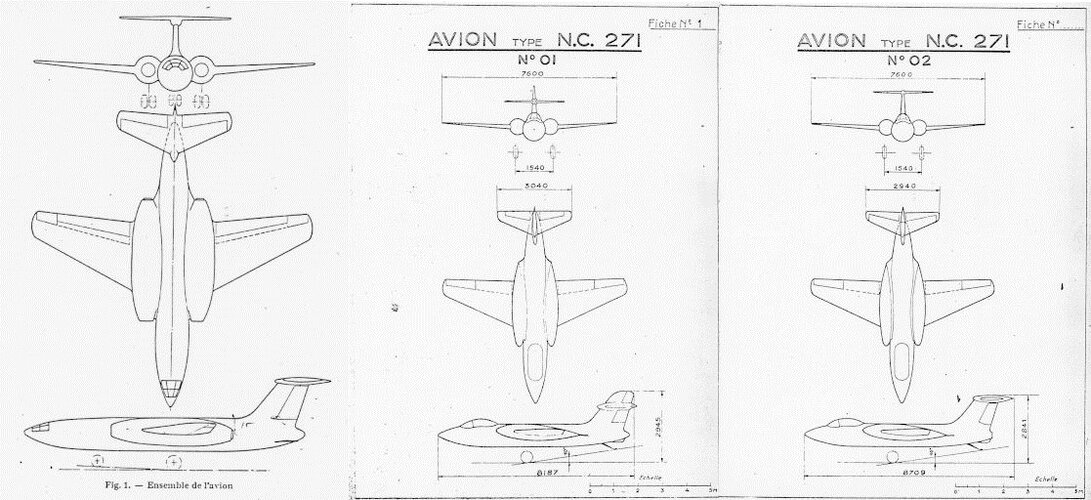

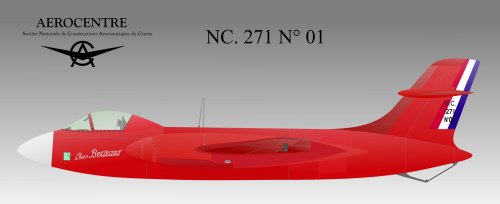

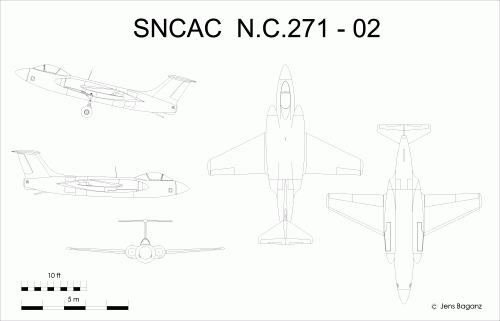

As said before, I've corrected the drawings of the N° 01 and 02, mainly with regards to the landing
gear. I'm still not quite sure about the wheel well doors though, as they don't apear on the photo posted
by Paul.So maybe they were rotating around the axis of the mock-up engine fairings, instead of being
just hinged ? Of course there could have been none at all, but the retracted landing gear isn't recognisable
on any of the photos, I've seen. So, still yet, just provisional drawings and still several questions to be answered.
BTW, I've given the drawing a width of 190 mm and set line width to 0.15 pt, around 0.05 mm. Seemed sufficient
to me, regarding the level of detail, but if there are problems, please just tell me


Attachments

  • SNCAC_NC-271-01_print.gif
    95.4 KB · Views: 181
  • SNCAC_NC-271-02_print.gif
    90.6 KB · Views: 207

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
Hi,

has anyone a more Info about NC.272 supersonic interceptor and twin jets NC.275 Projects ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
hesham said:
has anyone a more Info about NC.272 supersonic interceptor and twin jets NC.275 Projects ?.

As I remember,the NC.275 was attack twin turbojets aircraft Project ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
hesham said:
has anyone a more Info about NC.272 supersonic interceptor and twin jets NC.275 Projects ?.

Also unfortunately this two Projects were not mentioned in both books of Mr. Carbonel; French Secret Projects
Vol. 1 & Vol. 2 ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,877
hesham said:
has anyone a more Info about NC.272 supersonic interceptor and twin jets NC.275 Projects ?.

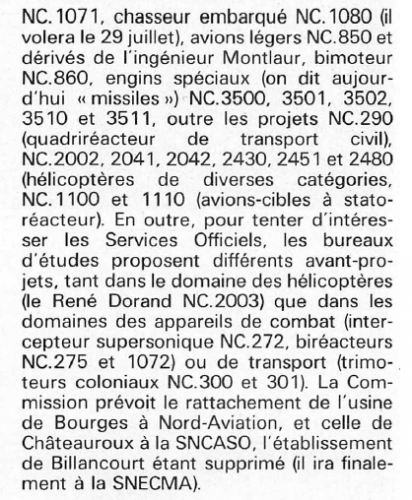

The source was Le Fana,but I can't remember the number of issue.


Attachments

  • b.png
    201.2 KB · Views: 26
