Who has more infromation about this project?
It looks like F-117 and B-2 mixed.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,219
Reaction score
222
It was called the Kentron Flowchart (sounded like a Douglas Adams character to me) and it was a UAV of vaguely stealthy aspect. I never saw it associated with any mission systems (weapons or sensors) and never heard anything about it going any further than an air-show model.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,166
Reaction score
6,258

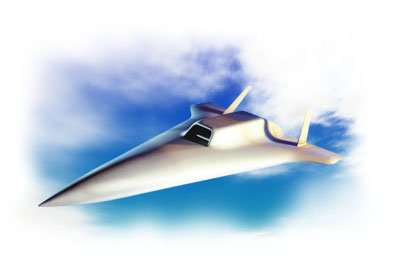

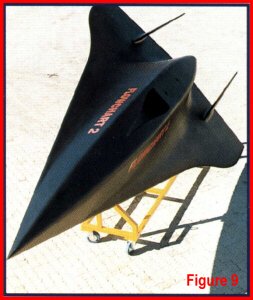

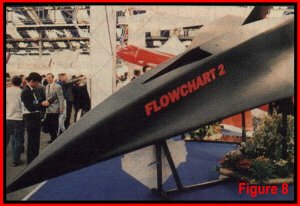

Flowchart 2 and Seraph. Related but not identical.


Attachments

  • Flowchart2a.jpg
    61.9 KB · Views: 217
  • Flowchart2b.jpg
    64 KB · Views: 219
  • Seraph.jpg
    15 KB · Views: 192

Graugrun

ACCESS: Top Secret
Joined
May 17, 2011
Messages
569
Reaction score
410
Who has more infromation about this project?
It looks like F-117 and B-2 mixed.

I have listed it and placed some more info in the South Afircan missiles/PGM's/Rockets in the missile forum. It was actually meant to be a stealthy cruise missile, designed to deliver a nuclear warhead.


Stranger_NN

ACCESS: Restricted
Joined
Oct 14, 2009
Messages
40
Reaction score
11
Website
strangernn.livejournal.com

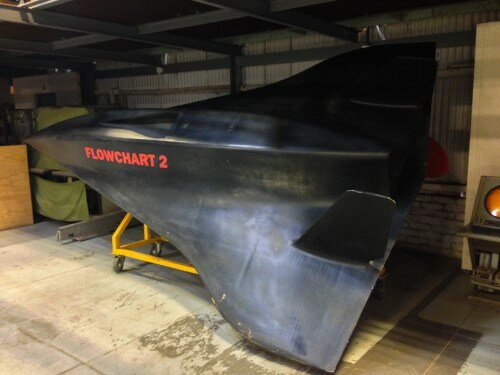

"One of the most interesting developments during this period was the foray into stealth, as a response to the SAAF’s High-speed Reconnaissance Drone (HRD) Technology Demonstrator Programme. The first experiments were with the Flowchart series of technology demonstrators (a Flowchart 2 is on display at the SAAF Museum, AFB Swartkop) before the Seraph design was finalised between 1996 and 1998. The system’s statistics were impressive for the time, able to fly 1 300 km at a speed of Mach 0.83 at 40 000 ft, carrying an 80 kg payload of either optical cameras, a synthetic aperture radar or electronic surveillance sensors. Development was well-advanced by 1997 but severe South African defence budget cuts killed the SAAF’s HRD programme and with it the Seraph’s prospects of final development."

https://www.nairaland.com/1386870/african-militaries-security-services-strictly/1293)


Attachments

  • 5688661_2014030112_57_32hdr500x375_jpegb5ab46b32c4d3af636ce0b2a67be0da5.jpg
    37 KB · Views: 32
  • E0AaAFsWEAABsdV.jpg
    294.8 KB · Views: 30
