Hi,

SNCASE SE X-106 and X-107 :supersonic intercopter projects.
SE X-108 :mixed powered research aircraft ,project only.
SE-2450 : last development of Grognard fighter.
SE-2060 :engined test bed aircraft of SE-2010 transport aircraft.
SE-6000 :supersonic intercopter project.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
For the SE.6000, I drew a blank. It isn't mentioned in Cunys "Les Avions De Combat .." and
not in my other sources, any additional information would be most welcome .

According to Cuny, both the X-106 and the X-107 were designed as subsonic/transsonic
fighter bombers.

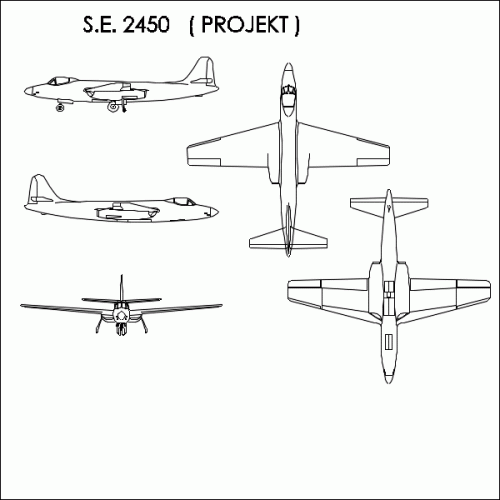

The SE.2450 was a design of a heavy fighter bomber/ attack a/c,, but as it seems not in direct
lineage with the Grognard. There were to similar designs, differing mainly in hte engine
installation, one of htem was the SE.2450, the other the SE.1400.


Attachments

  • SE_X-106.GIF
    28.4 KB · Views: 1,278
  • SE_X-107.GIF
    24.9 KB · Views: 1,194
  • SE-2450.GIF
    20.1 KB · Views: 1,215

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

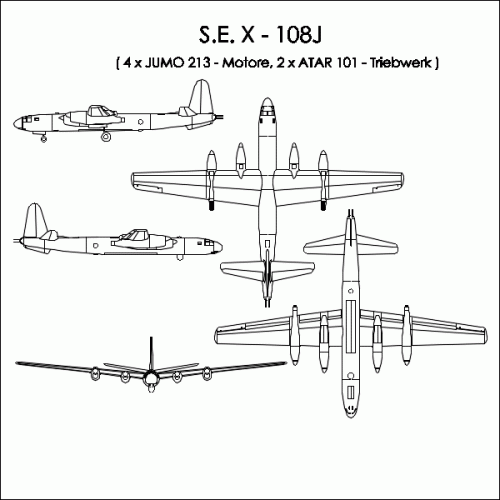

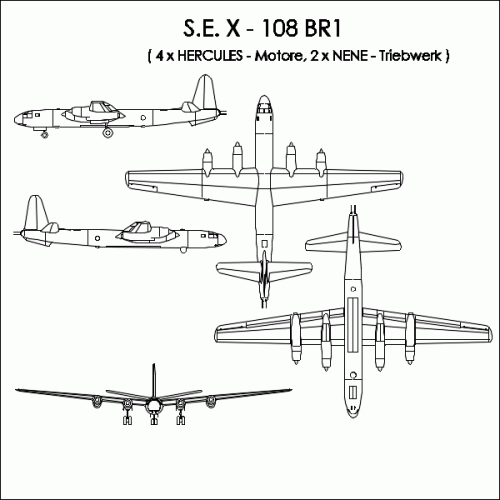

Again according to the "Cunys bible" (anyone who knows another comparable book
about the french postwar aviation ?) the SE. X-108 was intended to be used as an
ocean surveillance /ASW a/c. Several different engine layouts were planned, as was
with the Latécoère 221 to 227 series.

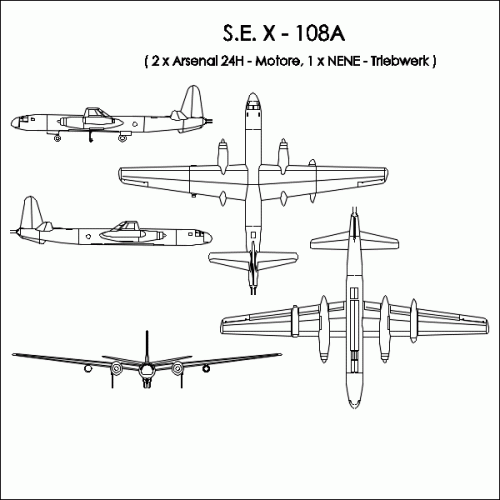

(Especially the drawing of the X-108A should be viewed with some scepticism, as I
had only the drawings of hte J-/BR-version and the written description !)


Attachments

  • SE_X-108J.GIF
    25.4 KB · Views: 461
  • SE_X-108BR1.GIF
    25.8 KB · Views: 1,209
  • SE_X-108A.GIF
    24.6 KB · Views: 1,255

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

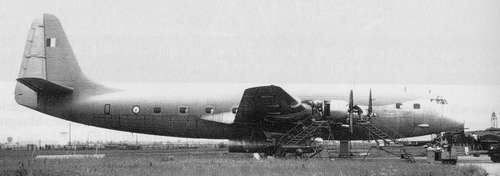

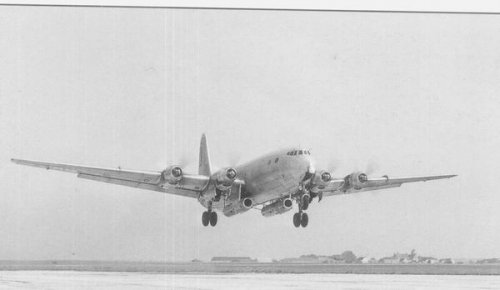

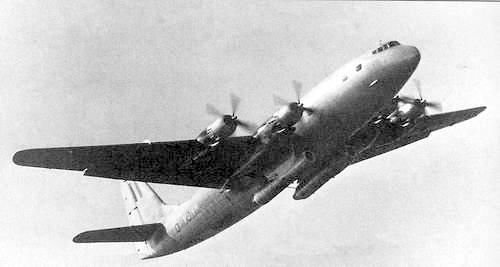

And the SE.2060 was just the well known SE.2010 transport with two underslung
jet engines of varying types, ATAR or the TF-106, for example.
Not th right stuff for this forum, I'm afraid ;)


Attachments

  • SE2060-1.jpg
    15.5 KB · Views: 325
  • SE2060-2.jpg
    8.6 KB · Views: 267
  • SE-2060-3.JPG
    18 KB · Views: 313

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Hello Hesham,

I've looked again for the SE.6000, but without success. There are of course cases of the use of one designation number for two types, but this is quite rare. And there are numerous "sources", which don't bother if it is SNCASE or SNCASO. It's just one different letter, who cares ? And in the enthusiasm of the beginning jet age, many new aircraft were credited with the ability to reach the speed of sound, although in fact they just could reach their critical mach number, not quite the same.
So it would be very good, if you could name your sources, it would make it easier to decide, if a mentioned project is really an unknown one, or just a gimmick of a magazine or newspaper, mentioned in three lines between the weather report and the funnies .... For example, it's really funny, what you sometimes can read in the german daily press about the Eurofighter Typhoon ! :D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Dear Jemiba,

I will try to remember from any site I got the SE-6000.
but do you have a drawings to these projects:

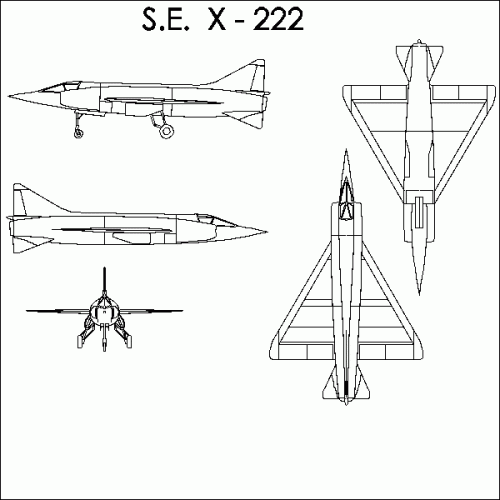

SE X-222 :supersonic delta wing intercopter.
SE X-223 :supersonic delta wing bomber.
SE X-224 :supersonic delta wing bomber.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500

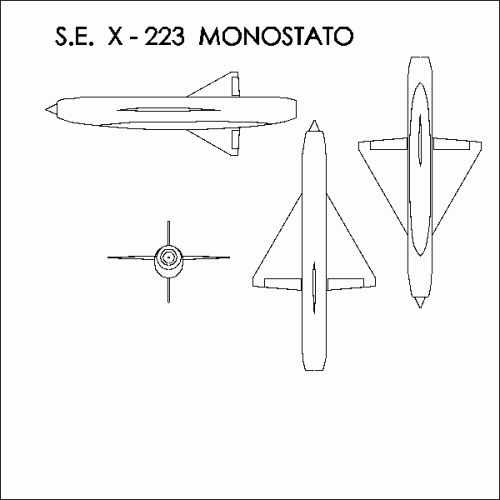

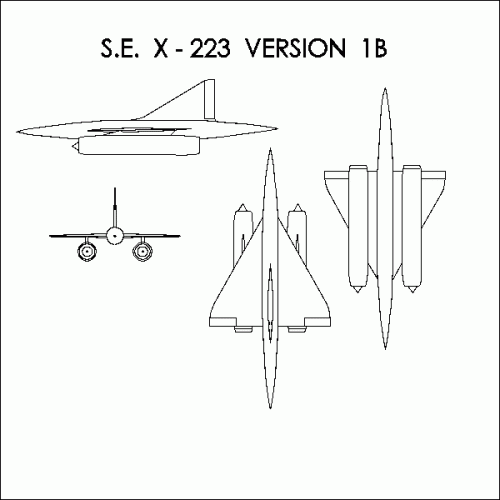

The X-223 series was, what we nowadays would call drones (avions robot) ,
designed as single or twin engined types.

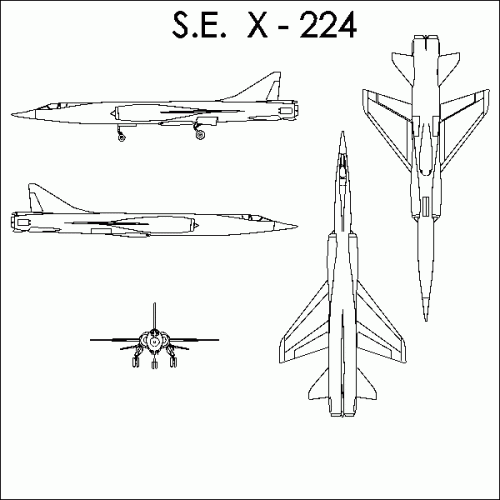

The X-224, I think, already was mentioned in a thread about the Mirage IV com-
petitors.
All drawings based on Cuny.


Attachments

  • SE_X-224.GIF
    8.4 KB · Views: 498
  • SE_X-223-Monostato.GIF
    6.4 KB · Views: 304
  • SE_X-223-1B.GIF
    6.9 KB · Views: 356
  • SE_X-222.GIF
    8.6 KB · Views: 408

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,639
Reaction score
498

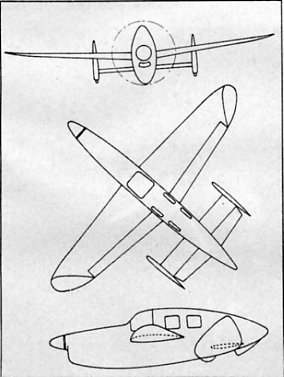

Aviation Magazine Num 768 (15-XII-79)

SNCASE SE-600
1941
Civil light aircraft It was a design derivated from SE-100 fighter configuration.

Engine: Béarn 6D 420 hp
Span: 11 m
Lenght: 9.25 m


Attachments

  • SE-600.jpg
    50.6 KB · Views: 370

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Dear Pometablava,

but in http://www.hydroretro.net/etudegh/sncase.pdf
they mentioned that SNCASE SE.600 was two seat reconnaissance
aircraft developed from SE.100 fighter.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
" ...SE.600 was two seat reconnaissance
aircraft developed from SE.100 fighter."

Sorry, I can't find any mentioning of the SE.100 in the lines about the SE.600 there.
It's described as a light single engined (!) reconnaissance a/c. Maybe the "civil" SE.600
was a later attempt to get approval for further development.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Yes starviking,

I think so.

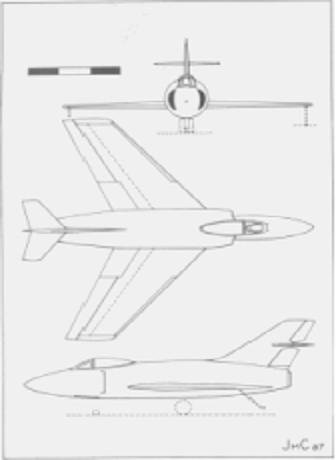

SNCASE SE-X-109 :was single seat delta wing interceptor project,
powered by one Rolls-Royce Nene engine.
SNCASE SE-X-114 :was single seat delta wing interceptor project
of 1953,powered by two turbojet engines.


Attachments

  • SNCASE SE X-114.jpg
    354 KB · Views: 324

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
635
Reaction score
382
Dear Hesham,

I have some questions regarding the SNCASE X-114 project:

1. What engines was the X-114 to have? Do you have any idea whether there was a rocket-engine planned for the aircraft, as was en vogue in French interceptor projects of the 1950s?

2. How were the X-114's dimensions? In the picture that you have posted there is a scale; does it equal to five meters?

And finally, why do you use the word 'intercopter' instead of 'interceptor' (or intercepter)?

Best regards,
Piotr


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Hi Petrus,

for my english,sorry it was not perfect,and for X-114 I don't
know the engines,and the Dimensions.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
The scale given in Cunys books are always good old metres. And the text says,
the X-114 would have been an extremely small aircraft of 8,80m lenght and
5,32m span.


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,246
Reaction score
893
Hi

In "LES AVIONS DE COMBAT FRANCAIS 1944-1960 " I : CHASSE-ASSAUT (J. Cuny, 1988, Col. Docavia, Ed. Larivière) (p.121) :

Jet engines for X-114 : only possible for jet engines such as "Viper" and "Farandole".

Ad :
For Viper I found the little Armstrong Siddeley Viper jet of 1750 Ib thrust for the first prototype of the Jet Provost (first flew in the summer of 1954)
For Farandole I found that this jet engine was an evolution of the Viper 10 and the max thrust trials was 1410 kgp in 1956 (cancelled in 1959)


Regards


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Thanks my dears Jemiba and Deltafan,

SNCASE SE-X-207A :was single seat supersonic interceptor project,
powered by one Rolls-Royce Nene engine,estimated
speed 1.3 Mach and the lenght 14m.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Hi,

SNCASE SE-X-207C :was single seat interceptor project,seemed to
tailless configuration,powered by two rocket
engined,estimated speed was 1.3 Mach and
wing tip.


Attachments

  • SNCASE X-207C.JPG
    SNCASE X-207C.JPG
    11.1 KB · Views: 822

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Hi,

SNCASE SE-X-207S :was new design as supersonic interceptor
with small delta wing and powered by one
Stato turbojet engine and had an estimated
speed 1.3 Mach and it was look like Leduc
design.


Attachments

  • X-207S.JPG
    12 KB · Views: 671

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Hi,

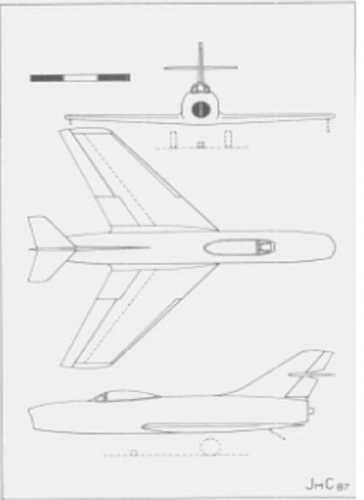

SNCASE SE-X-207R :was single seat low-mid wing interceptor
project,powered by one Rolls-Royce Nene turbojet engine,it had
swept wing and estimated speed .90 Mach.


Attachments

  • X-207R.JPG
    10.6 KB · Views: 704

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Hi,

SNCASE SE-X-207 Atar: was single seat interceptor project,but with Atar
engine and the air intake in the nose,there were also some projects based
on X-207.


Attachments

  • X-207 PROJECTS.JPG
    X-207 PROJECTS.JPG
    28.5 KB · Views: 800
  • X-207 Atar.JPG
    X-207 Atar.JPG
    17.8 KB · Views: 687

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Hi,

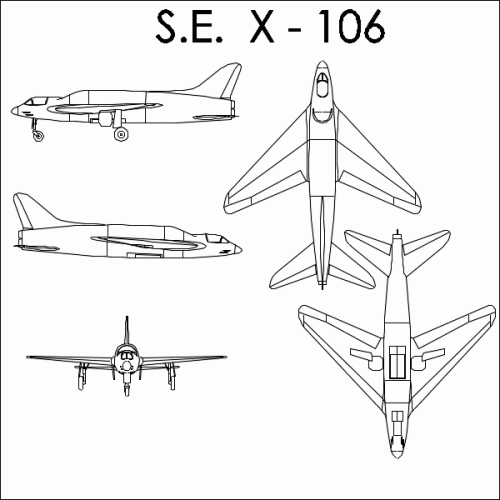

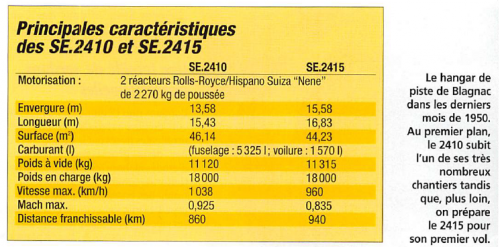

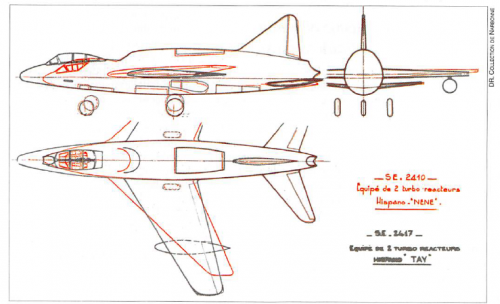

SNCASE SE-X-106 :was single seat fighter resemeble the SE 2410-2415 Grognard
in configuration,it had two cannon (30mm) and powered by one Atar 101B turbojet,
it was designed in three versions;
A1 A2 B
Span 12.68m 13.58m 14.15m
Lenght 15.80m 16.50m 17.00m
Estimated
Speed 1030 1000 980 (km/h)


Attachments

  • X-106.JPG
    8.9 KB · Views: 423

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Hi,

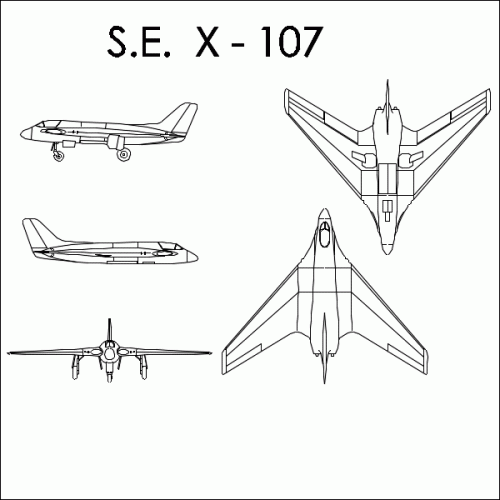

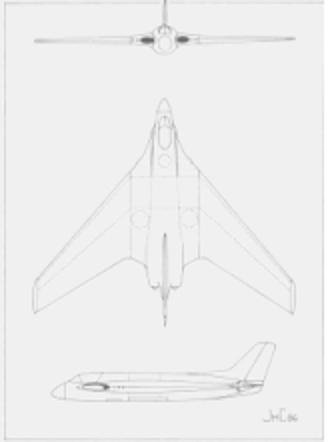

SNCASE SE-X-107 :was single seat tailless jet fighter project,
powered by two Atar 101 engines,and was designed in two
versions;
A B
Span 14.00m 15.20m
Lenght 13.40m 13.40m
Estimated
Speed 1055 1020 (km/h)


Attachments

  • X-107.JPG
    7 KB · Views: 434

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
My dear Jemiba,

You sent to this topic the SNCASE SE X.108 as ASW aircraft,
but in the Internet I found that the SE X.108 was mixed powered
interceptor project,I can't explain this.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
Mixed power is correct, at least for some proposed versions of the
SE. X.108, which would have had additional jet engines in the after
part of the inner engine nacelles.
But interceptor probably isn't correct, as long, as we believe in the
pope of the french aviation history.
(Jean Cuny, "Les Avion De Combat Francais", volume 2, pages 181/182)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
My dear Jemiba,

In hydroretro site they mentioned it as mixed powered
inerceptor,in the list of interceptor projects.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,342
Reaction score
1,500
You probably mean this site : http://www.hydroretro.net/etudegh/sncase.pdf
If so, plesae have a look at page 28, there the X-108 is mentioned as "Avion de haute
mer propulsion mixte", in english, sea surveillance a/c with mixed power propulsion !
The lines before and behind mentiones the X-107 and X-108, both interceptors, but
not the X-108 .... ;)
In pdf files, you can adjust magnification either by clicking the plus or minus button
besides the scale, given in %, or by clicking on the magnifying glass. maybe important,
as pdfs are often opned with just 75 %, quite difficult to read . ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
Hi,

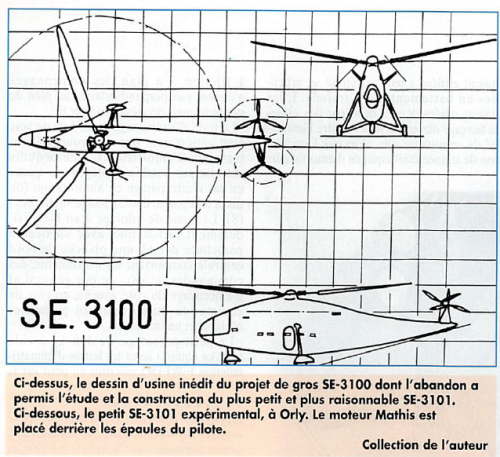

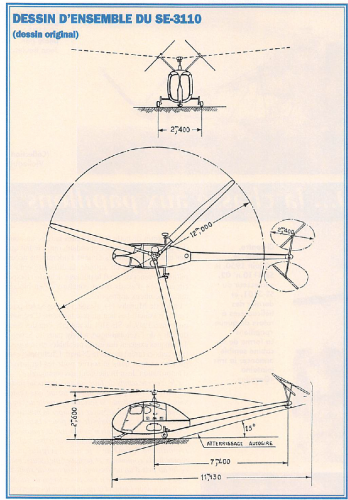

the SNCASE aircraft projects have no end,the SE-1001 was long range
mail carrier aircraft and SE-3010 and SE-3100 was experimental helicopter
projects,do you hear about SNCASE X-121 ?.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,542
Reaction score
1,208

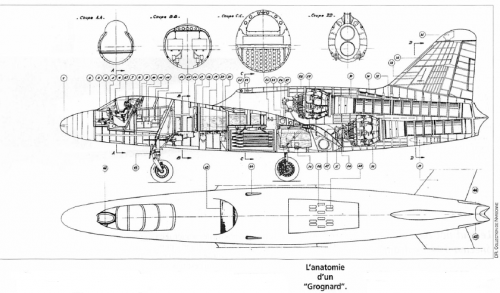

Sud-Est Grognard cutaway


Attachments

  • Sud-Est Grognard cutaway.jpg
    Sud-Est Grognard cutaway.jpg
    85.3 KB · Views: 402

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
213

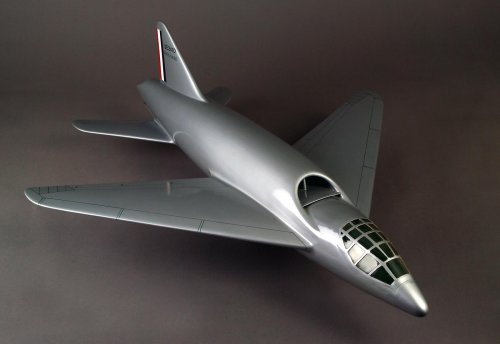

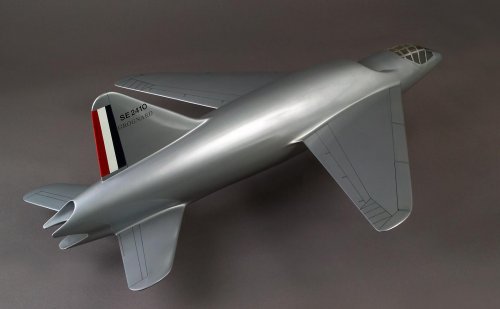

Manufacturer's trade-show model of the SNCASE 2410 Grognard, from about 1950. This one came from a small collection in the Oregon countryside, of all places.


Attachments

  • SE-2410 02.jpg
    SE-2410 02.jpg
    102.5 KB · Views: 1,338
  • SE-2410 03.jpg
    SE-2410 03.jpg
    85.4 KB · Views: 1,307

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988

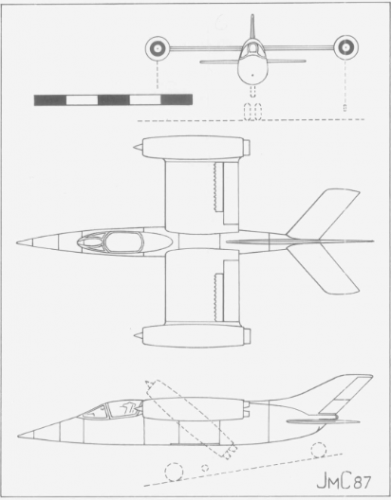

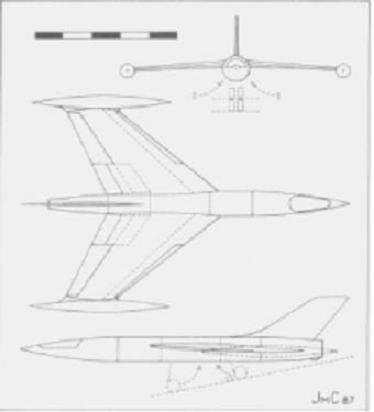

The SNCASE X-115.

(from Jean Cuny "Les Avions De Combat Francais", volume II, Docavia)
Please, ALWAYS mention your sources !


Attachments

  • X-115.png
    57.9 KB · Views: 1,115

cheaptrotte

I really should change my personal text
Joined
Aug 18, 2014
Messages
2
Reaction score
0
Hi :)

Sud-Ouest SO-1310 Farfadet. Little "convertible" because mi-autogire system. So tracted by Turbumeca Artouste II +/- 280 chevaux and principale rotor the propulsor Turbomeca Arrius.

My English bad? No! I'm Yoda ;) here easier for you with website : http://prototypes.free.fr/vtol/vtol-10.htm


Without big budget they were original for a small country out of war. I like the Sud Ouest.

Good week for all


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
From Le Fana 323 & 324,

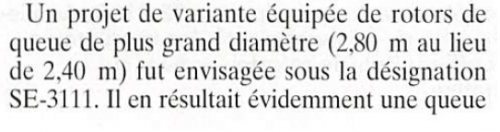

here is a drawing to SNCASE SE.3100 helicopter Project,also the original drawing to SE.3110,and a msll
Info about SE.3111 Project.


Attachments

  • 5.png
    59.2 KB · Views: 108
  • 4.png
    76 KB · Views: 101
  • 2.png
    1.2 MB · Views: 641
  • 1.png
    506.4 KB · Views: 672

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988

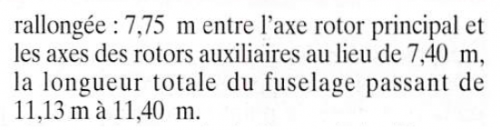

From Le Fana 312,

the SNCASE SA.3220 and SA.3230 was a developed Projects from SA.3210
Super Frelon helicopter,if someone has a drawings to them ?.


Attachments

  • 1.png
    471.6 KB · Views: 115
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,355
Reaction score
5,988
From le Fana 445.


Attachments

  • 0.png
    464.2 KB · Views: 123
  • 1.png
    226.9 KB · Views: 150
  • 2.png
    160.8 KB · Views: 158
  • 3.png
    229.4 KB · Views: 143
  • 4.png
    238.1 KB · Views: 155

Similar threads

Top
