SNCASE (Sud-Est) SE.1800

SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
7

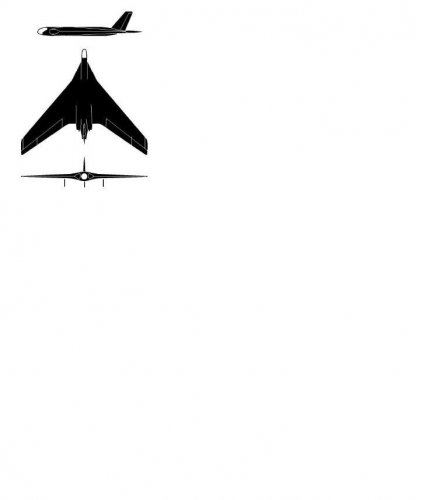

I came across the 1946 SE-1800 for a supersonic transport first to be powered with two Rolls-Royce Nene engines, and later two Snecma Atar engines under direction of Heinrich Hertel.

The project was dropped in 1949.

Does anybody have any more information on this?


Attachments

  • SE-1800.JPG
    17.3 KB · Views: 238

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
Hi Loren,

Indeed, in 1946, the company SNCASE engaged Prof. Heinrich Hertel, former technical director at Heinkel, then at Junkers-Dessau where he designed the EF130 flying wing project.
Under his direction, the SNCASE design-offices situated at Toulouse and Marignane studied several tailless aircraft and flying wings projects, with increasing sizes. The first one, the SE-1800, was formalized, on April 30th 1947, by a development contract signed with the French government. This experimental aircraft, single-seat and twin engine, was designed to study caracteristics of subsonic flying wings, for much bigger long-range civil transport flying wing project of 280 metric tons (617294,3lb).
A scale model was tested at ONERA wind-tunnel at Cannes in february 1948. Military versions was also studied before the end of the program in December 1948.

Specs: Span: 17m (55,77ft); Lenght: 12,1m (39,7ft); Wing Area: 73m2 (785,77sqft); Empty weight: 9111kg (20086,3lb); Loaded weight: 15000kg (33069,3lb); Estimated max speed: 1000km/h (621,4mph)


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,657
Reaction score
689
PDF on SNCASE Projects
http://www.hydroretro.net/etudegh/sncase.pdf


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945

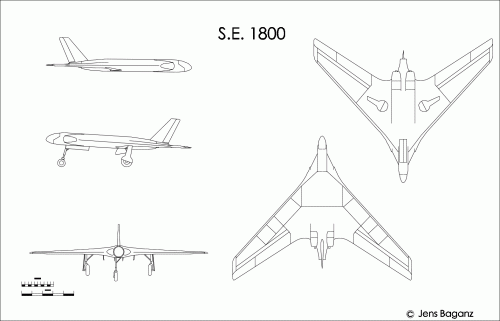

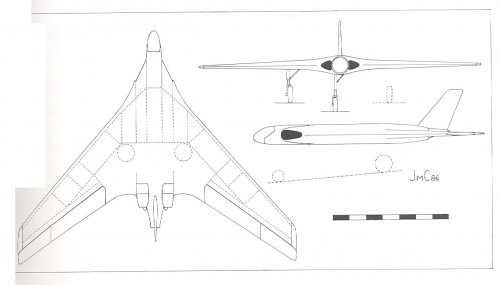

A better, or at least more detailed drawing (that not necessarily means more accurate !) can
be found in Jean Cunys "Les Avions De Combat Francais". I've once used it as basis for a redraw.
A detail shown by Cuny is, that the nose leg is offset slightly to the right side. The concept still
looks rather german to me, something I used as a clue for the landing gear.
Again, just a provisional drawing, without any warranty !


Attachments

  • SE-1800.GIF
    56.9 KB · Views: 278

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
Hei! Jemiba

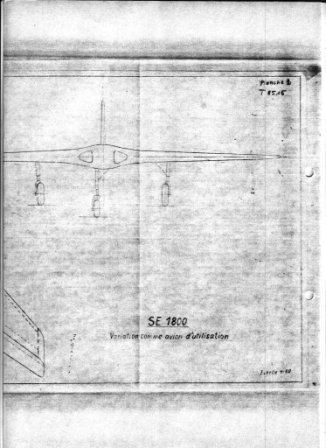

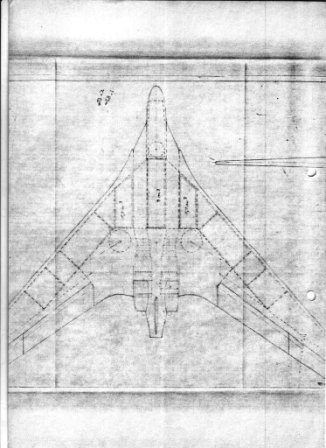

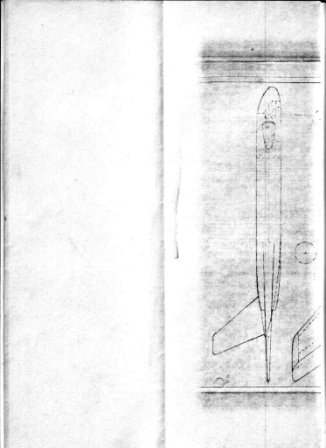

From SNCASE-Marignane design office, doc n° T/8515 dated Feb. the 5th, 1948.


Attachments

  • SNCASE006G2smaller.jpg
    71.2 KB · Views: 190
  • SNCASE006G1smaller.jpg
    97.5 KB · Views: 183
  • SNCASE006G3smaller.jpg
    96.3 KB · Views: 189

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945
Maybe that was the source for Cunys drawings ? Will have a
closer look and if more details are recognisable, I'll include them.
Thanks, Retrofit ! ;)


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895

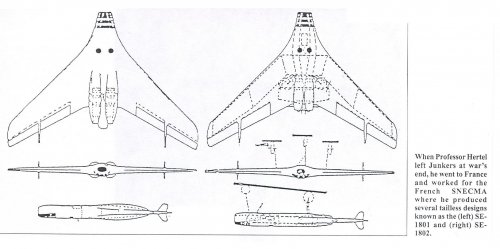

Cuny drawings


Attachments

  • Escanear0001.jpg
    62.5 KB · Views: 125
  • Escanear0002.jpg
    140.2 KB · Views: 158

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895

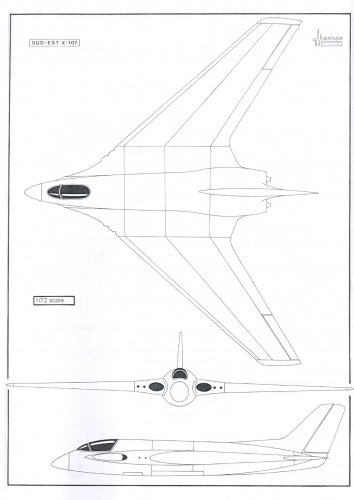

The fighter version X-107


Attachments

  • Escanear.jpg
    115.4 KB · Views: 152

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
Wow, thanks Justo!
Do you have more information on those SE-1801 and 1802.

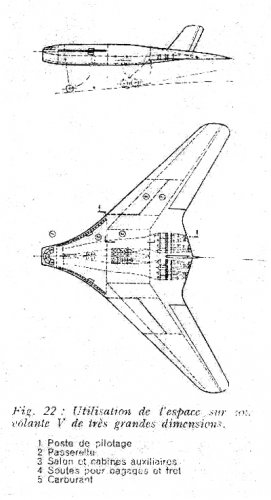

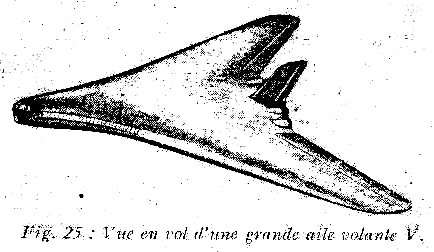

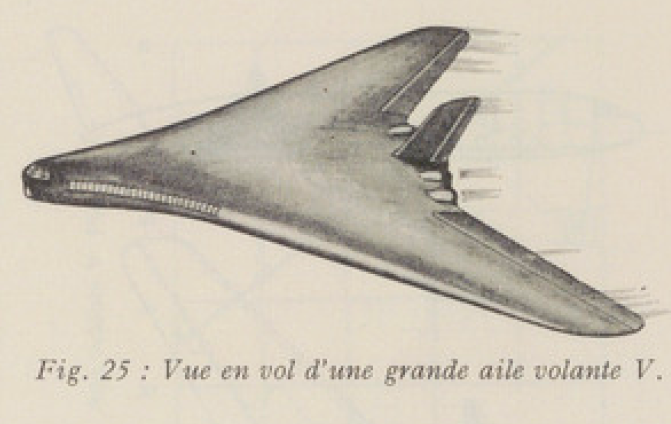

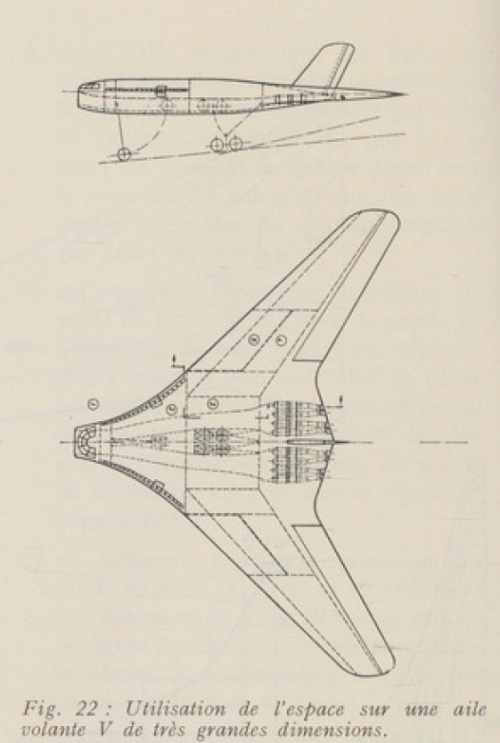

They look like scaled-down models of a transport project mentionned in the Interavia issue 8-9, 1950: "Avions commerciaux à grand rayon d'action" by....H. Hertel.


Attachments

  • Hertel02.jpg
    78 KB · Views: 76
  • Hertel01.jpg
    136 KB · Views: 91

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,657
Reaction score
689
in this Thread
http://www.secretprojects.co.uk/forum/index.php/topic,441.0.html

are those picture




are related to SNCASE SE-1800 ? ? ?


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
Well, the studies conducted by SNCASE and ATAR were indeed quite similar, but IMHO I don't think they were connected.
The SE-1801/1802 projects seem to be the missing links between Junkers 1945 BWB project (without reference!) and SNCASE?-Hertel project (SNCASE project reference ?) presented in the 1950 interavia issue (i.e. after Hertel left SNCASE).

http://www.secretprojects.co.uk/forum/index.php?topic=4959.0


airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,214
Reaction score
82
Website
zeef.com
Retrofit said:
Well, the studies conducted by SNCASE and ATAR were indeed quite similar, but IMHO I don't think they were connected.
The SE-1801/1802 projects seem to be the missing links between Junkers 1945 BWB project (without reference!) and SNCASE?-Hertel project (SNCASE project reference ?) presented in the 1950 interavia issue (i.e. after Hertel left SNCASE).

http://www.secretprojects.co.uk/forum/index.php?topic=4959.0

or probably yes ? ::) ::)

Must be some connection ! :)
We don't forget that projects of luftwaffe, after wwii, have had a great contribute of development of odiern aviation !


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895
Retrofit said:
Wow, thanks Justo!
Do you have more information on those SE-1801 and 1802.
They look like scaled-down models of a transport project mentionned in the Interavia issue 8-9, 1950: "Avions commerciaux à grand rayon d'action" by....H. Hertel.

Please see "Luftwaffe Secret Projects -Strategic bombers 1935 , 1945" by Dieter Herwig and Heinz Rode
Ian Allan 2000.
PP.100 "A Junkers Long Range Project of 1945"


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
587
Reaction score
86
airman said:
Must be some connection ! :)
We don't forget that projects of luftwaffe, after wwii, have had a great contribute of development of odiern aviation !


In that sense, airman, you are perfectly right (I was more thinking about direct relations between the ATAR's design office and the SNCASE's one).
When it was created in october 1945 at Rickenbach, near Lindau, ATAR (Atelier Technique Aeronautique de Rickenbach) had engaged, along with Dc. Ing. Hermann Oestrich (former BMW Berlin-Spandau technical director and father of the BMW 109-003 jet engine), around 180 engineers and technicans coming from BMW, Daimler-Benz, VDM, Hirth and...Junkers.

Thanks again Justo.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945

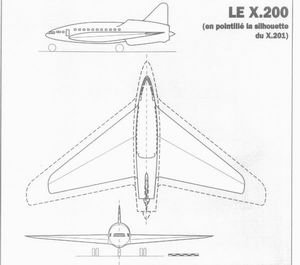

Another SNCASE project came to my mind, especially as the flying wing transport
projects were mentioned : The SNCASE X-200, one of the many pre-projects to
the Caravelle.
(drawing from Le Fana 4.1997)


Attachments

  • SE_X-200.JPG
    9.7 KB · Views: 364

SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
7
Wow! Thanks for the great input. A truly interesting chain of studies.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,228
Reaction score
945

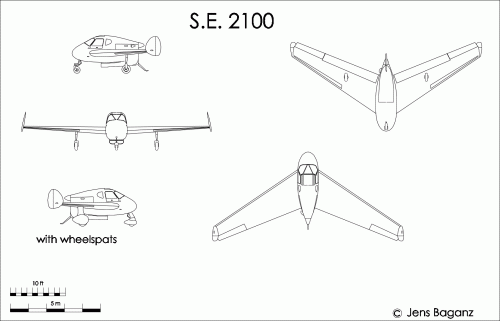

Perhaps the SE-2100, always described as "touring aircraft", was in fact just
built as a flying wing testbed ? ???


Attachments

  • SE-2100.GIF
    56.5 KB · Views: 155

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,724
Reaction score
3,495

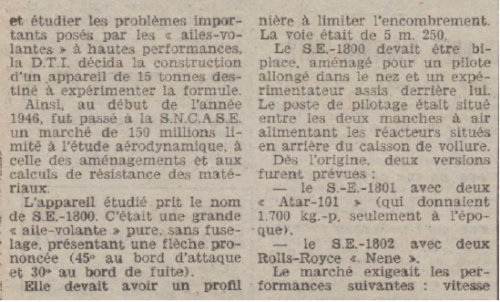

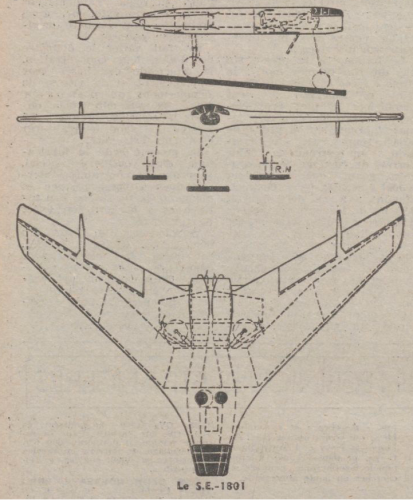

From Ailes 10/11/1956,

here is a drawing to SNCASE SE.1801 & SE.1802,and more info.


Attachments

  • 1.png
    748.1 KB · Views: 52
  • 2.png
    785.6 KB · Views: 50
  • 3.png
    636.1 KB · Views: 41
  • 4.png
    291.4 KB · Views: 31
