SNCASE (Sud-Est) SE.1010

flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
Trying to find any information about postwar SNCASE warplane projects here, i'm find out that there is no information about SE-1010, high altitude reconnaissanse plane.
It looks very close to Republic XF-12 Rainbow.

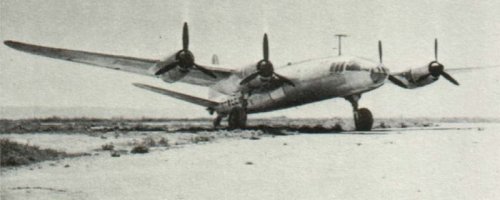

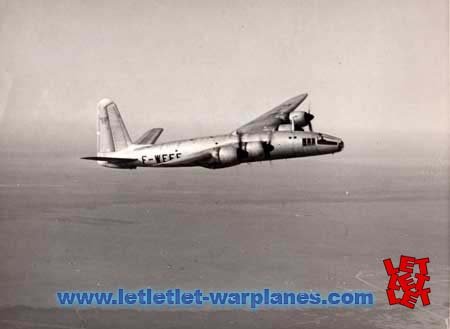

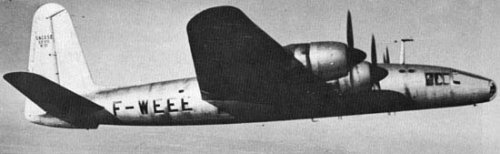

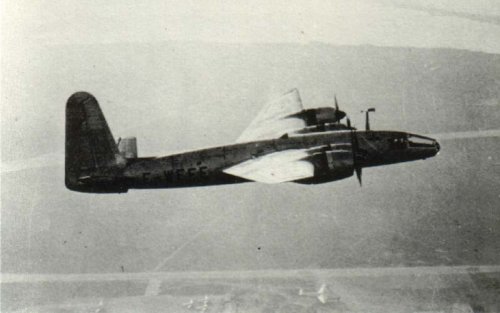

Here some information about SE-1010.

First flight was made by Jacques LECARME on November 24, 1948. SE-1010 was the four-engine monoplane, made for photographic reconnaissance, powered by 4 SNECMA 14R-28.
Empty weight - 15.0 tons
take-off weight - 24.0 tons
wingspan - 31.00 meters
length - 21.80m
max speed of 520 km/h
cruise speed 400 km/h

Plane was lost on October 1, 1949 due to flat spin. The crew of six (Test pilot Henry VANDERPOL, flight test engineer Pierre Bouillon, engineer Silvio Agliana, radio operator Marius RIVET, mechanics Valery Chasson and Fernand PILLET) was lost...


Attachments

  • se1010_1.jpg
    26.8 KB · Views: 527
  • se1010_2.jpg
    27.3 KB · Views: 511
  • se1010_3.jpg
    36.5 KB · Views: 482
  • sncase-se-1010.jpg
    34.7 KB · Views: 486

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,893
Reaction score
3,810
Website
www.amazon.com

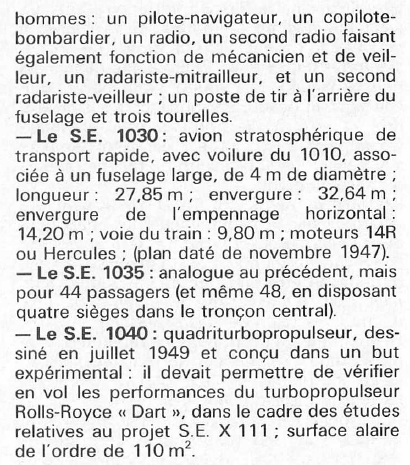

From
Le Fana de l'Aviation

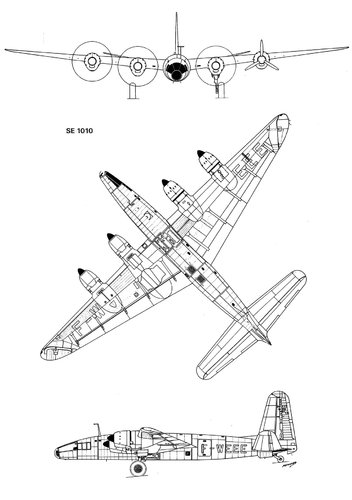

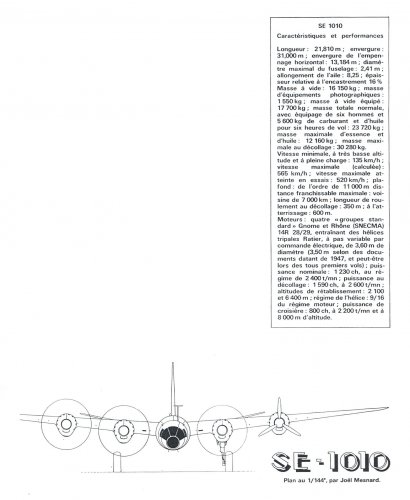

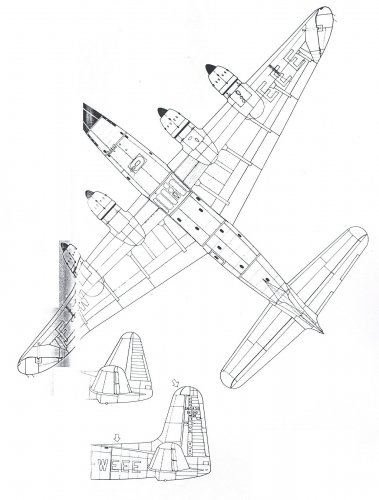

Attachments

  • Escanear0003.jpg
    219.4 KB · Views: 167
  • Escanear0002.jpg
    205 KB · Views: 183
  • Escanear0001.jpg
    294.6 KB · Views: 554

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237

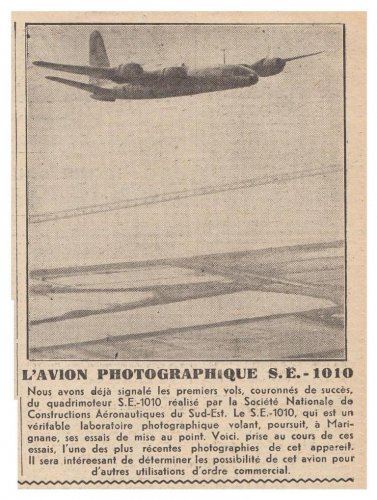

A personal favourite of mine; though hardly "Secret" and very definitely not a "Project". Here is some contemporary press including a piece in Les Ailes bemoaning the fact that they were not allowed to cover the first flight......

Terry (Caravellarella)


Attachments

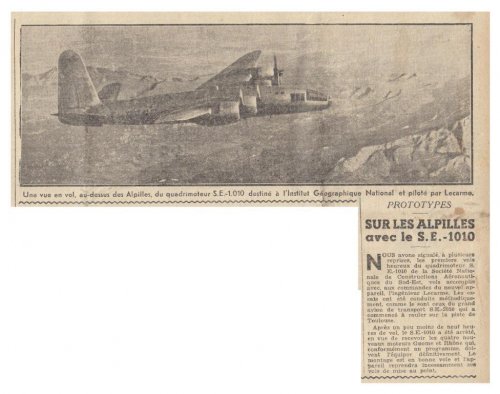

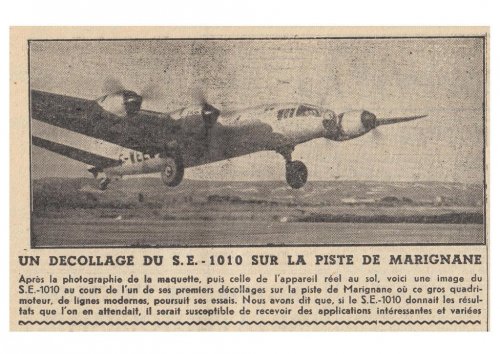

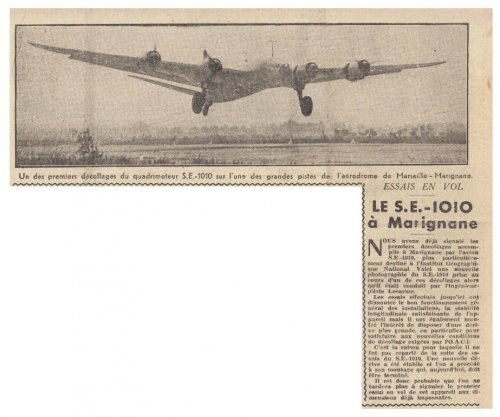

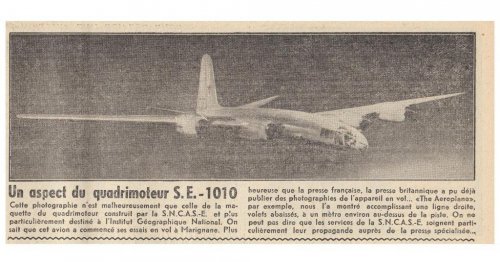

  • SNCASE SE-1010 impression - Les Ailes No. 1,179 - 4th September 1948.jpg
    SNCASE SE-1010 impression - Les Ailes No. 1,179 - 4th September 1948.jpg
    154.1 KB · Views: 100
  • SNCASE SE-1010 F-WEEE - Les Ailes No. 1,189 - 13th November 1948 1.......jpg
    SNCASE SE-1010 F-WEEE - Les Ailes No. 1,189 - 13th November 1948 1.......jpg
    118.6 KB · Views: 75
  • SNCASE SE-1010 F-WEEE - Les Ailes No. 1,189 - 13th November 1948 2.......jpg
    SNCASE SE-1010 F-WEEE - Les Ailes No. 1,189 - 13th November 1948 2.......jpg
    208 KB · Views: 71

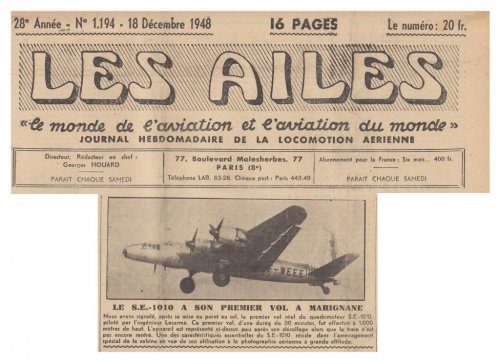

  • SNCASE SE-1010 F-WEEE - Les Ailes No. 1,194 - 18th December 1948.jpg
    SNCASE SE-1010 F-WEEE - Les Ailes No. 1,194 - 18th December 1948.jpg
    141.4 KB · Views: 67

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237

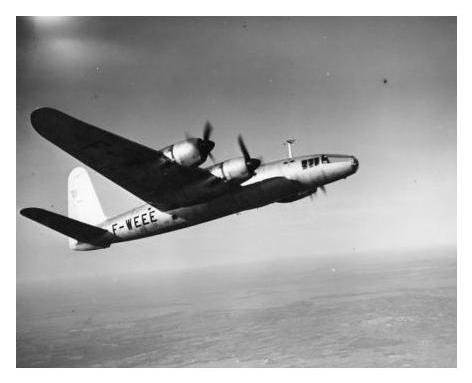

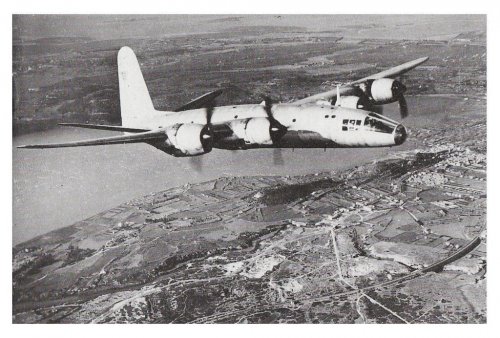

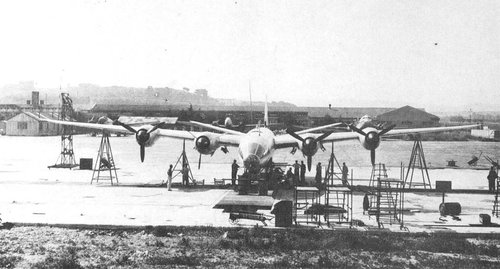

The thing to bear in mind about the SE-1010 is that design commenced in February 1945 (moderators, should this be in "Early Projects" instead?) as a pressurised, Transatlantic high-speed courier & postal aircraft; the SE-1001. The production SE-1011 would have differed considerably too......

Terry (Caravellarella)


Attachments

  • SNCASE SE-1010 F-WEEE 1.......jpg
    SNCASE SE-1010 F-WEEE 1.......jpg
    14.8 KB · Views: 106
  • SNCASE SE-1010 F-WEEE 2.......jpg
    SNCASE SE-1010 F-WEEE 2.......jpg
    214.9 KB · Views: 111
  • SNCASE SE-1010 F-WEEE - Les Ailes No. 1,198 - 15th January 1949.jpg
    SNCASE SE-1010 F-WEEE - Les Ailes No. 1,198 - 15th January 1949.jpg
    128.4 KB · Views: 72
  • SNCASE SE-1010 F-WEEE - Les Ailes No. 1,196 - 1st January 1949.jpg
    SNCASE SE-1010 F-WEEE - Les Ailes No. 1,196 - 1st January 1949.jpg
    226.1 KB · Views: 76

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237

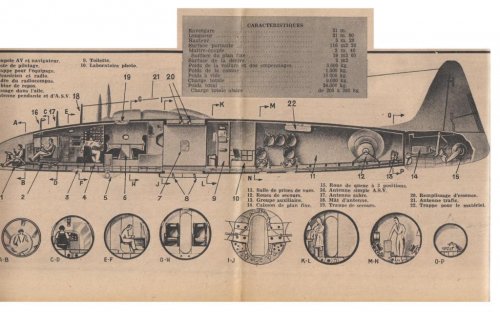

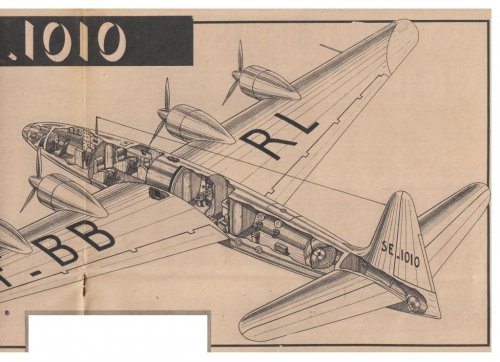

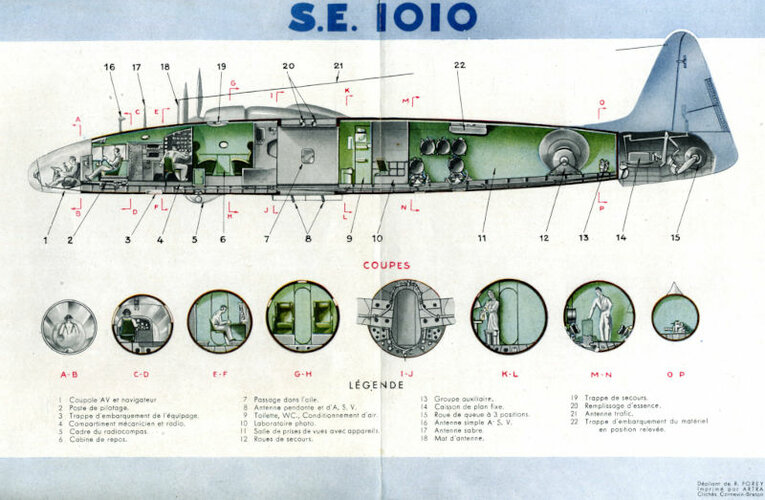

Sorry, I'm not set up to scan larger than A4, but here is some contemporary publicity on the SE-1010 from the 30th January 1947 of Décollage......

Terry (Caravellarella)


Attachments

  • SNCASE SE-1010 - Décollage No.46 30th January 1947 1.......jpg
    SNCASE SE-1010 - Décollage No.46 30th January 1947 1.......jpg
    132.2 KB · Views: 171
  • SNCASE SE-1010 - Décollage No.46 30th January 1947 2.......jpg
    SNCASE SE-1010 - Décollage No.46 30th January 1947 2.......jpg
    110.6 KB · Views: 220

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
Thank you guys for all this wonderful material about one of my favorite French prototypes...

flying-finn said:
It looks very close to Republic XF-12 Rainbow.

From a distance maybe, and I know on first impression it did that to me to... but I have to admit the SE 1010 was a lot less graceful than its equally unfortunate American counterpart...


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237

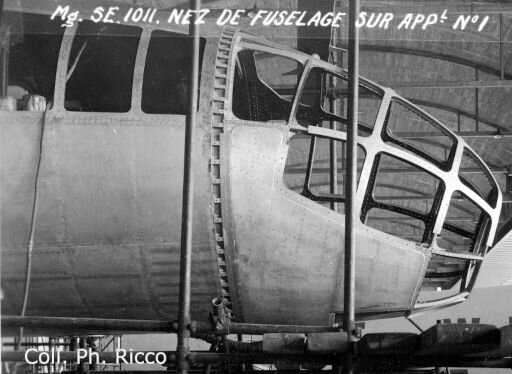

The production SE-1011 aircraft differed in these aspects......

1. Bristol Hercules engines.
2. A taller tail-fin.
3. Twin high-aspect ratio out-rigger tail-fins (this aircraft had a very short tail-moment which probaby led to the loss of the prototype).
4. Conventional ailerons.
5. Longer chord trailing-edge flaps.
6. A differently glazed nose with B-29 (or nazi german bomber) style multiple panels.

Construction of the 3 production SE-1011s was abandoned by the end of 1950. Other planned derivatives were......

SE-1015 - Long-range 18 seater courier airliner with SNECMA 14R 28/29 engines and a perhaps slightly larger diameter fuselage.

SE-1020 - Maritime patrol aircraft with Jumo 213 engines and gun turrets.

SE-1030 & SE-1035 - High Speed Stratospheric airliners from 1947 with a more conventional larger diameter airliner fuselage design.

SE-1040 - Turboprop test-bed to evlaluate the Rolls-Royce Dart engine.

Terry (Caravellarella)


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
Very useful information! Is there any 3 view plan of SE-1011?
What was the real reason to construct SE-1011?
Seems to be to late for piston engine powered planes to be lucky.
Great rise of the jets was able to make any older design dead before born.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379

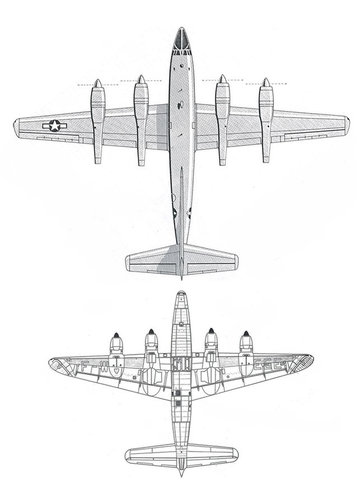

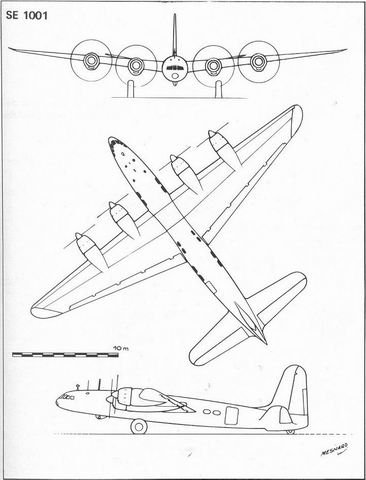

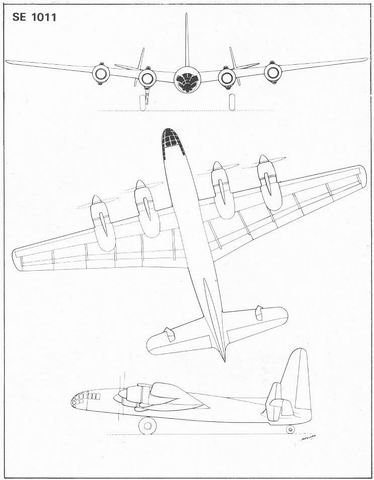

Two 3-views of the SE.1001 and the 1011 made by Joel Mesnard, I've got via the aeroforum:


Attachments

  • SE-1001.jpg
    25.9 KB · Views: 170
  • SE-1011..jpg
    19.1 KB · Views: 180

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237

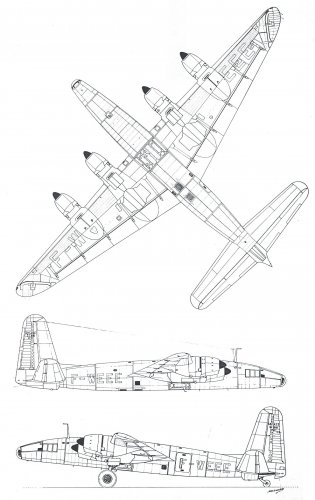

Thanks Jemiba for the 2 three-view drawings from August 1987 issue of Fana de l'Aviation......

Flying-Finn, in this period France was just as bad as the UK for developing and/or building aircraft for which there was no customer, requirement or viable order book. All the pictures I've seen of the SE-1010 under construction show the equally useless SE-200 flying boat in the background......

Terry (Caravellarella)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
Caravellarella said:
in this period France was just as bad as the UK for developing and/or building aircraft for which there was no customer, requirement or viable order book.

Yes... but aren't we glad they did, in retrospect? ::) Makes for a much more interesting history of aviation, don't you think? ;)


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237
Definitely Stargazer2006, I'm very glad they did waste their time, money and effort on such beauties as the SE-1010; along with......

SNCASE SE-2010 Armagnac (my personal favourite).
SNCAC NC-211 Cormoran.
Bréguet Br.500 Colmar.
SNCASO SO-30R Bellatrix & SO-30P Bretagne.
Bréguet 941 & 941S.

Terry (Caravellarella)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,379
Well, I'm thankful for those designs, too ! ;)

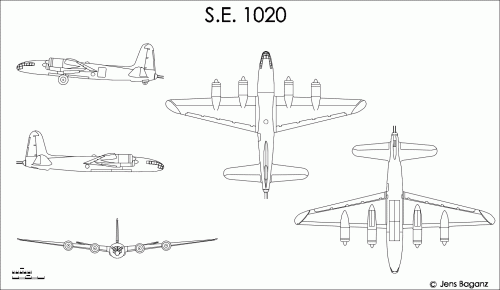

Thank you, Terry, for giving the exact source, from the scans I've got, it wasn't
recognisable. Based on Cunys "Les Avions De Combat Francais" I've made a drawing
of the 1020, quite a long time ago, sorry for the quality.


Attachments

  • SE-1020.GIF
    55.4 KB · Views: 187

flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
Dear Terry (Caravellarella), is there anything you don't know about french aviation? ;)
Anyway, thank you all for good additions on the subject!
Dear Jemiba, your drawing is very nice ;)


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237
Hah, thank you Flying-Finn! ;D

I actually know very little about French aircraft; I just like certain ones and that's it.

The only thing I know anything about is publishing contracts really :-[

Oh and Chinese cooking......

Best, Terry (Caravellarella)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
763
flying-finn said:
Dear Terry (Caravellarella), is there anything you don't know about french aviation? ;)

I was wondering exactly the same thing! This Frenchman here is brought to shame to see a Briton knowing so much more about French national aviation than he does! LOL


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
Hello, my dear fans of french secret projects!!

I am going to ask you one question about another SNCASE "secret" project. I don't want to start a new topic. Working with french sources, i am found some words about SNCASE SE-1000, the four-engined plane.

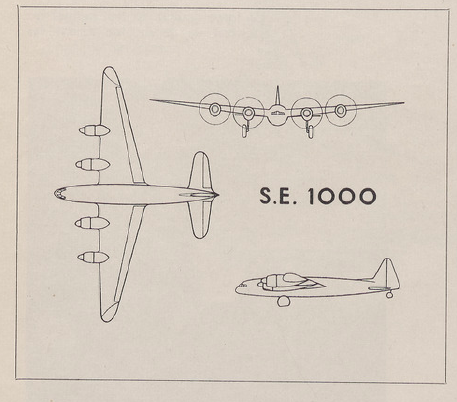

According to Flight, it was a project of mid-wing monoplane with wing span of 99 ft., powered with four Gnome-Rhones engines and with estimated sped of about 350 mph at 29,000 ft.

There were 4 versions of the aircraft:
1) high sped high altitude courier;
2) long range version for 4 passengers;
3) another version for 8 passengers;
4) yet another for 10 passengers for continental operations.

So my question is very simple ( ;)): does anybody have any 3-view drawing of it or, maybe, side view??
And some more information about it will be desirable.
Thanks a lot in advance!


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237

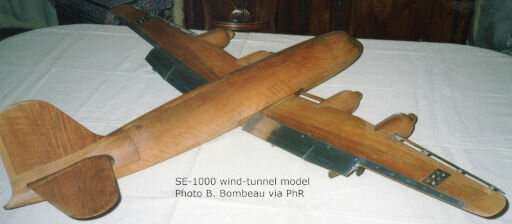

Dear Flying-Finn, the SE-1000 you mention is in fact the SE-1001 illustrated earlier in this correspondence......

Terry (Caravellarella)


flying-finn

ACCESS: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12
Dear Terry (Caravellarella), thank you for explanation!! All things seems to be more or less clear now ;)

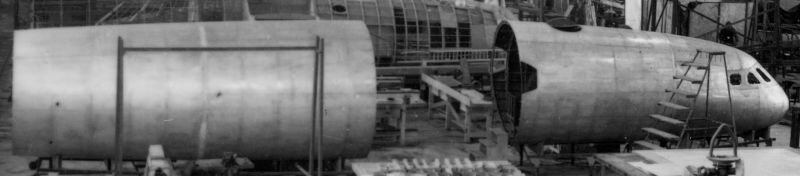

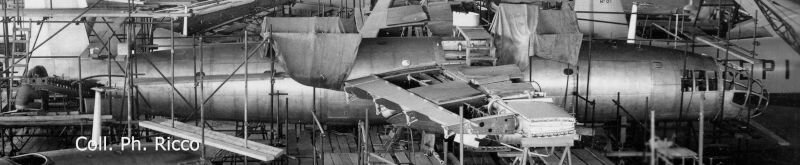

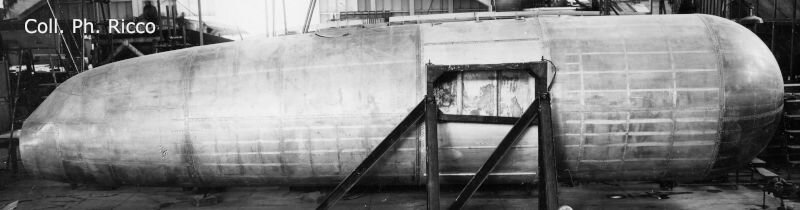

Let me ask you about your words "...I've seen of the SE-1010 under construction show the equally useless SE-200 flying boat in the background..." Is it real for all of us to see that beautiful photos?? I'll be very thankful to you for them!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638

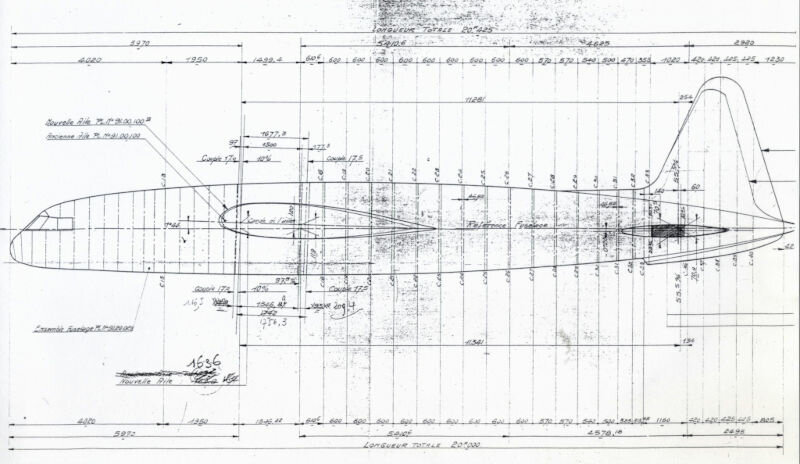

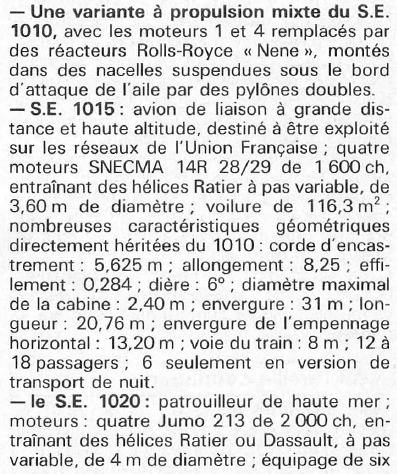

From Le Fana 213.


Attachments

  • 2.png
    189 KB · Views: 346
  • 1.png
    193.4 KB · Views: 359

taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
330
Reaction score
228
Skyblazer said:
Caravellarella said:
in this period France was just as bad as the UK for developing and/or building aircraft for which there was no customer, requirement or viable order book.

Yes... but aren't we glad they did, in retrospect? ::) Makes for a much more interesting history of aviation, don't you think? ;)

The French, in particular, seemed during this period to pursue a great many projects that had little hope of producing useful products. I suspect that this was not a matter of poor judgement but a need to:
- reassemble and provide work/experience for design teams whose technical skills were 4-5 years behind those of the UK, USA and USSR.
- take maximum advantage of the Marshall Plan and MDAP programs from the USA
By contrast, the British white elephants of this period were mostly commercial projects (Tudor, Princess, Brabizon) and seemed to be more clearly intended a to develop into production programs, but the planners lacked a good understanding of their intended markets.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Caravellarella said:
SE-1030 & SE-1035 - High Speed Stratospheric airliners from 1947 with a more conventional larger diameter airliner fuselage design.

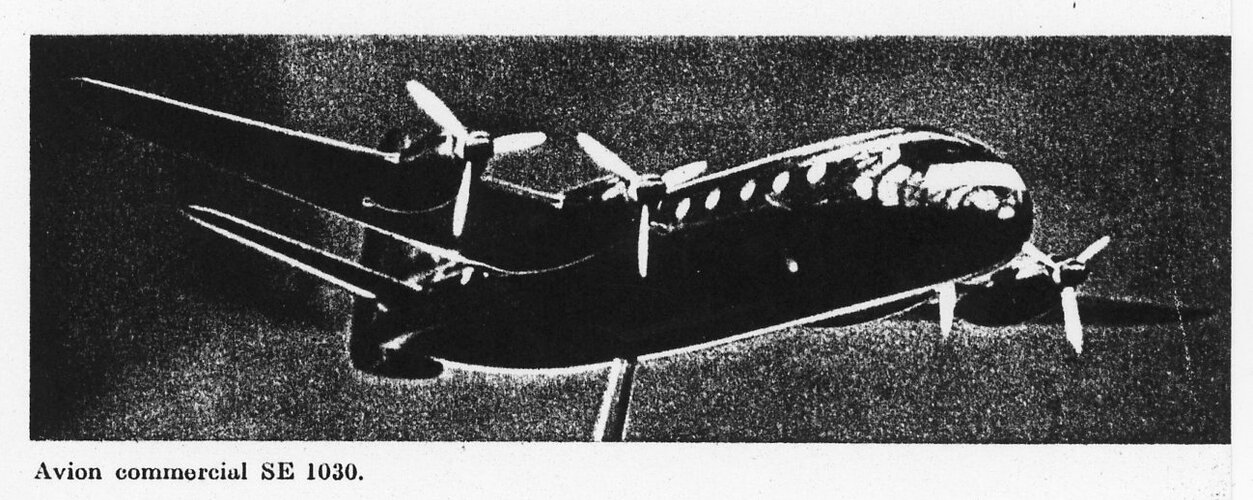

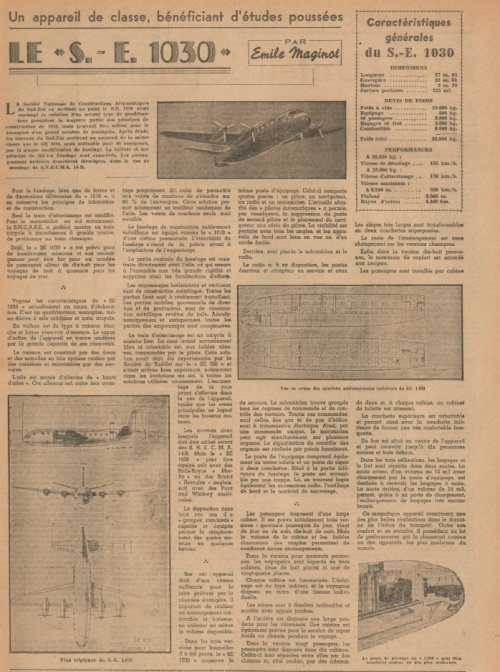

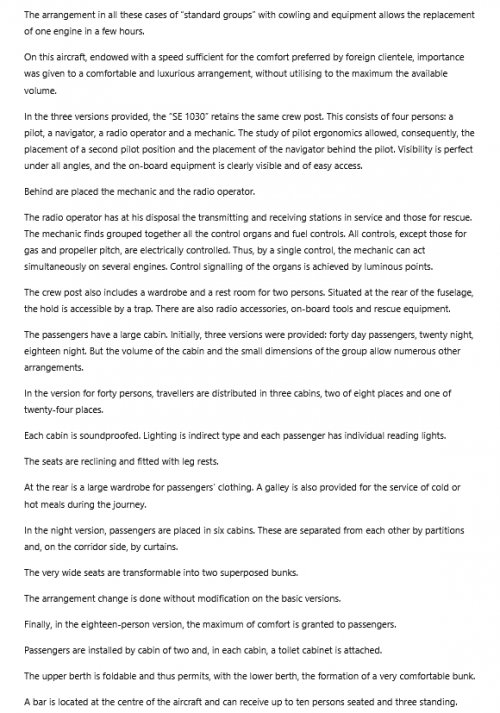

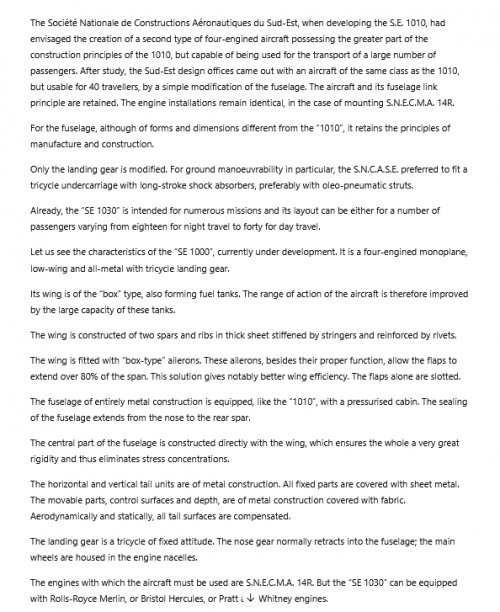

From Decollage 12/1946,

the SNCASE SE.1030 artist drawing.


Attachments

  • 1.png
    652 KB · Views: 157
