Shackleton replacement

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
914
Reaction score
491
In his book British Secret Projects: Jet Bombers since 1949, Tony Buttler mentions the various aircraft that were possibilities for the replacement for the Shackleton.

Two of those possibilities were militarised versions of the Trident and the VC-10.

Does anyone have any information on these?


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
53

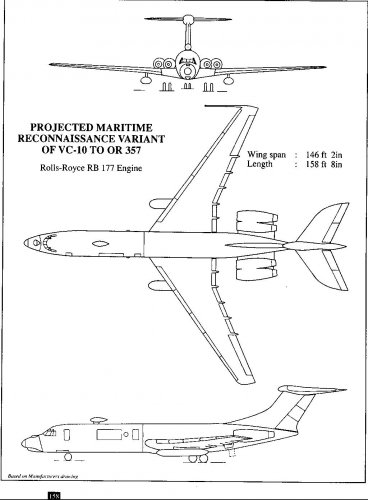

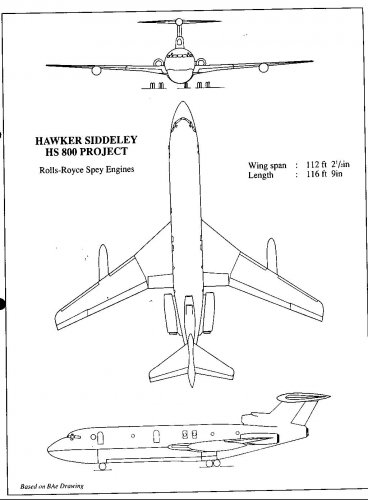

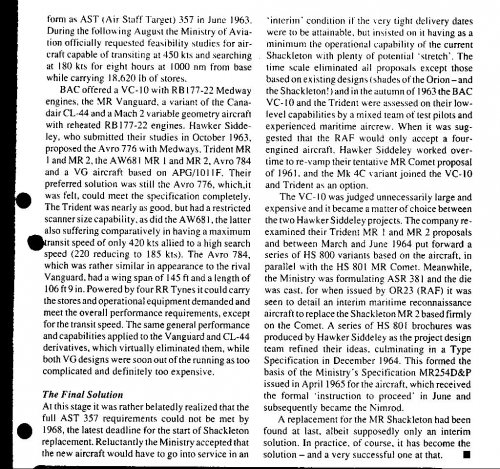

From the Crowood book on the Shackleton, IIRC


Attachments

  • Shack.jpg
    332 KB · Views: 489
  • Shack 001.jpg
    Shack 001.jpg
    134.2 KB · Views: 607
  • Shack 002.jpg
    Shack 002.jpg
    118.4 KB · Views: 558

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
896
Reaction score
117
PMN1 said:
In his book British Secret Projects: Jet Bombers since 1949, Tony Buttler mentions the various aircraft that were possibilities for the replacement for the Shackleton.

Two of those possibilities were militarised versions of the Trident and the VC-10.

Does anyone have any information on these?

Derek Wood's earlier "Project Cancelled" has far more information on Trident derivatives.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
896
Reaction score
117
smurf said:
From the Crowood book on the Shackleton, IIRC

Ah, I've never seen a drawing of a MPA or bomber derivative of the VC-10 before.

I should mention that the Vanguard would have made an excellent alternative to the Nimrod, if only because the unpressurised baggage compartment might have made an excellent weapons bay without substantial structural modifications - assuming that depth was adequate.


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
914
Reaction score
491
Any piccies of the other aircraft mentioned in Smurf's post - AW681, Avro 784 and 684.

Was the VC-11 design around at the time - once the VC-10 had been considered too big it would seem a good second option given that it has 4 engines.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,650
Reaction score
523
For AW 681 take a look here:

http://www.secretprojects.co.uk/forum/index.php/topic,306.0.html

The forum's search engine is very useful ;)


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
914
Reaction score
491
pometablava said:
For AW 681 take a look here:

http://www.secretprojects.co.uk/forum/index.php/topic,306.0.html

The forum's search engine is very useful ;)

I hate it when that happens especially when i have seen the post before....

:-[


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
914
Reaction score
491
What stopped Vickers from offering a shortened VC-10 to meet the criticism the original aircraft was too big?


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
253
The VC-11 didn't feature a double-bubble fuselage section as deep as that of the VC-10 so it might have been less suitable for maritime patrol tasks. Also, it had a small highly-loaded wing (Boeng 727-style) which might have penalised its perfomance......

The VC-11 didn't have any commercial customers as it post-dated its competitors; the BAC 1-11 was selected for development instead......

Terry (Caravellarella)


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
896
Reaction score
117
rickshaw said:
Interesting that neither has a MAD boom.

Well, there could have been a retractable MAD boom in the fairing of the high mounted tail planes?


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,550
Reaction score
1,249

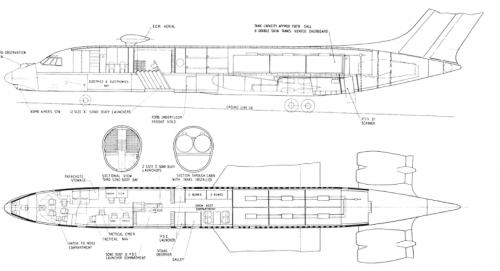

Source: VC10: The Story of a Classic Jet Airliner, Key Publishing 2015, page 95


Attachments

  • VC-10_OR-357_Maritime Patrol and Reconnaissance Aircraft _project__VC-10_KeyPub_page_95_810x439.png
    VC-10_OR-357_Maritime Patrol and Reconnaissance Aircraft _project__VC-10_KeyPub_page_95_810x439.png
    73.6 KB · Views: 295

Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
918
Reaction score
1,205
Chris Gibson's Nimrod's Genesis is full of concepts for Shackleton replacements, including ones based off of Tridents, and a hybrid between the BAC 1-11 and the VC.10, plus many more.
