BAC P.45, P.61 & BAC/CAC AA-107 VG Fighter / Strike / Trainer projects

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
1964, BA P.45 project. Supersonic Trainer, Strike and Fighter variants were contemplated, and with either 2 x RB.172 (early "Adour") engines or 1x RB.168 Spey already in production, plus various ex-TSR.2 avionic items, it was overall quite possible. With hindsight, however, ex BAe Warton employees believe that VG would have produced unacceptable weight/volume penalties in an aircraft of this size. It was canned in favour of collaboration with France on their ECAT program, which became the Jaguar.

Derek Wood, Project Cancelled
Tony Buttler, British Secret Projects: Jet Bombers


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163

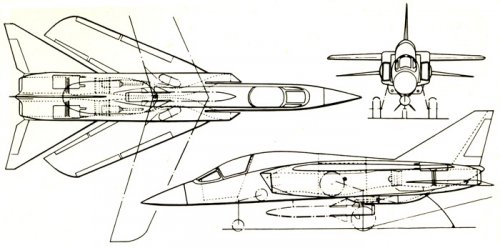

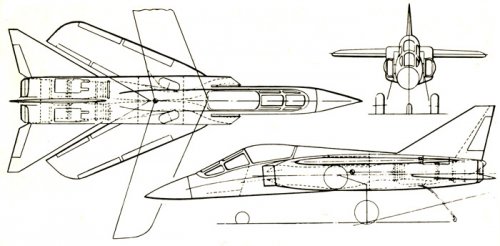

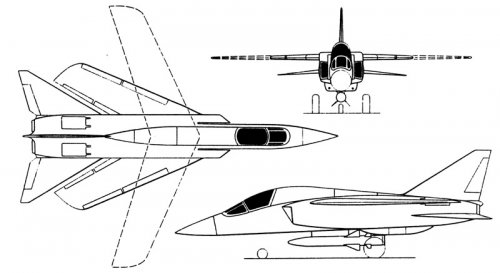

P.45 pic
P.45 single seat strike fighter (Annals of the Polymorph)

The P.61 was a later development of the design.

Sources:
  • Tony Buttler Secret Projects: Jet Bombers since 1945
  • Derek Wood Project Cancelled


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163

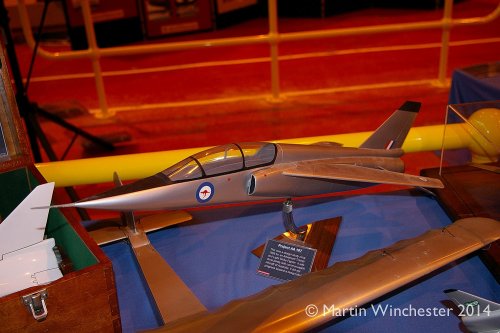

AA-107 was a derived trainer/light strike aircraft proposed to Australia for co-production.


Source:
  • Tony Buttler Secret Projects: Jet Bombers since 1945


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
Its similar to the AA-107 and P.60/P.61 series but appears to have two engines.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,027
Reaction score
223
In Roy Braybrooks "Hawk" book, there are two pictures of the CAC AA-107 supersonic
swing wing trainer.
Could post them tomorrow, if I find out, why my scanner is out of action ... ???


Kim Margosein

CLEARANCE: Confidential
Joined
Feb 10, 2007
Messages
103
Reaction score
0

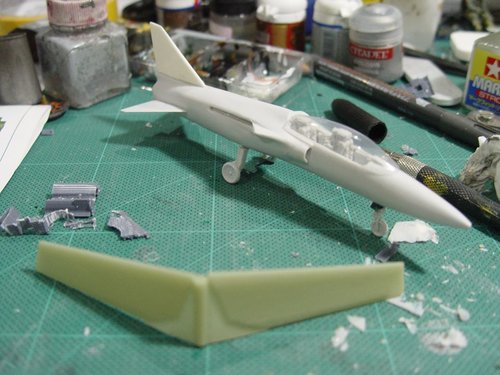

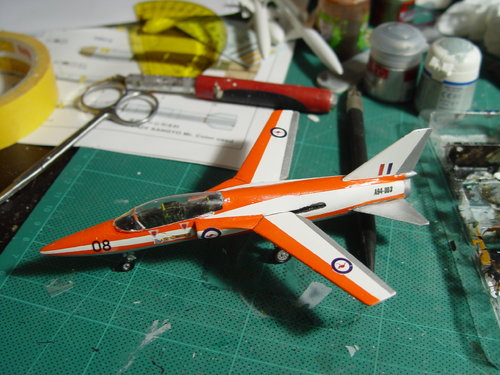

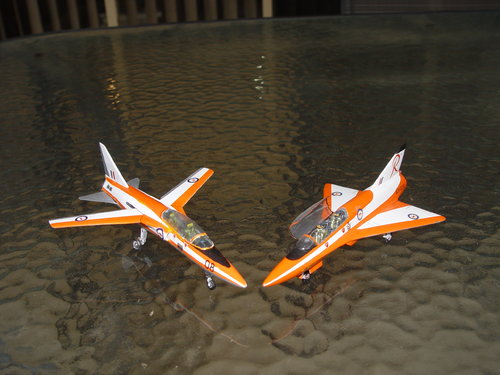

It looks like you could get some models out of this. The CAC AA-107 looks like an Alpha Jet, and you could probably go a long way toward a CA-23 by turning a BAC Lightning fuselage on its side. I have a Starfix Alpha Jet around somewhere that's not good for anything else.

Kim M


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
10
Does anyone have any dimensions or weights for the AA-107?


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163

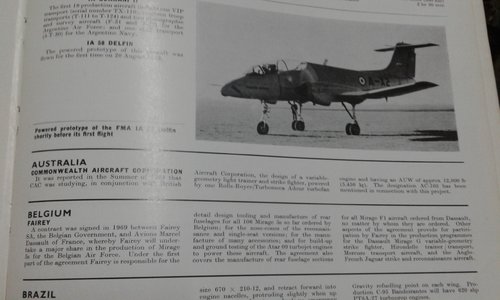

The BAC project for a light two-seat strike trainer (with which the Australian Commonwealth Aircraft Corporation has been associated) may satisfy a market for up to 1,000 aircraft. Designated AA-107, it will have a variable-geometry wing and weigh between 12,000lb and 15,000lb. It is hoped to market the aircraft for around £500,000.


hs1216

CLEARANCE: Confidential
Joined
Oct 5, 2006
Messages
110
Reaction score
1
In Bill Gunstons “Attack Aircraft of the West”, an aircraft called the BAC P.45 is mentioned several times in the Jaguar, and AVFG chapters. It was a VG project, with two Rb.172 (which evolved into the Adour), or single Spey . From what I could understand it was a jaguar type aircraft, in purpose, capability, and size. Does anyone have more information on this project?


toura

CLEARANCE: Top Secret
Joined
Apr 12, 2008
Messages
1,193
Reaction score
26
Hello
Perhaps I'm wrong but....
BAC Warton works on project P 45 V.G. PLANE
Dassault works on Mirage VG fighter
Together they works on the "AFVG"
(Advanced fighter variable geometry"
Not the same way..no money.. Dassault stop
BAC with German (Panavia) studie and construct
the "Tornado" well know aircraft ?????
Bye


iverson

CLEARANCE: Secret
Joined
Sep 24, 2009
Messages
235
Reaction score
7
Wasn't the AA-107 related to a Folland project? I want to say the Gnat Mk. 5.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,338
Reaction score
1,092
By the way,

the BAC/CAC AA-107 was called at first AC-105 and powered
by one Rolls-Royce/Turbomeca Adour turbofan engine.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,559
Reaction score
26
I was searching for something else and stumbled on this post.

overscan said:
It is hoped to market the aircraft for around £500,000.
rickshaw said:
Obviously one got real value for money in those days...
500,000 quid in 1969 is equal to 6.4 million today or 10.5 million USD. Which is not far from the cost of a small, lightweight, twin seat fighter trainer without any mission systems today. How can someone miss inflation?


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,631
Reaction score
1,163
Well, I think given that its VG and supersonic, the price was probably optimistic.


ivran

CLEARANCE: Confidential
Joined
Jan 20, 2008
Messages
144
Reaction score
10
Does somebody have information about dimensions and performance of AA-107 I can not read from pictures, Thank you in advance


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,338
Reaction score
1,092
Hi,

I spoke before about the BAC/CAC AC-105,an early version of CAC
AA.107,which powered by one Rolls Royce/Turbomeca Adour Turbofan
engine,does anyone know it or has a drawing to it ?.


ivran

CLEARANCE: Confidential
Joined
Jan 20, 2008
Messages
144
Reaction score
10
Does anyone have any dimensions or weights for the AA-107,


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,338
Reaction score
1,092
PaulMM (Overscan) said:

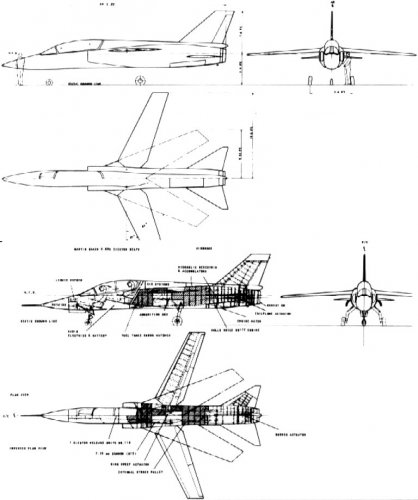

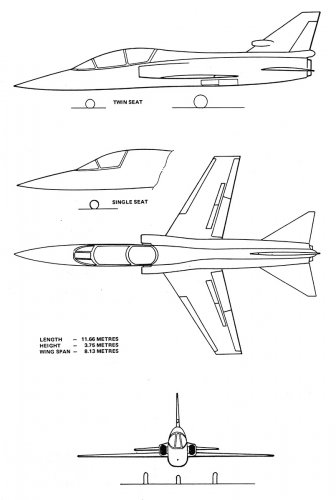

From Hawk by Roy Braybrook, AA-107 and P.62 - this was a fixed wing version of P.61. Clearly very close to AA-107.

Nice find my dear Paul.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,338
Reaction score
1,092
Hi,

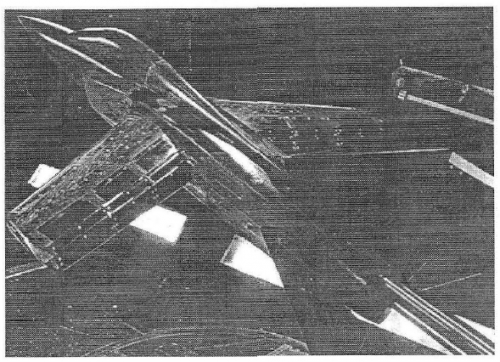

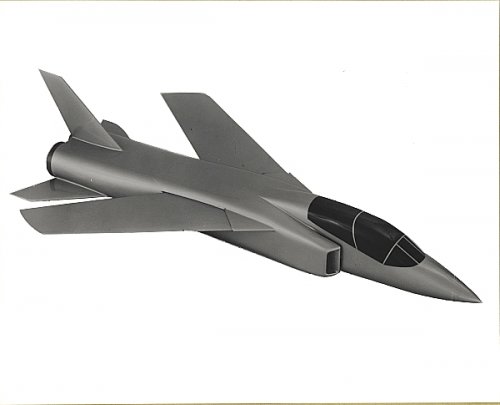

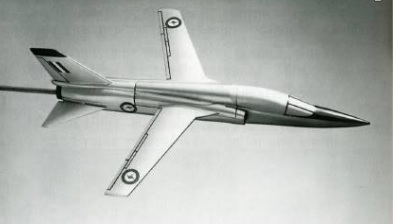

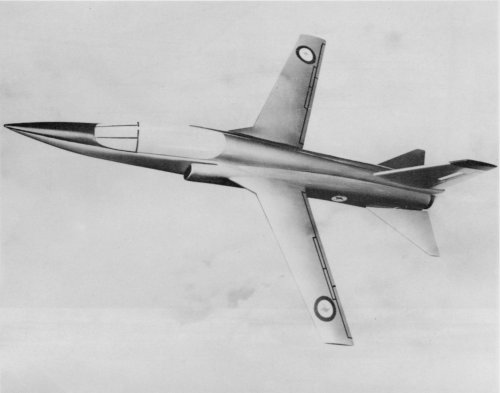

here is a wind tunnel Model for BAC P.45.


Samoloty O Zmiennej Geometrii Skrztdel


Attachments

EPMUC

Nothing to say
Joined
Mar 25, 2017
Messages
7
Reaction score
0
Some further informations about the AA-107:


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
10
PaulMM (Overscan) said:
From Hawk by Roy Braybrook, AA-107 and P.62 - this was a fixed wing version of P.61. Clearly very close to AA-107.
There's no mention of a P.62 in Tony Butler's British Secret Projects Vol 2, although on pgs 175-177. P.60 was an Adour powered study on fixed wing and VG variants, and P.61 was RB.199 powered. The P.62 that you posted appears to have been a low mounted, fixed wing version of the Adour powered P.60? High wing loading by the look of it. Did the book have any more details?
