RTAF (Royal Thai AF, Office of Aeronautics and Aircraft Design) Types

brontolino

ACCESS: Restricted
Joined
Nov 19, 2007
Messages
33
Reaction score
11
Hi,
Anyone has information about an aircraft designated RTAF-5 produced in Thailand in only two prototypes. I have search on the net but there aren't information about technical data. I search, if possible a drawing of this aircraft and the related articles published on JAWA.

Thanks in advance


walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100
Dear Brontolino,
following info is from my files. Hope this is of help.
The RTAF-5 was designed by the Office of Aeronautics and Aircraft Design of the Royal Thai Air Force and was the country's first indigenous design since 1945. The RTAF-5 was mainly intended for use as trainer and FAC/observation operations. One flying and one static test prototype were built and the flying RTAF-5 made the first flight on 5 October 1984. Although the aircraft had a retractable undercarriage, it was locked during the test programme. Development was soon halted and the aircraft went to the Air Force Museum in Bangkok.
Wingspan 31ft 4in (32ft 3.5in over wingtip pods), length 28ft 9in, height 10ft.
Engine one 420hp Allison 250-B17C turbine
max. speed 242 mph, cruise 206 mph, initial climbrate 1,500ft/minute, ceiling 20,000ft, range 540 miles
Regards, Walter


Attachments

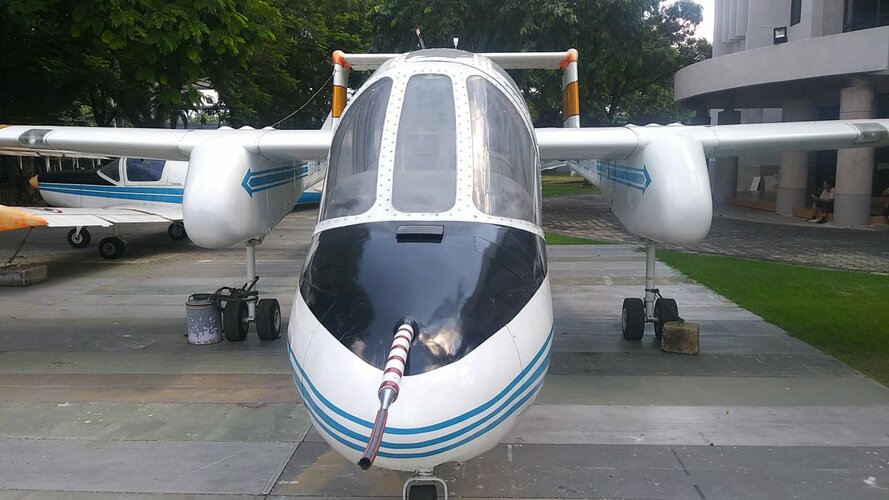

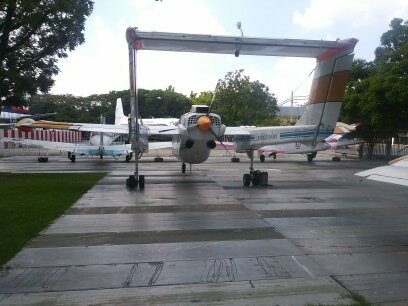

  • RTAF-5.jpg
    54.2 KB · Views: 488

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

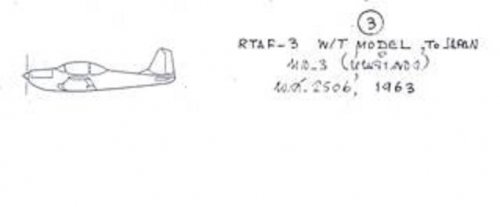

when I searched in Thailand aircraft,I found that the RTAF-3
was a project of tandem two-seat trainer,I got only a small
drawing to it.

http://www.geocities.co.jp/SiliconValley-Bay/1245/IADF/sub4.htm


Attachments

  • RTAF-3.JPG
    8.5 KB · Views: 323

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479

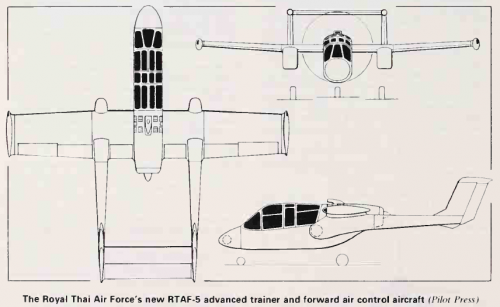

From Jane's All the World's Aircraft 1984-1985,


here is a 3-view to Thailand aircraft RATF-5.


Attachments

  • RTAF.png
    123.8 KB · Views: 294

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

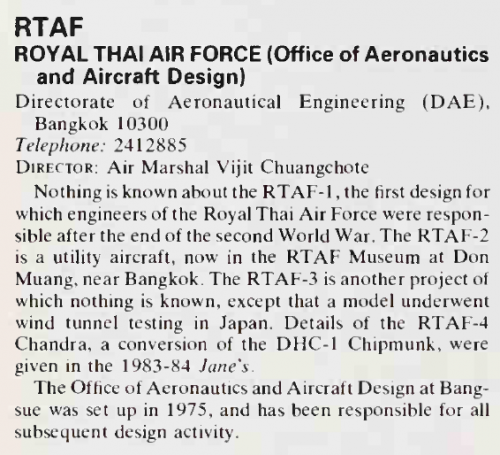

here is the RATF series of aircraft,we can merge those topics into RATF Aircraft
and Projects.


Attachments

  • RTAF series.png
    RTAF series.png
    120.2 KB · Views: 248

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479
Hi,

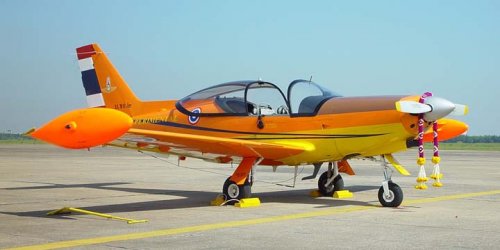

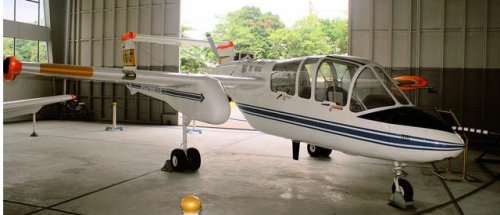

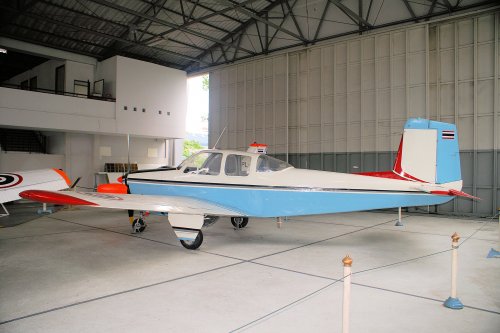

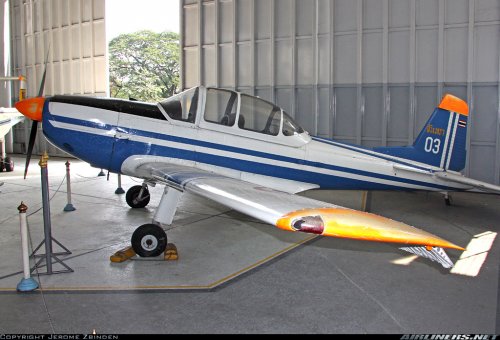

here is the RTAF-2 & RTAF-4 aircraft,also the RTAF-6,a two-seat trainer,which
developed from SIAI-Marchetti SF.260MT aircraft.


http://en.wikipedia.org/wiki/RTAF-6


Attachments

  • RTAF-2.jpg
    1.4 MB · Views: 234
  • RTAF-4.jpg
    377.4 KB · Views: 30
  • RTAF-6.jpg
    40.6 KB · Views: 38

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,479

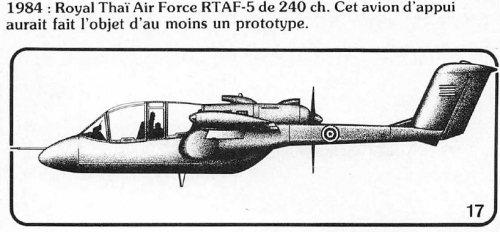

From Le Fana 217.


Attachments

  • 1.png
    196 KB · Views: 30
