Republic "Jet Thunderbolt"

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
18
Hi Everyone!

Here's a colour sideview of the Jet Thunderbolt concept.

I can't find any three-views yet.

SOURCE:
UNKNOWN! (3)
Authors: J. Miranda & P. Mercado
Illustration by J. Miranda


Chuck


Attachments

  • Jet_Thunderbolt.JPG
    77.5 KB · Views: 1,064

ChuckAnderson

ACCESS: Confidential
Joined
May 11, 2006
Messages
187
Reaction score
18
Hi Again!

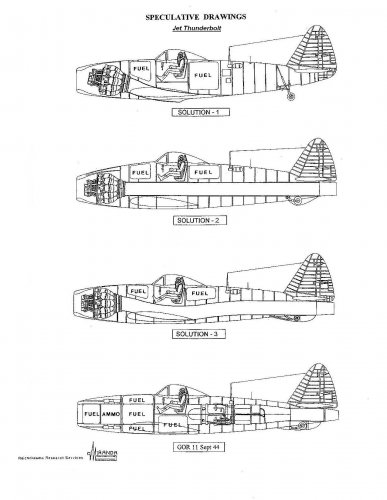

From the same source, here are some profile line drawings of four different concepts for the Jet Thunderbolt.


Chuck


Attachments

  • Jet Thunderbolt.JPG
    Jet Thunderbolt.JPG
    232.2 KB · Views: 1,356

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
The first time I saw the Jet Thunderbolt was in "The Thunder factory", a very serious History book about Republic factories and designs. I transmitted it to Justo Miranda, that made searches then by himself.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
229
Sentinel Chicken said:
I thought the Jet Thunderbolt was purely fictional and not based on any design work done by Republic?

I'm pretty certain that it wasn't fictional. Justo Miranda does have some project numbers and such for the intermediate steps from P-47N to F-84.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,866
Reaction score
2,130
Tophe said:
The first time I saw the Jet Thunderbolt was in "The Thunder factory", a very serious History book about Republic factories and designs. I transmitted it to Justo Miranda, that made searches then by himself.

Amazon even has it for sale

http://www.amazon.com/Thunder-Factory-Illustrated-Republic-Corporation/dp/0879384832


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,351
Website
www.amazon.com
From "U.S. Experimental & Prototype Aircraft Projects"
by Bill Norton

Please see also http://www.secretprojects.co.uk/forum/index.php/topic,183.15.html

http://www.secretprojects.co.uk/forum/index.php/topic,168.0/highlight,jet%20thunderbolt.html


Attachments

  • Escanear.jpg
    0 bytes · Views: 41

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
13
Maybe Thunderjet, since that's basically what it became anyway?

EDIT: Just wanna be clear I'm not trying to be a smartass :p


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82

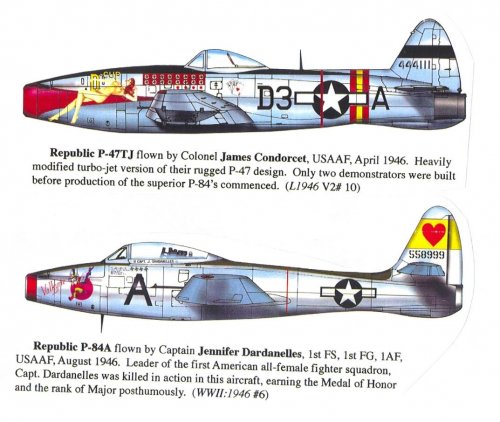

Just for shifts and giggles, from the Ted Nomura comic Luftwaffe 1946

Here you go:


Attachments

  • Escanear0002.jpg
    126.7 KB · Views: 408

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
82

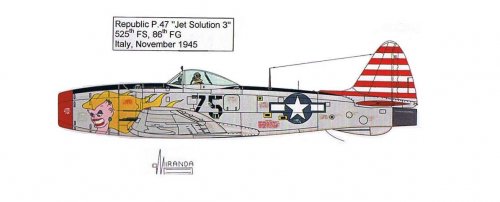

And, of course, Justo's own version:


Attachments

  • Jet_Thunderbolt2.jpg
    85.9 KB · Views: 344

saturncanuck

Any landing you can walk away from, is a good one.
Joined
Jan 14, 2009
Messages
299
Reaction score
8
Website
www.aerofile.ca
Just call me Ray said:
Maybe Thunderjet, since that's basically what it became anyway?

EDIT: Just wanna be clear I'm not trying to be a smartass :p

No, you're not.

I was just trying to come up with something different.

:)


skyrocket01

ACCESS: Restricted
Joined
May 28, 2007
Messages
14
Reaction score
3
Website
www.rebellioncreations.com

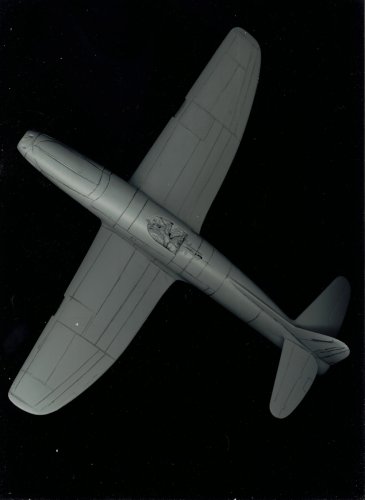

My take in 1/48 scale (donor was Academy P-47M kitbashed with an old Hawk F-84, and a lot of scratchbuilding to blend both); early construction photo, it's mostly finished now.


Attachments

  • P47 jet buildup.jpg
    P47 jet buildup.jpg
    466.5 KB · Views: 109

mz

ACCESS: Top Secret
Senior Member
Joined
May 28, 2007
Messages
676
Reaction score
12
What's with the center of gravity?
You'd have to either move the wing rearwards or put the jet right in the front to compensate taking out the huge radial.
(Though taking the turbo off from the rear helps somewhat.)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Topics merged.

Has anyone found any conclusive evidence yet that the project was actually on Republic's drawing boards at some point, other than the artist's concept in Reply #7?
