René Barbaro's aircraft

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
253
Dear Boys and Girls, here is an article in French about the Barbaro RB.70 designed by René Barbaro. I don't think this is a "project" as I believe the designer was sadly killed when this aircraft crashed during flight-testing......

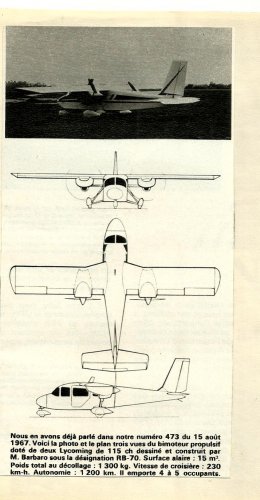

The article comes from the 15th August 1967 isue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Barbaro RB.70 - Aviation Magazine International - No. 473 - 15 Août 1967.......jpg
    Barbaro RB.70 - Aviation Magazine International - No. 473 - 15 Août 1967.......jpg
    92.2 KB · Views: 356

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154
HI cARAVELLARELLA

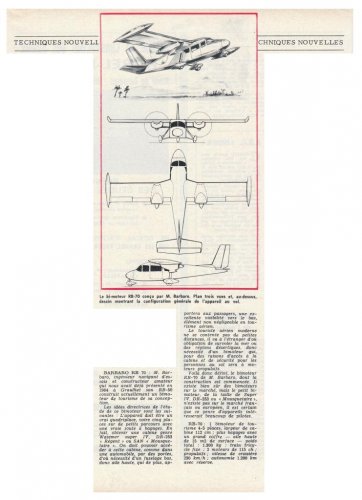

yes, not a projects. the same magazine some time after Another 3 views and a photo of this plane
Bye


Attachments

  • Scan.jpg
    252.4 KB · Views: 291

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,034
Reaction score
441
Hi,

I have 3 other aircraft by Barbaro. I search for the R.B.10/R.B.20/R.B.30/R.B.40. Can you help?

Servus Maveric


Attachments

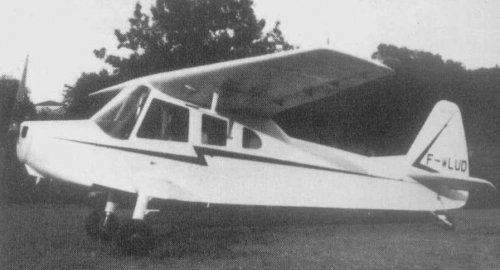

  • Barbaro RB-50.jpg
    Barbaro RB-50.jpg
    60.4 KB · Views: 233
  • Barbaro RB-60.jpg
    Barbaro RB-60.jpg
    44.8 KB · Views: 220

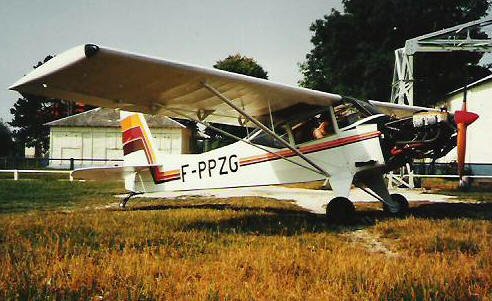

  • Barbaro-Gagnant BG-10.jpg
    Barbaro-Gagnant BG-10.jpg
    72.7 KB · Views: 215

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154
hi Maveric
Sorry........Sorry
Nothing more
Bye


Attachments

  • Scan.jpg
    524.2 KB · Views: 42

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
128
Hi Maveric,

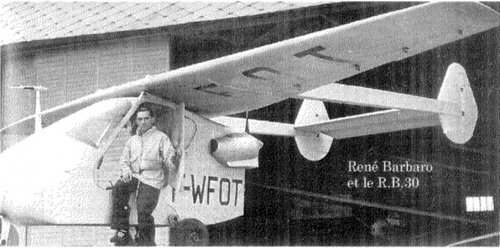

the unique RB-30


Attachments

  • Barbaro RB-30, F-WFOT.png
    Barbaro RB-30, F-WFOT.png
    93.5 KB · Views: 24

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154
Hi all
Look at
http://www.acat-toulouse.org/index.php?object=accueil_html&action=RB


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,034
Reaction score
441
Thank toura and walter...

walter, any technical data?

Thanks Maveric


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154
Excuse me, I'm wrong. I've change my adress . Try again
SORRY


walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
128
Dear Maveric,
sorry I have no technical details (but a lot of questions, like you).
The RB-50 (F-PLUD) was powered by a 90hp Continental C90 engine. The same aircraft later (May 1969) became the RB-51 (different engine and/or modifications??). I have no idea why the designation changed.
I understand from the site which toura was so kind to provide, that the wings and engine of the RB-30 were used in the RB-50. This could imply that the RB-30 had a Continental C90, but I always thought that the engine in the RB-30 was a Continental A65. Could it be that the RB-50 initially also had an A65 engine?
According to Fox Papa the RB-30 was destroyed (détruit) in 1949. I presume the aircraft was dismantled and not destroyed in an accident. Did it ever actually fly?
Sorry for not giving answers but asking new questions.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154

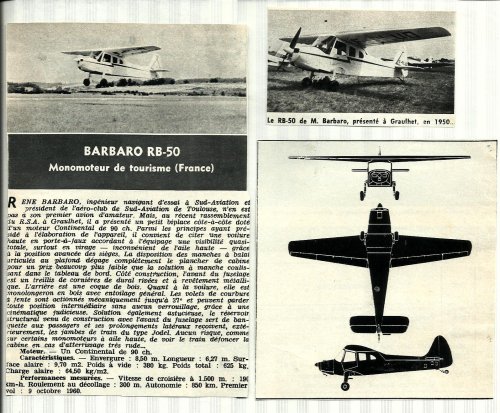

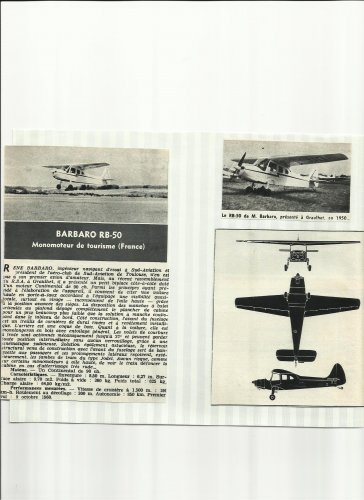

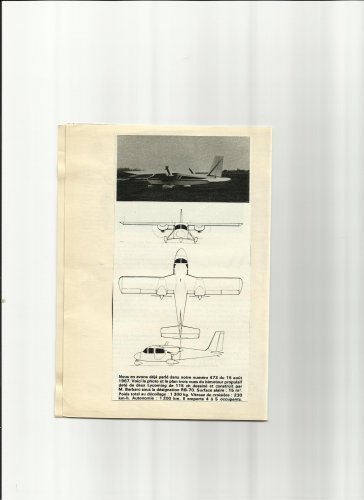

Barbaro 50 and 70
("aviation magazine")


Attachments

  • ba 50.jpg
    ba 50.jpg
    503.8 KB · Views: 34
  • ba 70.jpg
    ba 70.jpg
    163.1 KB · Views: 45

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
Hi,

the RB.10 was a single seat tourist mid-wing monoplane of 1934,powered by one Harley Davidson
engine.

The RB.20 was a high-wing monoplane Project of 1942,without tail fin,and the motor was Anzani as I think.

The RB.40 was a two-seat light monoplane,maybe based on RB.30.

http://www.acat-toulouse.org/informations-acat/notre-club/rene-barbaro


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,281
An Info about RB.51;

According to Gaillard,the RB-50 flew for the first time on 9 October 1960, though Chillon suggests 9 October 1963.
It was registered on 30 July 1964 to the Toulouse Aero Club.Little is known about the modifications that were made
that led to a new type number, RB-51. Gaillard suggests this happened in 1963 but the record gives the name
change date as May 1969.The Certificate of Airworthiness was suspended on 30 March 1970, then removed,
and the aircraft's record marked destroyed.
