RATO gear, data and dimensions ?

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
Can anybody tell me, where I can find types and data of NATO RATOG ?
Especially, of course, those which were used by the french AdlA ?

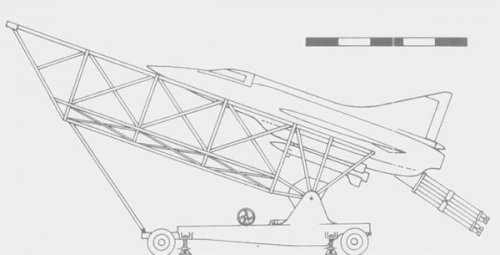

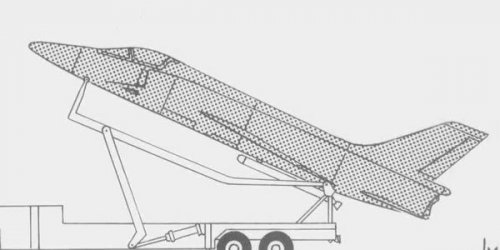

And another question : Are the booster rockets shown in the drawings of the
SE 212C and Be.1005 standard types ?
(Both drawings from J.Cuny, "Les Avions De Combat Francais")


Attachments

  • RATOG-1.jpg
    22.4 KB · Views: 20
  • RATOG-2.jpg
    20.2 KB · Views: 16

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
109
Dear Jemiba
I read on an old "Le Fana de l'aviation ":
A baterry of five STRIM boosters (18750 kg/p during 2seconds)
could be able to launch the the SE 212 C From an oblic ramp
as the SE 4200
2 supports with rails of 12 meters long with inclination of 20 °
Bye


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

Attachments

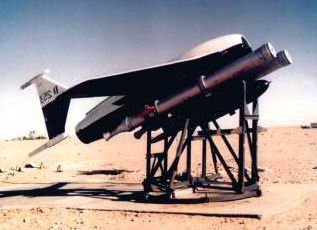

  • se4242_01.jpg
    15.6 KB · Views: 14
