The Fouga Magister was the final development which actually started
with the jet powered CM.8 Sylphe and its derivatives.
The CM.82R Lutin was a try, to find a military marked for a very light
jet in the attack role ( Photo : Les Avions De Combat Francais 1944 - 60,
Jean Cuny)

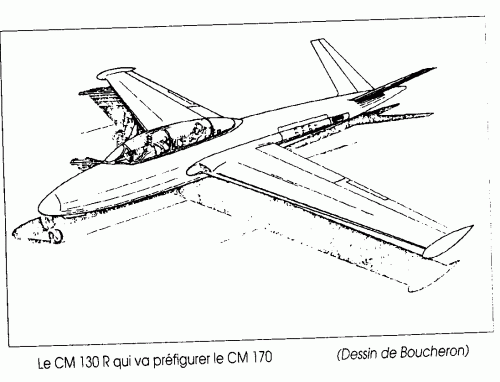

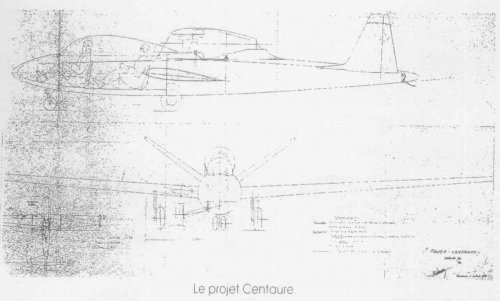

The "Projet Centaur" and CM-130R were already mainly envisaged for the
training role (drawings from : Planeurs et Avions, Christian Castello, le Lerard).
As a contender to the Castel-Mauboussin/Fouga designs the Morane-Saulnier
MS.752 was mentioned, which started as a derivative of the MS.733 Alcyon
piston engine trainer, powered by two Marboré engines . Anybody, who has
a picture/drawing of this project ?


Attachments

  • Fouga_Lutin.JPG
    50.7 KB · Views: 780
  • Centaur.JPG
    48 KB · Views: 781
  • CM-130R.GIF
    16.3 KB · Views: 735

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476

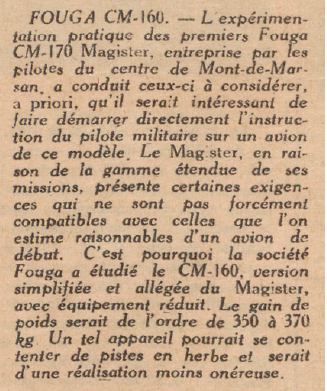

dear Jemiba,

we know Fouga CM.130R light jet trainer and CM.160 which preceded CM.170,but do you
hear about CM.140 and CM.150 ?.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Sorry, no :-[ , I wish, I would !

About two years ago, I made some copies from "Planeur et avions, du Dewoitine D.520
au Fouga Magister CM.170", unforunately just some pages, not the whole book.
Quite a lot of it can be found on http://pletav.free.fr/ , but not all.

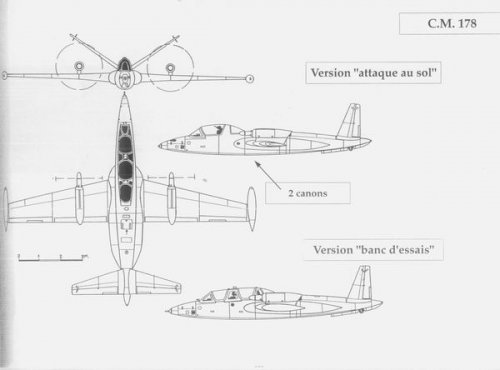

One Magister follow-on project I've found in this book, is the CM.178, basically still a
Magister, but powered by two Astazou turbo props and proposed not only as a trainer,
but in a dedicated attack version, too.


Attachments

  • CM178.JPG
    22.9 KB · Views: 1,175

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476
Hi,

I heard that there was a project from Fouga CM.170 called
CM.195 with swept wing and also two seat,does anyone
hear about it ?!.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931

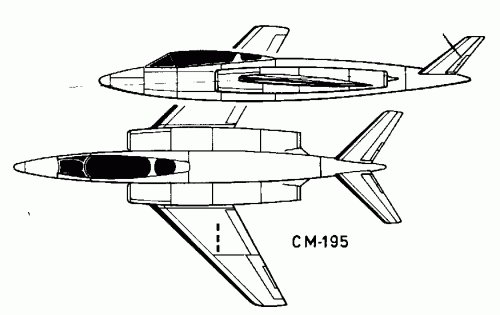

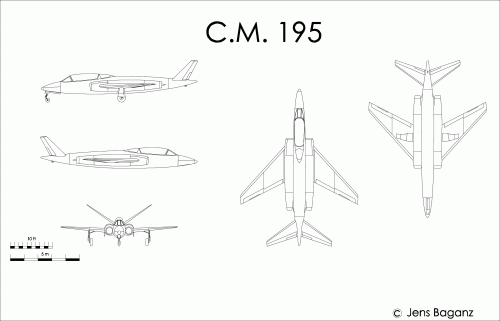

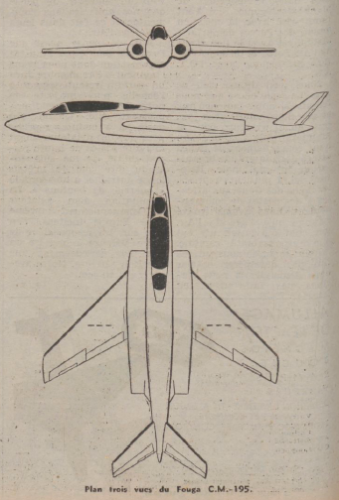

From FliegerRevue 2/82 (line drawing) and an artist's impression
from Christian Castello "Planeurs et Avions".


Attachments

  • CM-195_01.GIF
    7.9 KB · Views: 932
  • CM-195_02.JPG
    61.5 KB · Views: 482

Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14

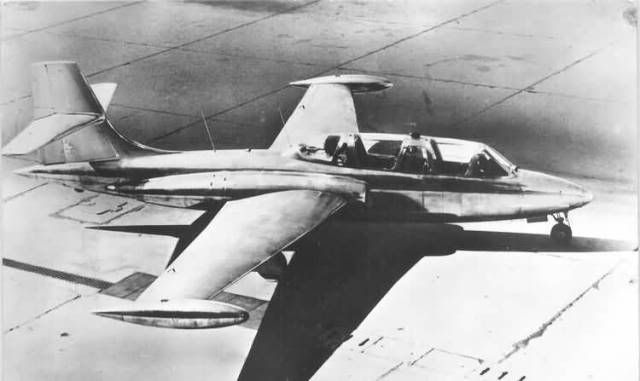

Hi folks - I've been doing some on-line research about Magisters for what I thought was going to be a "What If" model of a swept-wing one ::) and I came up with a whole bunch of interesting stuff. Can anybody shed any light on any of these?


1. Fouga artwork showing a conventional tail version:

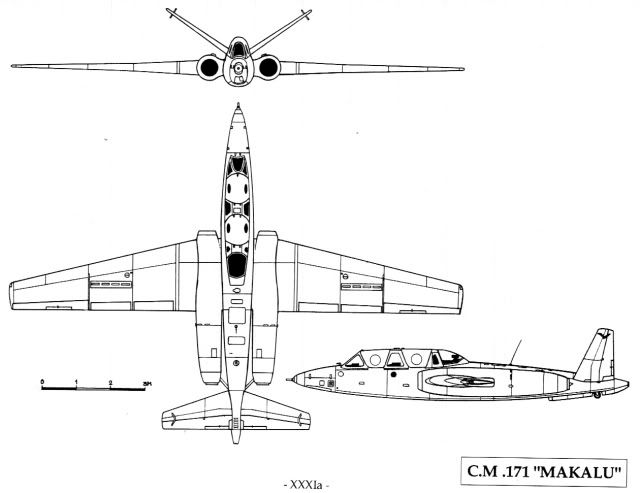

2. The CM 171 Makalu. All I can find on this apart from the pics is a single line to the effect that it was a high-altitude version.

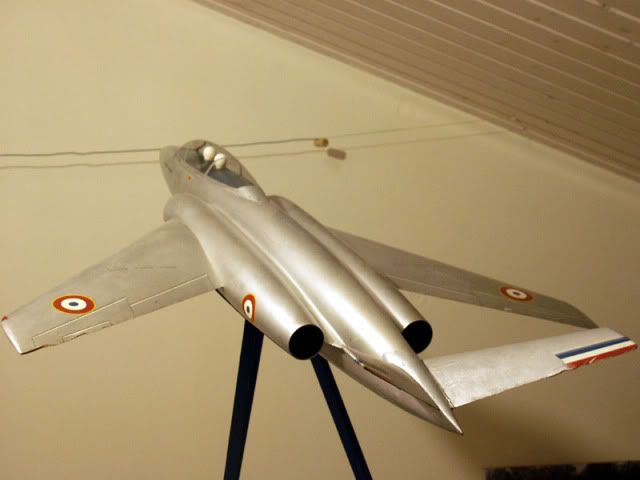

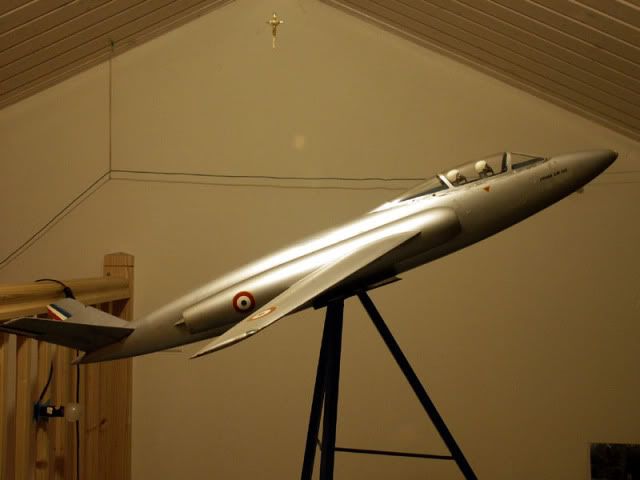

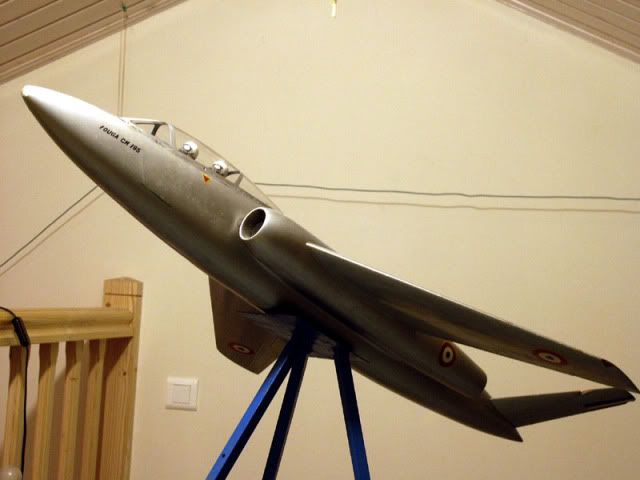

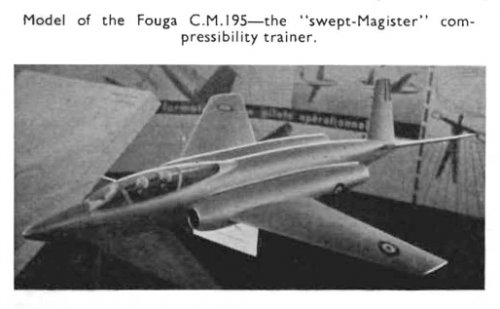

3. Model of the CM-195:







Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,213
Reaction score
1,739
the caption says "banc d'essai moteur" = engine testbed.

Makalu sounds very Turbomeca (surely a Pyrenean peak as usual with the firm!) so I suppose it was an engine upgrade...


No idea what this CM-195 is, but it is a LOVELY design. The best of the Avro CF-100 and Buccaneer, with a bit of Gnat...


Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14
Archibald said:
the caption says "banc d'essai moteur" = engine testbed.

Makalu sounds very Turbomeca (surely a Pyrenean peak as usual with the firm!) so I suppose it was an engine upgrade...


No idea what this CM-195 is, but it is a LOVELY design. The best of the Avro CF-100 and Buccaneer, with a bit of Gnat...

Aha - cheers Archi. Maybe looking into it from the Turbomeca angle would reveal more then? I shall have a go when I get time.

The CM-195 is indeed very pretty. It's also remeniscent of the various Supermarines that led up the Scimitar: 525 wings with a swept 510 tail? Tell you what though, the crew look a bit too "cosy" for comfort, don't they? The pupil is practically sitting on the instructor's lap...... :eek:


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,213
Reaction score
1,739

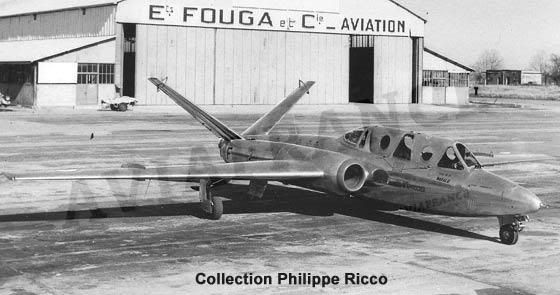

Ok, quick google browse told me more on the CM-171 - a tragic story in fact - :'(

Makalu is not the turbojet, its the aircraft itself. MA-kalu = MA-gister (I suppose)

The plane itself was powered by Turbomeca gabizo, an engine I already met various times.

The Gabizo was a 1100kg thrust turbojet, intented to power the Armée de l'air light/ transonic interceptor of 1955.

Competitors were the Etendard II (or VI, can't remember which one had the Gabizos) and Breguet Taon.
The gabizo also powered the Mirage II.

The engine soon proved utter crap, hence the three fighters above had to swap it for better engines.

NATO imposed the Bristol Orpheus for the famous contest won by the Fiat G.91.

The Armée de l'air preferred the 4400kgp Atar-101, leading to the Mirage III-01 and Etendard IV.

Never heard before they had modified a Magister to test the Gabizo!

That was the CM-171, flown in 1956.

It proved very difficult to fly; handling had been badly degraded by the superior thrust of the Gabizo.

Indeed basic Fouga's Marbore gave the plane 840kg of thrust; now it had three times more power, at 2000kgp!

Fouga and Turbomeca pilots cautiously learn how to master the beast; but the plane was soon transfered to the CEV in Istres. It tragically crashed there, in march 1957, killing the crew.

A bit more at flight global (1955)


http://www.flightglobal.com/pdfarchive/view/1955/1955%20-%200873.html

Seems that the CM-171 was testbed for the high performances CM-195.

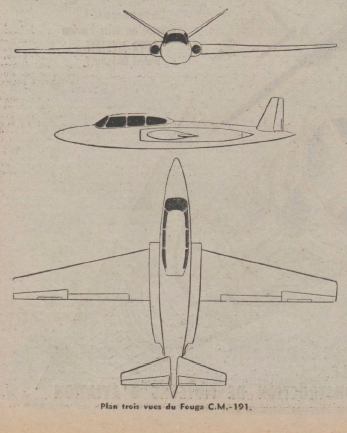

"...the C.M.191 four-seat liaison aircraft is not likely
to be built, but that the C.M.171 is a test aircraft for a projected
twin Gabizo-powered, swept-wing, butterfly-tailed trainer called
the C.M.195. On the C.M.170 it was impossible to notice any
strange effects at all from the butterfly tail, and one can hope
that the C.M.195 will be the same. The navalized version of the
C.M.170, bearing the suffix letter M, is now being built. Apart
from the addition of a tail hook, the two canopies will be jettisonable
in one piece, the oleos longer and some items of equipment
different. Undoubtedly the Magister is an excellent aircraft, and
the fact that a considerable production order has been placed, and
a NATO recommendation conferred, should encourage the company
to repeat their initial success."


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Good find, special thanks for the model photos of the CM.195.The version with
the conventional tail actually was the second prototype, often reffered to as
CM.170R-02.
Recommended reading about the whole theme of Fouga aircraft is Christian Castello
"Planeurs et Avions"

;)


Attachments

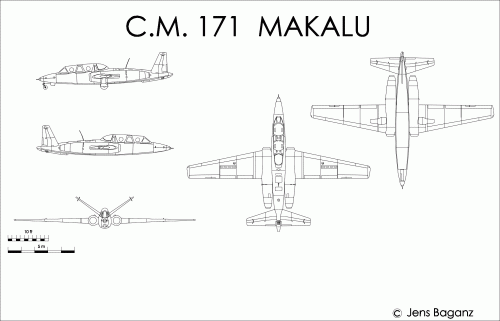

  • Fouga_195.GIF
    103.6 KB · Views: 370
  • Fouga_171.GIF
    90.6 KB · Views: 330
  • Fouga_170R-02.GIF
    81.4 KB · Views: 307

Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14
Archie, Jem: cheers for that - very interesting! :)

I can imagine that three times the thrust would push the Magister into a high-mach regime where it's gliderish wing was never supposed to go. However, the Makalu's wing was clearly completely re-designed, so why didn't they adopt something more suitable? It looks like a high-altitude wing, and the solid canopies look like an attempt to prevent them from bursting at high differential pressure, so overall, it still looks like a high-altitude project. Perhaps testing the Gabizos was combined with some other project in the same airframe, possibly to the detriment of both?


Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14
Found some very scant references to another version now: CM-176 close support version, with 2 x 20mm HS-404 cannons and 18 rockets. No pics that I can find.....


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
Couldn't find the CM.176, not in the mentioned book by Christian Castello, nor elsewhere.
But there's a gap between the CM.175 and the CM.178 ... ???
Both, the CM.175 (below from "Planeurs et Avions") and the 178
(http://www.secretprojects.co.uk/forum/index.php/topic,441.30.html)
were light attack/close support aircraft, so the CM.176 may have been another version.


Attachments

  • CM-175.jpg
    75.4 KB · Views: 414

Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14
LMFAO - there's nothing new under the sun is there? My other whif model project is a single-seat Magister along the lines of the Mb.326K - mine will have a shortened original-style cockpit like the 178, and I even correctly guessed that it would have to have 20mm cannons because it couldn't handle a pair of DEFAs...... ;D ;D ;D

I thought the CM.175 was the Zephir navalised version though? ???

Do you mind if I post your pictures over on the What If? Modellers site? (with credit, of course) I'm sure they'd be fascinated.....


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931
AFAIK, the Zephyr started as the CM.170M and was later re-designated as CM.175,
so the artist impression may be made before the navy used the Magister ?

But I found a hint about the CM.176 (I just put my glasses on ... ::) )
If I understand it correctly, it was a study with a thicker wing, which could have accomodated
a longer undercarriage .
Another mentioned project, without designation is a light transport/communications aircraft for
8 to 10 passengers. t should have been powered by two Bastan engines, situated on the
butterfly tail. Sounds interesting !
The pictures are from the book by Castello, so of course, I cannot give permission to use them. It's
up to you and to the rules in the What-If site.
But if you send me your mail adress via PM, I can send you a higher res picture. ;)


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,213
Reaction score
1,739
Daring Israelis used their Fougas for ground-attack in 1967, when 95% of their true fighter bombers were committed to the "preemptive strike"...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

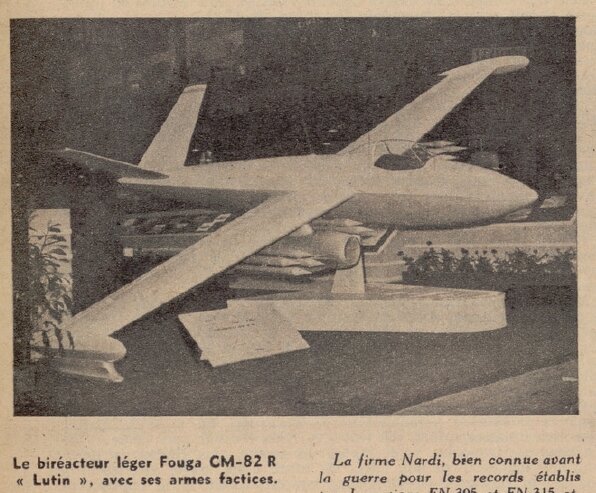

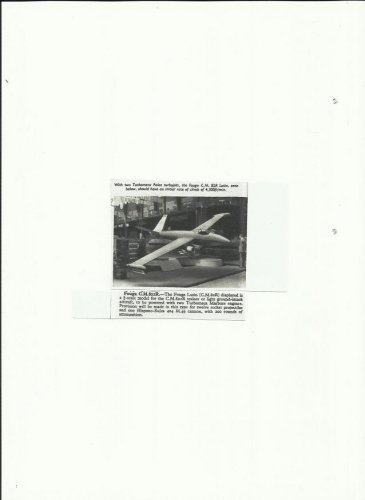

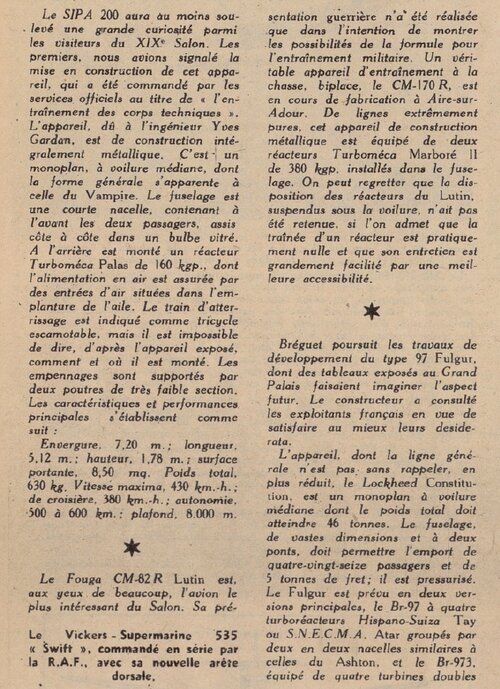

From Flight dated 4 Apr 1952, page 416:

The caption says the Lutin (elf in French) was to be powered by two Turbomeca Palas turbines.


Attachments

  • Lutin1.jpg
    93.1 KB · Views: 444

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
It would be really interesting to know the CM-195's specifications. Perhaps Cuny says anything on this?

Piotr


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130

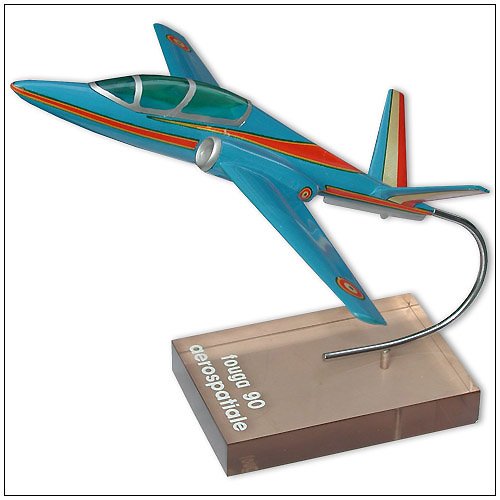

Fouga 90, with zero-zero ejection seats.


Attachments

  • Fouga 90.jpg
    Fouga 90.jpg
    16.8 KB · Views: 504
  • Aerospatiale Fouga 90.jpg
    Aerospatiale Fouga 90.jpg
    70.4 KB · Views: 491

Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
14

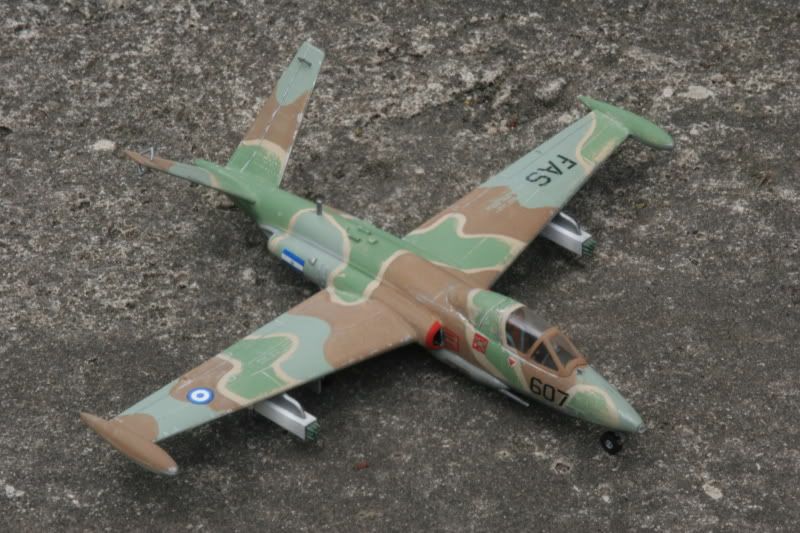

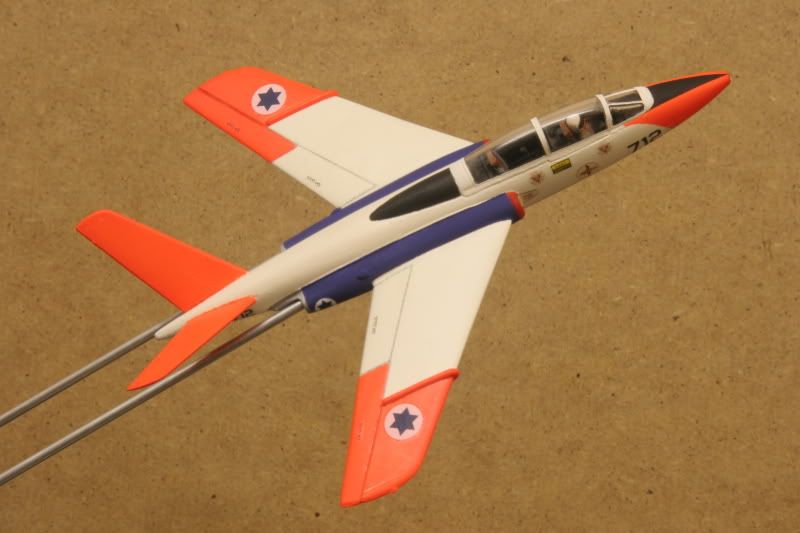

Strictly NOT historical, but I thought you might like to see the models I built as a result of the questions I was asking on this thread:


(Magister fuselage, G-91 wings, F-86 tailplanes, sub-scale F-14 canopy)



(Cut down original canopy, cannon blisters, square rocket pods to get more rounds in the limited ground clearance)


thebig C

ACCESS: Confidential
Joined
Dec 28, 2010
Messages
108
Reaction score
4
Petrus said:
It would be really interesting to know the CM-195's specifications. Perhaps Cuny says anything on this?

Piotr

I would love to see those too. The line drawing on the previous page shows it sitting close to the ground in very fouga-esque fashion. However, I have heard that the 195s wings were much thicker in part to accommodate a larger undercarraige. This was to lift the aircraft to allow easier weapons access aparently.

BTW, nice models Weaver:)

C


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99
Hi all
On page 762 of "Flight" dated 06.29.1951 I found
the Fouga 82 r "Lutin"
Do you know more on this plane ?
THANKS
PAUL


Attachments

  • Scan.jpg
    28.4 KB · Views: 351

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

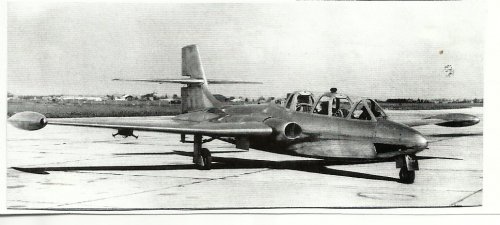

I have two more pics which represent the same prototype in the same place (all three pics are probably the same one reworked). They were taken at the Grand Palais in Paris for the Salon de l'Aviation (before it moved to Le Bourget for good in 1951).


Attachments

  • Fouga_Lutin.JPG
    50.7 KB · Views: 334
  • Lutin.jpg
    401.3 KB · Views: 354

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931

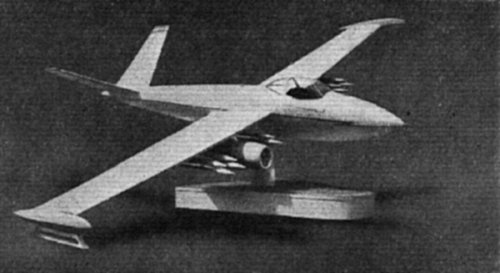

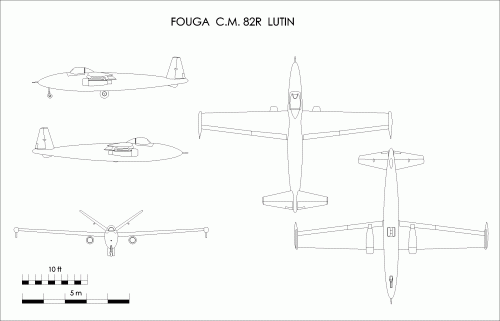

As I understand it, the CM.82R was a development of the CM.8R Sylphe/Cyclope
and not strictly meant as ground attacker, although shown with armament.
Tried to make a drawing a long time ago, using those photos and the CM.8 as
a pattern, should be taken with a pinch of salt ...


Attachments

  • CM-82.gif
    27.9 KB · Views: 366

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99

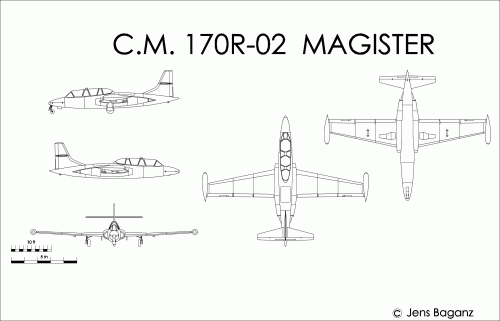

Here is the Fouga cm 170r 02
with the conventional tail (from "Zone air")


Attachments

  • Scan.jpg
    130.5 KB · Views: 232

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
931

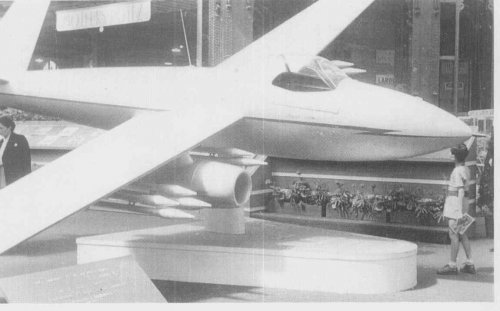

Years ago I took copies of the Flugwelt 1995, showing, what seems to have been a model
of the Fouga 191 "fast communications and courier aircraft". To my opinion, here it already
has the seating arrangement later realised in the Potez-Heinkel 191 ( 2 + 2)
(It wasn't me, who cut the tail off, but those mags were bound into one volume, often leading
to "losses" at the edges)


Attachments

  • Fouga-191_01.jpg
    69.8 KB · Views: 592

tiikki

Why I really should change my personal text?
Joined
Jan 22, 2013
Messages
65
Reaction score
0
Website
tiikki.blogspot.com

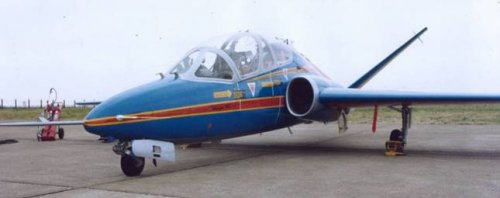

One friend of mine mentioned that Fouga had quite small radar cross-section. He didn't find any source for his recollection about this.

Does any of you have any information on radar cross-section of Fouga Magister? Would it be close to modern low observation aircraft like Rafale or Typhoon?


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,213
Reaction score
1,739
The Fouga was a pretty diminutive aircraft with a very small frontal area. It may have helped diminishing radar returns. Surely that data must come from the ISraelis, one out of few countries that used the Fouga in combat (in the Six days war).


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Someone asked for the specs of the C.M. 195, so here goes (courtesy of Air Pictorial, August 1955):

The Magister is too well known to need description, but a projected development, shown in model form, is very interesting indeed. This is the C.M. 195 transonic operational trainer, which Fouga is pushing as an economical way of giving advanced air experience to fighter pupils. It is virtually a Magister with 45-deg. swept wing and tail of reduced thickness and two 2,430-lb.s.t. Turbomeca Gabizos in place of the 880-lb.s.t. Marbores. The estimated gross weight is 9,700 lb. A sea-level maximum speed of 600 m.p.h. reduces to 560 m.p.h. at 33,000 ft., but the important feature is that a Mach number of 1.1 can be reached at 26,000 ft. after a dive from 42,000 ft.

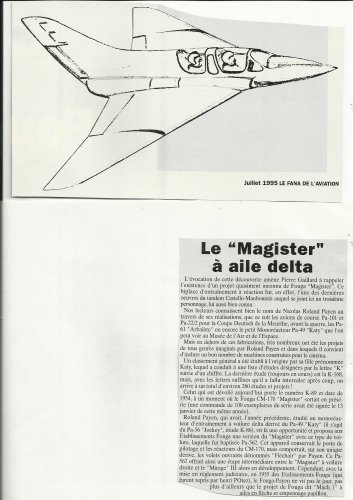

Also, many of the pics of the C.M. 195 have disappeared from this post, so here is the one that came with the above item:


Attachments

  • C.M.195.jpg
    72.5 KB · Views: 484

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
For a few days now I have the new book of J-C Carbonel in the hands, a masterpiece.
It brings me back to the company Fouga with their projects!
I'm looking for:
1) a 3-view drawing of the C.M.130
2) a 3-view drawing of the C.M.160
3) a Picture of the C.M.180 "A flying test bed for the Turbomeca Ossau Turbojet and flown in 1953".

Thanks for your help.
Maveric


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476

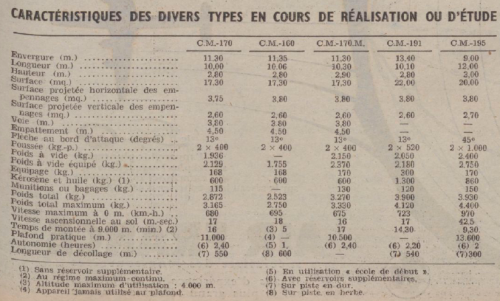

From Aviation magazine 1955,

a hint for CM.160.


Attachments

  • 160.png
    282.9 KB · Views: 24
Top
