I am doing some research for an article on the R100 rocket. I could find information on the BS “Brand Splitter” and MS “Minen Splitter” but nothing on the M “Minenkopf” version.
Could anyone help with texts of drawings?


Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
271
Reaction score
95
Website
chemnitzer27kb.blogspot.com
Here are some versions known to me:
http://img.photobucket.com/albums/v432/Grzesio/21cm_BRs_R100-Model_SH.jpg?t=1230504078
The second one can be an early R 100 M version, I think. The last one is a complete mystery. I can find just one information on the R 100 M at the moment, it was to be equipped with an optical proximity fuse - but I have to trace the source...

And what about R 100 DS?

Regards

Grzesio


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
27
Hi everybody

There was also a R100BS with spring-loaded fins. Someone knows more ?

Many greetings


Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
271
Reaction score
95
Website
chemnitzer27kb.blogspot.com
I think it rather was to be. :)
It looked very much like the second R 100 example here:
http://img.photobucket.com/albums/v432/Grzesio/21cm_BRs_R100-Model_SH.jpg
...but had six folding fins on the bare nozzle, looking very much like the R 4M ones. The whole rocket was to be 1825 mm long and have 600 mm fin span.

Anyway, I've found pretty interesting information on the R 100 BS evaluation in the USSR. The rocket was developed as the ABRS-220 there, but the Soviet version of the Brandschrapnell warhead was found to be completely ineffective - incendiary pellets were colliding in the air, splashing flaming contents all around - the view was impressive, but nothing more.

Regards

Grzesio


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
27
Hi everybody

Thanks for the reply ! Here a Arado 234 C-3 with R100BS
Link removed

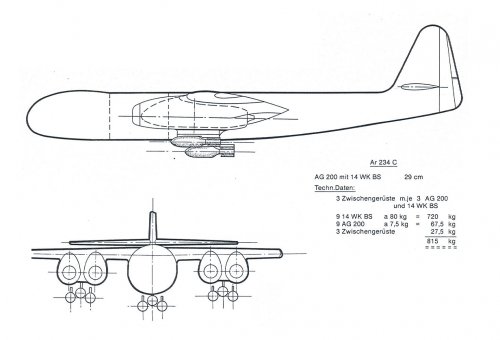

There is also a Arado 234 C-3 with 14WKBS rockets ?
Someone knows more about the 14WKBS rocket ? What was the purpose ? What is it ?

Many greetings


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,763
Reaction score
3,421
Website
www.amazon.com

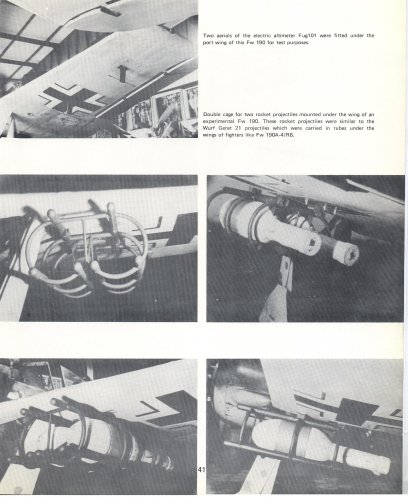

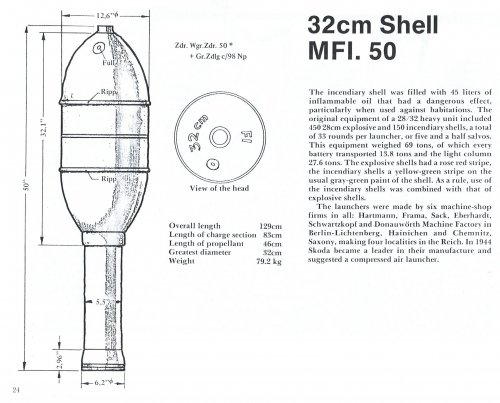

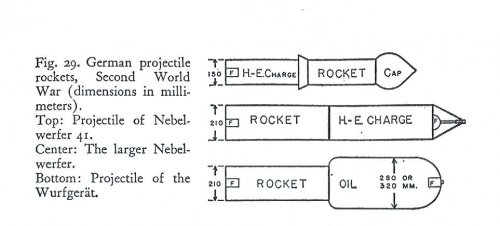

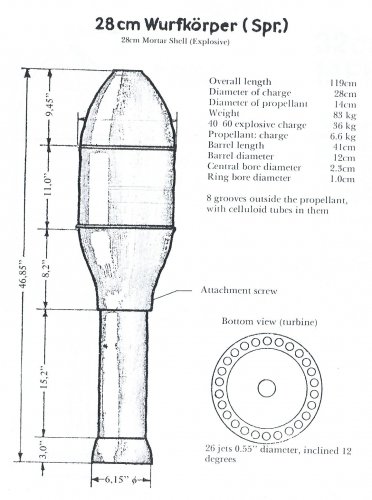

WK 14 BS (Wurfkorper mortar rakete Brandsplitter) was the fin stabilised version of the WGr 28/32 incendiary antitank rocket with 50 liter Flammöl warhead


Attachments

  • Escanear0002.jpg
    99.5 KB · Views: 122
  • Escanear0003.jpg
    734.4 KB · Views: 118
  • Escanear0004.jpg
    48.3 KB · Views: 99
  • Escanear0005.jpg
    183.9 KB · Views: 99
  • Escanear0006.jpg
    293.7 KB · Views: 89

Grzesio

ACCESS: Secret
Joined
Mar 20, 2008
Messages
271
Reaction score
95
Website
chemnitzer27kb.blogspot.com
I'd say, the WK 14 BS was to have a Brandsplitter warhead. ;) The rocket was to be 80 kg heavy and 29 cm calibre. It was intended as an air-to-ground weapon.

Regards

Grzesio
