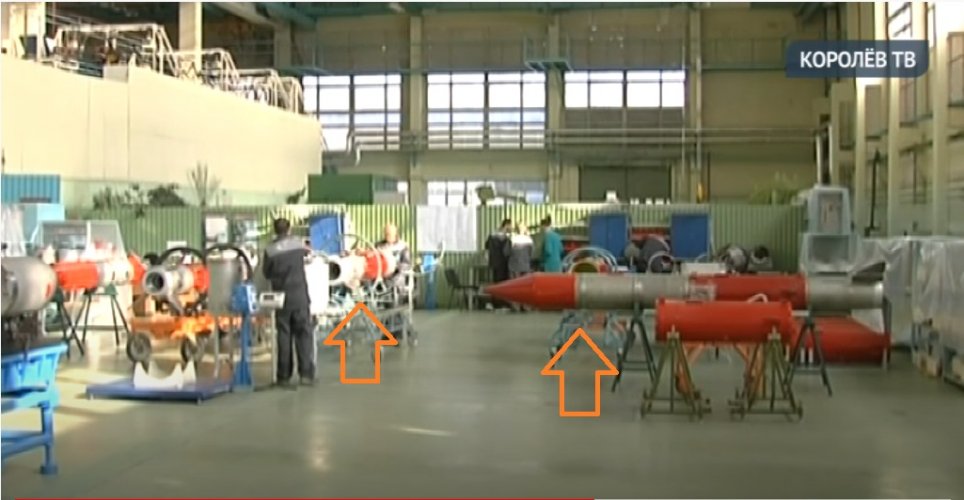

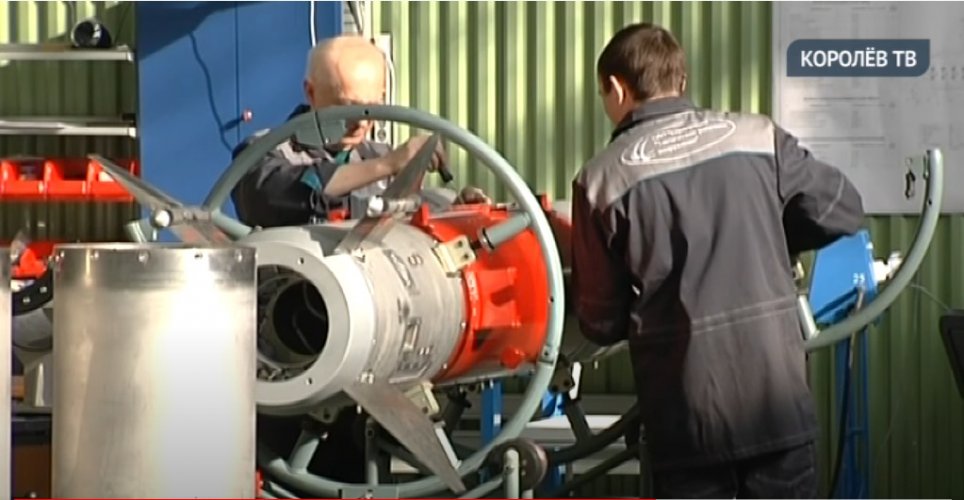

Thread to discuss Soviet/Russian very long range missiles.


Pit

ACCESS: Confidential
Joined
Dec 29, 2005
Messages
145
Reaction score
7
Guided missile of long range R-33

Chapter from the book “air defense aviation of Russia and scientific technical progress” TSNII are ACE edited by academician E. A. Fedosov.

The rocket of long range R -33 is equipped only with radar homing head. It is designed for the multichannel guidance, it was developed exclusively for the destroyer, which has on board PHASED-ARRAY RADAR, which permits implementation of a semi-active guidance of several missiles at several targets simultaneously. In this case homing each of the released rockets is carried out in the intermittent duty, since the illumination of purposes is achieved consecutively, moreover the part of time is expended on the retention of survey and the organization of the target of new lock-ons.

Semi-active RGS of rocket R -33 is equipped with the calculator, which forecasts the angular velocity of the line of sighting, analogous established in the rocket R-24R calculator the model of the kinematic relationships of relative motion - initial conditions (relative distance, rate of closure and the projection of the angular velocity of range line) in the flight mission are obtained.

The special feature of the calculator of rocket R-33, in contrast to the calculator of rocket R-24R, lies in the fact that it begins its work from the moment of the end of finalizing with the stabilization system of starting disturbances. Therefore rocket flight to the moment of switching on of calculator must lead rocket into the predetermined point, and on board the destroyer must be calculated the estimations of distance, rate of closure and angular velocity of range line after 2 sec afterward the gathering. Initial antenna position (angular aim designation) also must be forecast on the carrier aircraft before the launching at the moment indicated.

In the process of rocket flight to the seizure the orientation of antenna is determined by the estimations of the angular velocity of range line, manufactured by calculator taking into account the current measured transfer of rocket. The formation of the given g-force is determined by the same estimations of angular velocity.

In the head the indicator gyrostabilizer, built on the base of the sensors of angular velocity, is used. The target lock-on by self-homing head can occur after third of the flight time of rocket. This is reached, in particular, because of the high accuracy of the evaluation of the angular velocity of the line of the sighting BRLS of the carrier (error they are 0,01… 0,03 deg/s).

Doppler self-homing head is characterized by strict agreements of all taking place in it processes with the intervals of the illumination of the assigned for it purpose, equal to 20 ms. In the period indicated is produced the target search in the frequency, and in the process of tracking the measurement of frequency detuning and error angle is carried out. All the remaining time to the following interval of illumination head “is closed” for the method and the signals, formed with it, are calculated as a result forecast from the previous measurements.

In the head the method of direction-finding with processing of signal by the two-channel receiver, which realizes the method of the so-called reserved conical scanning with the compensation, is realized. In each channel independent of others as the normalizing devices are used the diagrams ARU. The accuracy of the measurement of the angular coordinates of target by head, including with amplitude jamming [e.g. inverse gain jamming- PMM], approaches accuracy of monopulse system.

The distance of seizure by the head of a purpose of the type Tu-16 is about 90 km, which taking into account inertial guidance to the seizure provides the possibility of launching from distance on the order of 120… 130 km.

Homing system after seizure consecutively has two structures:

From the moment of seizure on the larger part of way the model of the kinematic relationships as the filter of the measurements of the angular velocity (instead of the acceleration of purpose to the entrance of model it will be given a difference in the measurement of angular velocity and its estimation), is used;
then it is built as stationary (locked outline of the angle tracking of head forms the measurements of the angular velocity of the line of the sightings, which are passed through the stationary filter and after multiplication by the measured rate of closure is formed the given g-force).

A certain decrease of requirements for the value of gradient of synchronous error is achieved because of the application of a negative speed feedback of a change in the angle of deflection of antenna.

Rocket R-33 is built according to normal diagram. Its construction is traditional, and the layout and the aerodynamic shapes influenced the need for the conformal suspension of rocket under the fuselage of aircraft MiG-31.

The characteristics of the rocket of long range R -37 and of its system for control are better than rocket R-33: above located overloads, the permissible launching ranges, noise protection, especially with the guidance to the low-flying and multiple targets.

Rocket R-37, mainly due to a certain increase in power-weight ratio and considerable increase in the time of the work of power unit, fundamentally new construction of control system, provides the possibility of launching from the distance of more than 300 km.

Rocket can be used both from the modernized destroyer MiG-31 and from the destroyers Su-27, Su-35 with the condition of the modification of their software.


Pit

ACCESS: Confidential
Joined
Dec 29, 2005
Messages
145
Reaction score
7

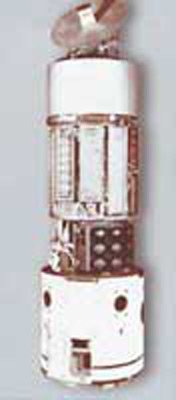

9E50M1 semi-active seaker head from AGAT for R-33.

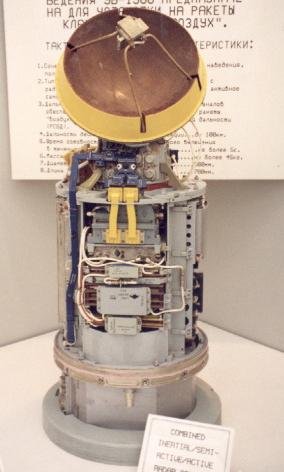

9B-1388 mixed semi-active/active seaker head. Max range in SARH is 75 km, active mode 25km. Weight, 45kg without the radome. For K-37.

The 9B-1388 is used along a MCGU with a max range of 100km.

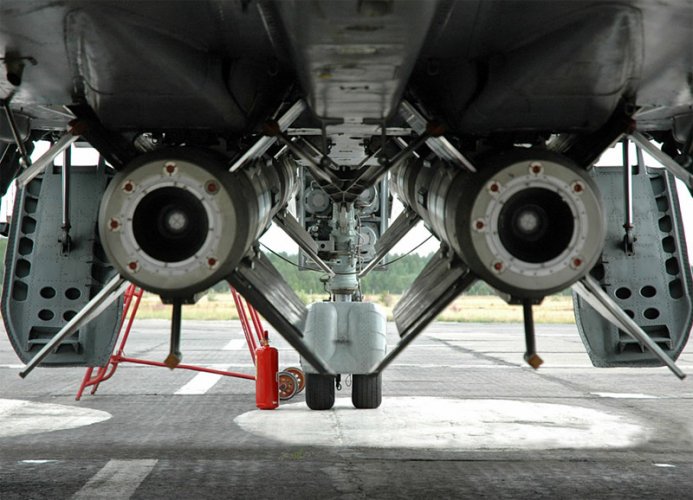

Look at the datalink aerial on K-37

Source -
Sistemas de Armas website
http://sistemadearmas.sites.uol.com.br/aam/r33.html


Dilbert

ACCESS: Confidential
Joined
Jan 3, 2006
Messages
81
Reaction score
3
Ok, I'm convinced - and more than a little bit surprised! Con-scan on R-33, what will they think of doing wrong next... ::)

So, according to this book (and briefly not to go too far off-topic), what is RVV-AE? Inverse conical-scan, or monopulse?

Thanks!


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377
CONOPULSE is a hybrid angle-tracking system combining
monopulse and conical scan techniques. Two squinted beams
are rotated or nutated in space in a conical scan manner. The
received signals are processed either with monopulse processing
followed by conical scan or vice versa. The advantage
claimed for the conopulse technique is that, like monopulse,
amplitude fluctuations do not affect the angular accuracy,
while only two receivers are required instead of three used in
a conventional monopulse tracker. With modern solid-state
technology, it can be easier to realize the third receiver than to
arrange proper scanning of a pair of squinted beams. Sometimes
conopulse is called scan with compensation.

This sounds to me like what is described above.

Makes sense! Its a hybrid system which has similar resistance to angle deception as monopulse but uses less reciever channels, and has fallen out of use with "modern solid-state technology".

Source: Barton & Leonov, Radar Technology Encyclopaedia, Artech House


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377
Conopulse Reference

Two methods are usually used for angle-tracking radar. They are monopulse and conical scan. The former is free from target-signal amplitude-fluctuation effects but requires multi-channel receiver equipment. The latter requires only one channel but is affected by target-signal amplitude-fluctuation effects. A method is proposed in this paper, conopulse, which combines the advantages of both. Conopulse requires only two channels, and is free from the signal disturbances to which conical scan is subjected. Its main disadvantage is its lower data rate.

I've found references at least as old as 1975 for this technology.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377
Note that the original R-37 seeker seems to have the same antenna as the R-33 seeker, implying it also uses conopulse?


Dilbert

ACCESS: Confidential
Joined
Jan 3, 2006
Messages
81
Reaction score
3
The conopulse concept is new to me and sounds interesting, but I question whether that second photo is really a 9B-1388 active seeker, or just a 9E50M1 stand-in labelled "active" at an airshow. I can't see any difference between the two. Meanwhile we've already seen two seekers for the same missile (R-27R) that look wildly different in appearance, not to mention the family of RVV-AE seekers that has been multiplying like rabbits, no two looking alike. Going from a passive to an active seeker should require some significant design changes, especially the presence of a higher-power waveguide leading to the feed, which seems absent in the "9B-1388" photo.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377
http://www.milparade.com/catalog/pdf/402-403.pdf

Has the same thing labelled as 9B-1388. It should of course have a transmitter, which it didn't have before. There is always the probability that the R-33 seeker picture Pit uploaded is incorrect (no offence, Pit)

The 9B-1388 seeker seems to have been totally abandoned anyway in favour of different sized variants of the 9B-1103M anyway.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377
9E50M1 is actually the upgraded Buk seeker.

The picture Pit posted is therefore incorrectly labelled as 9E50M1 but is actually 9B-1388.

The R-33 seeker is apparently MFBU-410, and looks somewhat different.


Attachments

  • R-33-Seeker.jpg
    14.9 KB · Views: 94

Vadifon

ACCESS: Restricted
Joined
Jan 24, 2006
Messages
29
Reaction score
0
Website
vvsussr.com
Dilbert said:
So, according to this book (and briefly not to go too far off-topic), what is RVV-AE? Inverse conical-scan, or monopulse?
Monopulse (Fedosov's book).
Note that the original R-37 seeker seems to have the same antenna as the R-33 seeker, implying it also uses conopulse?
i think you are right. There is no mention about monopulse in describtion of missile modernization(R-33>R-37) in Fedosov's book.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377
Yes, thats the upgraded Buk SAM seeker.

It is possible that it used similar technology to the R-33 seeker, as they were both developed by NIIP around the same era.


Dilbert

ACCESS: Confidential
Joined
Jan 3, 2006
Messages
81
Reaction score
3
For a western antenna designer, this is quite something to see... It appears that for twenty years, USSR managed to develop and produce EVERY antenna technology under the sun, no two alike... except the slotted array. :p


Pit

ACCESS: Confidential
Joined
Dec 29, 2005
Messages
145
Reaction score
7
Dilbert said:
For a western antenna designer, this is quite something to see... It appears that for twenty years, USSR managed to develop and produce EVERY antenna technology under the sun, no two alike... except the slotted array. :p

My friend, the USSR developed slotted array aerials for the ARGS-35 seeker of SS-N-25 "Switchblade" AShM, IOC 1994 ;D...

And guess if they used slotted array technology on 3M80 or P-700 :D
(Off Topic out)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377
Thanks a lot Martin! The English brochures I collected had nothing about the older models.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377
Yefim Gordon does mention MFBU-410.

He seems to think its an onboard system of the MiG-31. According to him, it stands for MnogoFoonktsionahl'nyy Blok Oopravleniya or multifunction missile control module. 410 is the R-33 (Izdeliyie 410).


mrdetonator

ACCESS: Secret
Joined
Jan 8, 2006
Messages
215
Reaction score
3
Website
www.lietadla.com
overscan said:
Yefim Gordon does mention MFBU-410.

He seems to think its an onboard system of the MiG-31. According to him, it stands for MnogoFoonktsionahl'nyy Blok Oopravleniya or multifunction missile control module. 410 is the R-33 (Izdeliyie 410).
the MFBU could be pretty common abbreviation, describing blocks on the aircraft, probably he is mixing up two different things.


Pit

ACCESS: Confidential
Joined
Dec 29, 2005
Messages
145
Reaction score
7
In a side note:

Accordin to the December 2005 issue of "Vzlet" (Take-off) journal by Andrei Fomin, the Su-35/T-10BM should be capable of carrying up to 5 "long range missiles", maybe talking about KS-172S-1 (R-72).

It's interesting to know what happened to the K-37M program once slatted as "winner" of the Russian Long Range contest for ALRAAM missiles instead of KS-172 (russian version, range up to 400km)...seems to be superceeded by other developments.

According to Y. Gordon on his last MiG-31 book, the MiG-31B's datalink (intra-flight datalink) should be capable of shared homming for the R-33 missile (R-33S?), maybe on a similar fashion as TDILS-39 datalink of JAS-39 Gripen works...anybody knows if R-33S introduces MCGU from the Zaslon-A radar?.

Thanks!


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,194
Reaction score
30
Have any images of the R-33S ever turned up?


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,195
Reaction score
1,731
I heard about the ultra-long range AAM KS-172. Its range was supposed to be 400km, to kill AWACS whithout being detected! I want to know more anout this missile... Was it tested on su-27?
Another interesting russian AAM was the R-37, mounted on the MiG-31M.
The performances of this missile impressed me : it could kill a target flying at mach-6, 40km height, and 300 km away! Why such a missile? to kill aurora spy plane? ICBM nuclear warhead?
Is there other russian AAM of this class?


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,195
Reaction score
1,731
Pit said:
In a side note:



It's interesting to know what happened to the K-37M program once slatted as "winner" of the Russian Long Range contest for ALRAAM missiles instead of KS-172 (russian version, range up to 400km)...seems to be superceeded by other developments.

You mean that the KS-172 and R-37 were ompetitors at one time?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,353
Reaction score
3,377

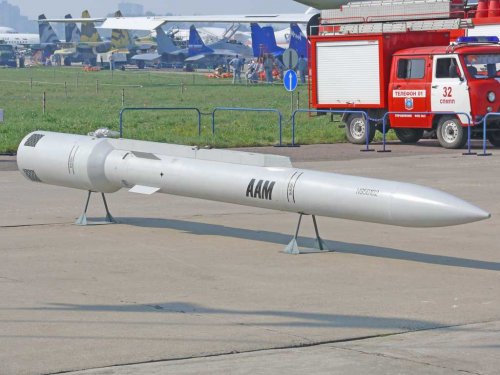

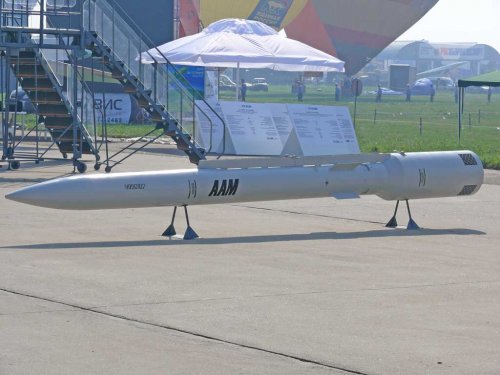

AAM-L from http://maks.sukhoi.ru/maks2007.htm
