Hi folks,

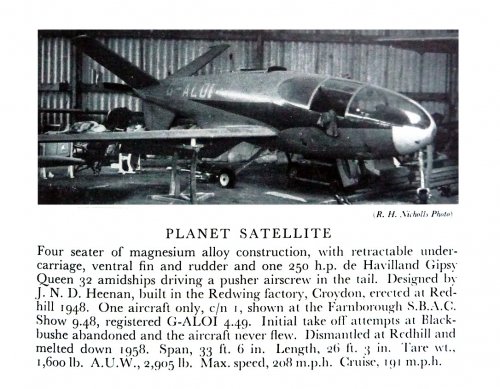

Thought I would post these pics etc on the Planet Satellite light aircarft of the late '40s. It was a four seater built of magnesium alloy,retractable undercarriage fitted with a Gipsy Queen 32 amidships driving a pusher airscrew in the tail,designer was a Mr J.N.D.Heenan,she was built in the Robinson Redwing factory at Croydon,Purley Way,Surrey in 1947,taken to Redhill in 1948 and shown at the S.B.A.C show at Farnborough in September 1948,took up the registration G-ALOI in April 1949,failed to get airborne at Blackbushe despite several long runs down the runway,thus any further attempts to fly her were abandoned.

Span 33 feet 6 inches,Length 26 feet 3 inches,Tare weight 1,600 lbs,all up weight 2,905 lbs,max estimated speed 208 mph,cruise estimated at 191 mph. (More info can be found in Bill Gunston's "Back to the Drawing Board")

No known drawings exist.




Regards,

Greg


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

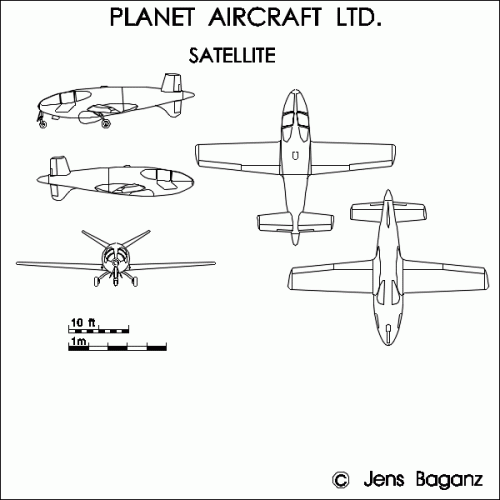

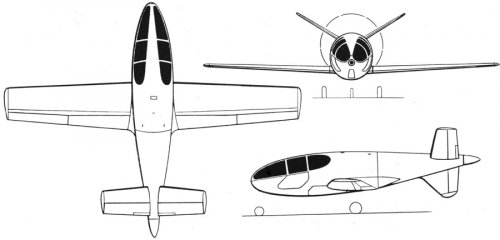

There was a drawing in a wingspan issue, can't tell in the moment
which it was, but I used it as the basis for my drawing


Attachments

  • Satellite.GIF
    20.6 KB · Views: 1,551

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

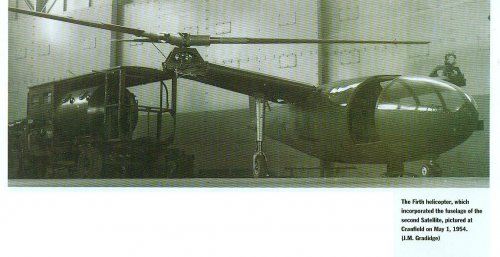

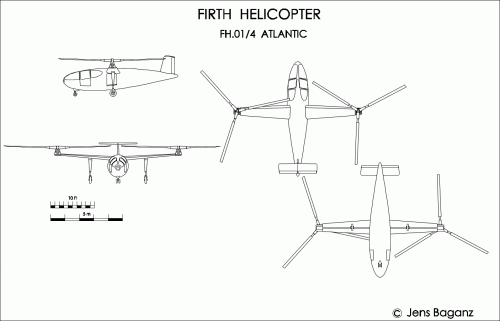

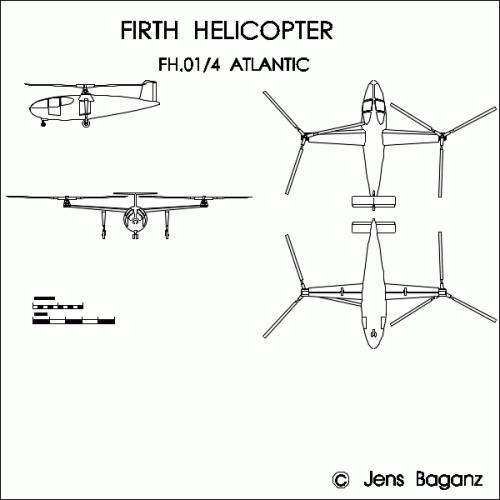

Perhaps we should add, that this helicopter, built by Firth Helicopter and
designated FH.01/4 Atlantic, used the fuselage of the second Planet
prototype ...


Attachments

  • Atlantic.GIF
    17.9 KB · Views: 1,423

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
44
Website
cmeunier.chez-alice.fr
Thanks GTX, this is a good candidate I had forgotten for the title of "most beautiful aircraft in the World"...
Thanks Jemiba, your drawings has been a very good basis to invent Satellite-Mustang mixes of mine (see http://www.whatifmodelers.com/forum//index.php?showtopic=4461&st=360&#entry185090 ) ;D


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
5,313
Reaction score
3,307
Maybe its sounds stupid, but this plane looks a bit like the bugatti-100 racer of the 30's... ???


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

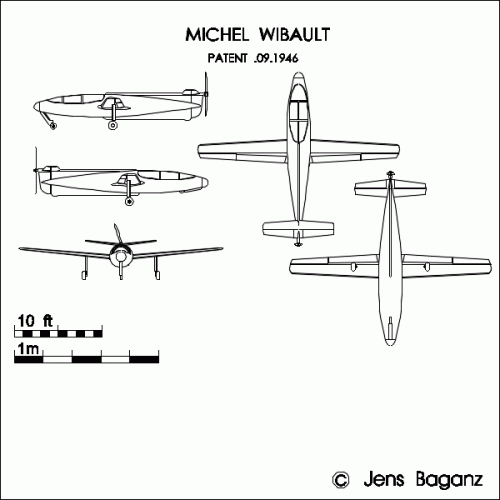

You're quite right, but there are a number of other aircraft or
at least projects. For example this patent from Miche Wibault,
for a sports a/c with a pusher prop. Form follows function ...


Attachments

  • Wibault.GIF
    19.9 KB · Views: 1,395

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,415
Reaction score
229
Maybe it's just me, but this one always made me wonder if it inspired the lines of the BD-5.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720

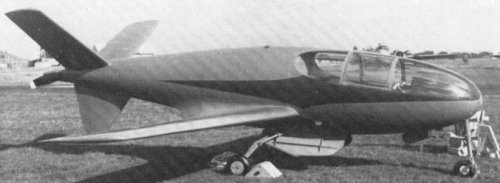

et voila!


Source: Air Enthusiast July 1972

There's a good writeup of the project if you are interested.


Attachments

  • Planet-Satellite.jpg
    48 KB · Views: 177

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,317
Reaction score
245
hmmm...I know it from a reference book called "Macchine bizzarre nella storia dell'aviazione" by Giorgio Evangelisti, but can't remember the name. If no one identifies it by tomorrow I'll dig it out. So rest assured one way or another the mistery will be solved! ;)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
"Anyone know what it is?"

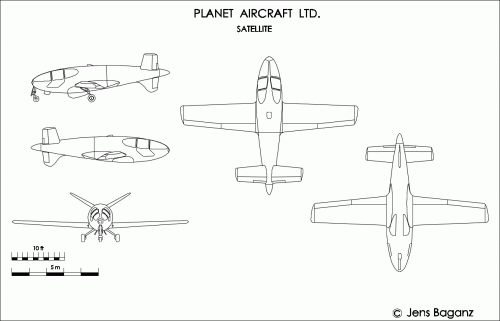

It's the Planet Aircraft Ltd. Satellite from 1946, which, I think, made just one
short flight and was structurally damaged during the landing. So the project
was shelved, but the fuselage was "recycled" for the Firth Helicopter FH.01/4
Atlantic later.
There was an article in "Wingspan", whose interested in it, just drop a PM.


Attachments

  • PA-Satellite.GIF
    41.5 KB · Views: 100
  • FH-Atlantic.GIF
    45 KB · Views: 96

Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
387
Reaction score
57
Website
www.aviationart.aero
That's two flying machines I'd never heard of. Educational forum this! ;)
Thanks very much, very interesting.
It's clear the Satellite lost its ventral fin during that landing! :-[


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,317
Reaction score
245
hmmm...Evangelisti's book says the landing gear collapsed during taxi tests and the machine never flew. Maybe Flight's archives can solve the mistery ;)


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
The Wingspan article says, that after the first "flight", or better a "hop", when
the undercarriage had collapsed, the aircraft was in fact repaired again and readied
for another flight. This was a very short one, too and although in this case it landed
without obvious problems, later examination showed, that the forward keel had been
factured, thus ending the very short career of the Satellite.


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
387
Reaction score
57
Website
www.aviationart.aero
AeroFranz said:
Maybe Flight's archives can solve the mistery ;)
I did indeed find numerous references to this plane there, for example see http://www.flightglobal.com/pdfarchive/view/1948/1948%20-%201077.html (with nice cutaway drawing)

Here's an older, small article too: http://www.flightglobal.com/pdfarchive/view/1947/1947%20-%201502.html?search=planet%20satellite

And in the same issue this oddball: http://www.flightglobal.com/pdfarchive/view/1947/1947%20-%201509.html
But now I'm getting really off-topic... ;D


silvereagle

ACCESS: Restricted
Joined
Oct 30, 2007
Messages
14
Reaction score
0
The Planet Satellite failed due to over-confidence in the strength of its novel magnesium alloy structure and the resulting oversimplification of the design, indicated by needing only 400 drawings instead of up to 3000 that would usually be done for a similar sized conventional aircraft.

It was built in 1948 and first flew in April 1949. Normal landing stresses were sufficient to break its keel on the first landing. There is a good article in Aeroplane Monthly (October 1983) which has a reprint of the 'Flight' cutaway drawing in which you can see the lightly designed keel, a ventral 'backbone' that was optimistically expected to take the major stresses.

As 'Roger Bacon' would have said - "sudden but not entirely unexpected...'twang!"

Wikipedia also has a good article - http://en.wikipedia.org/wiki/Planet_Satellite

Despite all the above it was a very pretty plane.

Cheers from Oz


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644

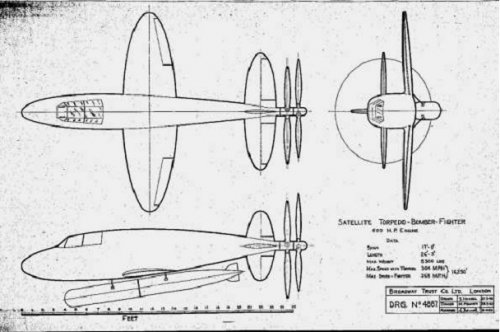

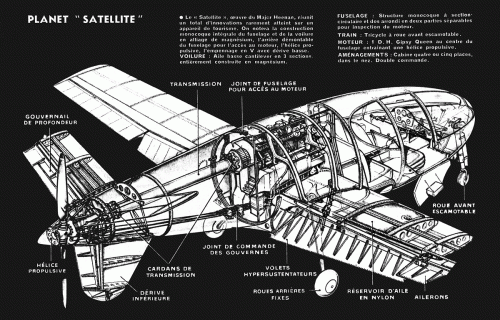

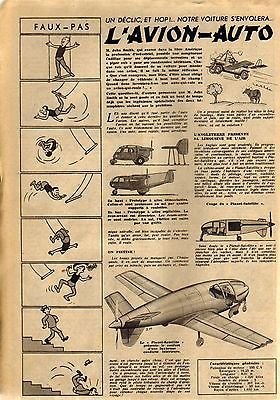

A beautiful cutaway of the Planet Satellite from the French Science et Vie (Special Aviation 1949 issue). I'm also attaching a picture of the Burney Satellite, a design that somehow seems related to it.


Attachments

  • Burney Satellite.jpg
    Burney Satellite.jpg
    68.3 KB · Views: 830
  • Planet Satellite (S&V HS Aviation 1949) small.gif
    Planet Satellite (S&V HS Aviation 1949) small.gif
    425.7 KB · Views: 659

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,350
Website
www.amazon.com

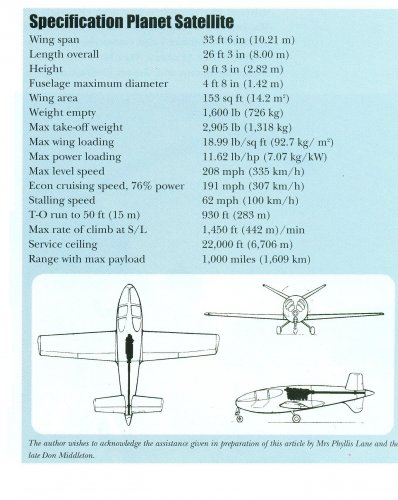

From Mike Jerram article in WINGS ,unknown issue


Attachments

  • ñ 215.jpg
    ñ 215.jpg
    534.3 KB · Views: 176
  • ñ 216.jpg
    ñ 216.jpg
    323.4 KB · Views: 179
  • ñ 217.jpg
    ñ 217.jpg
    552.3 KB · Views: 169
  • ñ 218.jpg
    ñ 218.jpg
    624 KB · Views: 100
  • ñ 219.jpg
    ñ 219.jpg
    235.5 KB · Views: 94
  • ñ 220.jpg
    ñ 220.jpg
    164.7 KB · Views: 103

malcolm

ACCESS: Restricted
Joined
Sep 2, 2009
Messages
27
Reaction score
2
From Wikipedia The Chief Test Pilot at RAE Farnborough, Group Captain H.J. Wilson (holder of the World speed Record in the Gloster Meteor), after several long runs down the runway, managed to get the Satellite airborne at Blackbushe. The first "hop" was followed by the collapse of the undercarriage. After repairs, the prototype was flown off the ground and after reaching an altitude of barely 20 ft was put down on the ground gently but nonetheless, the main keel had been cracked by the force of the landing. The conclusion of the Air Registration board investigating the "accident" was that the aircraft was badly understressed and would necessitate a complete redesign.
The manufacturers had already begun the production of a second prototype and despite an investment of £100,000, chose to wind down the program with no further attempts to fly the Planet Satellite.
The second prototype, registered G-ALXP was abandoned but the completed fuselage was incorporated into the Firth Helicopter, built in 1952 at Thame. The single "flying" Satellite languished at Redhill until 1958 when it was unceremoniously broken up.


Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
102
Website
sites.google.com
Jemiba said:
Perhaps we should add, that this helicopter, built by Firth Helicopter and
designated FH.01/4 Atlantic, used the fuselage of the second Planet
prototype ...


I'd like to add to this, though slightly off-topic.

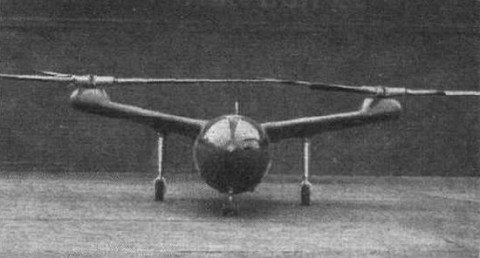

The FH-1 was based on patents by Landgraf when his company folded in 1949 (due to the withdraw of funding from the military to further develop the H-2 helicopter). It's possible that the FH-1 would have been the "H-4" four-seat proposal of the H-2, had it been developed by Landgraf.

I can't remember where I obtained the below photos:


Attachments

  • FF_003.jpg
    31 KB · Views: 73
  • FF_002.jpg
    24.5 KB · Views: 72

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,974
Reaction score
389

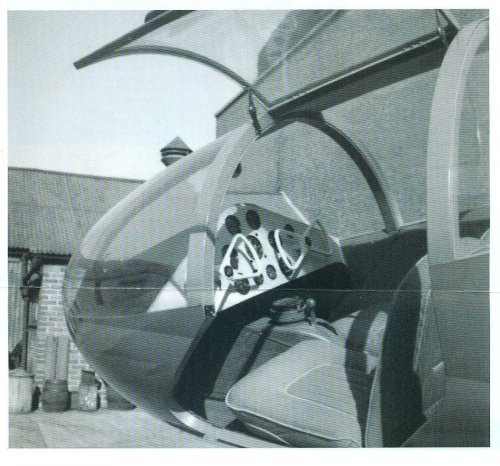

Some images, from 'Aeroplane Monthly' October 1983 :-


cheers,
Robin.


Attachments

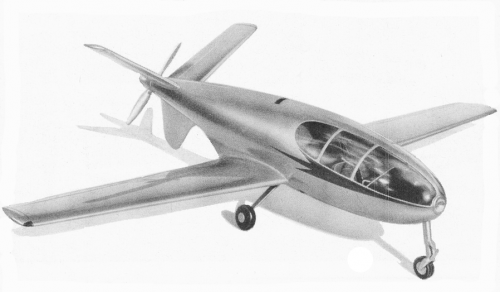

  • planet satellite artists impression.png
    planet satellite artists impression.png
    576.4 KB · Views: 92

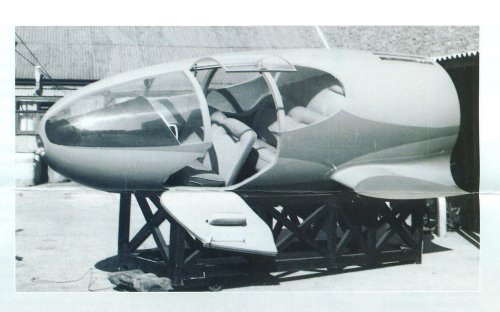

  • planet satellite model.png
    planet satellite model.png
    236.6 KB · Views: 85

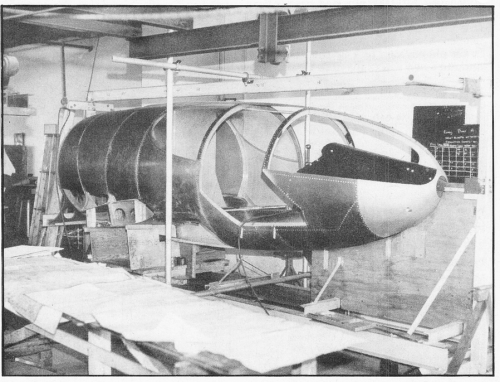

  • planet satellite under construction.png
    planet satellite under construction.png
    534.3 KB · Views: 80

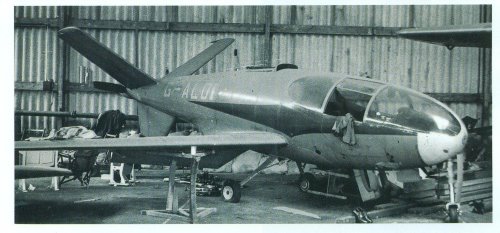

  • planet satellite#1.png
    planet satellite#1.png
    233.2 KB · Views: 77
  • planet satellite#3.png
    planet satellite#3.png
    213.1 KB · Views: 76

hushkit

Does it make me a pervert that I love the Taon?
Joined
Jun 19, 2012
Messages
18
Reaction score
0
Hi all.
I am currently researching the Planet Satellite and would love to see more research material, photos or artworks.

Does anyone have scans of the Aeroplane Monthly article from 1983?

I would like to produce a large article on this most fascinating subject, following on from Don Middleton's excellent work on this subject.

In case you are interested here is a link to the Hushkit blog's subjunctive history of the Griffon-engined Hurricane: http://hushkit.wordpress.com/2012/06/12/the-ultimate-what-if-fighter-the-griffon-powered-hawker-hurricane-mk-xiv/

Many thanks,
Hushkit


taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
326
Reaction score
207
Is this the last instance anyone can think of of a professionally-designed conventional aircraft proving unable to take off? In the late 40's, England must have been crawling with competent but underemployed aircraft engineers - I wonder how the team behind the Satellite got the job.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
If my memory serves me right, it actually took off, but was damaged during the landing
due to structural deficiencies.


hushkit

Does it make me a pervert that I love the Taon?
Joined
Jun 19, 2012
Messages
18
Reaction score
0
It flew to about 20 feet, but the main keel collapsed on landing. The aircraft required re-stressing, but this was considered too expensive.

I am currently researching the Planet Satellite light aircraft for a magazine article and am very curious as to the type’s relationship with Shute’s Satellite Torpedo-Bomber-Fighter, 4. Was Major Dundas Heenan involved in the earlier concept, did he know Shute?
Both aircraft are small pusher aircraft, of a similar configuration sharing the same name, surely there is some connection?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
At least the article in Winspan issue March/April 2001 didn't mention such a connection, but gave the reason
for the pusher layout, chosen by Heenan, as giving a much more streamlined nose section and better isolation
against engine noise. That sounds, as the Satellite was a then new design, not based on other types.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
hushkit said:
I am currently researching the Planet Satellite light aircraft for a magazine article and am very curious as to the type’s relationship with Shute’s Satellite Torpedo-Bomber-Fighter, 4.

Don't know about this project. Is it similar to the "Burney Satellite" as shown here?
http://www.secretprojects.co.uk/forum/index.php/topic,1170.msg150686.html#msg150686


hushkit

Does it make me a pervert that I love the Taon?
Joined
Jun 19, 2012
Messages
18
Reaction score
0
The Burney aircraft is the same as the Shute design, but by another name.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com

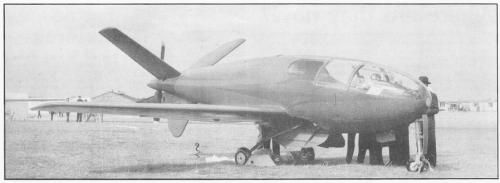

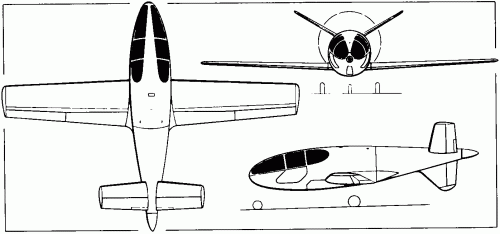

Source:
http://media.photobucket.com/image/recent/Secudus/Planet-Satellite.jpg
http://crimso.msk.ru/Site/Crafts/Craft21711.htm


Attachments

  • 46-2.gif
    13.6 KB · Views: 712
  • 46-1.jpg
    43.8 KB · Views: 734
  • Planet-Satellite.jpg
    227.8 KB · Views: 792

rosie

I really should change my personal text
Joined
Dec 4, 2013
Messages
1
Reaction score
0
HELLO TO ALL

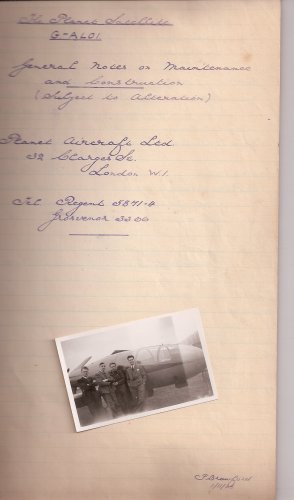

I HAVE PHOTOS AND DRAWINGS AND A WRITTEN UP BOOK ON THE PLANET SATELLITE
MY FATHER WORKED ON THIS IN 1948
I AM LOOKING FOR AN APPRAISAL ON IT TO SELL


Attachments

  • scan0004.jpg
    1.3 MB · Views: 636

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,849
Reaction score
4,720
Hi - welcome.


I suggest you take a photo of everything you have and post it here. How many pages in the book, what does it contain? Detailed drawings would be interesting for some.


Ultimately its worth exactly what someone will pay for it. If you are lucky, someone is interested in this specific plane.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,195
Reaction score
898
Website
beyondthesprues.com

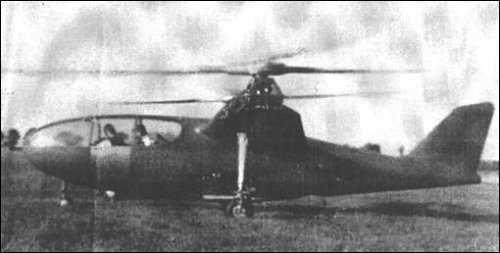

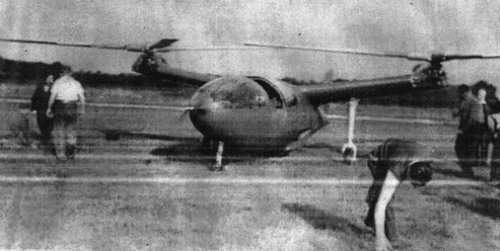

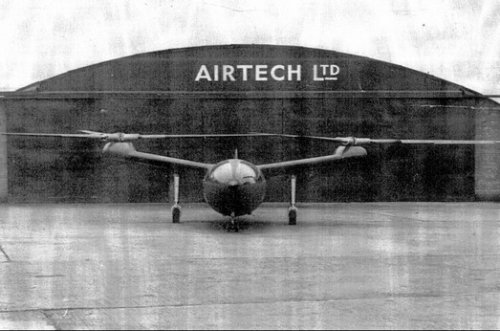

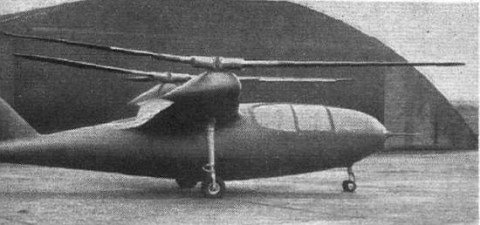

Some more photos after conversion to a helicopter:


Attachments

  • ~slide0069_image138.jpg
    37.8 KB · Views: 438
  • ~slide0068_image137.jpg
    30.3 KB · Views: 68
  • ~slide0069_image139.jpg
    43.2 KB · Views: 63
  • ~firth 1.jpg
    ~firth 1.jpg
    57.8 KB · Views: 58
  • ~slide0070_image141.jpg
    32.9 KB · Views: 51

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,404
Reaction score
4,153
Skyblazer said:
A beautiful cutaway of the Planet Satellite from the French Science et Vie (Special Aviation 1949 issue). I'm also attaching a picture of the Burney Satellite, a design that somehow seems related to it.
index.php


With regards as to the Burney Satellite, it would seem to have been actually the Planet Satellite's WWII ancestor, intended as the primary payload of the Burney Amphibian: http://www.secretprojects.co.uk/forum/index.php/topic,3813.0.html
index.php


From nevilshute.org:
Early 1940

With Sir Dennis Burney and Sydney Hansel, Shute is involved in the specification and design of the Burney Amphibian. A huge six-engined airborne aircraft carrier, it carries 4 torpedo-laden fighter-bombers within its wings. Never built, the aircraft is typical of Burney's adventurous approach to design.

The Burney Amphibian aerial aircraft carrier was to weigh 220,000 pounds and be 125 feet long with a wingspan of 180 feet. With a top speed of 240mph, it was designed to carry a crew of 18 and its 4 Fighter-Torpedo-Bombers for up to 24 hours to a range of 5,300 miles.


The Satellite Torpedo-Bomber-Fighter, 4 of which were housed in and launched from the wings of the Burney Amphibian, was 26 feet long with a 17 foot wingspan. With a top speed of 360mph and weighing 5,300 pounds, the Fighter had a real Buck Rogers look.


Similar threads

Top
