Hi,

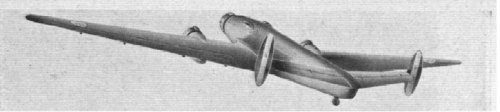

I think it was early Piaggio P.23R design.
http://www.flightglobal.com/pdfarchive/view/1940/1940%20-%200552.html


Attachments

  • P.23R.JPG
    18.4 KB · Views: 343

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,203
Reaction score
99
Dear Hesham.
Only one plane construct.

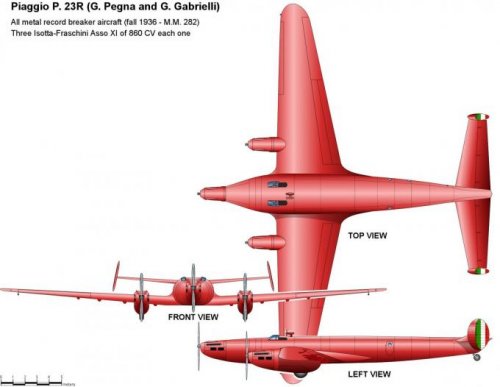

The P23R in the first form has three Isotta Fraschini XI r 850 hp
liquid cool engines. Open cockpits

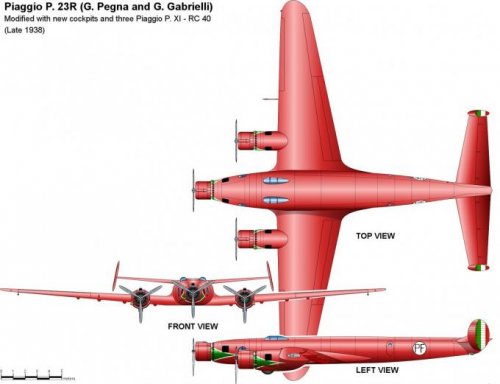

After tests they were change for Piaggio P XI RC 40 radials engines
1000 hp
2 blades airscrews were changes for three blades airscrew
Open cockpits were enclosed by 2 side by side separate ones

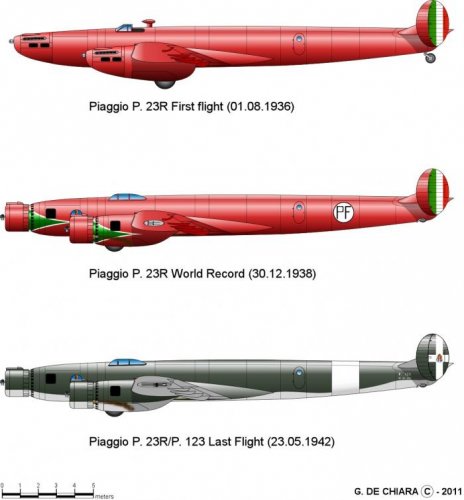

On december 30 1938 2 pilots and 2 flying engineers establish
international records for speed with load 5000 kgs at 404 km/h

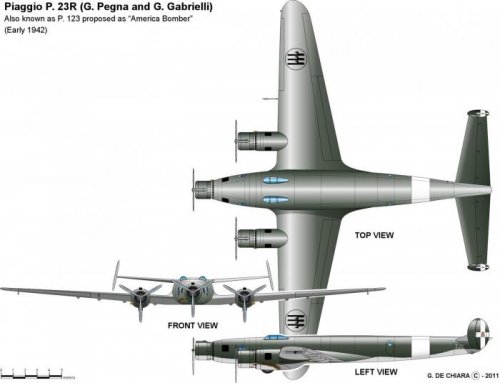

The record breaking plane was referred "P123"
See on an old "AIR ENTHUSIAT"
Bye


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
Hi,

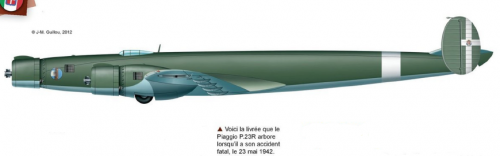

http://alternathistory.org.ua/rekordnyi-samolet-piaggio-p23r-italiya


Attachments

  • 1.jpg
    33.2 KB · Views: 236
  • 2.jpg
    34.6 KB · Views: 230
  • 3.jpg
    34 KB · Views: 226
  • 4.jpg
    49.8 KB · Views: 218

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,673
Reaction score
3,465
From Aero Journal 27.


Attachments

  • 1.png
    146.7 KB · Views: 39
