Hi friends!

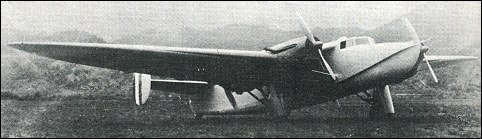

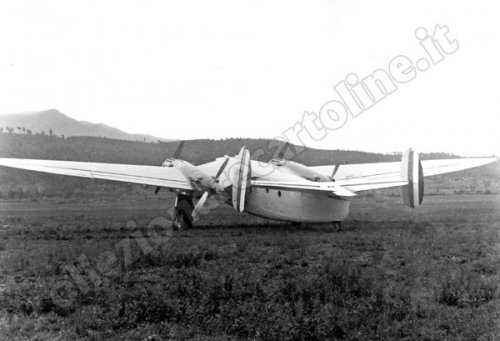

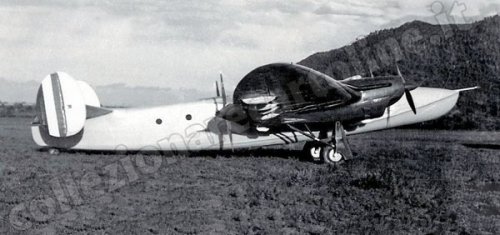

I'm looking for informations and possibly pictures and drawings about the Piaggio P.23 4-engined transport airplane (Not the Piaggio P.23R that is a totally different aircraft). On the web I found only a picture about the sole prototype built in 1935 and very few data, for example the airplane should be an intercontinental transport with 4 Isotta-Fraschini Asso Xi in tandem position.
I just know that the protoype has been destroyed directly in 1935...
Can you help me?


Attachments

Nico

CLEARANCE: Secret
Joined
Sep 9, 2008
Messages
266
Reaction score
17
Hi Lucamax,

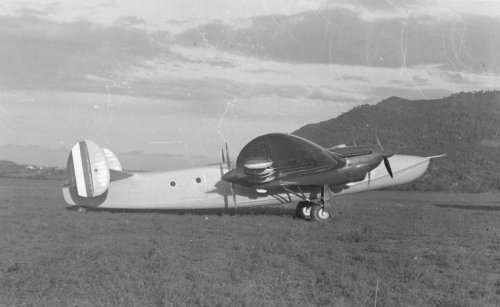

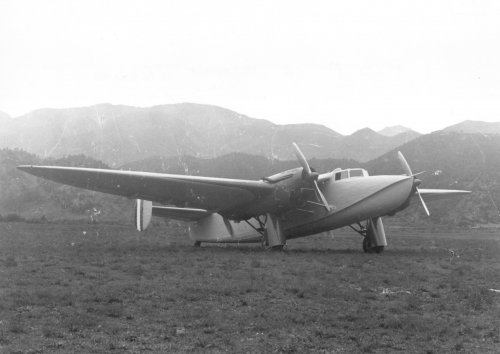

I found in my archives only two photographs, already posted or quoted in this topic but, at least, not watermarked.
As you know, the life of the P.23M (M for Marino, owing to its emergency capability of ditching) was very short as it crashed on 25 October 1935 during the first flight, killing the 2-man crew.
An official brochure shows the following specifications:
Engines: four Isotta-Fraschini Asso XIR rated at 900 CV
Dimensions: wing span 27.00 m; lenght 16.61 m; wing area 97.5 sq m
Weight: empty 7,387 kg, useful load 11,052 kg, loaded 18,439 kg
Performance: max speed 400 km/h; climb to 4,000 m in 14 min; range 5,100 km
The second prototype, the p.23T, was cancelled (it's possible that the actual building never started).
Unfortunately, no trace of any 3-view drawing
Nico


Attachments

lucamax

CLEARANCE: Secret
Joined
Mar 2, 2010
Messages
236
Reaction score
18
Website
www.res-aeronautica.com
Hi Nico!
Thank you very very much for this extraordinary pictures! I found the P.23 a very interesting aircraft, it's a shame that there are no drawings...


Hardrada55

CLEARANCE: Confidential
Joined
May 31, 2008
Messages
74
Reaction score
11
You can tell the family resembalance with the later P.50 bomber project.
