Patriot SAM Developments

Plans for Japan to double production from 30 to 60 Patriots a year to help Ukraine is being delayed by a shortage of seekers manufactured by Boeing, the Japanese plant has a limit of 60 and cant expand capacity further without a new plant being built. Boeing began expanding Seeker production capacity in the US by 30% last year but it wont come on stream until 2027 also delaying a plan to increase US domestic production from 500 to 650 Patriots a year (with another 100 manufactured abroad for a total of 750 by 2027).

www.straitstimes.com

US-Japan Patriot missile production plan hits Boeing component roadblock

Japan's Mitsubishi Heavy Industries already makes about 30 PAC-3 missiles each year. Read more at straitstimes.com. Read more at straitstimes.com.
www.straitstimes.com www.straitstimes.com

WatcherZero said:
Plans for Japan to double production from 30 to 60 Patriots a year to help Ukraine is being delayed by a shortage of seekers manufactured by Boeing, the Japanese plant has a limit of 60 and cant expand capacity further without a new plant being built. Boeing began expanding Seeker production capacity in the US by 30% last year but it wont come on stream until 2027 also delaying a plan to increase US domestic production from 500 to 650 Patriots a year (with another 100 manufactured abroad for a total of 750 by 2027).

www.straitstimes.com

US-Japan Patriot missile production plan hits Boeing component roadblock

Japan's Mitsubishi Heavy Industries already makes about 30 PAC-3 missiles each year. Read more at straitstimes.com. Read more at straitstimes.com.
www.straitstimes.com www.straitstimes.com
Click to expand...
Idk why they never gave seeker production licensing to Japan. This would have just solved things long before there ever would have been an issue.

www.defensenews.com

Boeing on track to break PAC-3 Missile seeker annual production record

Boeing's current PAC-3 Missile seeker production pace is slated to break its previous production records by roughly 20% by the end of the year.
www.defensenews.com www.defensenews.com
https://twitter.com/x/status/1820830270460662203
View: https://x.com/AirPowerNEW1/status/1820830270460662203

www.defensenews.com

RTX gets $478M to replenish Germany’s Patriot missiles sent to Ukraine

Raytheon's contract will facilitate the supply of GEM-T missiles to Germany as NATO countries continue to send the missiles to Ukraine.
www.defensenews.com www.defensenews.com

Last edited:
www.spacewar.com

NSPA Grants Raytheon $478 Million Contract to Supply Patriot GEM-T Missiles

Los Angeles CA (SPX) Aug 10, 2024 - Raytheon, a division of RTX (NYSE: RTX), has secured a $478 million contract from the NATO Support and Procurement Agency (NSPA) to provide Germany with additional GEM-T missiles. This contract aims
www.spacewar.com

Poland Signs Patriot Launcher Production Agreement | Aviation Week Network

Poland has signed an agreement for the production of 48 M903 Patriot launchers, part of Warsaw’s wider push to enhance its air and missile defense capacity.
aviationweek.com aviationweek.com

www.defensenews.com

US State Department clears $5B sale of Patriot missiles to Germany

Germany wants to buy 600 of the most capable variant of the PAC-3 missile as it works to provide Ukraine with the weapons while replenishing its own stock.
www.defensenews.com www.defensenews.com

Last edited:
Given the urgent need to massively increase the production PAC2 and PAC3 missiles but there are bottlenecks in the production shouldn't the US DoD be thinking about opening a second-source production line?

NMaude said:
Given the urgent need to massively increase the production PAC2 and PAC3 missiles but there are bottlenecks in the production shouldn't the US DoD be thinking about opening a second-source production line?
Click to expand...
As I understand it the big issues is with the motors and guidence system.

There isnt many people in the US who can makes those with those who do are already at capacity with all the other similar gear like Standards, GMLRS, Nasa, etc who also need similar stuff.

So we are talking about a full from raw production build up which is going to take a few years even with the military pile driving OSHA and NIMBY into the ground. Assuming the Money could be pull from the corpses in Congress that is.

Firefinder said:
There isnt many people in the US who can makes those with those who do are already at capacity with all the other similar gear like Standards, GMLRS, Nasa, etc who also need similar stuff.
Click to expand...
There's a few places that could make it. Micron and HP/etc in the Boise area, but the USgov would have to pay market rates for rush orders at the chip fabs.


Firefinder said:
So we are talking about a full from raw production build up which is going to take a few years even with the military pile driving OSHA and NIMBY into the ground. Assuming the Money could be pull from the corpses in Congress that is.
Click to expand...
As to new factories in general, well, the way to pry money out of (the opposite of progress) is to locate the factories in the districts of the members of the committee.

Witness the 688 class, each named for the home city of each member of the Armed Services Committee at the time... And the F35.

breakingdefense.com

Industry looking for what's next after Army's cancelation of next-gen Patriot interceptor - Breaking Defense

Lockheed Martin and Raytheon had been closing watching the Army's Lower-Tier Future Interceptor program, but the cancelation of that effort comes as little surprise, company officials said.
breakingdefense.com breakingdefense.com

Maj. Gen. Frank Lozano, the Army’s program executive officer for missiles and space, on Monday announced the service’s intent to walk away from the effort, called the Lower-Tier Future Interceptor (LTFI). Instead of buying a new interceptor, which Lozano called “very expensive,” the Army will upgrade the PAC-3 Missile Segment Enhancement currently made by Lockheed Martin, he told Defense News.
Click to expand...
Lockheed had been preparing to compete for LTFI, and as of Tuesday afternoon, the Army had not yet informed the company of its specific path forward for future PAC-3 upgrades, said Tim Cahill, executive vice president of the company’s missiles and fire control business.
Click to expand...
However, the decision didn’t catch Lockheed “flat footed,” as it typically invests in future capability enhancements on PAC-3 and has technology “waiting in the wings,” he added.
Click to expand...

Last edited:
Josh_TN said:
Is Typ-4 the just the GaN version of TYP-2?
Click to expand...
Appears to be completely different:

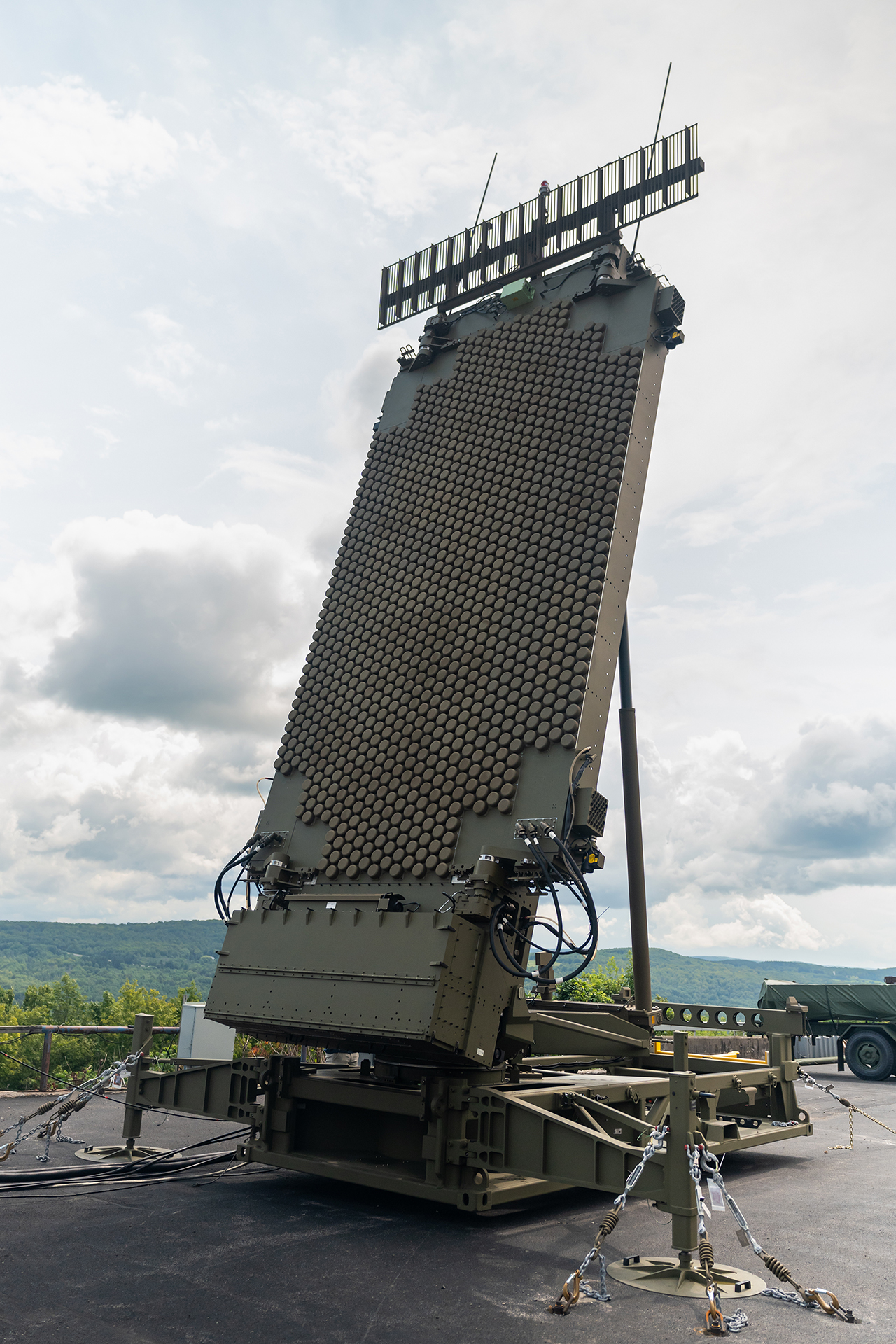

TPY-4
www.lockheedmartin.com

TPY-4

Our next generation long-range multimission radar system includes significant technology investment (including GaN) for enhanced capabilities to address emerging threats.
www.lockheedmartin.com www.lockheedmartin.com

TPY-2
www.rtx.com

AN/TPY-2: Army Navy/Transportable Radar Surveillance

The AN/TPY-2 is a missile defense radar that can detect, classify and track ballistic missiles. Raytheon's AN/TPY-2 radar serves as the eyes of the Terminal High Altitude Area Defense System, known as THAAD.
www.rtx.com www.rtx.com

As understand Raytheon transferred production of the TPY-2 to GaN from GaAs end of 2016 which increased range by 50% / volume covered 300% plus, its an X-band high definition radar that requires 25,000 plus modules to populate its 100 sq ft array which makes it a very expensive at approx. $240 million, first GaN TPY-2 delivered September 2024 to Saudi Arabia, was talk of MDA funding retrospective upgrade of the 14 earlier radars to GaN.

https://www.rtx.com/news/news-cente...n-tpy-2-radar-for-the-kingdom-of-saudi-arabia


The new USAF Lockheed TPY-4 is a GaN software controlled expeditionary radar, it uses the longer L-band and so it uses many, many fewer modules of 1,000 plus, that makes it much cheaper at approx. $22 million, the lower L-band frequency gives it better clutter rejection and said angle of accuracy plus its air cooled as it’s a mobile expeditionary radar. Range 300 miles in rotating mode at 6 rpm, 540 miles in staring, mode, much lower ranges than the expensive TPY-2 THAAD radar.


The new MDA GaN S-band TPY-6 is a variant of the Lockheed LRDR/SPY-7. TPY-6 radars are for the defense of Guam and would be “transportable” rather than “mobile”, the difference is that “relocatable requires movement of multiple TPY-6 assemblies/modules while mobile units typically do not.”

Last edited:
Yet another inaccurate twz headline. I feel they are getting worse.

Forest Green said:
www.twz.com

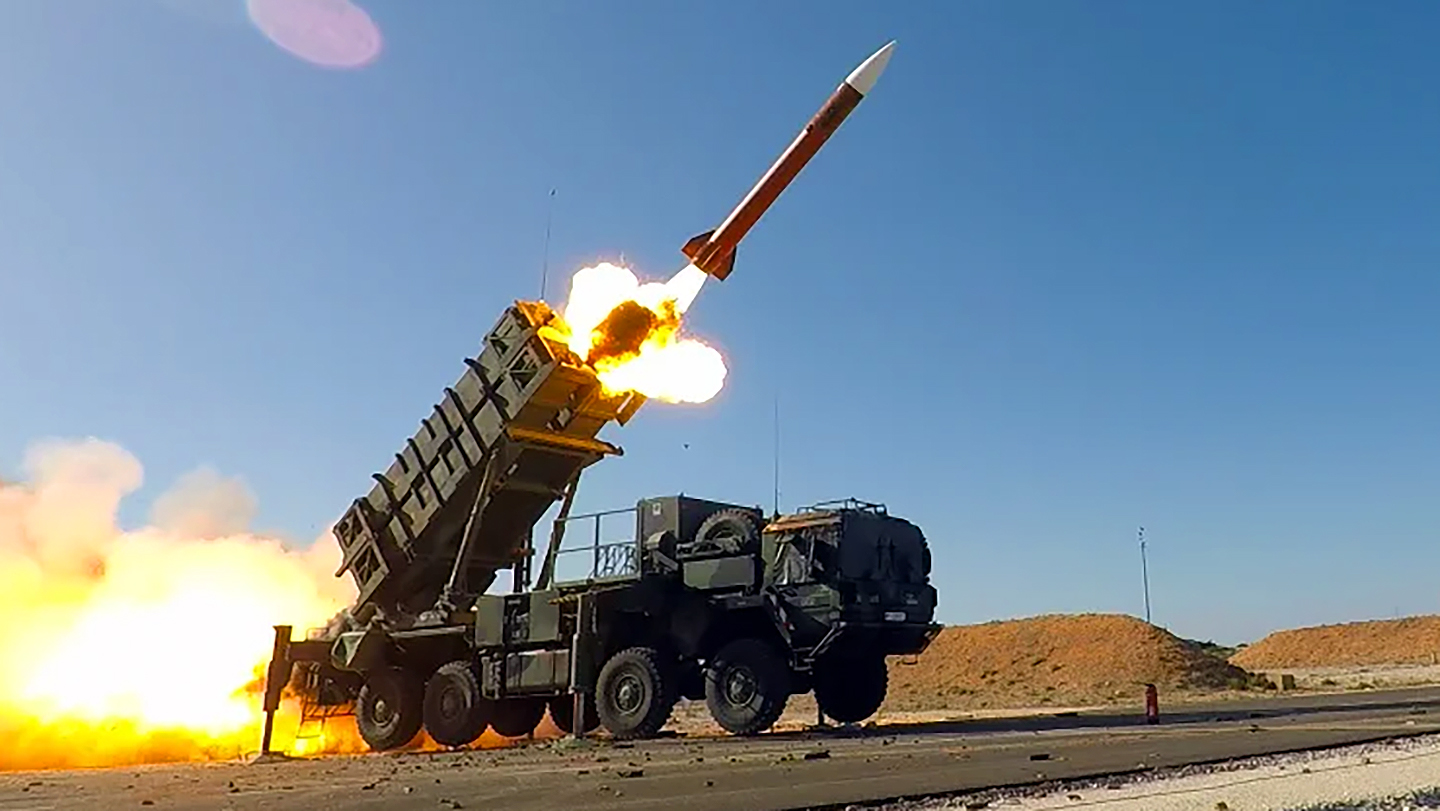

Patriot PAC-3 Missile Puts Crosshairs On Replacing Navy's Long-Serving SM-2

Putting the proven PAC-3 MSE missile on warships could fill a notable niche, and possibly a looming supply gap, in the Navy’s layered air defenses.
www.twz.com www.twz.com
Click to expand...
There's even less in common between the 1991 SM2 and the 2025 SM2 than there is between the 1991 Patriot and the 2025 Patriot.

And pretty soon the in-service SM2 will have the same active seeker as the SM6. Though I still think there's a reason to keep the dual IIR/radar seeker versions around as well. Wouldn't be surprised if the variant after SM2 Active has an added IIR seeker to help counter radar-stealthy aircraft and missiles.

Grey Havoc said:
en.defence-ua.com

Germans Draw Surprising Conclusions From Ukraine's Experiences Using Patriot, Leopard, and PzH 2000 | Defense Express

Modern warfare requires high technology, mass production, and simplicity, so the German military will try and strike a balance
en.defence-ua.com en.defence-ua.com
Click to expand...
The IRIS-T air defense system is regarded as highly effective, however, missiles are costly and in short supply. A completely unexpected criticism is directed towards the Patriot missile defense system: though an "excellent weapon," it's effectively "unsuitable for war use because the carrier vehicle is too old and it's no longer possible to supply spare parts from the manufacturer."
Click to expand...
