I also think some of the images posted by twitter osint accounts that are claiming to be zirkon are actually parts of a patriot missile. Here are some images I have seen from these individuals which were claimed debris of zirkon. Someone more expert than me may correct me but I think people are mistaking surface to air missile debris. I am happy to admit I am wrong if this post is incorrect.




Edit: had to clear up a sentence.

Well the diameter of the object in the bottom shot is certainly too wide to be a Patriot PAC-3 CRI. I mean that's a dirt track road it's on, which puts the diameter at 0.5m minimum, at least twice what it should be for a PAC-3 CRI. Other pieces actually say 3M22 on them, so that's fairly conclusive.

Top image looks more the right size for a PAC-3 piece but the wire threads are a little confusing. I would expect part of a PAC-3 to end up somewhere after an intercept.

Last edited:
Remnants of a spun layer in the fuselage? I was initially thinking GRP, but there'd be some evidence of the resin matrix, so maybe something like Aramid?
I should also note that I've not seen any twitter posts claiming that the top image is a Zircon at this point, just the bottom one.

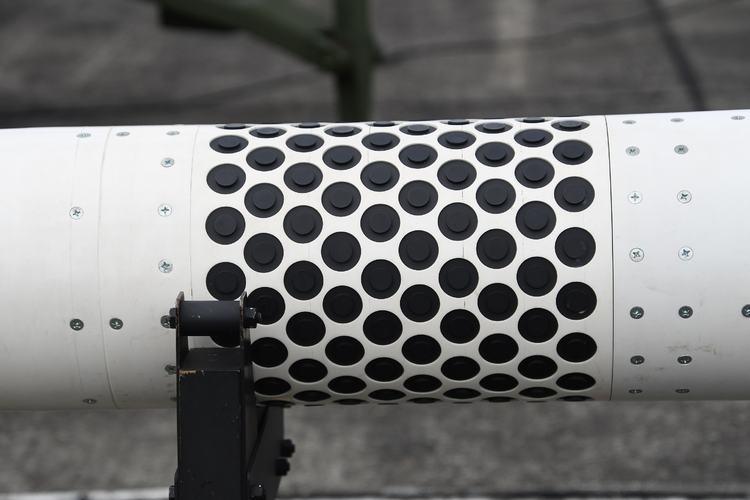

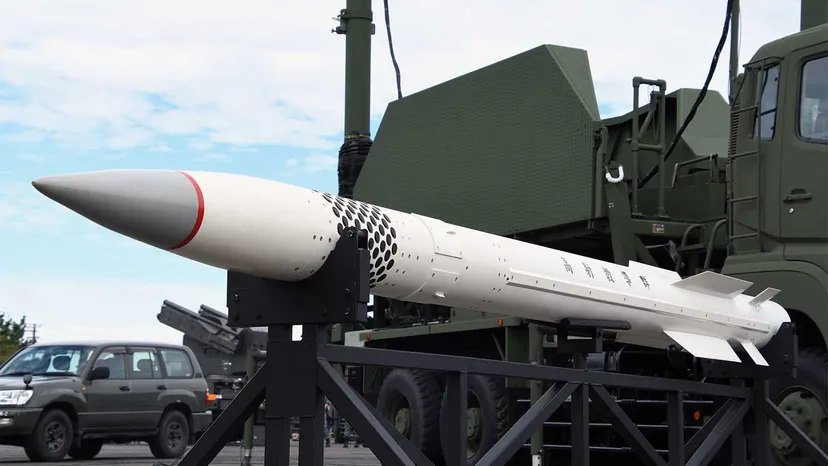

The top image seems to have the solid rocket thruster array of PAC-3. The “wire” is probably carbon fiber or some other lightweight composite that forms the casing. There is a small explosive charge in PAC-3 that projects large preformed shrapnel to expand the area of impact of the missile.

I also think some of the images posted by twitter osint accounts that are claiming to be zirkon are actually parts of a patriot missile. Here are some images I have seen from these individuals which were claimed debris of zirkon. Someone more expert than me may correct me but I think people are mistaking surface to air missile debris. I am happy to admit I am wrong if this post is incorrect.

View attachment 723722

Edit: had to clear up a sentence.
Nobody have claimed THIS May 2023 PAC-3 image, searchable in pair of clicks (literally) to be a Zircon. Instead of creating a hiatus you would just ask if the other one may be of PAC-2 (which is not).

Last edited:
I also think some of the images posted by twitter osint accounts that are claiming to be zirkon are actually parts of a patriot missile. Here are some images I have seen from these individuals which were claimed debris of zirkon. Someone more expert than me may correct me but I think people are mistaking surface to air missile debris. I am happy to admit I am wrong if this post is incorrect.

View attachment 723722


View attachment 723723

Edit: had to clear up a sentence.
Bottom image is on a dirt track wide enough to have grass growing in the middle.

That's way bigger than any Patriot missile, and is bordering on ATACMS sized.
