PAC-3 MSE

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
Pics (finally) from one of the PAC-3 MSE tests. The MSE has a bigger, dual-pulse motor, and different control surfaces. The 2nd pulse burn can be seen in the 2nd picture.





Links to hires:

http://www.lockheedmartin.com/data/assets/mfc/Photos/MFC_PAC-3_MSE_photo2_h.jpg
http://www.lockheedmartin.com/data/assets/mfc/Photos/MFC_PAC3mse_photo4_h.jpg


fredymac

ACCESS: Top Secret
Joined
Dec 14, 2009
Messages
2,157
Reaction score
730
A PAC-3 MSE test at White Sands. The target missile was launched from Ft Wingate near the Arizona border and about 200 miles away and due west of Albuquerque. This makes for an interesting flight path crossing through a good chunk of New Mexico air space (or maybe just "space").

https://www.youtube.com/watch?v=JFnC-6NipxM


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
Not an uncommon launch site. Here's one with a pair of PAC-2s shooting down a Juno over the same trajectory:

https://www.youtube.com/watch?v=rfOTEMGhASc


If you search Youtube for "missile wingate" there are a lot of shots of residents shooting footage at dusk of the target vehicle contrails.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
fredymac said:
A PAC-3 MSE test at White Sands. The target missile was launched from Ft Wingate near the Arizona border and about 200 miles away and due west of Albuquerque. This makes for an interesting flight path crossing through a good chunk of New Mexico air space (or maybe just "space").

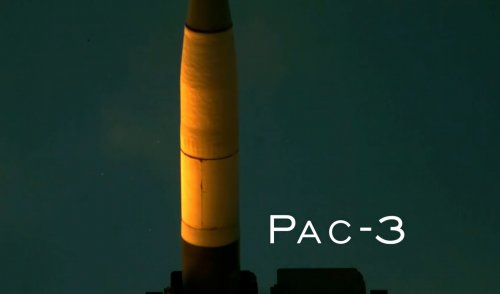

Was looking at this a little closer and is that white area insulation? (See below.) If that's the case, given that you don't see that on ESSM, SM-2/6, PAC-2, S-300, etc. that thing must really move.


Attachments

  • PAC-3 MSE.jpg
    PAC-3 MSE.jpg
    81.1 KB · Views: 303

bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
11,347
Reaction score
2,946
http://aviationweek.com/defense/lockheeds-annual-pac-3-order-grows-145-billion


bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
11,347
Reaction score
2,946
http://www.upi.com/Defense-News/2017/02/10/US-Army-awards-3-billion-in-missile-defense-contracts/3241486744372/


bobbymike

ACCESS: USAP
Senior Member
Joined
Apr 21, 2009
Messages
11,347
Reaction score
2,946
http://www.thedrive.com/the-war-zone/16486/enhanced-patriot-missile-enters-full-rate-production-will-sell-like-hotcakes


totoro

ACCESS: Secret
Joined
Jan 11, 2011
Messages
473
Reaction score
232
I remember I once, years ago, managed to stumble onto some NATO issued pdf where PAC-3 (non MSE) range against aerodynamic targets was stated. And my memory has it as something like 60 or 70 kilometers. But I can not find any similar documents anymore.

Does anyone have any similar document or a credible source stating PAC-3 (MSE or non MSE, doesn't matter) range against aircraft?


bring_it_on

I really should change my personal text
Joined
Jul 4, 2013
Messages
2,668
Reaction score
1,017
I remember I once, years ago, managed to stumble onto some NATO issued pdf where PAC-3 (non MSE) range against aerodynamic targets was stated. And my memory has it as something like 60 or 70 kilometers. But I can not find any similar documents anymore.

Does anyone have any similar document or a credible source stating PAC-3 (MSE or non MSE, doesn't matter) range against aircraft?

I've read it described as "in excess of 50 km" for the baseline PAC-3. Don't remember where. That said, given that the MSE is now the production standard I seriously doubt that the weapon would be the first choice against aircraft. Cheaper PAC-2 interceptors are probably the more optimized interceptor for those targets with the $5 Million MSE reserved for more stressing Ballistic Missiles which is the primary target they were/are designed to defeat. I've always wondered if they'll look to upgrade those PAC-2 rounds given that they offer quite an affordable option for AAW given that LTFI is also going to be optimized for the TBM and possibly hypersonic threat which would make it even more expensive than the MSE.


AN/AWW-14(V)

ACCESS: Granted
Senior Member
Joined
May 18, 2019
Messages
479
Reaction score
974
Last year, in response to a request from the U.S. Government, Lockheed Martin accelerated efforts to produce more of the world’s most advanced air defense missile than ever before and recently completed production of its 1000th PAC-3 Missile Segment Enhancement (MSE) interceptor.

“We continue to see strong demand for PAC-3 MSE around the world and are committed to producing as efficiently as we can to ensure our customers have our unique missile defense technology to deter even the most advanced threats,” said Brenda Davidson, vice president of PAC-3 Programs.

Lockheed Martin has steadily increased production numbers of PAC-3 MSE since achieving a full rate production decision in 2018 and is expecting to increase to annual production of 500 PAC-3 MSEs by 2024. The increased capacity will be supported in part by an 85,000-square-foot building expansion at the Camden, Arkansas, facility, expected to begin production operations in the second quarter of 2022.

An evolution of the battle-proven PAC-3 CRI, the PAC-3 MSE boasts a dual-pulse solid rocket motor, providing increased performance in altitude and range to defend against incoming threats, including tactical ballistic missiles, cruise missiles and aircraft.


Last edited:
