P.V. Engineering and Piasecki Projects & Prototypes

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
From USA,

some Vertol earlier helicopters,


PV-11 :utility helicopter developed from PV-2 for USN.
PV-12 :was a large version of PV-14 also for USN,project only.
PV-17 HRP-2 :was improved metal-clad version of HRP-1 tandem rotor helicopter
with forward-angled transparent nose,high set tailplane and no
tailfins.

Last edited:

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

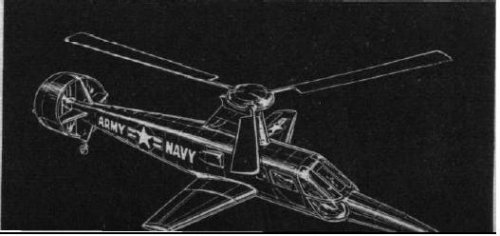

The Piasecki Model-16H-1A was modified as compound
helicopter project to get high speed,230 mph.


Attachments

  • Piasecki 16H-1A.JPG
    Piasecki 16H-1A.JPG
    20.8 KB · Views: 1,261

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

Anther unknown transport helicopter project for Piasecki;

http://www.google.com/patents?id=SXxyAAAAEBAJ&dq=Agusta+helicopter


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

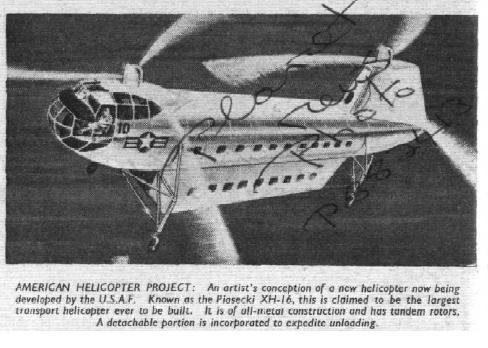

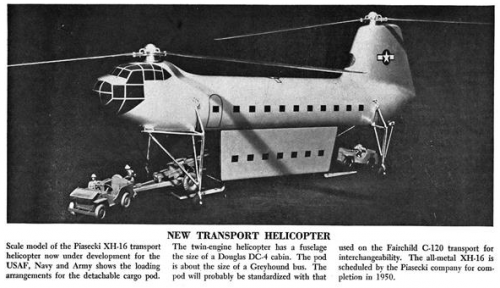

Hi,

http://www.flightglobal.com/pdfarchive/view/1948/1948%20-%201662.html


Attachments

  • XH-16.JPG
    36.4 KB · Views: 1,073

Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,558
Reaction score
860
Thanks Hesham.

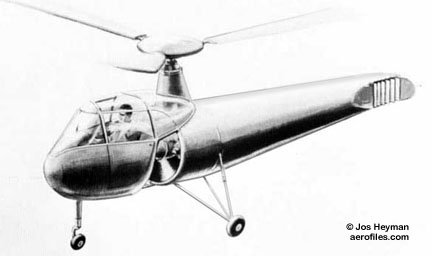

From the under-fuselage pod, this is probably an early study of the YH-16B. Undercarriage details differ but the concept is there.

See Jos Heyman's image on Aerofiles -- http://www.aerofiles.com/pia-H16pod.jpg


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

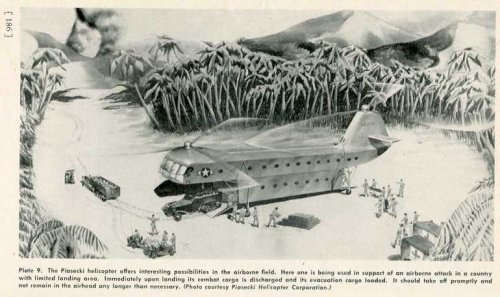

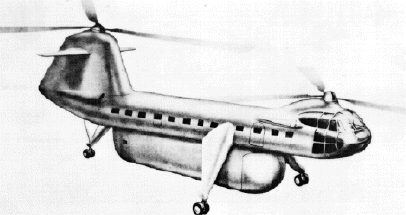

here is the Piasecki large tandem rotor cargo and transport helicopter.


Attachments

  • Piasecki.jpg
    48.7 KB · Views: 1,087

Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
596
Reaction score
221
The picture looks as it were an artist's impression, don't you think? Perhaps it was to represent something like the H-16 Transporter?

Here is a drawing of the H-16 variant (never built, if I am not mistaken) with a big ventral cargo pod. Albeit it could not carry such vehicles as the halftracks that may be seen in your picture.

Best regards,
Piotr


Attachments

  • YH16hgh.gif
    26.2 KB · Views: 975

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

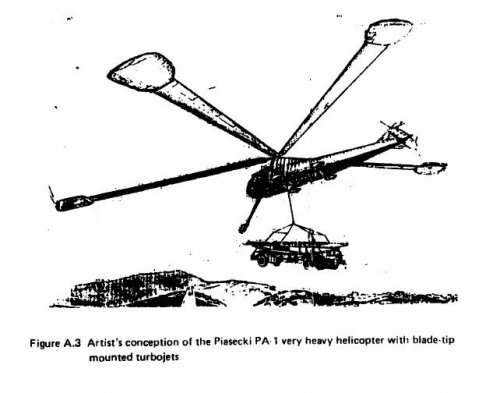

the Piasecki PA-1 was very heavy helicopter with blade-tip mounted
turbojets,this project appeared in 1955.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930008694_1993008694.pdf


Attachments

  • PA-1.JPG
    37.6 KB · Views: 979

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

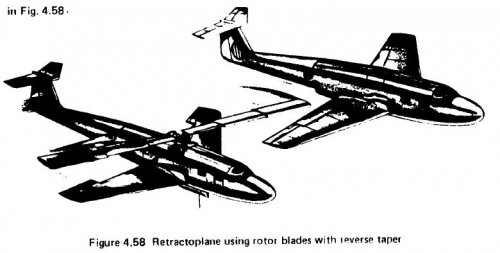

the Piasecki (later Vertol) PH-55 or Model-55 retractoplane,it was a high speed
convertible aircraft project,I dispalyed it before,it had gross weight of 3,451 1b.
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930008694_1993008694.pdf


Attachments

  • PH-55.JPG
    41.3 KB · Views: 144

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Other Piasecki-related topics on this forum:
  • Piasecki YH-16 Transporter competition here.
  • Piasecki Model 16H Pathfinder here.
  • Piasecki PA-2C annular wing VTO aircraft here.
  • Piasecki PA-39 Gargantua here.
  • Piasecki PA-59 AirGeep and derived projects here.
  • Piasecki X-49A Speedhawk VTDP (UH-60 mod.) here.
  • Piasecki Apache and Cobra VTDP concepts here and here.
  • Piasecki and Vertol designations here.


jmnjohn

This Forum is AWESOME !!!!
Joined
Dec 16, 2012
Messages
44
Reaction score
20

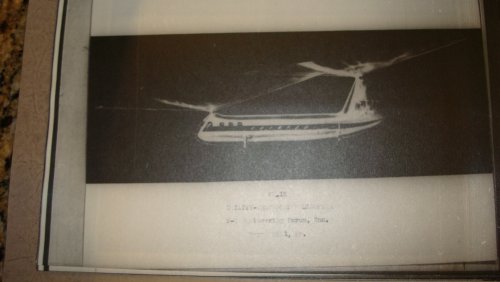

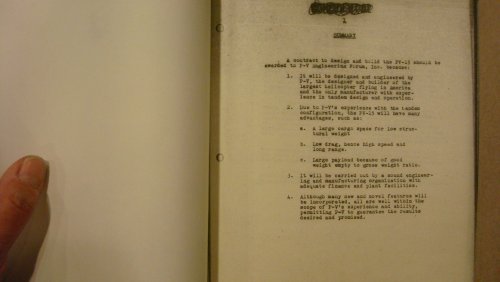

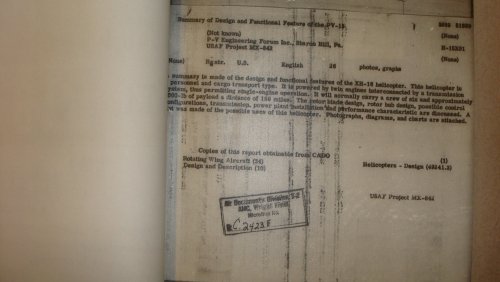

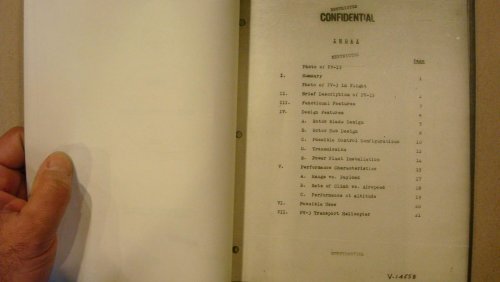

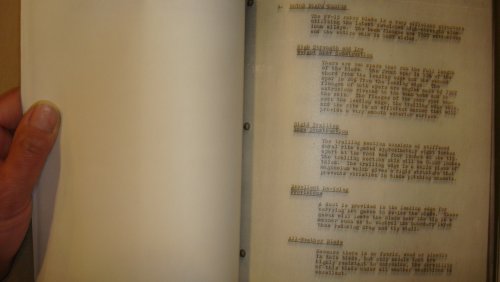

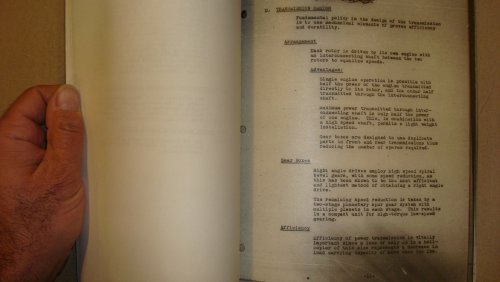

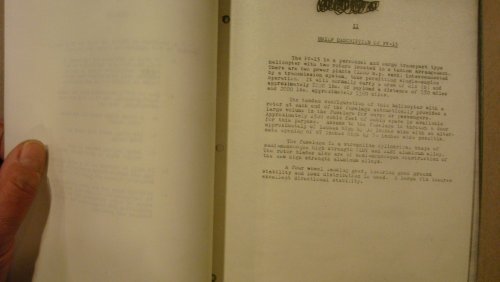

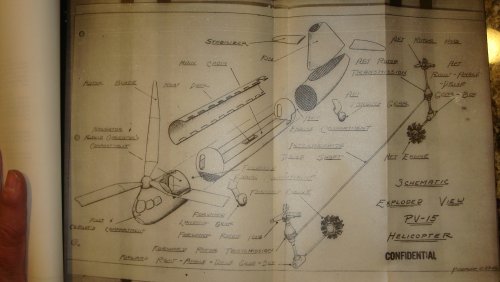

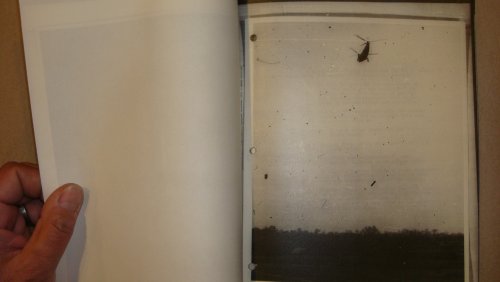

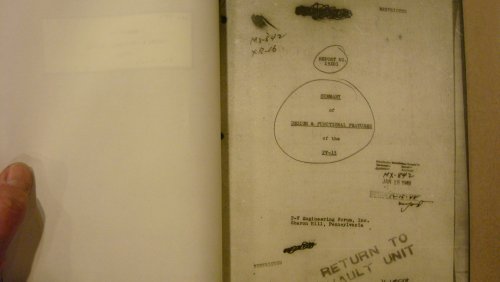

Here are some pics of a report I have....enjoy!!!


Attachments

  • ebay 041.JPG
    ebay 041.JPG
    616.7 KB · Views: 59
  • ebay 040.JPG
    ebay 040.JPG
    618.2 KB · Views: 78
  • ebay 039.JPG
    ebay 039.JPG
    685.4 KB · Views: 80
  • ebay 038.JPG
    ebay 038.JPG
    158.6 KB · Views: 65
  • ebay 037.JPG
    ebay 037.JPG
    700.2 KB · Views: 58
  • ebay 036.JPG
    ebay 036.JPG
    714.4 KB · Views: 70
  • ebay 035.JPG
    ebay 035.JPG
    843.9 KB · Views: 71

jmnjohn

This Forum is AWESOME !!!!
Joined
Dec 16, 2012
Messages
44
Reaction score
20
MORE PICS .....


Attachments

  • ebay 045.JPG
    ebay 045.JPG
    776.6 KB · Views: 50
  • ebay 044.JPG
    ebay 044.JPG
    718.3 KB · Views: 78
  • ebay 043.JPG
    ebay 043.JPG
    775.8 KB · Views: 84
  • ebay 042.JPG
    ebay 042.JPG
    676.4 KB · Views: 70

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Very nice John,and Merry Christmas to everybody,my dears and my friends.


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431

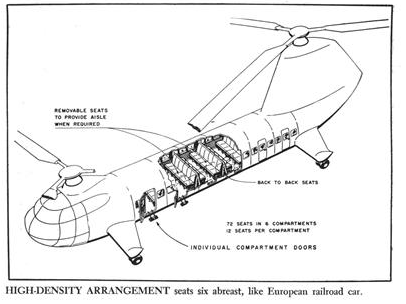

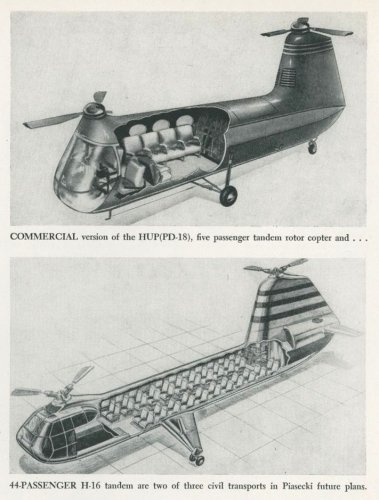

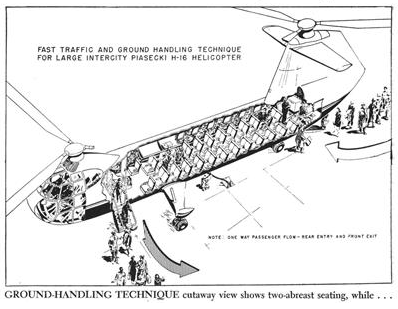

From Aviation Week, November 26, 1951, two projected civil variants — of the HUP Retriever and the H-16 Transporter, respectively:


Attachments

  • Piasecki projects.jpg
    Piasecki projects.jpg
    172.7 KB · Views: 130

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

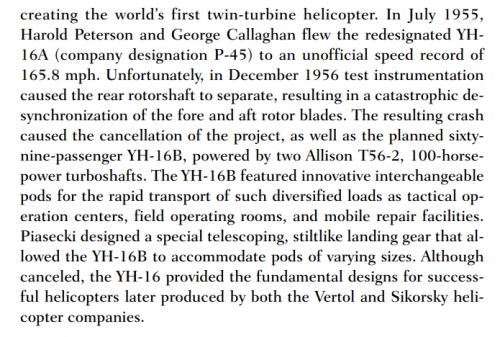

a small info about Piasecki YH-16B is here;


http://www.e-reading.me/bookreader.php/135855/Helicopters._An_Illustrated_History_of_Their_Impact.pdf


Attachments

  • YH-16B.png
    101.5 KB · Views: 675

walter

CLEARANCE: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
100

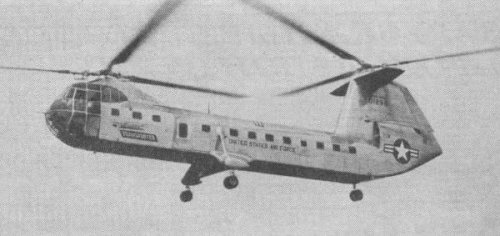

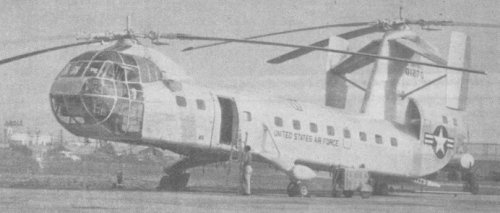

The YH-16/YH-16A was also tested with at least 2 different types of tail planes, ranging from a simple horizontal tail plane to a more complicated one.
Attached 2 photos. Sorry for the quality.


Attachments

  • YH-16 large tail planes.jpg
    YH-16 large tail planes.jpg
    60.6 KB · Views: 466
  • YH-16 tail plane.jpg
    YH-16 tail plane.jpg
    37.5 KB · Views: 481

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282
Found this in RG 80G US Navy Photos at NARA.

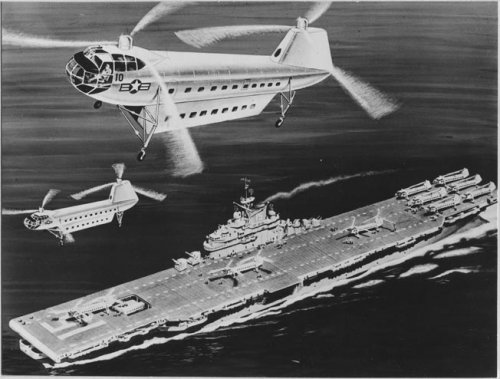

Artist concept of a US Navy XH-16


Attachments

  • 80G-395904-Piasecki-XH-16-Artist-Concept-19480816.jpg
    56 KB · Views: 130

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

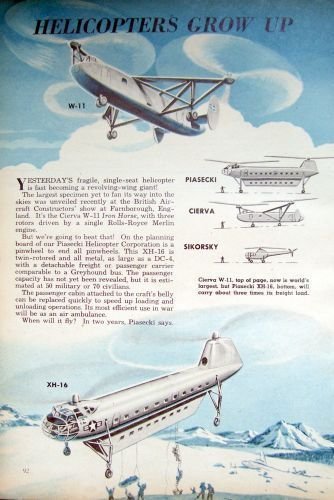

http://archive.aviationweek.com/image/spread/19491107/8/2


Attachments

  • 1.png
    191.1 KB · Views: 103

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

http://archive.aviationweek.com/image/spread/19521013/46/2


Attachments

  • 1.png
    76.6 KB · Views: 93
  • 2.png
    60.5 KB · Views: 97

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282
Thanks hesham for the follow up information.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

also Piasecki had a Project for heavy lift helicopter,could carry a 50 ton tank,during the next
half of 1950s,not related to a development of XH-16,no other details are known.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Jos Heyman said:
Where did you find this suggestion, so that we can further research it.

It's here my dear Jos;

http://www.samolotypolskie.pl/samoloty/14635/126/Piasecki--smiglowiec-do-transportu-czolgu


Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
12
OK, I do not read Polish but I get the gist of what they are talking about.
The booklet 'The Piasecki Story Of Vertical Lift, Pioneers In Progress For Over 50 years' states:

"In 1956 Frank Piasecki and members of his original team left Piasecki Helicopter Corporation and started Piasecki Aicraft Corporation (PIAC) to work on new VTOL aircraft concepts."
and
"Initially, heavy lift VTOL studies were performed for the Army including the movement of a 50 ton tank externally. A matrix of rotor/propulsion systems showed multiple shaft driven rotors were the optimum heavy lift configuration for the near-term and a blade mounted turbo-jet system (PA-1) for the long term. The high development cost of the latter unfortunately dissuaded any further research effort."

There are no pictures of this in the quoted publication but you posted one on 15 May 2009 whilst Starblazer posted the same picture in the discussion about the Hughes XH-28.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

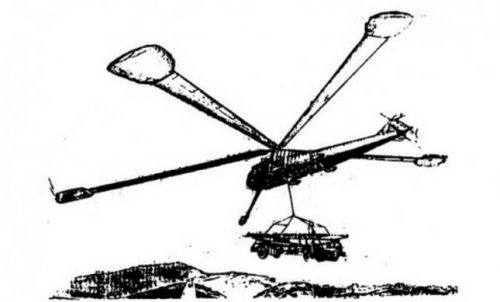

OK my dear Jos,

and maybe it was developed from PA-1.

http://www.samolotypolskie.pl/samoloty/14636/126/Piasecki-PA-12


Attachments

  • preview_Piasecki_PA-1.jpg
    30.6 KB · Views: 404

Bill S

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
557
Reaction score
282

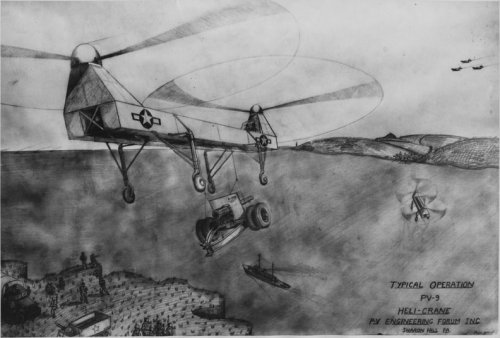

Another visit to NARA II RG402 revealed the Report:

PVS-9 "Preliminary Model Specification of the PV-9 Helicopter"
Development of Large Experimental Helicopter 7 March 1946

To be powered by Two Allison GMC Model V-1710-"G' 12 cylinder, liquid cooled aircraft engines
Three bladed rotors

"The tactical mission of the helicopter to to lift high loads at a slow speed with a short range."

Offered was a basic design and an alternative.

Basic Design:

The basic design is known as a "large experimental helicopter crane", and provides the following:
Crew......................2
Endurance............. .5 hours
Payload..................10,326 lbs.

The Alternate Design:

This design will be known as a "long range helicopter crane", and will provide the following:
Crew......................2
Endurance............. 1.5 hours
Payload..................9,526 lbs.


Attachments

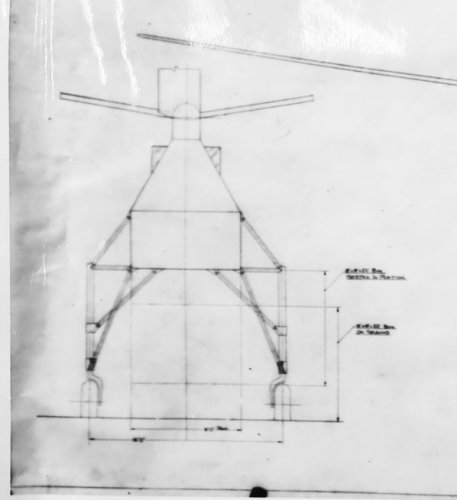

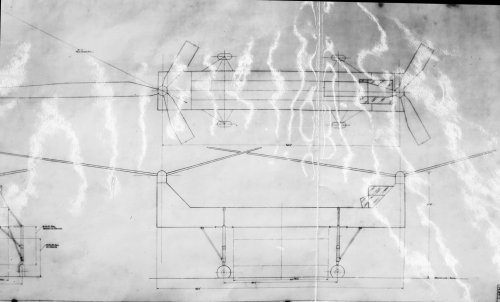

  • PV-9-General-Arrangement-Front-View-NARA-RG402.jpg
    32.2 KB · Views: 296
  • PV-9-General-Arrangement-Profile-and-Top-Views-NARA-RG402.jpg
    177.7 KB · Views: 311

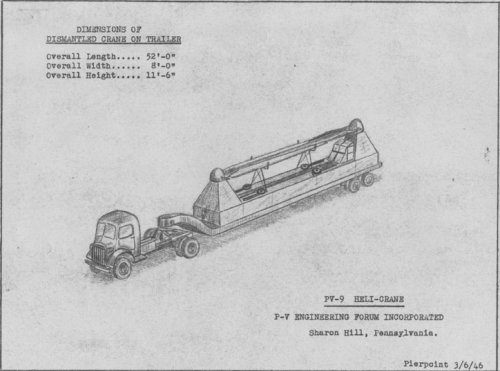

  • PV-9-Heli-crane-trailer-NARA-RG402.jpg
    67.8 KB · Views: 336
  • PV-9-Heli-crane-NARA-RG402.jpg
    74.6 KB · Views: 344

Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
Quite a spartan design, to say the least, but it would have done the job... Very interesting, thanks, Bill S!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

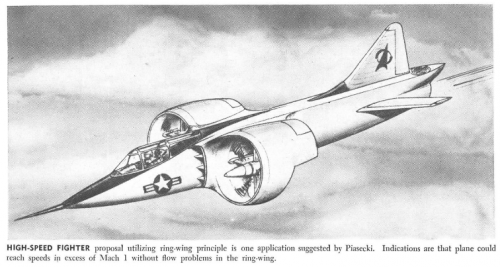

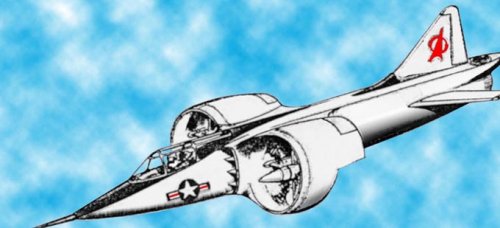

http://aerostories.free.fr/dossiers/ADAV/page14.html

http://archive.aviationweek.com/search?exactphrase=true&QueryTerm=piasecki+&start=200&rows=20&DocType=Image&Sort=&SortOrder=&startdate=1916-08-01&enddate=2018-09-17&LastViewIssueKey=&LastViewPage=


Attachments

  • piaseck-sup.JPG
    33.6 KB · Views: 94
  • 1.png
    301.5 KB · Views: 82

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

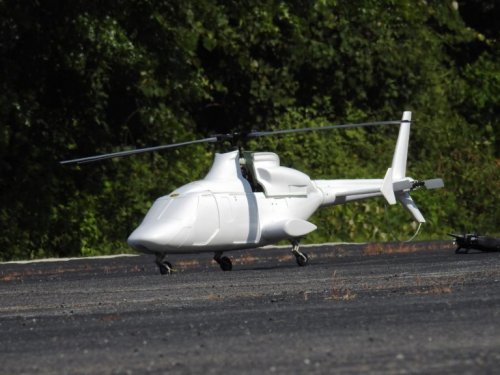

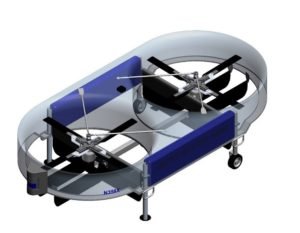

Attachments

  • 1.png
    22.1 KB · Views: 78

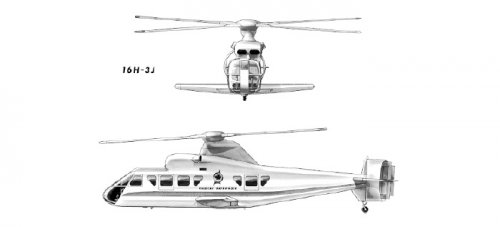

  • 16H3-header.jpg
    27.8 KB · Views: 73

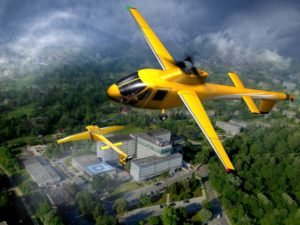

  • Airscout-3D-Image-300x233.jpg
    35.8 KB · Views: 66

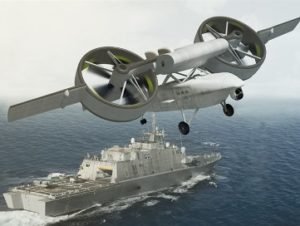

  • ARES-ISR-300x226.jpg
    15.8 KB · Views: 71
  • DSCN3331-768x576.jpg
    96.5 KB · Views: 74
  • FNP-3-fullsize-768x584.jpg
    60.8 KB · Views: 74

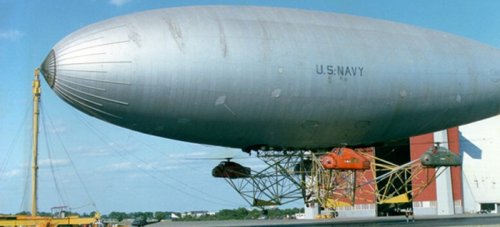

  • heavy-lift-header.jpg
    75.2 KB · Views: 84
  • PA890-eVTOL-300x225.jpg
    27.2 KB · Views: 93

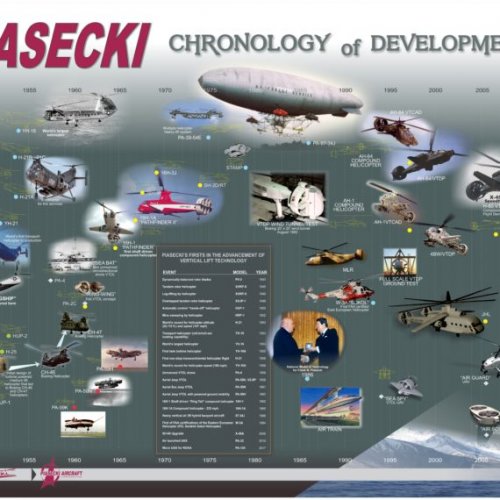

  • PiAC-Chrono-Poster-Jan-2017-570x570.jpg
    71.7 KB · Views: 88

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
545
On the PV-9 that Bill provided above, other than just the great find, how about the fact that the cockpit is on top of the fuselage in front of the rear rotor pylon. Information doesn't provide if they have a clear panel below or if they have to rely on spotters looking through the cooling grill up front to offer directions. Just a thought....


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365

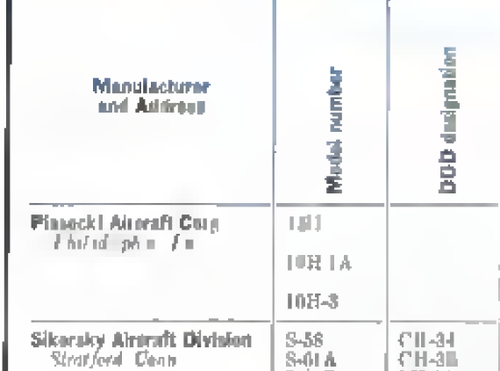

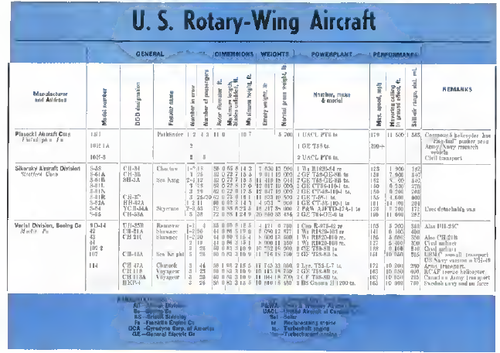

Also from AW 1965,

a weird designation,Piasecki PA 10 (not PA 16),as a civil transport rotorcraft ?,what was this ?.


Attachments

  • 1.png
    296.6 KB · Views: 20
  • 2.png
    62.9 KB · Views: 41

zebedee

CLEARANCE: Confidential
Joined
Mar 18, 2007
Messages
186
Reaction score
158
Website
www.flickr.com

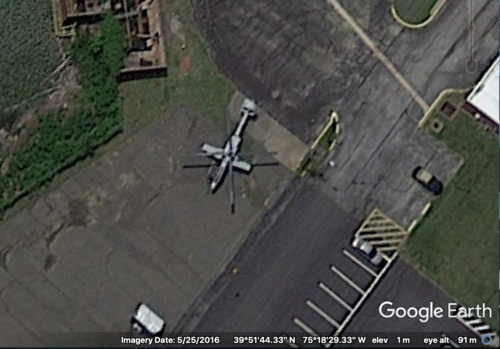

Having a look around the Piasecki factory on Google Earth I noticed this from May 2016... given that it doesn't move for the best part of three months I am assuming its a mockup, but it appears to be an X-49 Speedhawk type tail and wings on a modified AH1 SuperCobra fuselage...

Zeb


Attachments

  • Screenshot 2020-10-03 at 16.27.02.png
    Screenshot 2020-10-03 at 16.27.02.png
    2.2 MB · Views: 37

yasotay

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,376
Reaction score
514
It is a mock up done over a decade ago.
