In 1950, a specification was issued for an interim assault helicopter. Here are the known contenders:

  • Gyrodyne 12
  • Piasecki PD-17B/C
  • Piasecki PD-21A
  • Piasecki PD-22C/D
  • Piasecki (using a Sikorsky S-55 demonstrator)
  • Sikorsky S-55 (HO4S)

The Bell 48A appears elsewhere as an assault helicopter proposal, but it is not certain if it was for the same competition as no date is given. The Piasecki PV.17 was initially procured in small quantity by the USMC as the HRP-2 Rescuer. The PD-22 designs were similar to the USAF YH-21 Workhorse.
Although the S-55 apparently didn't win, it was evaluated later in 1950 as the "XHRS", becoming an assault transport. Versions were proposed as follows:

  • Sikorsky XHRS-A(2), XHRS-A(3)
  • Sikorsky XHRS-B(1), XHRS-B(2), XHRS-B(3)

The best of these configurations was chosen for what became the HRS series (equivalents of the USAF H-19).

The following year came another assault helicopter competition, with the following proposals:

  • Bell D-116
  • Bell D-117
  • Hughes 226
  • Hughes 326
  • Kellett KH-11
  • McDonnell 80/A
  • Piasecki PD-22E
  • Piasecki PH-34/A/B

This did not result in any order from the Navy or Marines. Finally, that same year, a third competition concerned an interim ASW helicopter. Known contenders were as follows:

  • Piasecki PH-47
  • Piasecki PH-32
  • Piasecki PD-/PH-22F
  • Sikorsky S-55D

Note that the PD-22 series that appears in all these competitions came into production as the USAF H-21 series.

Lists may not be exhaustive. Of course I'm open to any corrections/additions anyone might provide to improve on the above!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,098
That is the only thing remained to us,the patents;

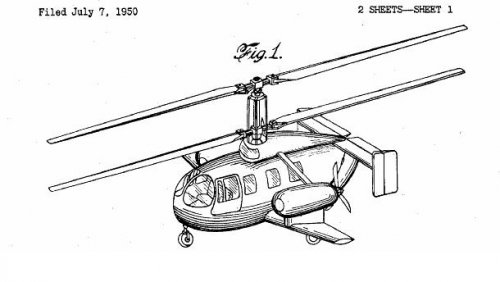

here is a Design for Gyrodyne,and may be it was GCA.12.

http://www.google.com/patents?id=oYNwAAAAEBAJ&printsec=drawing&zoom=4#v=onepage&q&f=true


Attachments

  • GCA.JPG
    29.1 KB · Views: 417

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,435
Reaction score
6,098
hesham said:
That is the only thing remained to us,the patents;

here is a Design for Gyrodyne,and may be it was GCA.12.

http://www.google.com/patents?id=oYNwAAAAEBAJ&printsec=drawing&zoom=4#v=onepage&q&f=true

And from Aviation Week;

http://archive.aviationweek.com/issue/19500116#!&pid=24


Attachments

  • Gyrodyne.png
    102.4 KB · Views: 256

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
hesham said:
here is a Design for Gyrodyne,and may be it was GCA.12.
And from Aviation Week

index.php

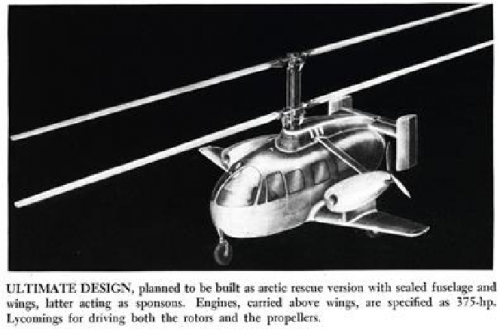

To the best of my knowledge, this was the GCA-7 Helidyne.

The GCA-12 was an HR Class Interim Assault helicopter proposal for U. S. Marine Corps. This doesn't look much like an assault type.


Attachments

  • Helidyne March 1950.JPG
    Helidyne March 1950.JPG
    101.5 KB · Views: 129
