P.13/36 Bomber Proposals

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
450

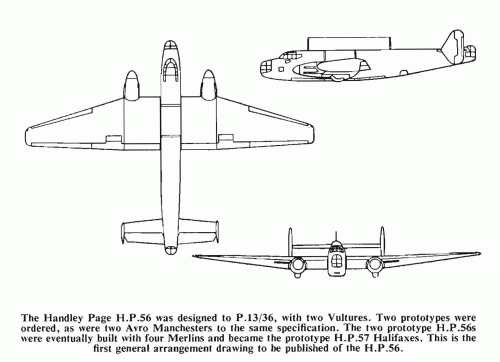

Here is a general arrangement drawing of the H.P.56 design, which was the original tender to P.13/36, with two Vulture engine; two prototypes of the H.P.56 were ordered in this form, together with two prototypes of the Avro Manchester, but both were completed as H.P.57 Halifaxes with the four Merlin engines.

Source: Air Pictorial, April 1955.


Attachments

  • H.P.56.gif
    203.9 KB · Views: 928

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Great find Stargazer,


and I want to add,in the book British Aircraft Specifications File,they mentioned only
six companies submitted a proposals,but in the fact,the Shorts and Vickers also
responded to this contest.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
Hi,


here is anther drawing to Hawker P13/36 proposal.


Attachments

  • Hawker.png
    145.6 KB · Views: 638

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,894
Reaction score
232
There's been a mistake somewhere, that's the Handley-Page H.P.56, see the 3 view upthread...

cheers,
Robin.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
It's indeed the H.P.56 Handley Page's entry to Spec P.13/36.

Checked both the Hawker and Handley Page Putnams and
RAF Bomber Command and it's aircraft vol I & II .

Poor proof reading by the Air_Britain contributors I quess...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,663
Reaction score
3,457
That's right my dear Lark,

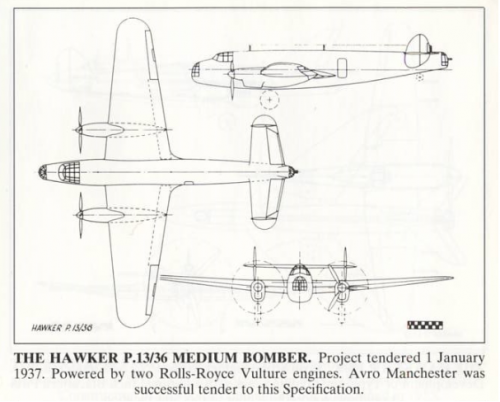

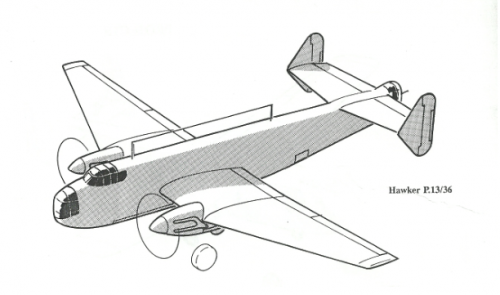

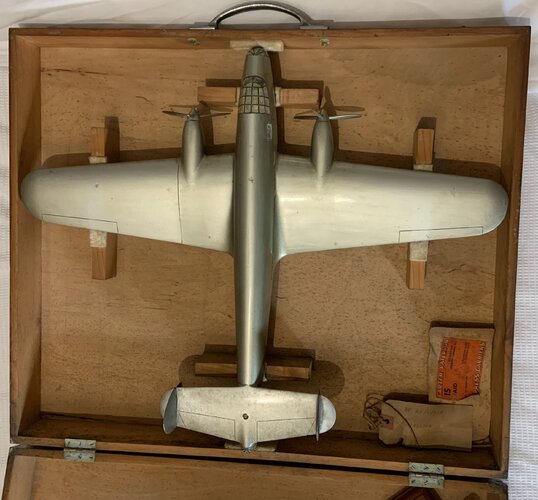

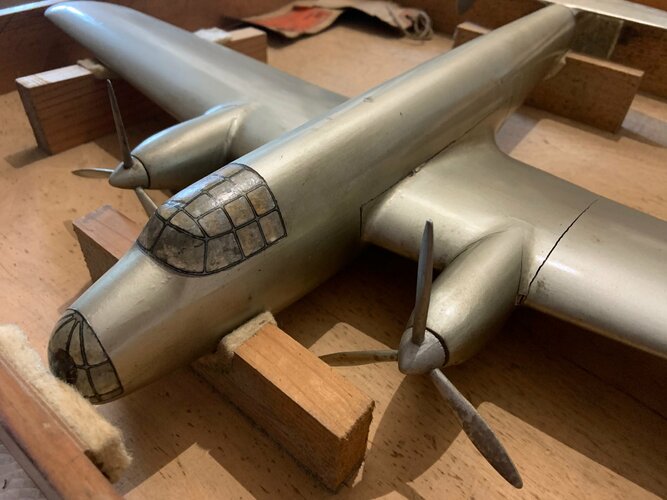

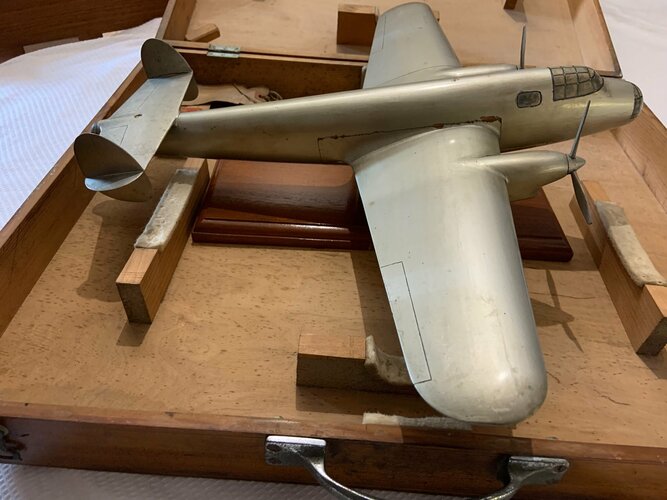

and here is Hawker proposal.


Attachments

  • Hawker.png
    228.7 KB · Views: 572

merlin

ACCESS: Restricted
Joined
Sep 12, 2009
Messages
17
Reaction score
2
In the main all the designs were 'big' aircraft, the exception being the Bristol design, at only 79' w/span it was the smallest of the designs.
With the initial Government delay, in funding the 'heavy bombers' seems plausible that the AM ordered the Bristol design as well, as its bigger 'brothers'. It would be used to supplement the Wellington, and replace the current twin-engine (smaller) bombers, thereby increase the potential weight bombs dropped. So, bye, bye, Blenheim, Botha, and Hampden. Beaufort retained because of its speciality, while the new Bristol aircraft had the torpedo bomber option incorporated into the finished design.

Anyone know of any artists impressions?


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,436
Reaction score
468
Given the industry's bottleneck in production capacity and Bristol's commitment to Blenheim and Beaufighter I doubt that the AM would have raised an order for a third P.13/36 contender


merlin

ACCESS: Restricted
Joined
Sep 12, 2009
Messages
17
Reaction score
2
What 'bottleneck, I've already mentioned that the Blenheim gets cancelled, so apart from those on the factory floor, no more. Many of the parts for the new design, were parts used on various Bristol aircraft so retooling shouldn't be too complicated.

If Bristol can't cope with the work, why submit the design!?


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,436
Reaction score
468
You're not aware of the huge industry effort underway to expand production capacity, acquire tooling, recruit and train staff? Subcontracting and shadow factories were essential for the RAF expansion plans, but it was not easy.
Companies would tender to whatever was requested, leaving it to the AM to decide where priorities lay and how aircraft would be produced. Bristol's design department had spare capacity, their factories less so. It was not generally AM policy to cancel production runs unless proven essential, the time and expense of establishing production lines tended to rule that out, so your speculation that the Blenheim would get cancelled to allow for a new, and hardly ground-breaking, design to take its place is most unlikely. I would think it highly improbable that existing parts already in production would carry through into the new bomber which was to have been very different from those in production, as you would expect for an aircraft several years younger in conception.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,367
Reaction score
2,532
https://en.wikipedia.org/wiki/List_of_Air_Ministry_specifications
P.13/36 OR.41 Twin-engined medium bomber for "world-wide use" introduction delayed due to production difficulties necessitating further order of Whitleys & Wellingtons
Avro Manchester (2 prototypes ordered), Handley Page H.P.56 (one prototype ordered), Hawker P.13/36 (project only), Vickers Warwick with Rolls-Royce Vulture engines

According to BRITISH SECRET PROJECTS FIGHTERS & BOMBERS 1935-1950,
Following proposals are included.

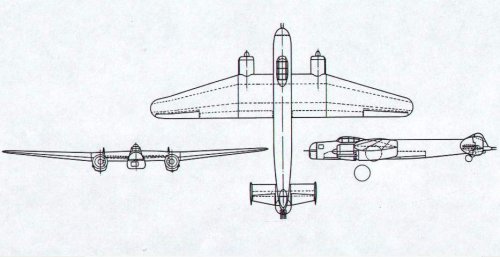

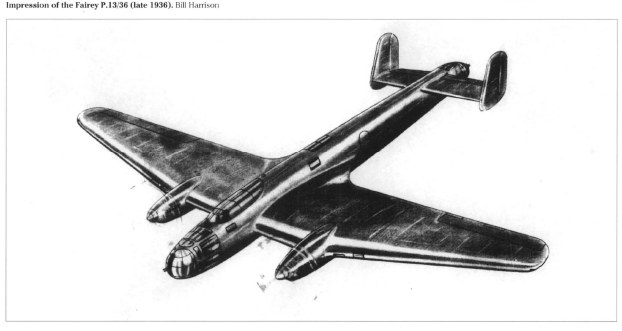

Avro 679, Boulton Paul P.91, Bristol P.13/36, Fairey P.13/36, Handley Page HP.56, Hawker P.13/36, Short P.13/36, Vickers P.13/36,
Avro 679 Manchester, Handley Page HP.57 Halifax, Avro 683 Lancaster and Avro 684.

Vulture engine.

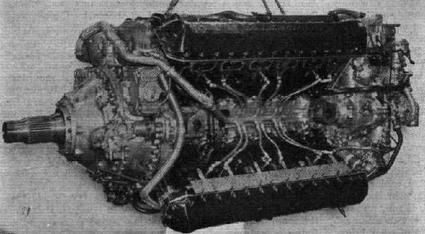

https://en.wikipedia.org/wiki/Rolls-Royce_Vulture

Avro 684.
https://www.secretprojects.co.uk/forum/index.php/topic,642.msg314687.html#msg314687


Attachments

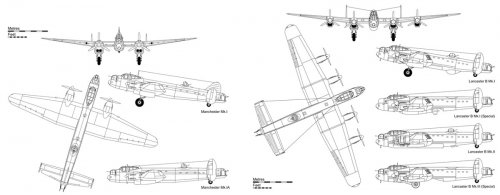

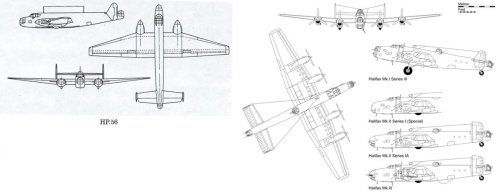

  • HP.56_and_HP.57.jpg
    89 KB · Views: 217
  • Manchester_and_Lancaster.jpg
    90.7 KB · Views: 246

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,967
Reaction score
83

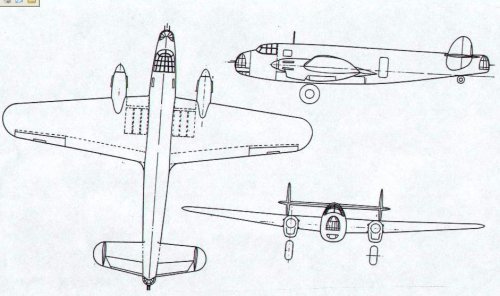

Does that Bristol have a 10x.303 rear turret? Or am I seeing things?


DWG

ACCESS: Top Secret
Joined
Feb 11, 2007
Messages
719
Reaction score
419
Does that Bristol have a 10x.303 rear turret? Or am I seeing things?

I think it's two vertically separated rows of two, so 4 total, but all visible from above rather than 2 above 2.


DWG

ACCESS: Top Secret
Joined
Feb 11, 2007
Messages
719
Reaction score
419
Given the industry's bottleneck in production capacity and Bristol's commitment to Blenheim and Beaufighter I doubt that the AM would have raised an order for a third P.13/36 contender

(As the thread has perked back into life and people will be reading it anew) Suspect you meant Beaufort and not Beaufighter there, Beaufighter is only just getting started in the drawing office when the decisions are being made on P.13/36.


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
213
Reaction score
351

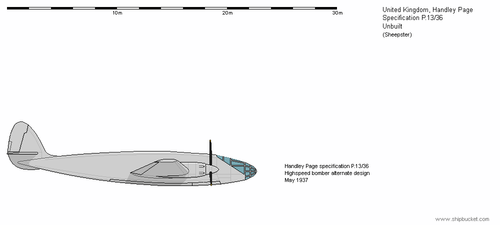

The Handley Page alternative Proposal.

This was a drawing from a paper written by George Volkert, HP's chief designer and offered as an alternative to his HP.56, but it wasn't intended as an actual design. The drawing was provided to illustrate a point, that of a high speed unarmed bomber devoid of the power operated turret armament stipulated in the specification. Figures were produced that were submitted to the Air Ministry for consideration, such as a weight of 37,000lb, max speed of 380mph at 15,000ft with a wing loading of 30lb/sq ft, or 400mph at 39lb/sq ft and these were assessed and rejected as being too ambitious based on lift/drag assessments made by RAE. No drawings other than that which accompanied Volkert's paper have surfaced that might support an actual aircraft design that HP was working on.

(Figures quoted from Handley Page Aircraft since 1907, C.H. Barnes, Putnam, 1976)


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,436
Reaction score
468
You are correct, it was more a conceptual design that a true project. His paper was intended to show that without defensive armament the bomber would have performance comparable to current and planned fighters. RAE did not disagree but stressed that cleanliness of design would be critical to achieve the level of performance indicated and the AM thought that the speed margin over fighters was minimal. Its discussed in Tony Buttler's Fighters and Bombers 1935-1950 and there will be more in BSP4


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
213
Reaction score
351
From trawling through this forum I've seen, Schneiderman, that you are wanting a copy of the full document. Did you manage to locate one? I'm not sure if the RAF Museum has a copy among its HP files, might be worth checking if you haven't already.

Its discussed in Tony Buttler's Fighters and Bombers 1935-1950

I wrote an article a few years back about the development of the high speed bomber concept, incorporating Volkert's paper, the Blackburn B.28 and the Mosquito and referenced the book, of which I have a copy. A paragraph:

"One of its eager supporters was Research Director Aircraft, Capt R.N. Liptrot, who calculated that such a machine's top speed could exceed that of the Supermarine Spitfire, at that time still in prototype form. His response to Volkert's paper was deliberately provocative, designed to ensure vigorous argument. Another supporter of the idea was C-in-C Bomber Command, Sir Edgar Ludlow-Hewitt, who noted that; “...it is not an unarmed bomber that we require, but a Speed Bomber.”

Among the high level discussion within the RAF that went on over the winter of 1938/39, the Chiefs of Air Staff agreed that a formal specification should be written and prototypes built. Despite this however, the Operational Requirements department declared that the 'Speed Bomber' enjoyed no significant benefit over contemporary concepts. By August 1939, a few weeks before the outbreak of war, Ludlow-Hewitt again voiced his support for a fast bomber, insisting that it should be given the highest priority. This was effectively countered by Assistant Chief of Air Staff William Sholto Douglas, who was against the idea of an unarmed bomber, claiming that it would be countered by improvements in single-seat fighters in due course, although simultaneously he authorised construction of a prototype of an unarmed reconnaissance bomber concept under development by Blackburn Aircraft in Yorkshire."


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,436
Reaction score
468
Yes, I got a copy of Volkert's memo from a helpful friend and copies of the RAE reports from FAST. The concept of a fast unarmed bomber was being pursued by several designers at this time, supported by a few key people in the AM, such as Liptrot, and of course DH were the company that finally gained approval to proceed.


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
213
Reaction score
351
Yes, I got a copy of Volkert's memo from a helpful friend and copies of the RAE reports from FAST.
Excellent. Great wee facility at FAST. Will your research go into print?

and of course DH were the company that finally gained approval to proceed.
Took a bit of persuading some people and a needless diversion of Sholto Douglas insisting on it being fitted with a tail turret!


nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
213
Reaction score
351
Excellent, more information on this is required out there. As a book or article?
