Northrop N-31 and N-31A flying wing bombers

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Wow. The jet one is N-31 w/o suffix, powered by six Westinghouse engines. It looks like the -A used Turbodynes.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,747
Reaction score
3,340
I surprised that this forum is really high level!. Recent activities are wonderful.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,965
Reaction score
369
I regret to say I do not know much about the Model N-31A project, even though I am a big fan of the YB-35 and YRB-49!

I am assuming that the Model N-31A was a turboprop-powered development of the basic YB-35 design?

Can some give me more details/technical data about the N-31A project

Regards
Pioneer


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
mmm, seems a different kind of flying wing than the B-35/49 type, more like a radical Vulcan (it has a fuselage).


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,976
Reaction score
392
isn't the N-31 the same aircraft as illustrated on page 3 of OBB's 'prototype issue' of APR, v0n0?

it looks it to me...

cheers,
Robin.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
154
Yes, in part. Scott published a different iteration in addition to the two-engines version. BTW, the N-31 and N-31A are covered on page 72 on beautiful "Les Avions and Engines Northrop" by Alain Pelletier (MiniDocavia) at page 72. Shame on me for having not noticed it before...


martinletts

ACCESS: Restricted
Joined
Mar 3, 2007
Messages
48
Reaction score
1
Website
www.xplanes3d.com

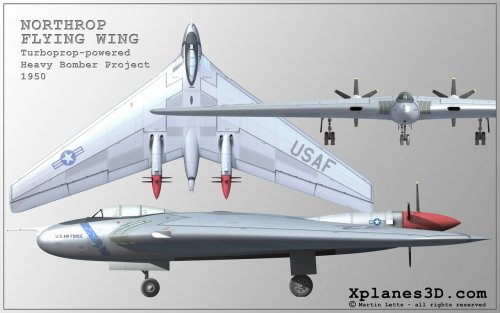

Hi Gents.

Just completed a new set of images - a few examples attached, see also

http://www.xplanes3d.com/Projects/Northrop%20Wing/webpages/Northrop_Wing_thumbs.html

I am always drawn to flying wings (although I suppose this is not technically one - it has a defined fuselage). From what information I could glean (and a lot of it was conflicting) is that this was offered up as a proposal for the role that the B-47 eventually took up (?).

There appear to be a variety of configurations proposed (2 engine / 4-engine as well as varying body shapes), so I have had to use a bit of 'scope' shall we say to try to capture the essence of what I think this plane could have been, keeping as near to them common ground of all the options as possible. I have no idea if this was mocked-up or wind-tunnel tested, or even modelled, but it's a handsome thing nonetheless. Jack certainly knew a thing or two.


Attachments

  • Northrop_Scene_01.jpg
    176.7 KB · Views: 759
  • Northrop_Scene_05.jpg
    279.3 KB · Views: 685
  • Northrop_Scene_08.jpg
    126.5 KB · Views: 619
  • Northrop_Scene_04_BW.jpg
    178.1 KB · Views: 338

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,394
Reaction score
126
Website
cluttonfred.info
Inspiring images, thanks so much for sharing. Just out of curiosity...

  • Are we looking at a twin-engined version with contra-rotating props or a four-engined version with coaxial props?
  • That appears to be glazing at the wing roots...how many crew were there and where were they to sit?

Cheers,

Matthew


martinletts

ACCESS: Restricted
Joined
Mar 3, 2007
Messages
48
Reaction score
1
Website
www.xplanes3d.com
Thanks Matthew.

This configuration was the twin-engined version - Turbodyne V driving 6-bladed contra-prop - i.e one engine per wing. I also understand that the engine was rated at 10,000 hp.

The suggested crew was 4 or 5. I assume 2 in the main cockpit, the others in the wing/fuselage area.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Beautiful artwork, Martin! Gives a lot of substance and credibility to this unbuilt project...


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54
Very nice illustrations! You wouldn't have a Northrop N-number for this design would you? It's new to me.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,806
Reaction score
617
Absolutely gorgeous!! These images really deserve to appear in such publication dedicated to the Northrop flying wings.....


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
170
Website
www.hitechweb.genezis.eu
This design was covered in V0N0 (prototype issue) of the Aerospace Projects Review that was freely available. Scott, do you still have it somewhere online? No N number given.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,107
Reaction score
1,603
Website
www.aerospaceprojectsreview.com
Matej said:
This design was covered in V0N0 (prototype issue) of the Aerospace Projects Review that was freely available. Scott, do you still have it somewhere online?

Yup: http://www.up-ship.com/apr/v0n0.pdf

Note: it's nowhere near as good as the "real" issues.

No N number given.

It's an N-31.


martinletts

ACCESS: Restricted
Joined
Mar 3, 2007
Messages
48
Reaction score
1
Website
www.xplanes3d.com
Cheers chaps, thanks for the encouragement.

You have already answered my next question (if anyone knew the designation number) so a few title changes are due (I was sent an extract of the pdf by a visitor - I didn't realise it was one of Scott's - so I shall retro-credit that info on my site).

Would I be correct in saying this was a contender for the B-47 role? If not, does anyone know what else it might have been?


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54
Orionblamblam said:
Matej said:
This design was covered in V0N0 (prototype issue) of the Aerospace Projects Review that was freely available. Scott, do you still have it somewhere online?

Yup: http://www.up-ship.com/apr/v0n0.pdf

Note: it's nowhere near as good as the "real" issues.

No N number given.

It's an N-31.
My NORAIR PROJECT DESIGNATIONS document simply lists N-31 as "Medium Bomber." It gives no specifics whatsoever. But I believe N-31 was six-jet engines and N-31A was two turboprop engines.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
XB-70 info is coincident with Pelletier's book "Les avions Northrop". N-31 is a 6 jet engined proposal (2 in the wing tips and 4 buried in the wings) while N-31A is a 4 turboprop engined version (that from martinletts drawing). However drawings shown from the book are slightly different.

Note: 4 paired turboengines, that is 2 propellers.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54
Here's an N-31 line drawing.


Attachments

  • N-31-x.jpg
    328.8 KB · Views: 608

martinletts

ACCESS: Restricted
Joined
Mar 3, 2007
Messages
48
Reaction score
1
Website
www.xplanes3d.com
Cracking!

Thanks XB-70! That just sums up the 50s for me - nuclear powered ovens and flying cars just around the corner. This is certainly another option for me to illustrate in the future.

I'm looking forward to Bill Rose's new book, out next month I understand.

Thanks again.
