NK-93 Turbofan

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870

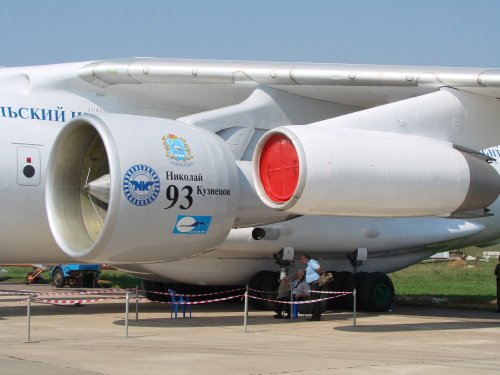

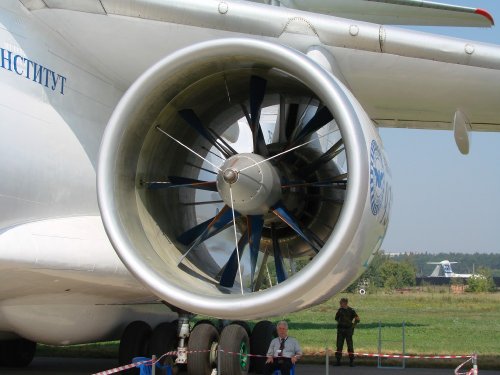

And - yes, mighty NK-93 is there


Attachments

  • WebPic02.jpg
    134.6 KB · Views: 465
  • WebPic03.jpg
    153.6 KB · Views: 506

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,387
Reaction score
1,429
So what exactly would you call that, an ultra-high bypass engine or a ducted unducted fan? ???


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870
Geared turbofan, as PW does, I suppose


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,387
Reaction score
1,429
flateric said:
Geared turbofan, as PW does, I suppose

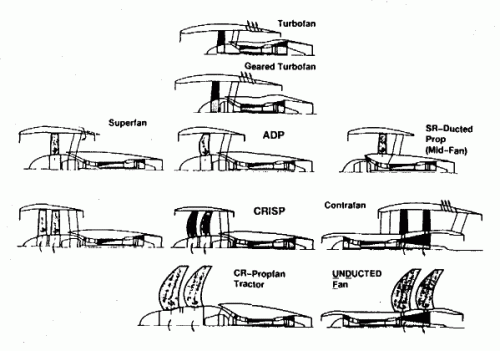

Well not quite. In the geared turbofan the fan is still part of the engine itself where in this one we're looking at you've got seperate propeller/fan things attached to a turboshaft then enclosed in a shroud. I'd call it an ultra-high bypass ratio engine but it's not really that either. ??? CRISP here is generally what is considered a UHB. Ducted propeller? Ducted turboprop?


Attachments

  • image.gif
    13.9 KB · Views: 600

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,016
Reaction score
249

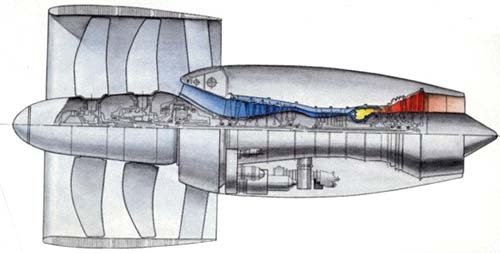

Conceptually it is probably closest to CRISP. Unlike P&W's geared fan the NK-93 has two counter-rotating 'fan' stages, the first with 10 blades and the second with 8. It's interesting that the blades have such a narrow chord though, thanks flateric!


Attachments

  • nk93-3.jpg
    21.5 KB · Views: 550

KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,033
Reaction score
26
What's the advantage/disadvantages in the following engines

1. Conventional high bypass turbofan with high pressure ratio

2. Geared-turbofans

3. Prop-Fans

4. CRISP


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
238
Reaction score
6
Most of the online literature describe it as a ducted propfan. I believe it's similar to SNECMA ducted contra-rotating propfan (http://www.flightglobal.com/news/articles/picture-snecma-future-engine-concept-revealed-213520/). I'm quite interested in the technical literature/papers and conference papers on this engine but a google search (in google translated Russian/Ukrainian) revealed nothing. Hoping forum members can help out. Thanks in advance!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870
Austin said:
Flateric what is the current status of the NK-93 engine ?
Never delivered promised results, effective dead.
