I wonder if someone here could provide me with some data on the Swiss Selbstfahrgeschutz NK I and II

Thanks in advance


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
647
Reaction score
404
Nahkampkanone I:



weight: 10 t
length: 6,46m
width: 2,20m
height: 2,28m
crew: 5 men
engine Praga, gasolin, 120 hp
armour: 40mm (front), 25mm (sides), 25mm (superstructure)
armament: 7.5 cm Kanone K42, later 10.5 cm Hb 42 howitzer

The assault gun was based on the Pz39 tank of the Czechoslovakian origin chassis that had one road wheel added on each side. The engine as well as transmission was also taken from the Czech tank.


Nahkampfkanone II:



weight: 24 t
length: 5,24m
width: 2,58m
height: 2,15m
crew: 5 men
engine Saurer CVDM, Diesel, 280 - 300 hp
armour: 70mm (front), 40mm (sides)
armament: 7.5 cm Panzerabwehrkanone, 45 rounds


Best regards,
Piotr


arc3371

ACCESS: Restricted
Joined
Nov 11, 2006
Messages
39
Reaction score
1
Thank you!

A question, the official designation was Nahkampkanone?


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
647
Reaction score
404
As far as I know, it was the official designation. Of course, both vehicles were prototypes only, so they had no "official" service designation.

Piotr


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,362
Reaction score
1,602
Actually, "Nahkampfkanone", translation could be "close-in combat gun".


Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,108
Reaction score
241

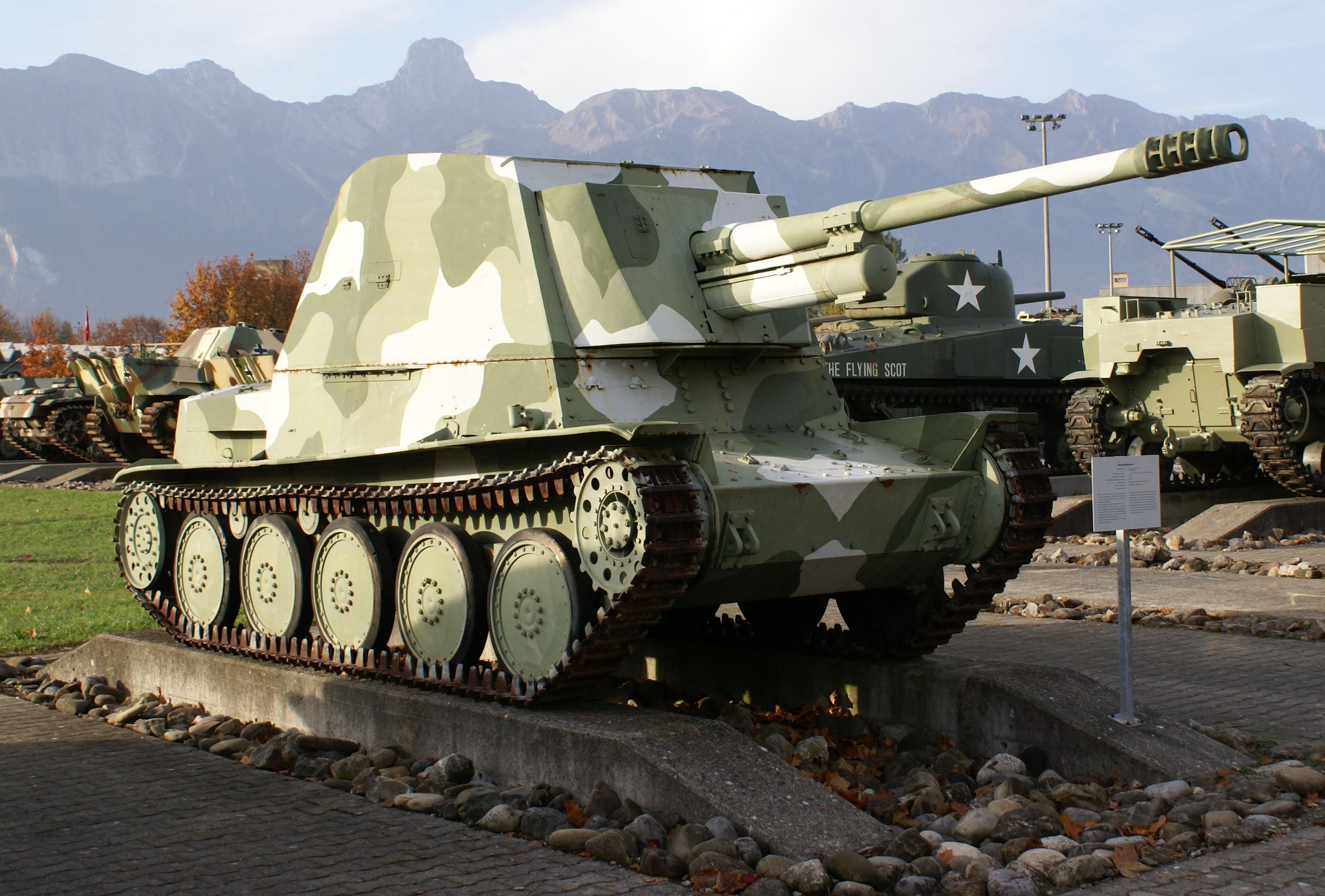

Interesting array of vehicles in the background of the first photo. A Stug III, a Jagdpanther and a Panther. Wonder how the Swiss acquired them?


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
239
Reaction score
11
Some more links from a forum with more WW2 Swiss Army gear.

http://www.network54.com/Forum/330333/thread/1121286150/Swiss+Army+WW2
