NERVA - nuclear rocket

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,402
Reaction score
263
Website
www.aerospaceprojectsreview.com
From here: http://up-ship.com/blog/?p=8110

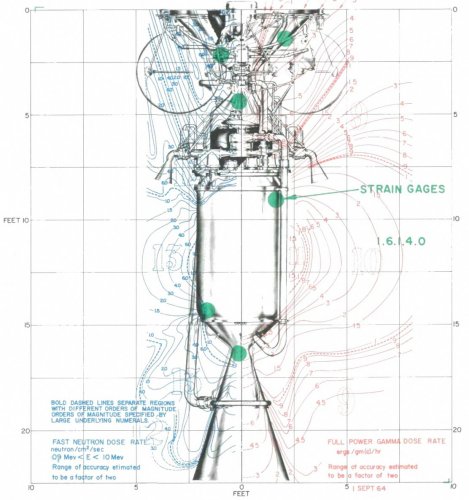

Showing the radiation levels around a NERVA. Note that the magnitudes (ten-to-the-holycrap power) are shown as faint large background numerals.


Attachments

Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,231
Reaction score
86
my question to that grafik is
for several NERVA engine, was any danger of interaction of Neutron ?

i mean with Several engine under upperstage for NOVA and NEXUS booster
and Orbital use like Boeing IMIS 1968


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,402
Reaction score
263
Website
www.aerospaceprojectsreview.com
Clustering NERVAs was something that the designers spent a fair amount of time puzzling over. If you look at early designs, the engines tended to be fairly close. As time went by, they got further and further from each other... because they *would* interact. Most spacecraft designers, in the end, tried to reduce the number of nuclear engines as much as possible, with "one" being preferred.

A number of designs had NERVAs staged in series... one used for trans-Mars injection, say, another used to brake at Mars, another used to boost away from Mars, etc. At first glance this may seem silly... the NERVA was capable of running for *hours* and it both weighed and cost a lot, so it seems silly to throw so many away after using them for so short a time. But the reason for this was simple: prior to being turned on for the first time, the nuclear reactor is fairly "cold," radioactively. But once it's turned on and run at full power for a while, it becomes, and remains, dangerously radioactive. Thus there is wisdom in simply chucking the damend thing overboad and letting it drift many, many miles away once you're done with it, and firing up a new one when needed.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
199
Website
deeptowild.blogspot.com

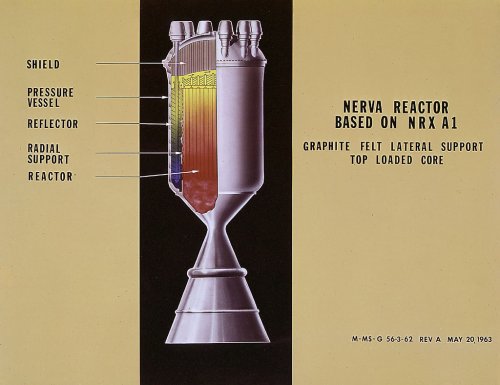

This artist's concept from 1963 shows a proposed NERVA (Nuclear Engine for Rocket Vehicle Application) incorporating the NRX-A1, the first NERVA-type cold flow reactor. The NERVA engine, based on Kiwi nuclear reactor technology, was intended to power a RIFT (Reactor-In-Flight-Test) nuclear stage, for which Marshall Space Flight Center had development responsibility.

Source:
http://mix.msfc.nasa.gov/abstracts.php?p=1812

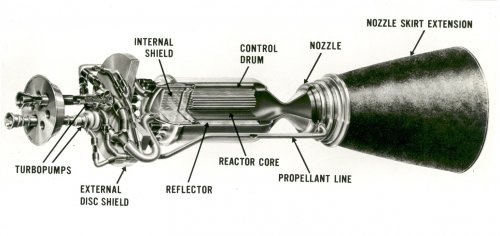

Cutaway drawing of NERVA engine.

Source:
http://dubious-maxims.blogspot.com/

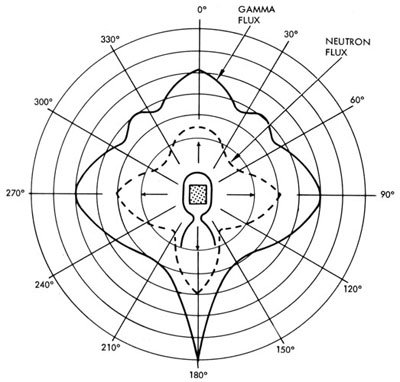

Radiation flux around a NERVA nuclear rocket engine from Nuclear Space Propulsion by Holmes F. Crouch.
http://www.projectrho.com/rocket/radiation.php

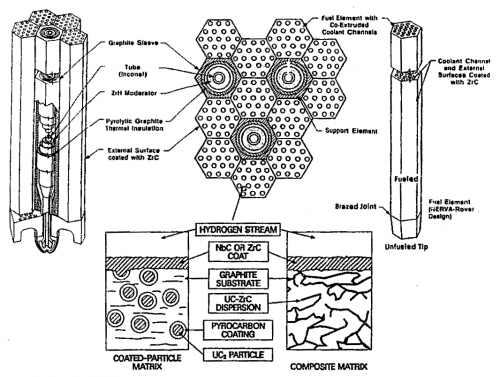

Cross-sectional view of fuel elements for the experimental NERVA reactor.

Source:
http://large.stanford.edu/courses/2011/ph241/hamerly1/


Attachments

5arg0n

CLEARANCE: Restricted
Joined
Jun 6, 2011
Messages
1
Reaction score
0
Greetings, all.
NASA published an end-project report on Rover in 1991, though much of it appears to be a collection of earlier materials. Large-scale experiments (as in giant white-hot gas plumes in the desert) ended in (I think)1968, though some modest control and refinement work went on a few more years. Warning! runs to about 270 pages in PDF.

Report No. CR-184279 [internal file no. 313-002-91-059]; available from the NASA tech reports server: http://ntrs.nasa.gov/

LNAL (Los Alamos) explored nuclear-thermal rockets in the mid-1950's as well. The project was called "Dumbo" and used a very different (fissile impreg. refractory metal foil) core design.

Report No. LA-2091 [contract no. W-7405-Eng. 36] Feb. 21 1957

LNAL maintained an excellent archive of non- and de-classified materials for many years, but a lot of it has been removed out of an excess of Homeland silliness. You can try I guess. If you can't find it and just have to have all 400 blurry copy of a copy of a carbon pages, let me know, I'll see what I can do.


cheers, 5arg0n


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,231
Reaction score
86
here a Link to PDF version to Report No. LA-2091 "DUMBO" nuclear engine


http://www.dunnspace.com/00339489.pdf


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,231
Reaction score
86
I found a in-deep report from 1991, It show all test Reactor used in Rover program
"Rover nuclear rocket engine program: Overview of rover engine tests"
9,7 MB PDF
http://ntrs.nasa.gov/search.jsp?R=19920005899&hterms=Nuclear+Furnace&qs=Ntx%3Dmode%2520matchallpartial%2520%26Ntk%3DAll%26N%3D0%26Ntt%3DNuclear%2520Furnace
http://hdl.handle.net/2060/19920005899


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,177
Reaction score
4
Michel Van said:
I found a in-deep report from 1991, It show all test Reactor used in Rover program
"Rover nuclear rocket engine program: Overview of rover engine tests"
9,7 MB PDF
http://ntrs.nasa.gov/search.jsp?R=19920005899&hterms=Nuclear+Furnace&qs=Ntx%3Dmode%2520matchallpartial%2520%26Ntk%3DAll%26N%3D0%26Ntt%3DNuclear%2520Furnace
http://hdl.handle.net/2060/19920005899
5arg0n said:
NASA published an end-project report on Rover in 1991, though much of it appears to be a collection of earlier materials. Large-scale experiments (as in giant white-hot gas plumes in the desert) ended in (I think)1968, though some modest control and refinement work went on a few more years. Warning! runs to about 270 pages in PDF.

Report No. CR-184279 [internal file no. 313-002-91-059]; available from the NASA tech reports server: http://ntrs.nasa.gov/
Can anyone point me in the right direction to find either of these? I'm making a mess of things trying to get the damn NTRS search function to cooperate.


DSE

CLEARANCE: Secret
Joined
Apr 13, 2010
Messages
454
Reaction score
8
SOC said:
Can anyone point me in the right direction to find either of these? I'm making a mess of things trying to get the damn NTRS search function to cooperate.
I'd hazard a guess these are not available on NTRS since it came back up. Whether or not these will ever be available there again, along with other documents remains TBD imo.


Hobbes

CLEARANCE: Top Secret
Senior Member
Joined
May 9, 2008
Messages
690
Reaction score
45
The video that Triton linked to is an interesting overview of the NERVA program. It also includes the best explanation for a rocket's specific impulse that I've seen yet. I've always felt the unit used (s) is odd, making it difficult to grasp what Isp indicates.

But as the video says, an Isp of 1 s means that one pound of propellant can supply 1 lb of thrust for one second. A real 'duh' moment for me :eek:


DSE

CLEARANCE: Secret
Joined
Apr 13, 2010
Messages
454
Reaction score
8
SOC said:
Report No. CR-184279 [internal file no. 313-002-91-059]; available from the NASA tech reports server: http://ntrs.nasa.gov/

Can anyone point me in the right direction to find either of these? I'm making a mess of things trying to get the damn NTRS search function to cooperate.
It would appear to be available on the Wayback Machine, www.archive.org.
