Hallo,
it is good field to start serearch about new projects.
in 1954 NATO issue a competition for lightweight strike fighter,all the
members submitted a proposals,such as:
Italy Fiat G-91
France Breguet BR-1001 Taon
Germany Messerschmitt P.1225

can you complete ?.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,949
Reaction score
0
Regarding this document shown in J.C.Fayer "Vols d'essay", the Folland Gnat, the Avro 727
and the Dassault Mystere XXVI (led to the Etendard VI) were considered.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Thanks Jemiba,

but there were anther projects from other countries as I know,such as
Belgium.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Hi,
during 1960s the NATO wanted a new long range maritime patrol aircraft,
manufacturers from Belgium,France,Canada,Germany,Italy,the Netherlands,
UK and USA submitted proposals.
for example Avro-745 was too big to the task,Nord N----? was too small
to the task,and the competition was won by Breguet Br.1150 Atlantique.


can anyone know the other proposals ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Hi,

no one know them !!!


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,949
Reaction score
0

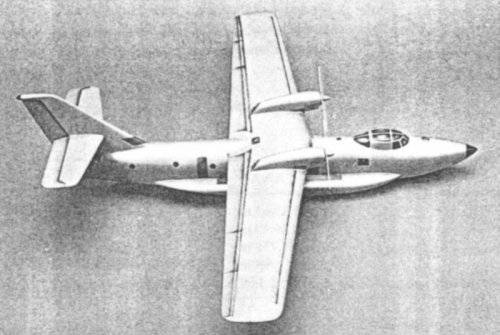

A competitor ro the Dassault Breguet Atlantic, very similar to it, is shown by Cuny, in
the 2nd volume, but without designation .


Attachments

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
803
Reaction score
0
In the brand-new book „Zeppelins Flieger“ (= Zeppelin’s aircraft) I read today that the Dornier Do P 340 was another competitor for the long range maritime patrol aircraft, but unfortunately I found only a Xerox copy with a model picture in Hans-Jürgen Becker’s “Wasserflugzeuge” (“Die deutsche Luftfahrt” volume 21), so the scan is of poor quality.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Hi,

in NATO requirement NBMR-4 for military transport aircraft which led to
develope Fiat G-222 and Dornier Do-31E,what are the other contenders ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Hallo my dears,

if any member know the contenders in that competition please tell us.


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,245
Reaction score
0
NBMR-4 also led to the BAC-222 and the HS.681.

M

McColm

Guest
Hi guys,
Did they ever build a four engined Br1150? I know there was talk of having jet podded engines fitted to the Atlantic MKIII for the RAF proposal to replace the Nimrod and I have used the SEARCH button to find other links, but to no avail.


Nordman

CLEARANCE: Restricted
Joined
Oct 8, 2006
Messages
3
Reaction score
0
Do any of you guys have a illustration of the Germany Messerschmitt P.1225??

Would very much like to see it since I can not find anything about it on the net...


Skybolt

CLEARANCE: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,288
Reaction score
0
There was sometthing on Interavia. Unfortunately I'll not be able to look at my collections till thye end of the month.. If some other member has accessto Interavia 1960-1964...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
By the Way,

the English Electric P.36 was a V/STOL transport and freighter
aircraft for the NATO NMBR.4.

And that makes the contenders for NMBR.4 as following;

Shorts PD.55,Agusta A.118 & A.119,BAC-224,SIAI S.201,Aerfer-2102,
AW.681,EE P.36,Fiat G-222 V/STOL,Avro-783,Bristol-208,DH-129
Dornier Do.31E and Breguet Br.941.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,737
Reaction score
0
...mmmhhh BAC-224,SIAI S.201,Aerfer-2102 are new for me. If you can please post 3views and technical data...

THANKS :D


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,075
Reaction score
0
hesham said:
... And that makes the contenders for NMBR.4 as following;

Shorts PD.55,Agusta A.118 & A.119,BAC-224,SIAI S.201,Aerfer-2102,
AW.681,EE P.36,Fiat G-222 V/STOL,Avro-783,Bristol-208,DH-129
Dornier Do.31E and Breguet Br.941.
The tilt-wing Canadair CL-62 should be added to that list.


Colonial-Marine

Fighting the UAV mafia.
Joined
Oct 5, 2009
Messages
597
Reaction score
0
Would anybody happen to comprehensive list of NBMRs and the designs proposed in response to these? While I've seen many references of NBMR-1 and 3 and their influence on certain aircraft, I have been unable to dig up much on the actual requirements themselves. Were these "unofficial" competitions or was there an expectation to achieve some sort of NATO standardization in aircraft?


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,021
Reaction score
3
This book - Friendly rivals: bargaining and burden-shifting in NATO By Wallace J. Thies

seems to have an excellent summary of the process - view on

Google Books


Nico

CLEARANCE: Secret
Joined
Sep 9, 2008
Messages
261
Reaction score
0
Jemiba said:
Regarding this document shown in J.C.Fayer "Vols d'essay", the Folland Gnat, the Avro 727
and the Dassault Mystere XXVI (led to the Etendard VI) were considered.
I can add the ill-known SIPA S.800
My complete lits, the, is:
Avro Type 727
Breguet Br.1001 Taon
Dassault Etendard XXVI
FIAT G.91
Folland Fo.141 Gnat
SIPA S.800
In the same timeframe, but not directly answering the NBMR-1 there were the:
Aerfer Sagittario II
Bpulton Paul P.111A
Nord-SFECMAS N.1402 Gerfaut
Nord-SFECMAS N.1502 Griffon
Sud-Est SE.212 Durandal
Sud-Est SE.5000 Baroudeur
Sud-Est SO.9000 Trident and probably some others...

Nico S


Nico

CLEARANCE: Secret
Joined
Sep 9, 2008
Messages
261
Reaction score
0
Sorry, I forget the Messerschmitt entry ( I don't have any information about it).
Could be of interest remember that the others NATO Basic Military Requirements are:
NBMR-2: Maritime Patrol Aircraft, won by Breguet Br.1150 Atlantic
NBMR-3: V/STOL combat aircraft, split in two requirements:
AC.169a for a Mach 2 fighter
AC.169b for a subsonic fighter-bomber (both V/STOL)
NBMR-4: Tactical Transport (V/STOL)
NBMR-22: I don't have exact datas but I think was an evolution of NBMR-4
Nico S


Pioneer

Seek out and close with the enemy
Joined
May 22, 2006
Messages
1,601
Reaction score
0
hesham said:
Hi,
during 1960s the NATO wanted a new long range maritime patrol aircraft,
manufacturers from Belgium,France,Canada,Germany,Italy,the Netherlands,
UK and USA submitted proposals.
for example Avro-745 was too big to the task,Nord N----? was too small
to the task,and the competition was won by Breguet Br.1150 Atlantique.


can anyone know the other proposals ?.
So gents, out of curiosity, did we ever find what this NBMR designation was i.e NBMR-?

Regards
Pioneer


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
0
Pioneer said:
So gents, out of curiosity, did we ever find what this NBMR designation was i.e NBMR-?

Regards
Pioneer
It stood for NATO Basic Military Requirement.

Three examples:

NBMR.3 was for a Supersonic VSTOL strike fighter (1961)
Designs submitted to NBMR.3 were as follows:
  • Hawker P.1150/3
  • Hawker P.1154
  • Mirage IIIV
  • Fokker-Republic D.24 Alliance
  • BAC Weybridge 585 (design)
  • BAC Warton (English Electric) P.39 (design)
NBMR.4 was for a Tactical V/STOL fighter
Designs submitted were as follows:
  • B.A.C. 224 (design)
  • D.H. 129 (design)
  • English Electric P.36 (design)
  • English Electric P.41 (design)
  • English Electric P.44 (design)
  • L.T.V. (design)
  • Breguet (design)
  • De Havilland of Canada (design)
NBMR.22 was for a V/STOL transport
Designs submitted were as follows:
  • B.A.C. P.43 (design)
  • Fiat (design)
  • Dornier (design)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Hi,

the NBMR.3 contenders were;

Hawker P.1150/3
Hawker P.1154
BAC/Vickers 583
BAC/Vickers 584
BAC/Vickers 585
Armstrong-Whitworth AW.406
Shorts PD.45
Shorts PD.49
Shorts PD.56
BAC/English-Electric P.39
Mirage IIIV
Fokker-Republic D.24 Alliance
Fiat G95/4
Breguet Br.122
Nord N.4400
EWR VJ.101
Focke-Wulf FW.1262
Lockheed CL-704


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,075
Reaction score
0
Stargazer2006 said:
NBMR.4 was for a Tactical V/STOL fighter
Designs submitted were as follows:
  • B.A.C. 224 (design)
  • D.H. 129 (design)
  • English Electric P.36 (design)
  • English Electric P.41 (design)
  • English Electric P.44 (design)
  • L.T.V. (design)
  • Breguet (design)
  • De Havilland of Canada (design)
NBMR.4 was, of course, for a V/STOL tactical transport aircraft.

Stéphane: do you have a ref for a DHC entry? I am aware that Canadair put a lot of work into their CL-62 concept for NBMR.4. What was DHC working on?


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
0
Apophenia said:
NBMR.4 was, of course, for a V/STOL tactical transport aircraft.
:eek: :eek: :eek: I KNOW!!! I realize I typed "fighter" instead of "freighter"... How could I be so absent-minded?? ???

Apophenia said:
Stéphane: do you have a ref for a DHC entry? I am aware that Canadair put a lot of work into their CL-62 concept for NBMR.4. What was DHC working on?

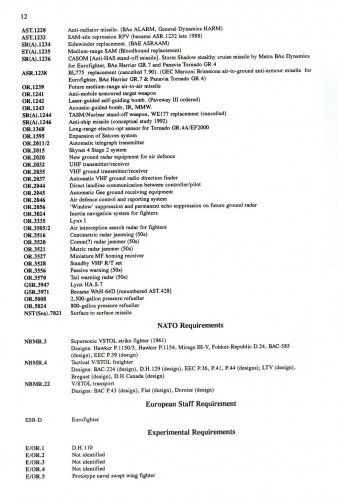

Actually I do. This is from an old listing published in a British aviation magazine (I believe it was Air Pictorial). I'm attaching a copy for reference.


Attachments

Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,075
Reaction score
0
Thanks Stéphane! Very intriguing, now we just need to figure out what DHC was proposing ;)


Pioneer

Seek out and close with the enemy
Joined
May 22, 2006
Messages
1,601
Reaction score
0
Stargazer2006 said:
Pioneer said:
So gents, out of curiosity, did we ever find what this NBMR designation was i.e NBMR-?

Regards
Pioneer


It stood for NATO Basic Military Requirement.
No sorry Stéphane, what I meant was what was the NBMR designation for what would become the Atlantic ASW/MP aircraft.........NBMR??

Regards
Pioneer


Nico

CLEARANCE: Secret
Joined
Sep 9, 2008
Messages
261
Reaction score
0
Pioneer said:
Stargazer2006 said:
Pioneer said:
So gents, out of curiosity, did we ever find what this NBMR designation was i.e NBMR-?

Regards
Pioneer


It stood for NATO Basic Military Requirement.
As you can see in my post on January 6, the Basic Military Requirement for Atlantic (see Pioneer's request) was NBMR-2.
In fact, other than the quoted NBMR-1 for the light fighter, NBMR-2 for the maritime patroller, NBMR-3/169a for the V/STOL supersonic fighter, NBMR-3/169b for a subsonic V/STOL fighter-bomber, NBMR-4 for a V/STOL tactical transport and NBMR-22 for a tactical transport, I can suppose that there were others (perhaps between -5 and -21) but I lack any info about.
Moreover there were also other important requirements involving the Eiropean NATO members but I don't know the official designations.
The first I can remember was the 1949 evaluation following the requirement for an all-weather interceptor fighter. The winner was the deHavilland DH.112 Venom NF Mk.51, with a target of building 1,000-1,100 aircraft with licence to various European industries. Washington suspended the program in July 1952. On January 22, 1953, for the same requirement USAF proposed a simplified version of the F-86D (originally intended as a two-seater) and the result was the F-86K Sabre Jet. Then F-86K, built under licence by FIAT for NATO countries, could be considered the winner of the first NATO contest (but I don't know the official designation of the requirement). One of possible contestant was the Gloster Javelin.
Not really a NATO contest was the 1958 German program for a military transport aircraft replacing the Nord N-2501 Noratlas. The result was an international requirement with several candidates, won by Arbeitsgemeinschaft Transporter Allianz C-160 Transall, but most NATO countries preferred the Lockheed C-130 Hercules and only France, Germany and Turkey bought the C-160 (also South Africa, onviously not a NATO member). Perhaps one of the losers was Armstrong-Siddeley AW-681.
Another important NATO requirement was the May 1956 one for the F-86K replacement, won, as we know, by Lockheed F-104G Starfighter that was built by a "production ring" including Messerschmitt, Dornier, Heinkel, Siebel, Fokker, Aviolanda, HFB, SABCA, Avions Fairey, FIAT Aviazione and Aermacchi for airframes and final assembly.

Nico




No sorry Stéphane, what I meant was what was the NBMR designation for what would become the Atlantic ASW/MP aircraft.........NBMR??

Regards
Pioneer


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
803
Reaction score
0
Stargazer2006 said:
Actually I do. This is from an old listing published in a British aviation magazine (I believe it was Air Pictorial). I'm attaching a copy for reference.
Stéphane, actually it was published in Aeromilitaria (The AIR BRITAIN Military Aviation Historical Quarterly) No. 1/1997.


JFC Fuller

CLEARANCE: Top Secret
Joined
Apr 22, 2012
Messages
3,104
Reaction score
0
1953 mass NATO (US funded) aircraft purchase: http://www.nato.int/cps/en/SID-285B69DB-59222616/natolive/opinions_17376.htm

Link also mentions the F-86D to be built in Italy which as Nico states took the place of the DeHavilland Venom. Scanning the google books search results for "Supermarine Swift NATO 1952" it seems like the Swift was originally going to take the role of the Hunter as a pan-European (except for France) and low countries produced aircraft until about 1953 when the swap was made.


PMN1

CLEARANCE: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
669
Reaction score
0
Global Security seems to have a list

http://www.globalsecurity.org/military/world/europe/nbmr.htm

NBMR-1lightweight strike fighter(1953) FIAT G.91
NBMR-2NATO Maritime Patrol Aircraft
NBMR-3V/STOL strike reconnaissance aircraft
NBMR-4V/STOL medium range transport aircraft
NBMR-5long-range shipborne ASW weapon system
NBMR-6counter-fire locators
NBMR-7air/air missile (collision course)
NBMR-8?????
NBMR-9land mine warfare
NBMR-10armor-plated transport vehicle
NBMR-11medium-arranges ship/air missile for small ships (short term)
NBMR-12?????
NBMR-13close-arranges ship/air missile for small ships (short term)
NBMR-14?????
NBMR-15?????
NBMR-16?????
NBMR-17data-handling for equipment small ships (naval units)
NBMR-18close-range ship/air missile for small ships (long run) (1973)
NBMR-19?????
NBMR-20?????
NBMR-21long-range shipborne ASW weapon system (1966)
NBMR-22V/STOL short range transport aircraft
NBMR-23establishing needs in the field of night vision
NBMR-24low altitude surfaces/air weapon system
NBMR-25?????
NBMR-26"Calculators for terrestrial forces (1965)"
NBMR-27"information matériel on the battle field"
NBMR-28recoverable exercise groundmines
NBMR-29medium-arranges ship/air missile for small ships (long term)
NBMR-30"system of identification of submerged submarines (1967)"
NBMR-31long-range shipborne ASW weapon system (1970-1975)
NBMR-32main battle tank
NBMR-33combat infantry armored vehicle
NBMR-34for an armored vehicle of transport
NBMR-35?????
NBMR-36"systems of identification of the friendly planes" (long term)
NBMR-37material for NBC defense
NBMR-38system of machines for fast patrol boats
NBMR-39"short range artillery support matériel 1970-1975"
NBMR-40 system of engines for fast patrol boats
For nearly half a century following the Second World War, the military establishments of West Europe and the United States spent most of their resources preparing for a massive war with the Soviet Union, in the hopes that preparation would prevent such a cataclysm from actually occurring. As the allied forces prepared for war in the Central European theater, it became increasingly obvious that the logistics of conducting such warfare would be vastly simpli?ed if forces ?ghting side by side could use the same type of fuel, ammunition, and even parts. As weapons systems grew more costly and complex, it also became apparent that greater economies of scale could be obtained from longer production runs, which argued for common weapons systems among allies.

For the countries of the Warsaw Pact this standardization was largely fulfilled through the common use of Russian weapons.

For logistical and deployment reasons a similar standardization was necessary within NATO. A first step along this path was the effort of various NATO groups to agree on the development of common military equipment via the NATO Basic Military Requirement (NBMR) procedure in the late 1950s. In 1953, NATO issued a requirement designated "NATO Basic Military Requirement 1 (NBMR-1)" for a "light weight tactical strike fighter" (LWTSF).

The North Atlantic Council established an ad-hoc working group to structurally reorganize cooperation in research, development, and production of militaryequipment. The joint working group submitted a report that was adopted by the Council on 4 November 1959. This document - C-M(59)82 - would bethe basis for cooperative efforts over the next seven years. The procedure consisted of seven steps in the development of new military equipment, starting with research and the formulation of basic military requirements, to testing and evaluation, to a production program. The procedure became known as the NATO basic military requirement (NBMR) approach. A basic military requirement was "an indication in general terms of the kind and type of equipment required, and also of the quantities needed and the date when it was desirable that the equipment should be in service."

By 1962 there was only one success, NATO's Breguet Atlantique maritime patrol aircraft, a project in which five nations participated. Several other projects awaited decisions. By 1963, it had become clear that realizing cooperative efforts in research, development, and production was very difficult. Expectations lowered, and cooperative efforts continued at a slower pace.

The requirements for artillery, for instance, were laid down in fundamental concepts in the "NATO Basic Military Requirement (NBMR 39)" in mid-1963. This document proposed that future artillery generations have a tube and a rocket weapon (with a range of around 30km) which could engage hard targets with direct fire. In working up the detailed individual requirements (operational characteristics) for NBMR 39, the NATO group established the 155-mm tube artillery as the standard caliber. In contrast to ballistics and ammunition, however, NATO partners could not agree on a common artillery piece, because of different tactical requirements. Both versions of the 155-mm caliber (the wheeled and the self-propelled) were needed - for a field piece and for an armored howitzer.

After less successful NBMRs on aircraft, in 1967 NATO established the Conference of National Armament Directors (CNAD), which is the primary policy-making body in NATO for procurement. It was intended to encourage greater standardization andinteroperability of weapons systems, and to stimulate joint programs for research, development,and production of weapons systems.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
hesham said:
And that makes the contenders for NMBR.4 as following;

Shorts PD.55,Agusta A.118 & A.119,BAC-224,SIAI S.201,Aerfer-2102,
AW.681,EE P.36,Fiat G-222 V/STOL,Avro-783,Bristol-208,DH-129
Dornier Do.31E and Breguet Br.941.

Also;


EE P.41 & P.44,Canadair CL-62,Breguet Br.943 to Br.947,LTV ? and DH Canada Caribou II.


MIRAGE 4000

CLEARANCE: Confidential
Joined
Mar 17, 2007
Messages
151
Reaction score
0
Sud Aviation proposed a project for NMBR4 (loock like the Do 31) :)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Hi Mirage 4000,


can you tell us about what was that Sud Aviation proposal,info or drawing ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Hi,


we can add Ryan and two Belgium companies to NBMR.3 contenders;


- Ryan M-209D (maybe)
- Avions Fairey ?
- SABCA S.?
- Hawker P.1150/3 & P.1154
- BAC/Vickers Type 583,584 & 585
- Armstrong Wgitworth AW.406
- Shorts PD.45,PD.49 & PD.56
- BAC/English Electric P.39
- Dassault Mirage IIIV
- Fokker-Republic D.24
- Fiat G95/4
- Breguet Br.122
- Nord N.4400
- EWR VJ.101
- Focke Wulf FW.1262
- Lockheed CL-704


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Hi,


for NBMR.4,the Focke Wulf submitted a proposal for V/STOL transport aircraft with twelve
RB.162s in two wingtip pods and Douglas also submitted a proposal but maybe in conjunction
with Piaggio.


Now we can say the the tenders were;


Shorts PD.55,Agusta A.118 & A.119,BAC-224,SIAI S.201,Aerfer-2102,AW.681,Fiat D-222 (V/STOL),
EE P.36,P.41 & P.44,Bristol-208,Avro-783,DH-129,Dornier Do.31E,Breguet Br.941,Br.943 to Br.947,
Canadair CL-62,LTV V-?,Focke Wulf ?,Douglas D-? or Model-1xxx,DHC-4 Caribou II and Ryan,
for Ryan I suggest the designation was Model-2108,or as my dear Skyblazer suggest,it was
Model-210B.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
8,177
Reaction score
0
According to this 1975 paper, there were in total 49 NBMRs formally issued before the system was abandoned in 1965.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
Grey Havoc said:
According to this 1975 paper, there were in total 49 NBMRs formally issued before the system was abandoned in 1965.

Great find my dear Grey.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,043
Reaction score
0
hesham said:
we can add Ryan and two Belgium companies to NBMR.3 contenders;

- Ryan M-209D (maybe)
- Avions Fairey ?
- SABCA S.?
- Hawker P.1150/3 & P.1154
- BAC/Vickers Type 583,584 & 585
- Armstrong Wgitworth AW.406
- Shorts PD.45,PD.49 & PD.56
- BAC/English Electric P.39
- Dassault Mirage IIIV
- Fokker-Republic D.24
- Fiat G95/4
- Breguet Br.122
- Nord N.4400
- EWR VJ.101
- Focke Wulf FW.1262
- Lockheed CL-704
We can add; Canadair CL-72


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,075
Reaction score
0
Re: NBMR-4. Anyone know what the HSA.129 was? I'm assuming a Hawker Siddeley Aviation project but am having trouble visualizing it.

However, sideways mounted engines with sideways facing intakes have also been proposed as in the HSA.129 submission for the NATO NBMR 4 military transport aircraft.
The Aerodynamics of V/STOL Aircraft, May 1968, 'Paper E: Turbo-Jet/Turbo-Fan Aircraft' by John Williams [Aerodynamics Department, RAE, Farnborough], AGARDograph 126, AD 688921, pg 293

BTW, 'Caribou II' wasn't a DHC-4 ... it was the original, working name for the DHC-5 Buffalo ;)

Top
