NACA and Wright Field projects

[hesham]

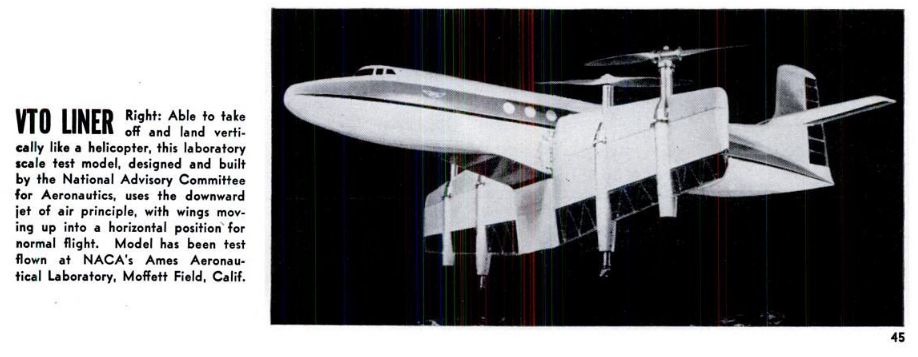

From Flying 1955-9.



[hesham]

From Flying 1956-3.



[hesham]

Hi,

Investigation of the Air-compression Process During Drop Tests of an Oleo-pneumatic Landing Gear

A brief study has been made to evaluate the importance of the type of air-compression process on the loads produced on an oleo-pneumatic landing gear during impact and to determine the type of air compression process actually obtained during drop tests. A simplified analysis to determine the...

www.google.com.eg



[hesham]

Two jet projects found in the Ryan Reporter, Vol. 13, No.5 (August 1, 1952).
They are described as NACA projects but to me they look pretty Lockheed-ish, like something halfway between F-90 and F-104 with glimpses of Suntan...

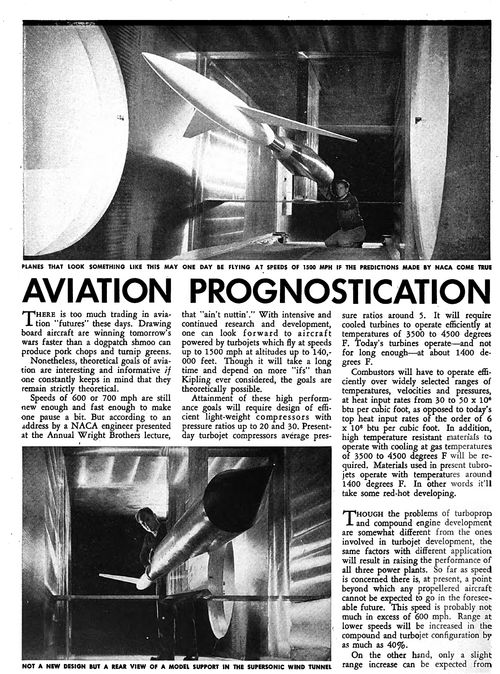

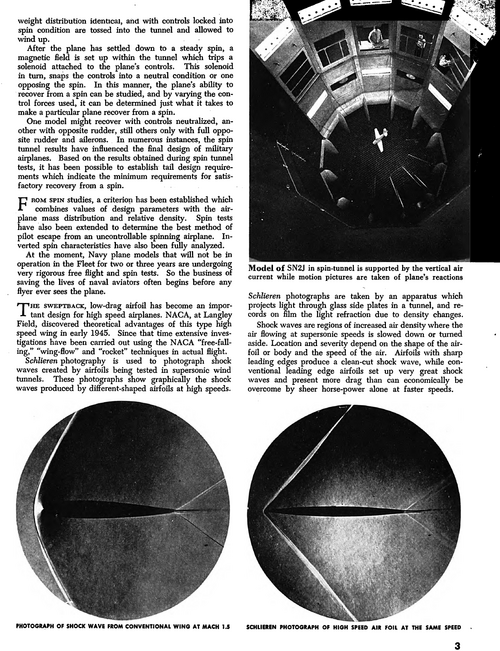

From Naval Aviation News 1952.



[hesham]

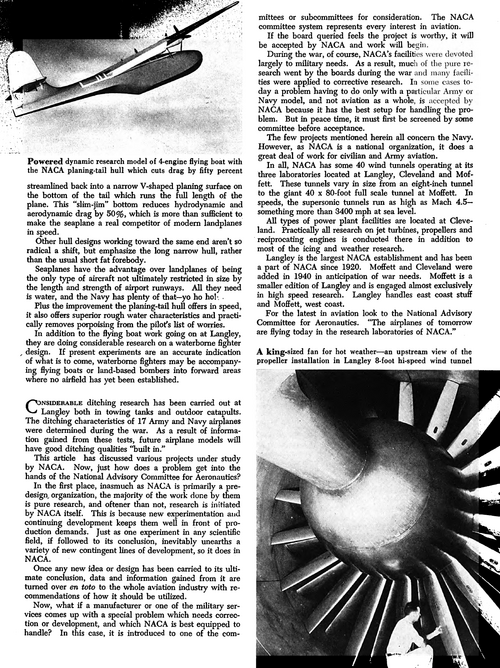

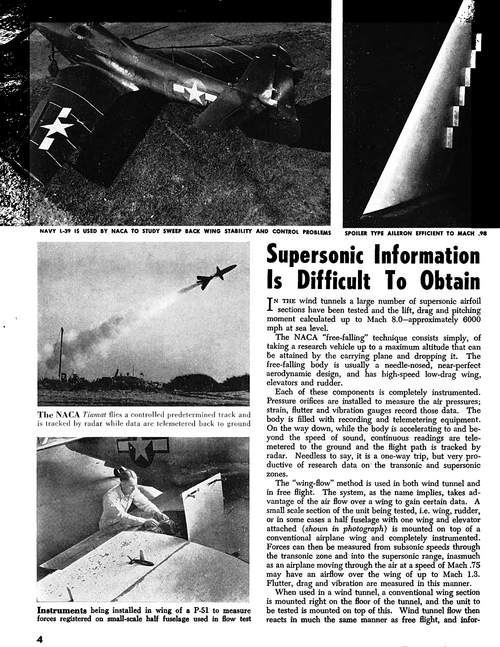

From Naval Aviation News 1952



[hesham]

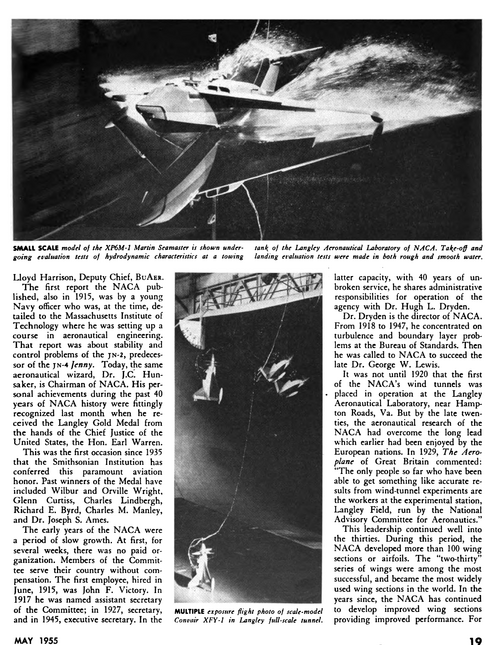

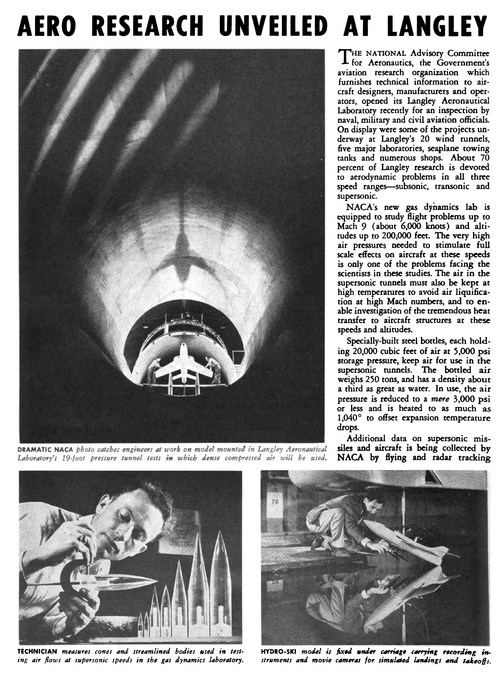

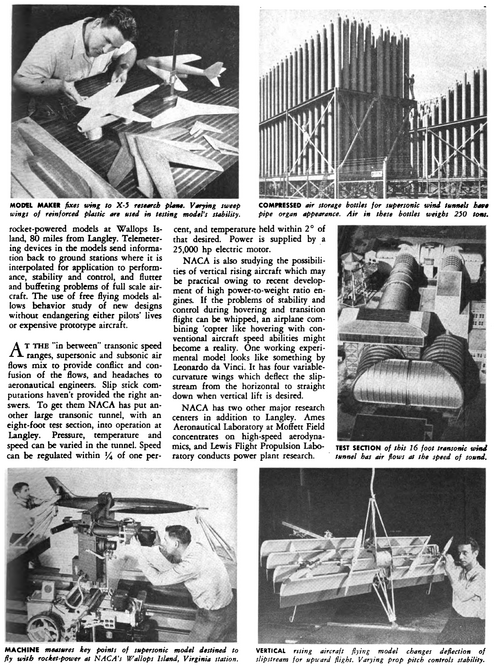

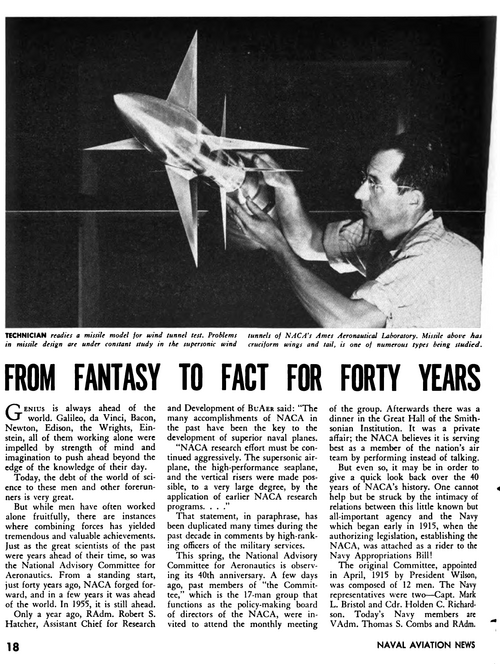

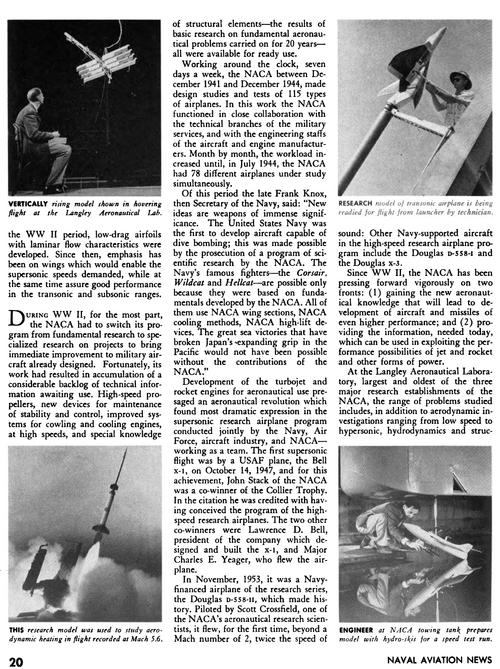

From Naval Aviation News 1955.



[hesham]

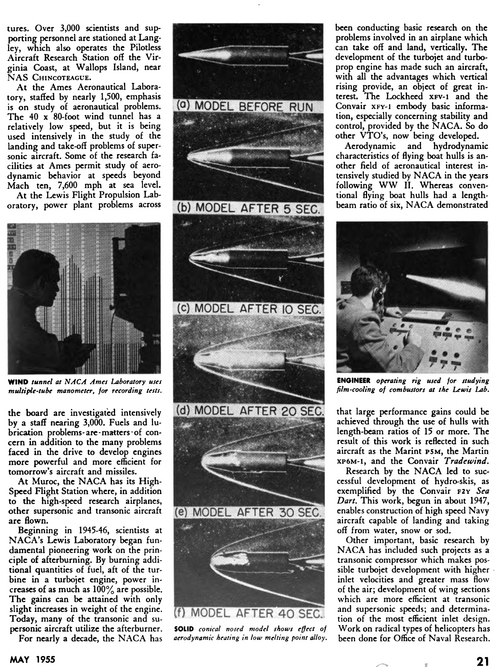

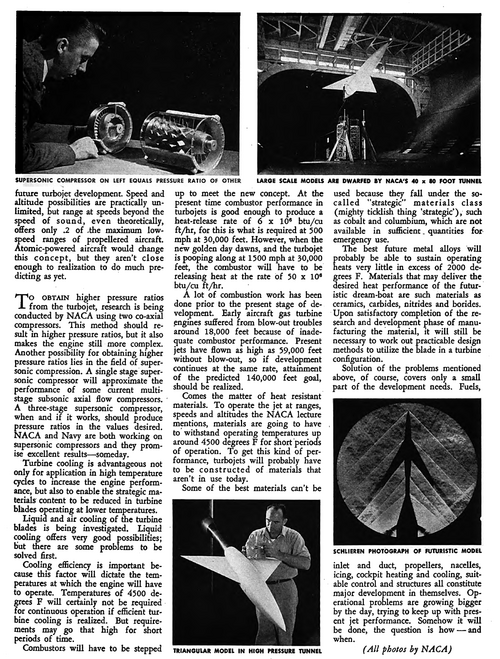

From Naval Aviation News 1955.



[hesham]

From Naval Aviation News 1949.



[hesham]

From Naval Aviation News 1947,

I can't ID first three aircraft ?.



[hesham]

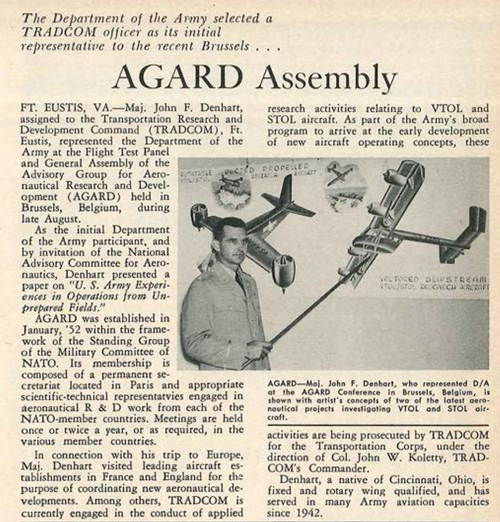

From Army Aviation 1956/9.



[hesham]

From Army Aviation 1956/9.

I can't ID the second concept from which company ?,far right.



[Stargazer]

I can't ID the second concept from which company ?,far right.

Not sure, but the wing makes it look like a development of the Fairchild M-224 Fledgling (VZ-5).



[hesham]

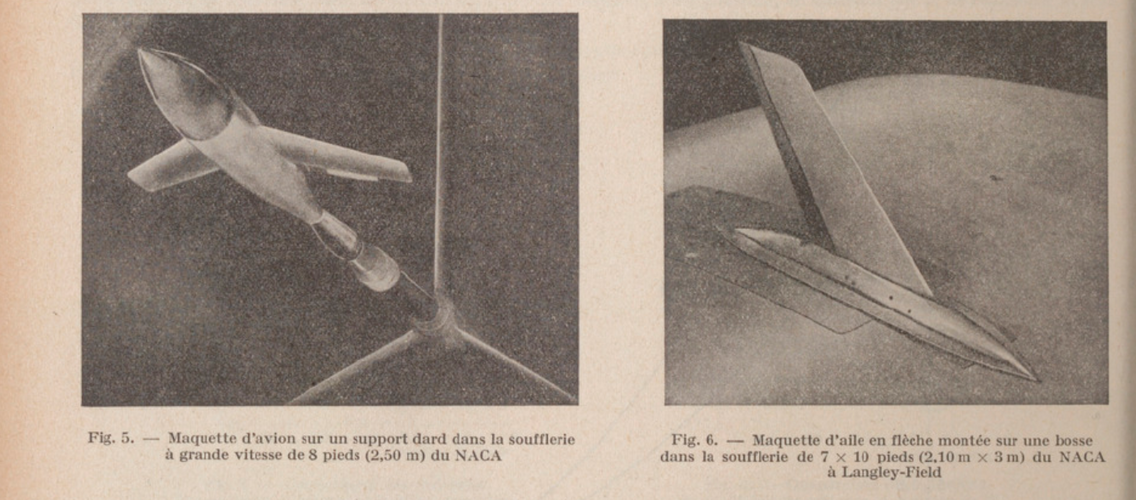

From, Technique_et_science_aéronautiques_Association_des_bpt6k30786039, 1950.
