Meteorit missile system

Trident

ACCESS: Top Secret
Senior Member
Joined
May 8, 2006
Messages
1,289
Reaction score
791
Looks like the wings make extensive use of some form of honeycomb material.

OT EDIT: Oh, BTW:

flateric said:
Will make walkaround and upload. Anyone will be here at MAKS, too (except Paralay)?

*raiseshand* I will be there on Saturday for certain, possibly on Friday and/or Sunday. Since you've already been there, is the Il-76LL testbed with the NK-93 propfan on display for the public (I know it's there, going by the attached photo from aviaforum.ru)?


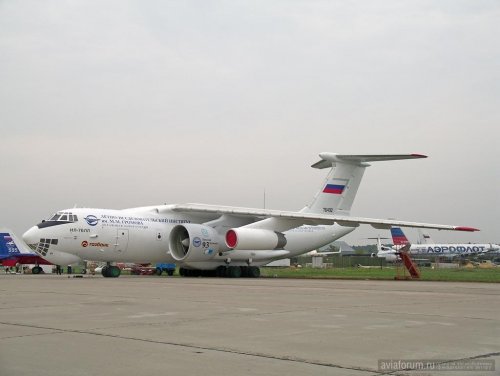

Attachments

  • IMGP8957.jpg
    60.9 KB · Views: 265

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886
Ha-ha...then NPOmash gremlins looking like group of Homer Simpson daddies were joking on me)) Said exactly that was told.
Hey, Muxel, we need to find another shashlyk factory today to have a meal today with Paralay. Was very nice to meet you)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886
OK, in fact this is mockup. I see the second article saying that Meteorit-A (air-launched) mockup was shown at MAKS, but use to trust Muxel as he has long NPOMash roots. For example, where the damn carry pylon attachment points?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886
OK, I'd then will use reverse thinking))) BTW, on the photos you can see group of NPOMash guys with badges under the Meteorit - they supplied me with all that controversy data. Sub-launched version lacks part of beauty without that booster tail.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,687
Reaction score
7,999

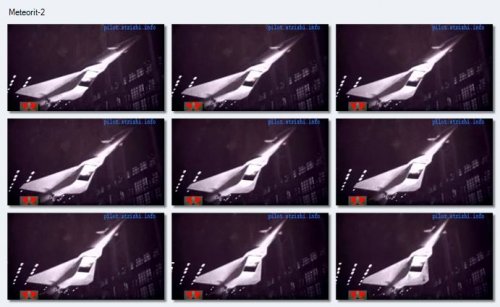

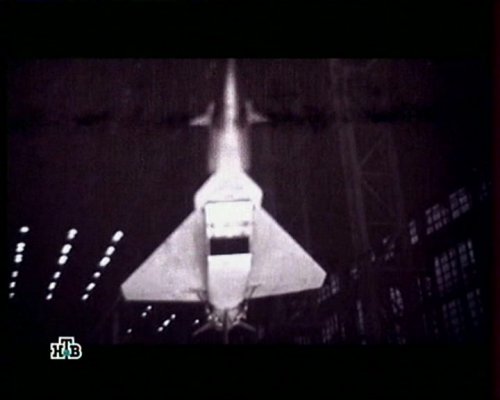

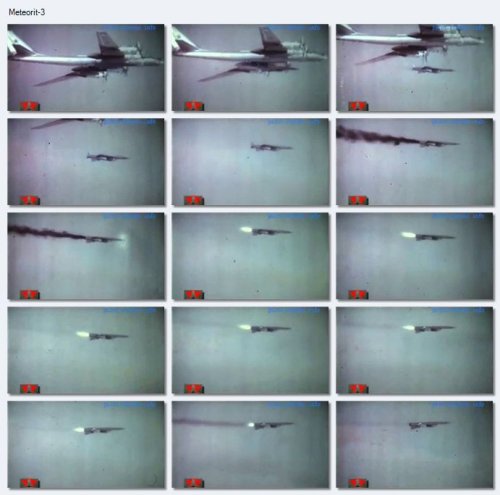

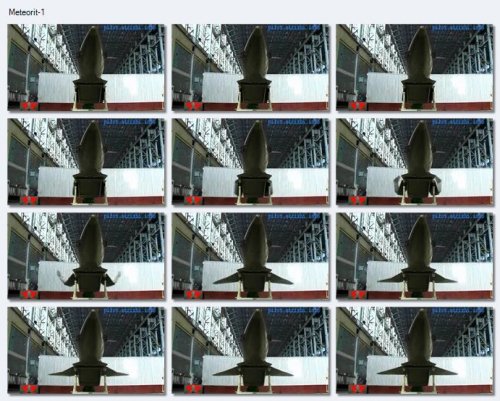

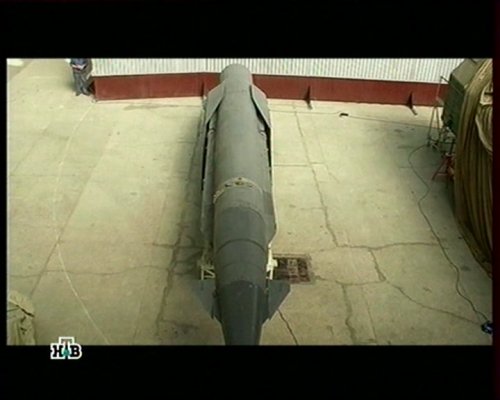

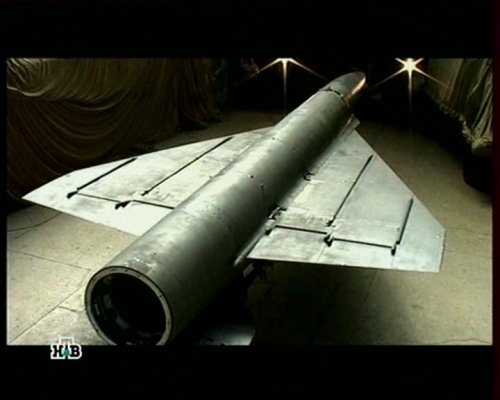

clipped out relevant parts from video


Attachments

  • Meteorit3.avi
    843.3 KB · Views: 84
  • Meteorit2.avi
    129.2 KB · Views: 73
  • Meteorit1.avi
    59.7 KB · Views: 78
  • Meterorit-3.jpg
    53.1 KB · Views: 561
  • Meterorit-2.jpg
    49.7 KB · Views: 535
  • Meterorit-1.jpg
    102 KB · Views: 500

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886
Sergey Kuznetzov promised more on Meteorit, Skat and Su-35 in the nearest shows.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886

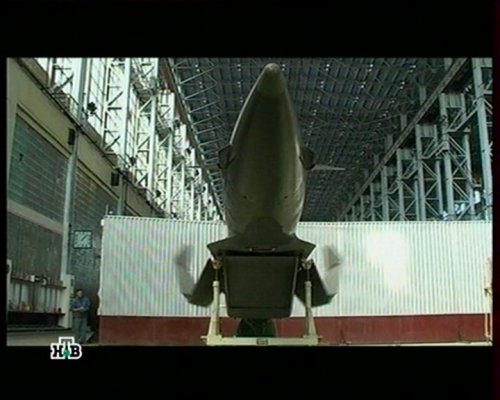

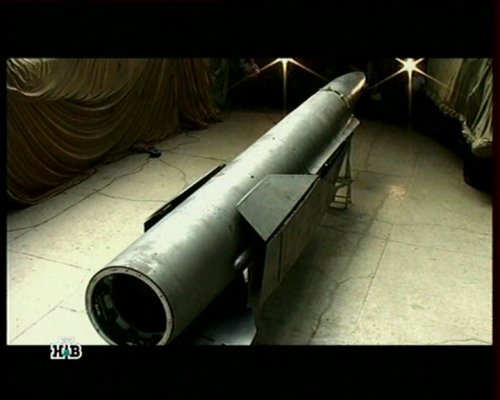

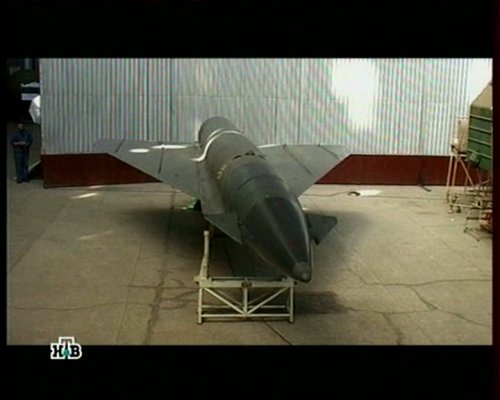

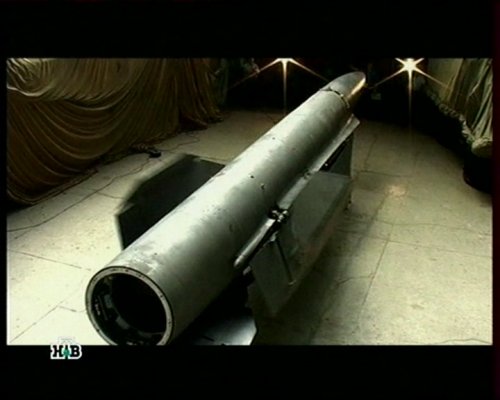

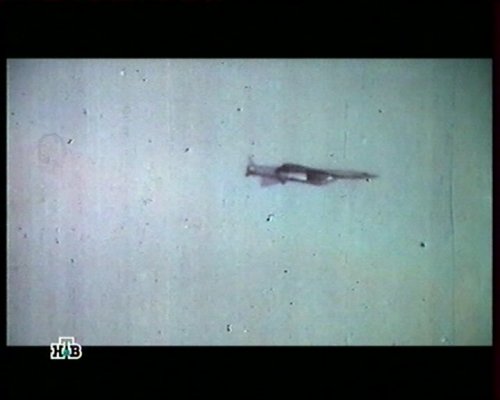

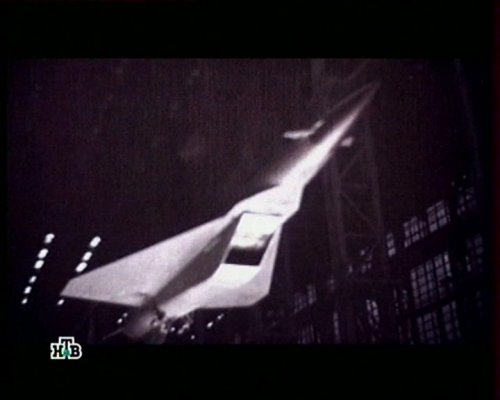

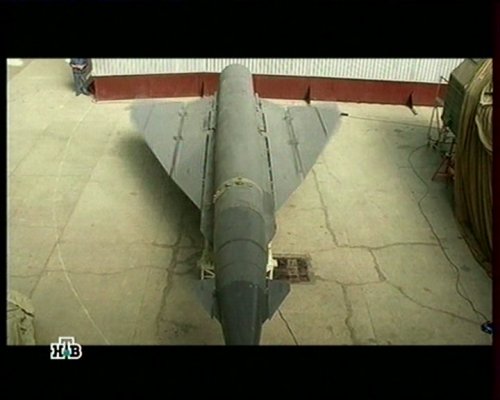

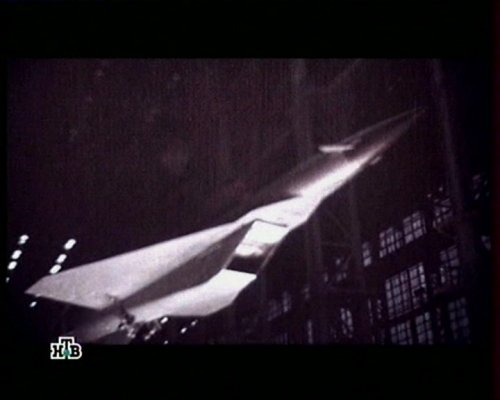

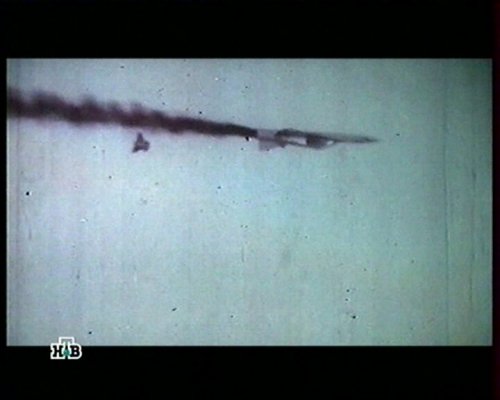

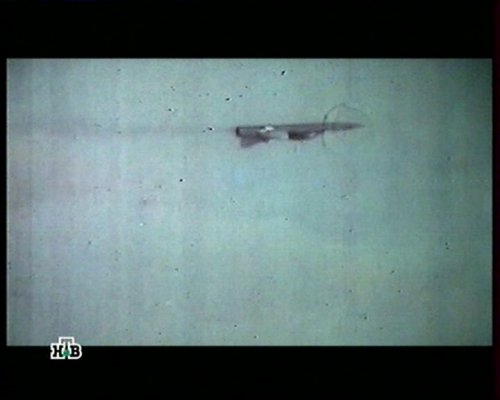

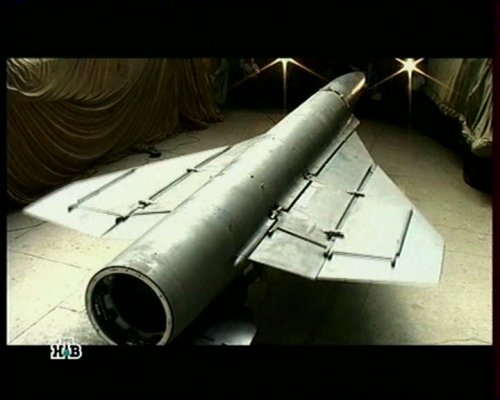

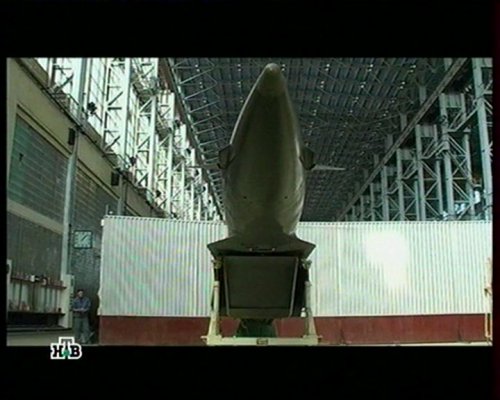

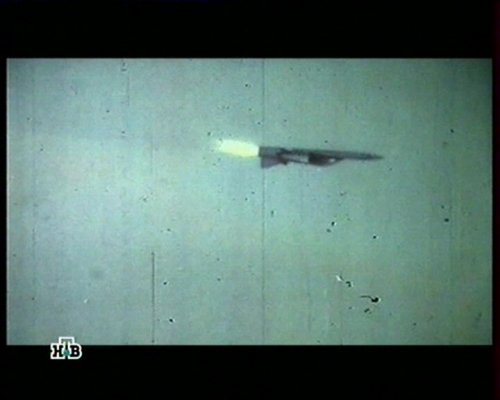

Here we go...from the last Smotr (Parade) weekly show. Original footage from NPO Mashinostroyeniya, (c) NTV channel


Attachments

  • Untitled-8.jpg
    84.9 KB · Views: 131
  • Untitled-7.jpg
    108.3 KB · Views: 86
  • Untitled-6.jpg
    109.2 KB · Views: 85
  • Untitled-5.jpg
    105 KB · Views: 89
  • Untitled-4.jpg
    108.3 KB · Views: 82
  • Untitled-3.jpg
    60.8 KB · Views: 89
  • Untitled-2.jpg
    66 KB · Views: 361
  • Untitled-1.jpg
    68 KB · Views: 372

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886

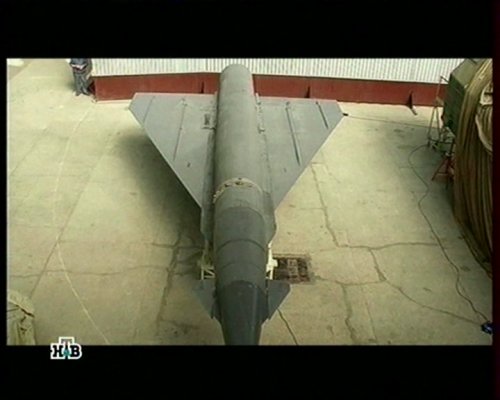

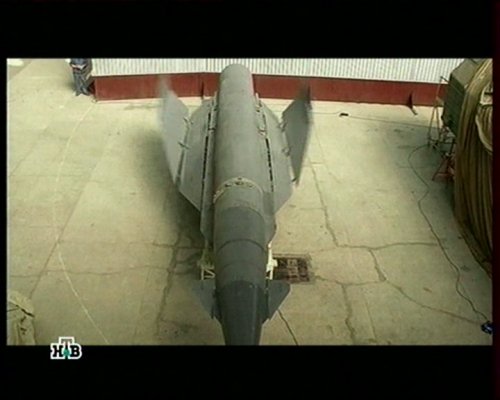

more


Attachments

  • Untitled-17.jpg
    81.6 KB · Views: 90
  • Untitled-16.jpg
    83.5 KB · Views: 80
  • Untitled-15.jpg
    82.6 KB · Views: 84
  • Untitled-13.jpg
    79.6 KB · Views: 96
  • Untitled-12.jpg
    81.6 KB · Views: 100
  • Untitled-11.jpg
    82.7 KB · Views: 97
  • Untitled-10.jpg
    77.2 KB · Views: 82
  • Untitled-9.jpg
    86.2 KB · Views: 100

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886

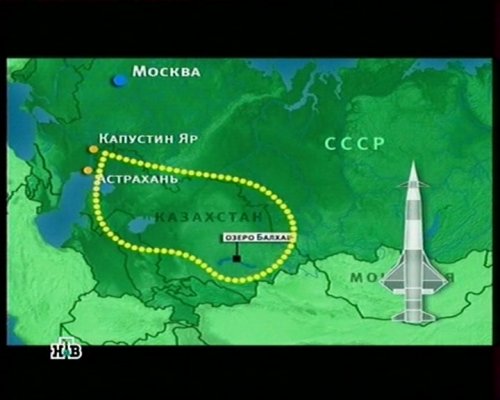

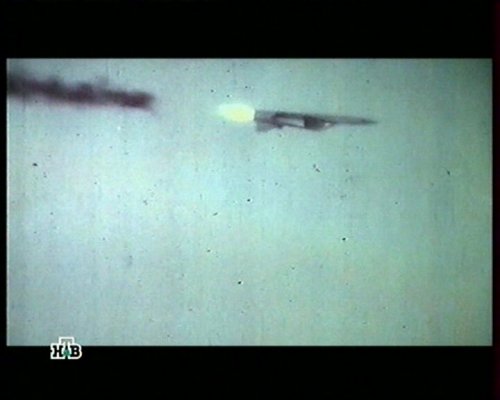

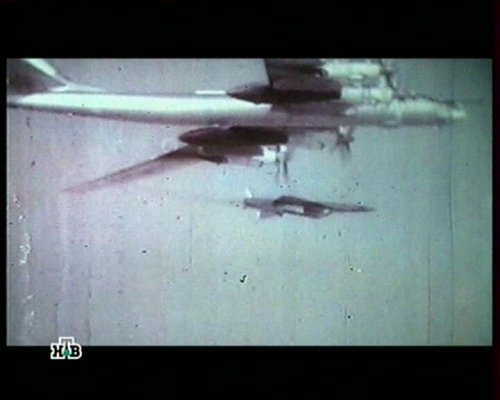

air launch, test route


Attachments

  • Untitled-22.jpg
    93.1 KB · Views: 155
  • Untitled-20.jpg
    62.7 KB · Views: 85
  • Untitled-21a.jpg
    66.8 KB · Views: 76
  • Untitled-18.jpg
    71 KB · Views: 74
  • Untitled-17a.jpg
    77.6 KB · Views: 73
  • Untitled-21.jpg
    79 KB · Views: 85
  • Untitled-19.jpg
    80.9 KB · Views: 109

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,741
Reaction score
3,708
Given all the press around the RATTLRS engine that's actually pretty impressive that they got 3000 miles out of a Mach 3 turbojet. Was it an afterburning engine?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,305
Reaction score
1,886
Engine details, as much of means of RCS lowering, are still classified. Meantime, missile shown at MAKS, was with real hardware engine - but inlet and exhaust were closed from curious eyes.


SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,223
Reaction score
101
Interesting drawing here showing a Meteorit-M inside of a launch tube:


Isn't all that accurate, as the booster is clearly much larger than indicated as seen in the photo, but still interesting.

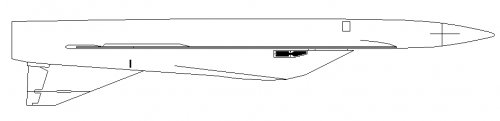

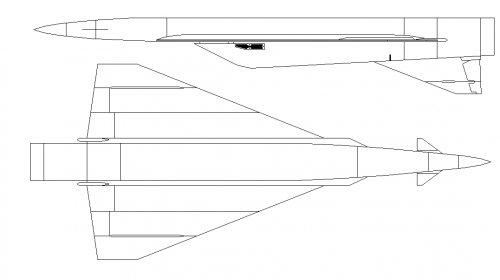

Attached a very early WIP profile view of the 3M25. Some things are a bit off, like the positioning of the wing with relation to the centerline of the exhaust, but hey, this is only a starting point. And it's just become the most accurate 3M25 profile on the web that I can find, so there ;D


Attachments

  • 3M25 WIP.jpg
    3M25 WIP.jpg
    32.4 KB · Views: 74

SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,223
Reaction score
101
Revised 3M25. I still don't think the wings are quite right, but they're close enough for now. This is basically an updated version of the first profile, with a top view added. I think at this point to really get it more accurate I'll have to start over entirely from scratch and try and do the entire thing based on measurements.


Attachments

  • 3M25REVISED.jpg
    82.2 KB · Views: 95

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,687
Reaction score
7,999

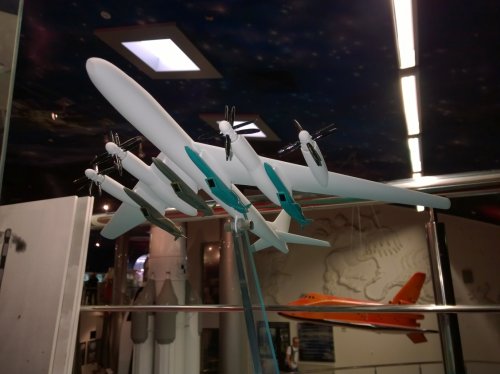

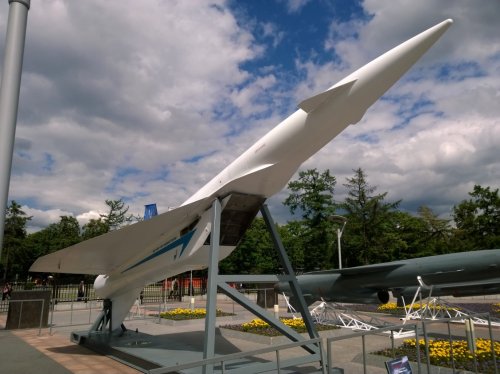

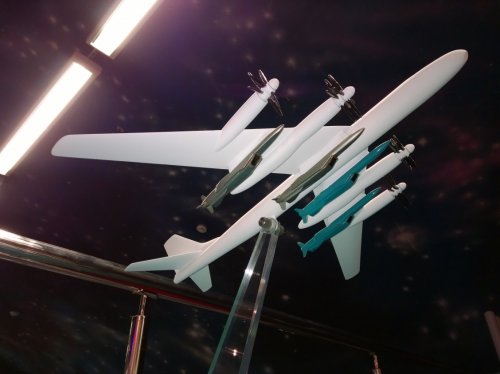

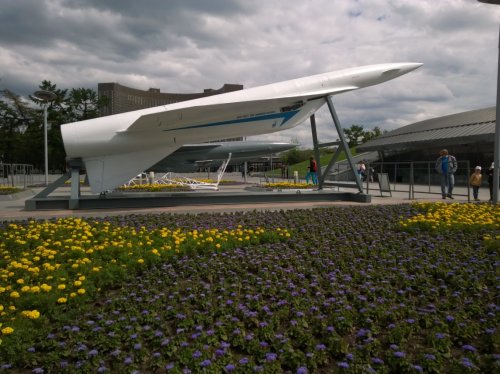

Attachments

  • wp_20140626_15_32_32_pro.jpg
    220.7 KB · Views: 124
  • wp_20140626_15_31_29_pro.jpg
    236.9 KB · Views: 109
  • wp_20140626_15_04_52_pro.jpg
    323.4 KB · Views: 66
  • wp_20140626_15_03_38_pro.jpg
    397.3 KB · Views: 60
  • wp_20140626_15_10_19_pro.jpg
    391.5 KB · Views: 69

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,687
Reaction score
7,999
http://nvo.ng.ru/realty/2013-04-12/1_meteorit.html

Flight manmade "Meteorite"

Cruise missiles almost shaken strategic nuclear parity
Michael Kardashev

About the Author: Michael H. Kardashev - an independent expert for more than 20 years working in TsNIIMash, led the research sector at the Center for System Studies.

Tags: arms , weapons , missiles , air defense

armament, weapons, missiles, air defense Cruise missile "meteorite-A" at the International Aviation and Space Show in Zhukovsky. Photo by Victor Litovkina Sitting by the radar screens of air defense operators closely monitor rapidly moving air target mark. The speed of its flight was extraordinary - three times the speed of sound. Suddenly blip disappeared from the screens, but after awhile reappeared. Unusual flying object that can become invisible to radar, was undergoing tests newest domestic strategic cruise missile "meteorite." On International Air Show held in Zhukovsky near Moscow in the summer of 2007, apart from the main exposure was skyward unusual in its what- then form futuristic winged aircraft. On the plate was dry at the exhibit reads: "JSC" NPO engineering. " "Meteorite-A." Supersonic cruise missile air-based long-range, allowing strikes on enemy targets without entering the zone of the active defenses. Equipped with turbojet sustainer and after the start of the drop-down in flight wing. Has inertial control system with additional correction of the flight path. In developing missiles (70-80-ies), a number of unique systems. " Most visitors passing by the airshow reading event data moved on. Indeed, the text labels that little could be understood. Some missile with a range of strange and unique systems of some mysterious. At this time in the sky performed aerobatics world famous MiG-29 and Su-27. It was much more interesting. Meanwhile, standing aside the missile was one of the most unique developments in the history of rocketry. Only a few visitors up to her amazement, cried: "Yes, it's" meteorite "- and happy, photographed next to the exhibit. Many of them 30 years ago stood at the drawing boards chelomeevskogo KB Reutov and drew her first contours. threat to strategic parity In 1972 the U.S. launched work on the creation of a qualitatively new kind of strategic offensive weapons - stealth low-flying subsonic strategic cruise missiles. Develop sea-based cruise missiles BGM-109A «Tomahawk" air-based AGM-86B and ground-based GLCM had amazing TTX. Launch mass "Tomahawk" was about 1.45 m, maximum range - 2,5 thousand km, speed - 885 km / h, altitude - 30-150 m, length - 6.25 m, diameter of the case - 0.52 m, accuracy is several times higher than that of an ICBM. To launch the missile could have used standard torpedo tubes 533 mm. First time in the history of rocketry strategic missiles on weight and dimensions equal the tactical missiles. Essentially, it was a revolution in the means of delivering nuclear weapons. Submarines, surface ships, strategic bombers and land-based mobile launchers could be deployed to 7 thousand cruise missiles. The result was a serious threat to breach a military-strategic balance. To parry a new threat in 1976 by the decision of the Soviet government began to develop missiles with subsonic strategic cruise missiles, like the American. The head developer of the sea-based "Garnet" became Sverdlovsk KB "Innovator" (Chief Designer Leo Lyulev) and complex air-based X-55 - Dubna "Raduga" (general designer Igor Seleznev). These missiles were to be symmetrical response to the new U.S. missiles. However, significantly large number of marine and aircraft carriers, as well as the presence of the U.S. bases near Soviet territory predetermine their future excellence in the deployment of a new kind of offensive weapons. As an asymmetric response to American cruise missiles of a new generation engineering CDB Chief Designer Vladimir Chelomei proposed to create an entirely new high-altitude supersonic cruise missile possessing long range and low radar signature, the ability to effectively overcome the enemy air defenses. Her starting weight was to be about 6-8 m, speed - three times the speed of sound (M = 3), range - twice more than the KR U.S. level radar visibility - two - three orders of magnitude less than existing cruise missiles, precision shooting (CWE) - a few hundred meters. The rocket was to be standardized for sea and air-based. first supersonic cruise missiles Work on the creation of high-altitude supersonic cruise missiles were launched in the 1950s. In the United States from 1950 to 1957 developed supersonic intercontinental cruise missile (MCS) ground-based "Navajo." In 1957, work on the rocket were discontinued. Unique in the history of rocketry MKP, being armed, was an American "Snark", but she had a subsonic speed. In the Soviet Union since 1954 developed supersonic high-altitude ground-based MCS "The Tempest" (KB Seeds Lavochkin) and "Buran" (Vladimir Myasishcheva KB). Cruising speed missile flight was 3.1 m, height - from 17 to 26 km. Work on these missiles were discontinued in 1957, respectively and 1960, the CDM "The Tempest" are undergoing flight tests. MKP had considerable weight and dimensions. Starting weight of "Storm" was 98.3 tons, "Buran" - 175.5 m, and "Navajo" - 135 tons Even the smallest of these missiles - "The Tempest" - had a length of about 20 m Supersonic cruise missiles and sea air-based had a relatively small range. Maximum range of domestic air-based cruise missiles X-22mA, entered service in 1974, was 560 km speed - 4 M, the starting weight of about 5.9 tons in the United States developed from supersonic aircraft cruise missiles maximum range (1180 km) had "Hound Dog." The speed of its flight was 2 M, and the starting weight - 4,35 m supersonic sea-based KR Soviet Navy P-500, entered service in 1975, had a range of 500 km, the speed of 2.5M and a launch weight of 4.8 ie U.S. supersonic cruise missiles had sea-based. They abandoned their creation in 1958, ending the rocket development "Regulus-2" on the stage of flight tests. The maximum range of this missile is 1850 km, speed - 2 M, ie starting weight -10.4 As can be seen, all of the cruise missiles had very distant tactical and technical characteristics of the set for "Meteorite." "Black Cat" and "The Raven " At the end of 1969 in Kazakhstan (according to other sources, in Mongolia) was found lying aircraft unusual shape, which had no markings. The unit was transferred to Moscow to study at KB Andrei Tupolev. For black color, which was covering the machine, he was nicknamed "Black Cat". It turned out that an American reconnaissance drone embarked after running out of fuel. Development unmanned intelligence apparatus was launched in 1962. The first version of the Scout D-21A was placed on top of the fuselage of a supersonic aircraft M-21, which took flight speed up to 3 M. The launch weight of D-21A was 5 m, the estimated maximum flight range - 5550 km, speed - 3.2-3.5 M, altitude - up to 29 km in length - 13.1 m Wingspan - 5,8 m Once in one of the tests was an accident (D-21A in the separation hit the plane), we decided to use as a carrier bomber B-52 with the placement of the device on the underwing pylons. Since the start of the B-52 unit had subsonic speed needed to equip its solid rocket boosters. The starting weight of the device D-21B with the accelerator was 12 mt Characteristics sustainer stage remained unchanged. From 1967 to 1971 there have been 16 launches from the aircraft, four of which were intelligence. In starting November 9, 1969 D-21B and made so successful landing, after which appeared in Tupolev. After evaluating the characteristics of the intelligence apparatus D-21B, Tupolev carried out in 1971, the government decided a preliminary design was developed unmanned supersonic long-range reconnaissance aircraft "The Raven". Its characteristics are close to the unit implemented in D-21B. Development of reconnaissance aircraft refused, because at that time rapidly developing means of space exploration. Thus, the closest flight performance (subject to the conditions start with subsonic aircraft carrier) to specify the Missile "meteorite" had a U.S. unmanned reconnaissance aircraft D-21B.

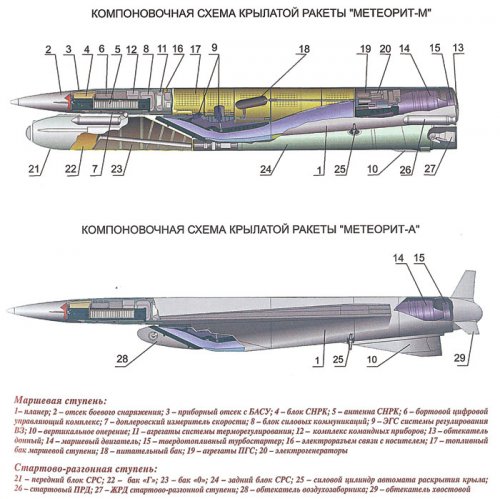

Marching step: 1 - Glider; 2 - compartment of military equipment; 3 - instrument compartment with BASS; 4 - ECAM unit; 5 - ECAM antenna; 6 - onboard digital control complex; 7 - Doppler velocity; 8 - unit power utilities; 9 - EGS control system OT; 10 - vertical tail; 11 - aggregates thermal control system; 12 - complex command devices; 13 - fairing bottom; 14 - boosters; 15 - solid turbine starter; 16 - electrical connector connection with the carrier; 17 - sustainer stage fuel tank; 18 - Nutrient tank; 19 - ASG units; 20 - электрогенераторы.Стартово-stage booster: 21 - Front unit CDS; 22 - tank "G"; 23 - tank "O"; 24 - rear unit CDS; 25 - jack machine disclosure wing; 26 - starting DWP; 27 - LRE starting-booster system; 28 - cowl air intake; 29 - tail fairing. Courtesy of the author

BIRTH cruise missiles

in our country aircraft with characteristics close to those available to the D-21B, was not. At the same time, it was required that at a similar machine with the American range, speed and altitude rocket "meteorite" was twice lower launch weight, higher accuracy, lower level of radar visibility and, moreover, carried a special combat unit and means break defense. Creating a strategic cruise missile was fundamentally new and complex technical problems.
in 1976 was prepared by a technical proposal for missile system, and the following year - completed its preliminary design.

missile aerodynamic design was chosen "duck" with a delta wing, front horizontal rudder surfaces (destabilizers) and vertical tail at the bottom of the rear fuselage. To reduce the size of the rocket when placed on the media wing and keel were made foldable. In the rear fuselage housed marching turbojet. As the engine inlet used a flat ventral air intake adjustment. Sea-based missiles in addition to the main engine was starting-booster stage, consisting of two liquid rocket engines.

Virtually all missiles had to develop anew. As sustainer propulsion system was chosen turbojet. Ufa KBM developed korotkoresursny KR-23 turbojet engine capable of operating in a wide range of flight conditions: speed of 0.4 to 3 m and a height from 0 to 24 km. Abroad engines with such a range of operating conditions was not.

Key to improving opportunities for missile defense breakthrough was achieving low radar signature. Has created a new, not having analogues in the world, a special electronic installation. Its principle of operation is based on the effect of absorption of external electromagnetic radiation. When creating an electronic installation used the results of scientific research and experiments to disguise spacecraft at altitudes above 100 km. These experiments were conducted CDBMB and Institute of Thermal Processes (now - Research Center Keldysh). However, creating a board electronic systems for masking relatively large size of the aircraft, which was a cruise missile flying at an altitude of 20-25 km, was a completely new and challenging. In this area not previously conducted research even work. Calculations showed that the electronic setting will have greater power consumption and high voltage to the executive bodies. This created additional complexity in the limited capacity of the onboard power sources cruise missile and the need to ensure electromagnetic compatibility special electronic installation with other electronic systems.

Development of Electronic Position Institute of Thermal Processes carried out under the supervision of Corresponding Member of the USSR Academy of Vitaly Ievleva. The installation was created and passed a full range of bench and full-scale flight tests. During flight tests "meteorite" when you turn on the indicators of the electronic unit air defense radars observed decrease in brightness blips, unstable tracking and loss of marks.

Reduced missile radar visibility was also ensured by eliminating the sharp breaks surface-swept wings and stabilizers, wide application of radar materials and coatings used inside the engine inlet duct special pereotrazhayuschey lattice. Application of radar absorbing materials and coatings, as well as special electronic installation provided a lower effective surface cross section (RCS) missiles in two-three orders of magnitude depending on the wavelength of the irradiating radar. To reduce the visibility missile infrared radiation spectrum on the nozzle of the main engine was equipped with a special nozzle which ensured shielding IR flare.

The rocket was installed on-board radio protection, include broadband signal receiver operating enemy radar, Jammer (SAP) and towed decoys (LC). During the flight, depending on the radar situation and the threat posed by antiaircraft fire had included a special electronic installation, use SAP and towed decoys. First towed decoys were set at supersonic cruise missile. At the same time it took to solve the problems associated with separation and deployment of a towing cable length of about 100 m at supersonic speed.

Another fundamentally new system developed for the rocket "meteorite" was the navigation system on the radar map area (ECAM "Frame"). This system was supposed to work together with the inertial missile control and implement periodic correction trajectory of a missile by comparing observed in flight radar image area with the existing on-board reference image. The complexity of such a system has been associated with the variability of characteristics in different areas reflect seasonal and weather conditions. ECAM "Frame" was created and successfully tested. The lead developer of missile control was CB "Electropribor" (chief designer Vladimir Sergeev) and correction system - Institute of Precision Instruments (chief designer Yuri Kozko).

As the carrier rocket "meteorite-A" was chosen strategic bomber Tu-95MS. The modernized bomber, designated Tu-95MA, external load could be placed under the wings of two or four missiles. For testing the aircraft was equipped with two pylons for rockets. In the bomb bay housed equipment management system training and missile launch "Lear." In developing a strategic weapons bays of the Tu-160 rocket would not fit. Length KR "Meteorite-A" was 12.1 m, and weapons bays Tu-160 had a length of 11.3 m

To organize missiles "Meteor-M" decided to convert nuclear submarine project 667A, are carriers of strategic missile complex D-5 . At a converted boat (Project 667M "Andromeda") hosted 12 cruise missiles "Meteor-M". Launchers were located at the board (six on each side) between lightweight and rugged 45-degree angle. Missiles could start from the submarine and surface position.

PERFORMANCE missiles "meteorite" (specifications are based on data published in the press).
launch mass, kg
"Meteor-M" - 12 650 (with a boost stage)
"Meteorite- A "- about 6,400
Weight starting-booster stage rocket "Meteor-M", kg - 6233
Range, km - 5000
Flight altitude, km - 22-24
Airspeed - 3 M
Missile length, mm - 12 100
Diameter of the fuselage, mm - 780
The diameter of the circle around KR (with wings folded), mm - 1650
Wingspan, mm - 5100
autonomous inertial control system with correction for radar map terrain
Sustainer engine turbojet KR-23
engine starting-booster stage - two LRE 3D-24
In addition to strategic missiles sea and air-based NGOs were studied mechanical engineering and other applications of the rocket "meteorite". Among them: a reconnaissance and strike antiship cruise missile complex "meteorite-P" rolling onshore and offshore, as well as ultra-long interceptor air targets, the missile-armed "air-to-air."

FLIGHT TEST

Flight tests cruise missile "meteorite" were very difficult and lasted 11 years. This was due to principal novelty key missile systems. Total was performed 70 starts.

From 1980 to 1989 was carried out 31 missile launch "Meteor-M" from the ground stand, submersible launch complex and a submarine. From 26 starts from the ground stand and submarine 8 were partially successful and 12 - successful. By decision of the Council of Ministers of the USSR in 1990, work on the missile system "Meteor-M" was terminated. State Commission had recommended the accumulated scientific-technical and production potential use to create high-altitude supersonic strategic cruise missiles in the variant with conventional equipment.

Between 1984 and 1991 there were 20 launches of the Kyrgyz Republic "Meteorite-A" with the Tu-95MA. Of the last five rockets from aircraft three launches were successful in starting a rocket flight occurred due to failure of the aiming point navigating the complex plane, in another - not including an electronic system to reduce radar visibility. In the penultimate start, held June 6, 1991, examined the possibility of overcoming missile defense.
Here is a test as described in the book "Bright trail winged" Meteorite ", one of the authors of which is the honorary general designer of" MIC "NPO engineering" Gerbert Yefremov.

" At a given time was included multifunctional protection. After the detection of radiation and ground radar signal "Discovery" team was involved from MFKZ special installation that is not due to the failure started operation. The missile had been unmasked. Latest missile air defense systems (S-200) was launched two missiles: the first in the telemetry mode, the second - in the fighting. Under certain time and trajectory of a missile "meteorite" was destroyed only fragments second missile warhead. Through the use of only one installation of the first missile decoy turned away from the LC. "

"Meteor" And SNF

Despite the very high level of cruise missiles for tactical and technical characteristics, Missile "Meteor-M" could not make a significant contribution to the combat capabilities naval strategic nuclear forces in a retaliatory strike. Upon successful completion of the work in 1990 and the allocation under the complex "Meteor-M" 12 Project 667A submarines in deployed cruise missiles would amount to 144 units. During this period, SLBMs deployed nuclear warheads in 2804. Thus, the number of nuclear warheads deployed on missiles "Meteor-M" would amount to 5% of the SLBM warheads. Due to the relatively small range of flight KR "Meteor-M" missile submarines to attack targets in the United States would have to break through the boundaries of ASW system SOSUS. Cruise missiles were overcome powerful air defense system of the North American continent, which already in service consisted multichannel SAM "Patriot" that can intercept high-speed air targets. Unlike cruise missiles SLBM could not be intercepted air defense system, and missile defense systems were limited in force at the time of the ABM Treaty of 1972.

In 1990, the vast majority (93%) SLBM warheads placed on missiles with intercontinental range. Submarines with such missiles could be used by remote enemy targets without leaving the Soviet Navy controlled waters near its coast. In this regard, combat stability submarines equipped with intercontinental SLBMs, was significantly higher than that of missile-armed KR "Meteor-M". The contribution of complexes "Meteor-M" in retaliation effectiveness of naval strategic nuclear forces would amount to less than 1%.

was to create a more grounded aircraft missile system "Meteorite-A." Air Force unlike Navy ballistic missiles armed with had. MARK missiles (intercontinental aircraft missile system) and "Merlin" with air-launched ICBMs, which could compete with the complex "meteorite-A" on the level of combat effectiveness, the 1970s were in the early stages of development, and then came under the long-term ban treaties SALT and START-2-1. According to the level of TTX cruise missile "meteorite-A" was significantly outperform the armament of the bombers, cruise missiles like the X-22. KR "Meteorite-A" is a strategic cruise missile next generation with fundamentally new and unique qualities. According to the flight range of the KR "Meteorite-A" was twice surpass develop strategic subsonic cruise missile Kh-55 could enhance the combat capabilities of heavy bombers to defeat the enemy distant objects.

Rockets' Meteorite-A "and X-55 used a completely different ways to overcome the defense . Launch "meteorite-A" was designed for supersonic breakthrough defense at high altitudes using a multifunctional complex remedies (MFKZ), and X-55 was to overcome defense subsonic through low visibility and low-altitude flight. Combined use of these missiles could complicate interception of enemy air defenses. When this rocket "meteorite-A" could be used to suppress air defense systems before approaching subsonic Kh-55 missiles.

In 1991 all work on the complex "Meteorite-A" were stopped. In these years there have been many other such contradicting common sense solutions, including: inclusion of funds liquidated on the INF Treaty, the latest ballistic missile "Oka" tactical and technical characteristics did not have any relation to it; elimination of the most powerful domestic groups strategic naval nuclear missile system "Typhoon", which included six submarines of Project 941 armed missile complex D-19 to R-39 SLBMs; elimination of 12 combat railway missile complexes with ICBM R-39UTTH.

's been 36 years since the beginning of the deployment in our country works on strategic cruise missiles long range. During this time radically changed the requirements for this class of missiles. Now they need to have an intercontinental range, hypersonic flight (at least 5-7 M), flight altitude of 30 km, accuracy (CEP) of 5-10 m Nevertheless scientific, technical and experimental aircraft touched on unique on-board systems, created with the development of a complex "meteorite" is still not out of date and can be used when creating a new generation of cruise missiles.


Attachments

  • 13-7-1.jpg
    113.1 KB · Views: 186
Last edited:

Abingdon

ACCESS: Confidential
Senior Member
Joined
Jul 9, 2007
Messages
54
Reaction score
84
The Kardashev article is probably a condensation of the 250 page book that NPO Mashinostroyenie released in 2012 "Yarkiy sled krylatogo "Meteorita". Quite expensive for a Russian book, about R2,205 when I bought a copy in Moscow last year.


Attachments

  • img239.jpg
    60.4 KB · Views: 224

tequilashooter

ACCESS: Top Secret
Joined
Jan 2, 2021
Messages
701
Reaction score
824

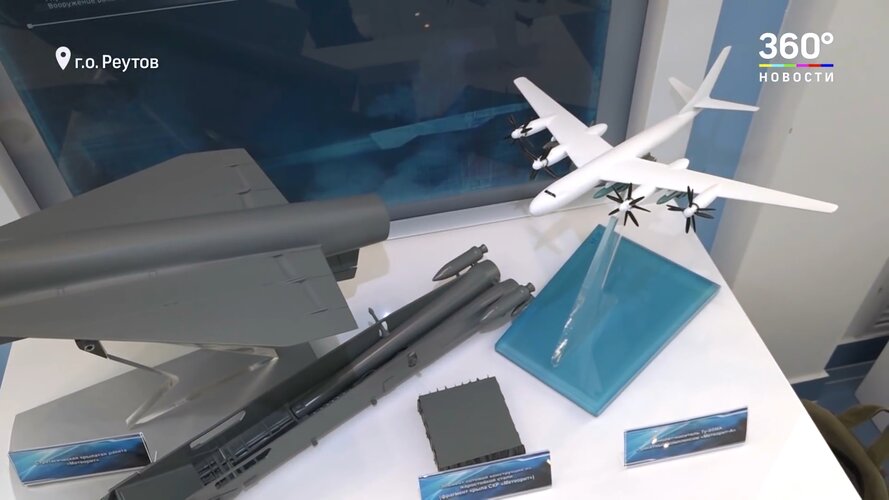

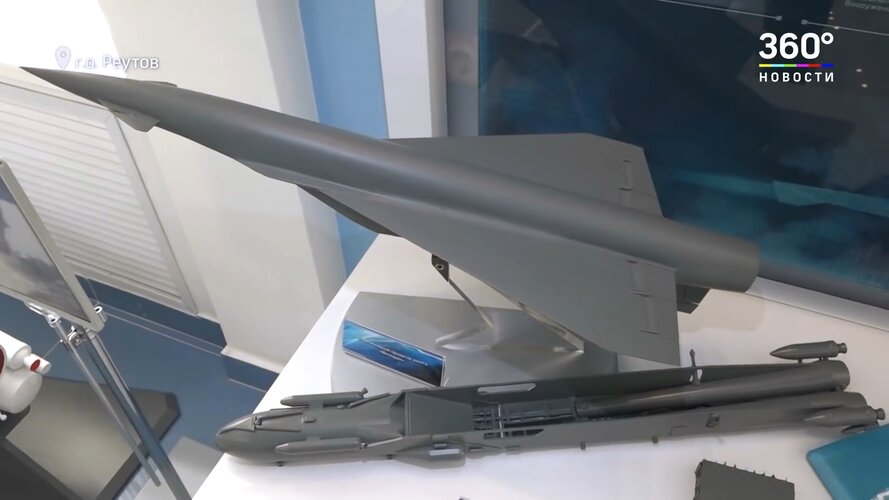

The Scientific and Manufacturing Association of Mechanical Engineering (NGO Mash) has declassified a unique plasma cannon, which made the strategic supersonic cruise missile 3M25 "Meteorite" invisible to enemy radars and anti-aircraft systems. At the moment of exposure to enemy radar "Meteorite" created around itself an impenetrable cloud of ionized gas for radar radiation. Unique cannons will be transferred to Russian universities within the next year as a training tool for future engineers and designers in the design of hypersonic aircraft.

As told to Izvestia in the NGO Mash, at the moment negotiations on the transfer of unique products are underway with the leadership of the Moscow Aviation Institute, the State Technical University of Im.N. Bauman, the Baltic State Technical University "Voenmeh" by D.F. Ustinov and the Ural State University by I.B.N. Yeltsin.

According to the tactical-technical mission, the 3M25 was to fly at speeds close to hypersonic, and be invisible to enemy radars. But the designers of the NGO Mash faced a problem.

"It is best to see the blades of the engine turbine and the edge of the air intake when the aircraft or the cruise missile is irradiated by radar. These elements of the design are similar to corner reflectors," Dmitry Kornev, editor-in-chief of the Militaryrussia Internet project, tells Izvestia. "By hiding these elements of the structure from the radar, we solve the problem with the radar visibility of the aircraft by 70-80%. Therefore, the stealth aircraft make an air intake in the form of the Latin letter S. Its bend blocks the passage of radio radiation, but at the same time does not allow the rocket or aircraft to fly at supersonic speed.

The designers of the NGO Mash equipped the product with a normal air intake, allowing to develop supersonic speed, and protected it from enemy radars with a plasma screen.

Plasma is an ionized quasi-neutral gas.

The plasma screen on the Meteorite is formed by a special electronic device - a "plasma gun" created by specialists of the Keldysh Research Center. The unique device is located in the area of the air intakes of the rocket's jet engine and at the moment of danger as if it is deploying a "metal radio absorbing network" in front of the rocket. It is powered by electricity generated by a special electrical unit powered by a rocket's marching engine.

Anatoly Koroteev, director of the Keldysh Center, described to Izvestia the principle of its work:

"If you throw a tennis ball into the wall, it will bounce and come back," the specialist says. "The radar signal also bounces off the plane and returns to the receiving antenna. If the wall is angular faces and tilted they in different directions, the ball will bounce anywhere, but will not come back. American stealth is based on this principle. If you cover the wall with soft mats and throw a ball at them, he will just slap it, lose energy and fall next to the wall. Also, plasma formation absorbs the energy of radio waves.

The complex with the Meteorite cruise missile was being prepared for service. A full ammunition was manufactured for installation on the strategic missile submarine cruiser of the 667AM project. However, the agreement between the USSR and the United States on the limitation of strategic weapons (SALT-2) stopped work.

"Specially to create a plasma screen in front of a cruise missile is no longer as relevant as it was in the 80s of the last century, when the Meteorite was developed," Vadim Kozyulin, a professor at the Academy of Military Sciences, told Izvestia. - The machine was made under the then conditions of missile defense breakthrough, when the enemy could notice it only on the opposite course. Today, radars are irradiated from above, from below, from the side. Therefore, the only way to go unnoticed is to fly at hypersonic speed of six or more Machs. At such speeds, a plasma cloud is formed around the device itself. And what is important here is that Russia already knows how to use it both as a radio-absorbing shield, and as an antenna, with which it is possible to transmit signals of combat control.


Since it sounds like they do not need plasma cannons anymore does anyone know where they were particularly originally located in the missile in how they looked like? only thing on the aircraft side the keldysh center claimed was a 20 decibel reduction.


TMA1

ACCESS: Confidential
Joined
Feb 6, 2021
Messages
170
Reaction score
236
Fascinating final point though not sure what the whole truth is concerning the plasma buildup being used as antenna as well as cloak. The rest of the article is interesting as well.


stealthflanker

ACCESS: Top Secret
Senior Member
Joined
Feb 12, 2010
Messages
1,016
Reaction score
928
Would love to see the image of the "Plasma cannon" but considering almost nothing is actually released on similar US project (Kempster-Lacroix). I think would need to wait some more years :x to make comparison.


TMA1

ACCESS: Confidential
Joined
Feb 6, 2021
Messages
170
Reaction score
236
At first I thought this might be similar to a project they talked about where they had an ionized gas they would spray from the nose of the aircraft which would partially envelop the aircraft thru the air stream.


Erdosain

ACCESS: Confidential
Joined
Mar 10, 2020
Messages
170
Reaction score
611

The Soviet Meteorit Mach-3 Cruise Missile Was A Colossal Cold War Oddity

The missile was designed to fly thousands of miles at over Mach 3 and 80,000 feet before diving onto its target and detonating its nuclear payload.​
