1989 Navy/USAF Long Range Conventional Standoff Weapon (LRCSW)

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
Contenders
1).Boeing
2). GD
3).Texas Instruments
4).?
-----------------------------

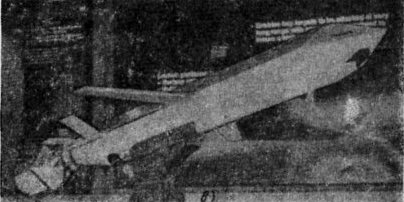

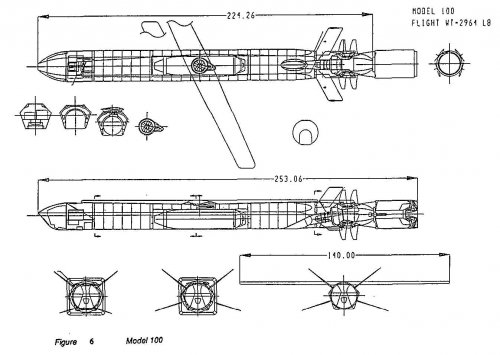

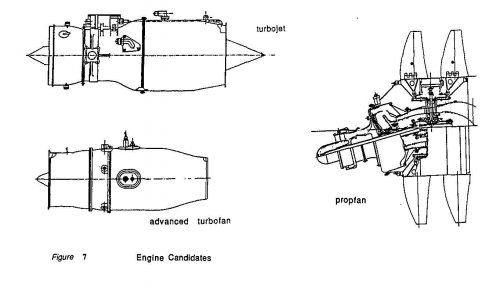

Boeing LRCSW
From AIAA-92-0082

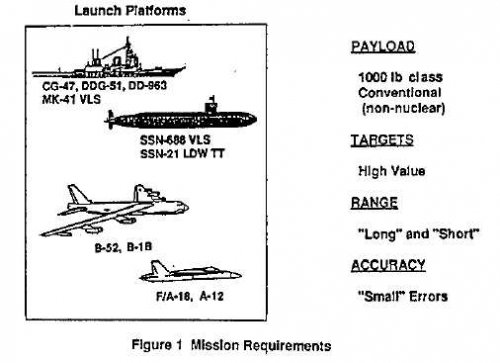

"A basic objective of the study was to develop a missile system
design concept that would meet the mission requirements
shown in figure 1. The missile program was the Long Range
Conventional Standoff Weapon (LRCSW) contract. LRCSW
system requirements were defined several years before the
successful employment of conventionally armed Tomahawk
BGM-109 cruise missiles during Operatlon Desert Storm In
1991. All of the Tomahawk cruise missiles were launched
from surface shlps or submarines. However, the LRCSW
system was envisioned as a missile. or family of missiles, that
could be launched from a variety of ships, submarines, Navy
aircraft , and Air Force aircraft.


Attachments

  • Clipboard02.jpg
    20.8 KB · Views: 1,211
  • Clipboard01.jpg
    111.7 KB · Views: 1,710
  • Clipboard02.jpg
    73.5 KB · Views: 1,124

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,048
Reaction score
566
Website
beyondthesprues.com

Attachments

  • DCP00481 Advanced Cruise Missile propellers l.jpg
    DCP00481 Advanced Cruise Missile propellers l.jpg
    47.9 KB · Views: 984
  • DCP00482 Advanced Cruise Missile l.jpg
    DCP00482 Advanced Cruise Missile l.jpg
    48.8 KB · Views: 995

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
With a little hint from TinWing...

http://www.flightglobal.com/pdfarchive/view/1989/1989%20-%201131.html


Attachments

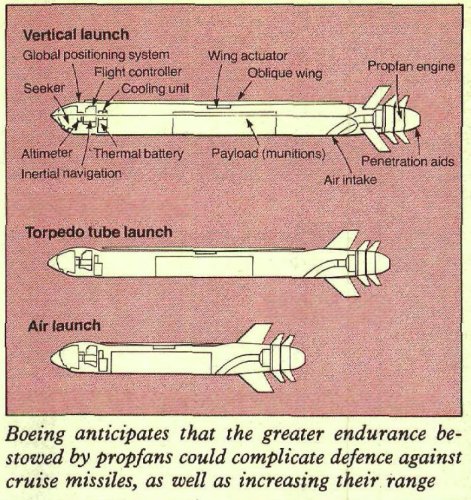

  • boe_cm_pfan-2s.jpg
    246.5 KB · Views: 807

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,048
Reaction score
566
Website
beyondthesprues.com
Interesting, I wonder if this is related to the missile I originally asked about here?

Regards,

Greg


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

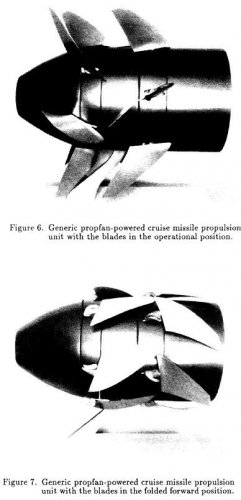

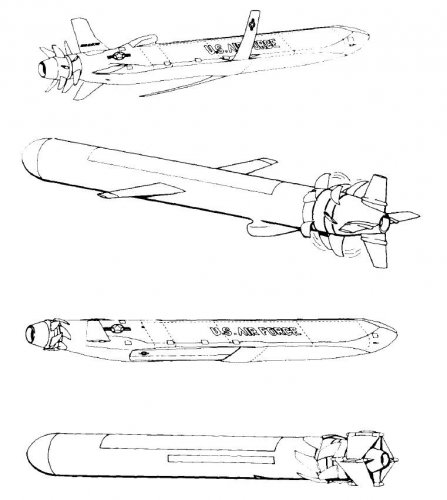

Greg, these looks like NASA Lewis/McDonnell Douglas Astronautics/Sverdrup studies on CRP (Counter-Rotating Propfans) use for cruise missiles from 1989. I remember seeing a dozen of papers on that at NTRS.

Allison Gas Turbine Division has its own ideas in the same timeframe, or it was a common program, not sure.


Attachments

  • Allison_GTD_CRP_concepts-1990a.jpg
    44.2 KB · Views: 263
  • Allison_GTD_CRP_concepts-1990.jpg
    60.8 KB · Views: 378
  • NASALewis_MDA_Severdrup_CRPCM_1989-2.jpg
    69.9 KB · Views: 253
  • NASALewis_MDA_Severdrup_CRPCM_1989-1.jpg
    48.4 KB · Views: 238

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
Gotcha -

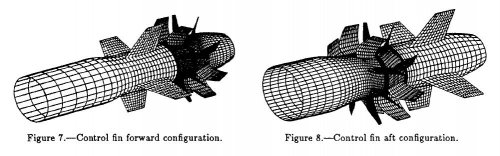

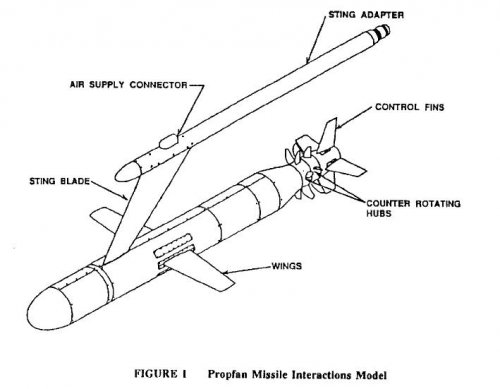

The long-range conventional standoff weapon (LRCSW) program was established as a joint U.S. Navy/Air Force program to develop an advanced, long-range cruise missile powered by a propfan engine. As a part of this program, a joint Navy/Air Force/NASA Propfan Missile Interactions Project was initiated to determine the effects of a propfan engine on missile aerodynamics in a wind tunnel test.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19920016510_1992016510.pdf
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19920013948_1992013948.pdf
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19930009686_1993009686.pdf

Familiar WT model, yeah?


Attachments

  • LCRSW-1.jpg
    112.1 KB · Views: 149
  • LCRSW-modelWT.jpg
    33.4 KB · Views: 245

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
Orionblamblam said:
Few things yell louder on radar than propfans.

New 'stealthy' Bell QTR I guess=)


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

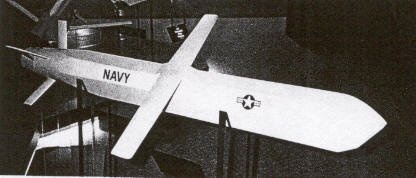

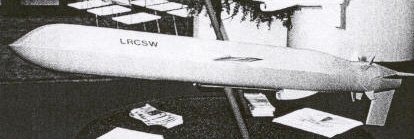

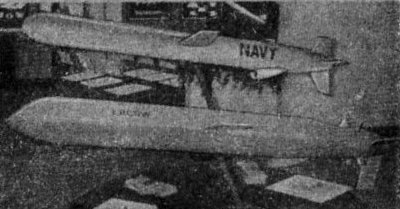

Texas Instruments entry


Attachments

  • TI_LRCSW_1989_.jpg
    56.8 KB · Views: 218
  • TI_LRCSW_1989.jpg
    452.1 KB · Views: 199

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976

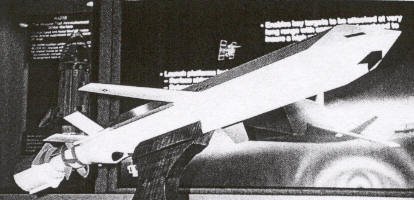

GD entry (Tomahawk at the backstage)


Attachments

  • GD_LRCSW_1989.jpg
    58.2 KB · Views: 152

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
4). McDonnell Douglas
5). Martin Marietta


markfward

ACCESS: Restricted
Joined
May 5, 2011
Messages
19
Reaction score
3
GTX said:
Hi folks,

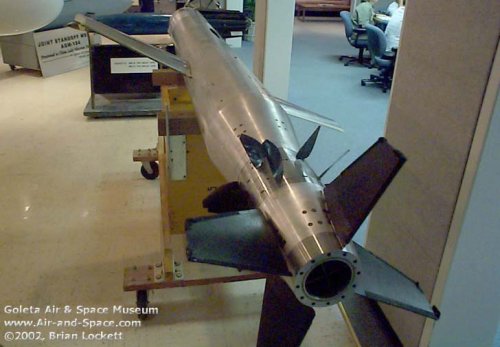

If you go to http://www.air-and-space.com/20020624%20China%20Lake%20Armament%20and%20Technology%20Museum.htm and look about half way down the page you will see a couple of photos of a Tomahawk style cruise missile with Contra-rotating propellers. Does anyone have any more information on this. I remember reading some proposals a while ago for such a set up, but didn't think it had made it to the hardware stage.

Regards,

Greg

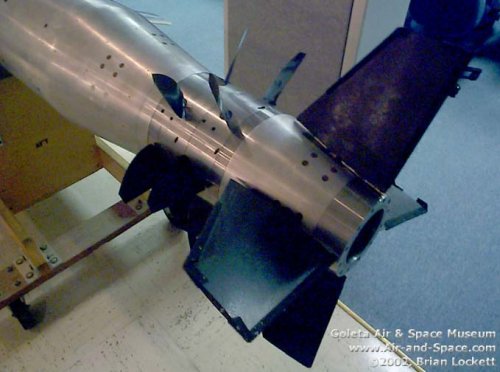

Take a look at the pitch of the blades. Those propellers do not counter-rotate.


My understanding is this test article stems from a Navy program to create a very low observable long range cruise missile -- LO to the extent of active wake management. IIRC the propeller pitch and speed were variable between the two rotors.


And re: the RCS of propfans, not all prop materials are made equal...


I do not know what overlap this program had with the LRCSW.


Cheers!


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,084
Reaction score
976
...


Attachments

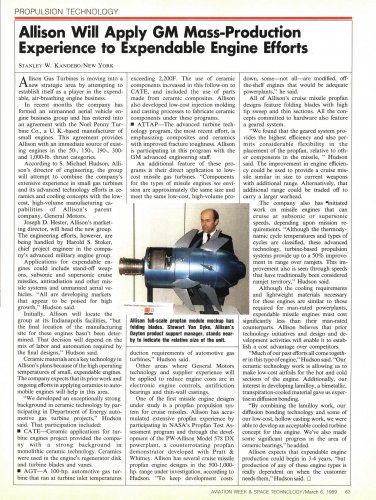

  • 19890306 propfan cruise missile-.jpg
    19890306 propfan cruise missile-.jpg
    2.7 MB · Views: 116

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
80
LRCSW entries


Attachments

  • US- LRCSW General Dynamics (2).jpg
    US- LRCSW General Dynamics (2).jpg
    29.7 KB · Views: 83
  • US- LRCSW Boeing.jpg
    US- LRCSW Boeing.jpg
    15.9 KB · Views: 82
  • US- LRCSW Texea Instruments.jpg
    US- LRCSW Texea Instruments.jpg
    19.1 KB · Views: 87
