Max Holste - MH.50 / 52 / 53 / 60 / 100 prototypes/projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Hi,

Max Holste MH-60:a five seat version of MH-52 but with two 165 hp engines.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Hi,

the Holste MH-60 was a five seat version of MH-52 but powered by
two 165 hp engines,it remained only a project as I know.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Hi,

the Holste MH-60 was a five seat version of MH-52 but powered by two 165 hp engines,
project only.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120
Sounds very interesting, thank you ! Any more information about it ?

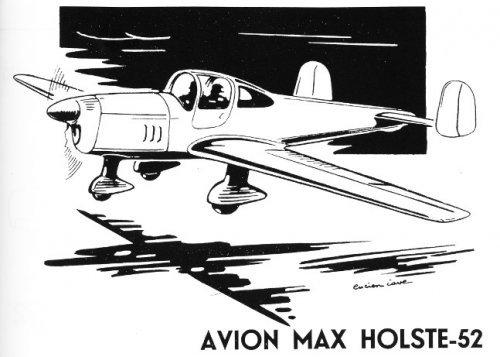

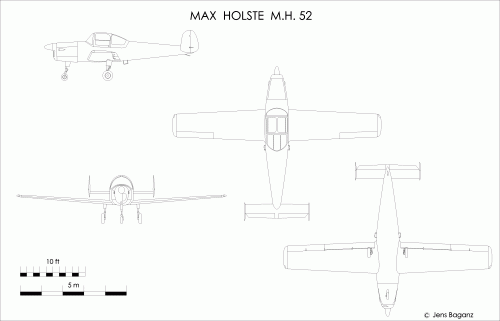

I've moved it here, as the MH.52/53 was a very different bird, although the
designation seems to indicate a direct relationship.


Attachments

  • Max_Holste_MH-52.gif
    50.8 KB · Views: 365

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
hesham said:
Hi,

the Holste MH-60 was a five seat version of MH-52 but powered by two 165 hp engines,
project only.

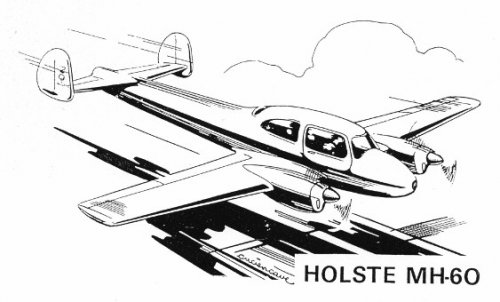

And also from Aerophile magazine October of 1947,the Max Holste MH-60 project,was in
an artist drawing.


Attachments

  • MH-60.JPG
    114 KB · Views: 321

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120
Very interesting, thank you for pointing us to that project !

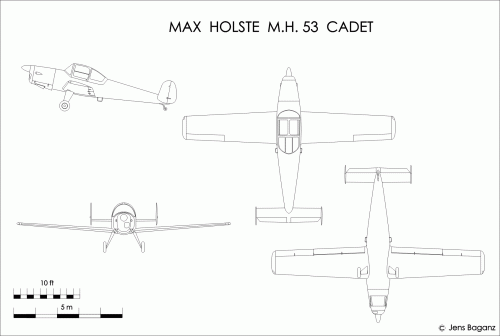

I would think, it was planned with a tail wheel landing gear as the MH.53 ?


Attachments

  • MH-53_Cadet.gif
    68.1 KB · Views: 303

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Yes my dear Jemiba,


and can you drawing a 3-view to it (MH-60) ?,that's will be nice.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120
hesham said:
and can you drawing a 3-view to it (MH-60) ?

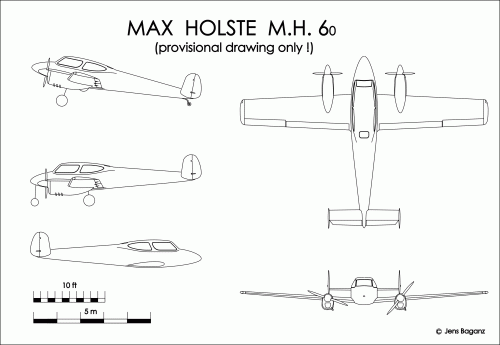

Here's my attempt, based on the M.H.52/52. The rear fuselage seems to be somewhat longer and
span increased. I'm not quite sure about that thick cockpi framing. And although no tail wheel is
visible, it could be retracted (or just forgotten by the artist ?), so I won't rule out a tail wheel landing
gear, especially as the M.H. 53 was fitted with it, too.


Attachments

  • MH-60.gif
    170.6 KB · Views: 370

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Oh my God,


perfect work my dear Jemiba.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Hi,
The MH.100 was a three-seat trainer for the French military, designed ca. 1947-1948 as an evolution of the MH.53. (Source: Les avions Max Holste by Jacques Delarue.) At the times, the project was officially discarded because the company was too small for series production. The aircraft built for the same program were the Nord 1221 Norélan and MS.733 Alcyon.
Adrien


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29

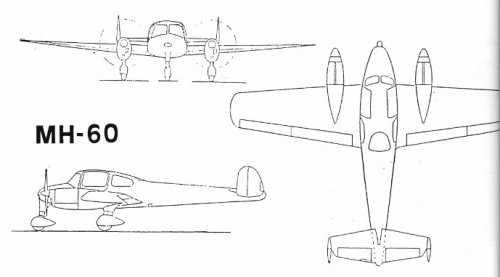

This is the MH.60 discussed above, small-res scans from the book by Delarue.
Adrien


Attachments

  • MH.60_plan_TU-MH-s.jpg
    34.9 KB · Views: 284
  • MH.60_dessin_TU-MH-s.jpg
    85.1 KB · Views: 488

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Apparently the answer has been given in the Designations section.

I believe it would be best to keep discussions on designations there, and keep this thread for posting images and info, otherwise it will be complicated to track the information!


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Cabin mock-up of the MH.60, from the book by Delarue.


Attachments

  • MH.60_cabine_TU-MHs.jpg
    75 KB · Views: 172

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Another drawing of the MH.60, same source. The landing gear is omitted, I'm not sure why.


Attachments

  • MH.60_dessin_TU-MH-2s.jpg
    42.2 KB · Views: 435

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29

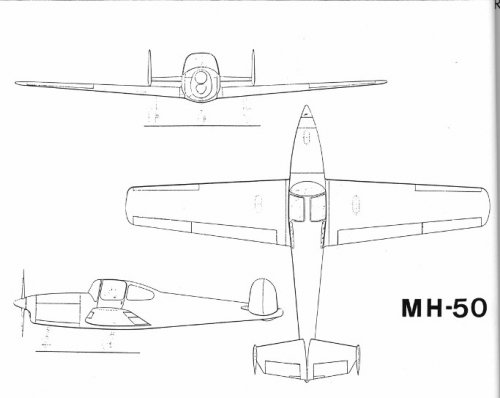

The MH.50, a two-seat tourer with Mathis G.4 R 95-100 hp engine, first study that would become the MH.52.


Attachments

  • MH.50_plan_TU-MHs.jpg
    36.5 KB · Views: 426

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29

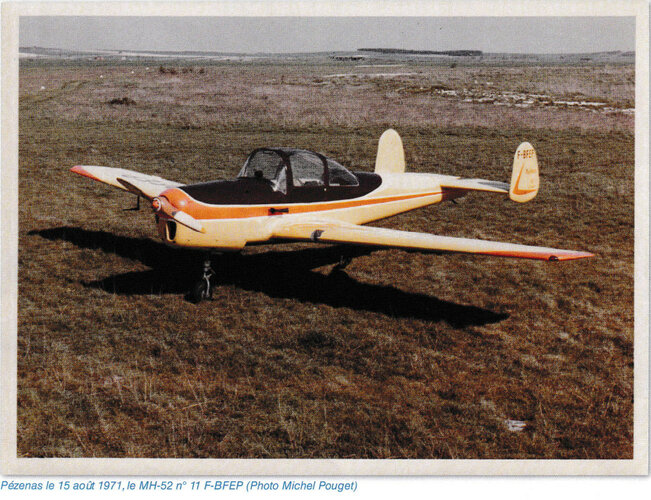

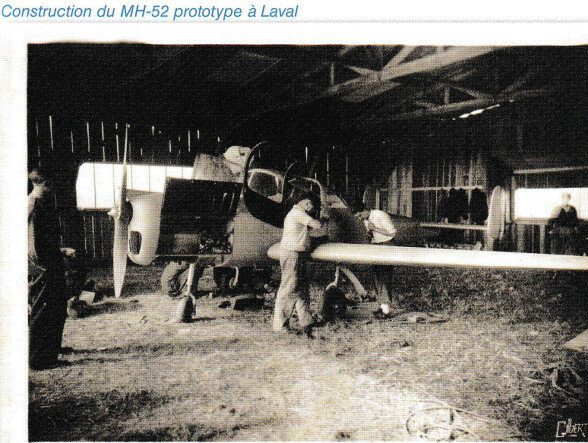

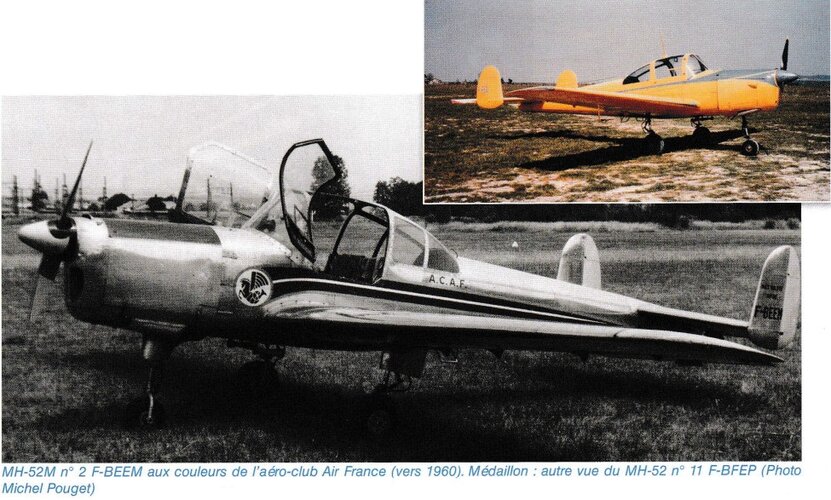

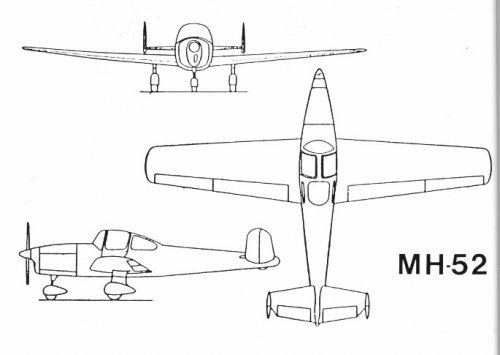

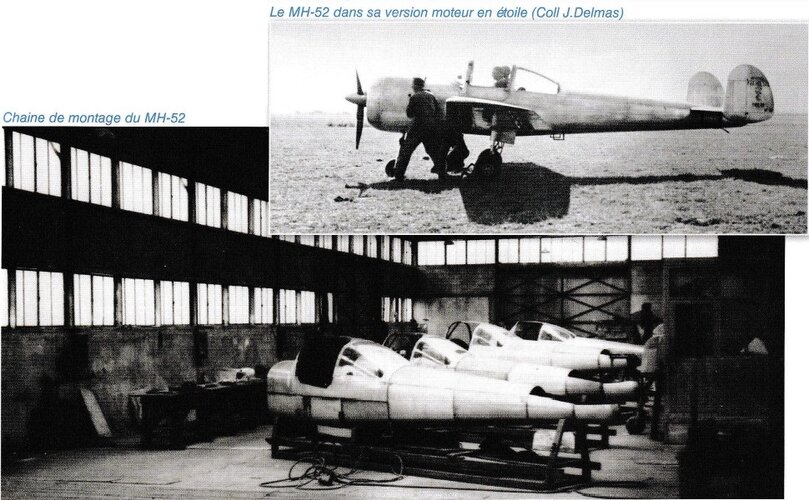

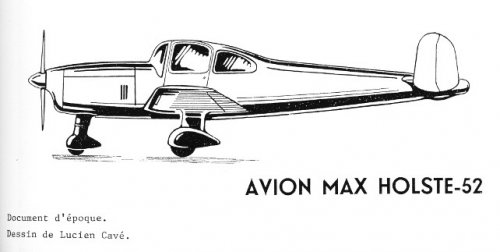

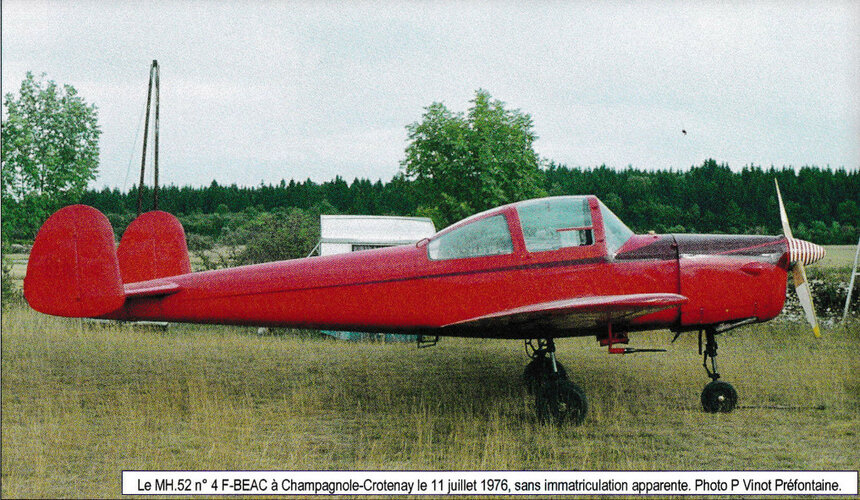

The MH.52 two-seat aircraft that was actually built, with either Renault 4 Pei (MH.52 R, five built) or DH Gipsy Major (MH.52 G, seven built).

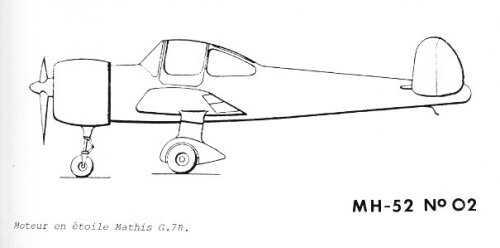

The second example briefly had a Mathis G.7 R radial engine for testing. A version with Lycoming was considered but not built.

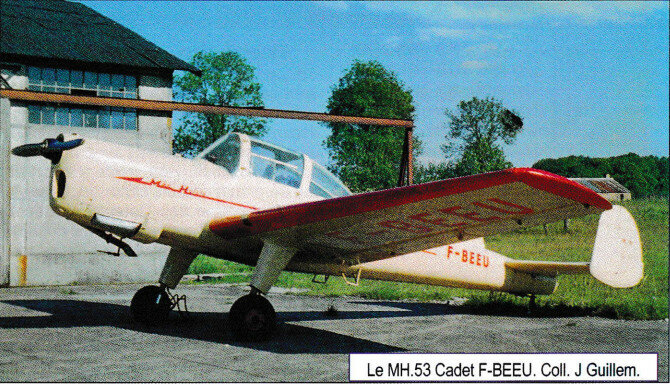

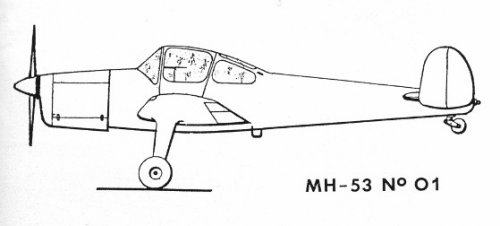

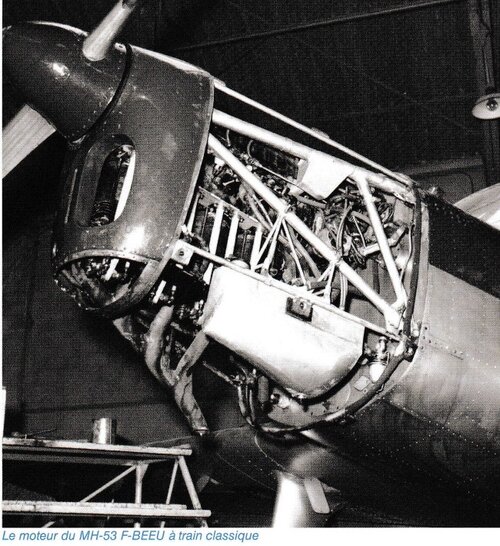

The MH.53 was similar with tail wheel undercarriage. A single one was built, with DH Gipsy Major (MH.53 G).


Attachments

  • MH.52_dessin_TU-MHs.jpg
    31.8 KB · Views: 60
  • MH.53_plan_TU-MHs.jpg
    19.9 KB · Views: 62
  • MH.52_02_mathis_plan_TU-MHs.jpg
    19.8 KB · Views: 295
  • MH.52_dessin_TU-MH-2s.jpg
    57.9 KB · Views: 352
  • MH.52_plan_TU-MHs.jpg
    35.2 KB · Views: 373

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,120

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
29
Max Holste postwar projects are currently scattered in this thread and three others:
http://www.secretprojects.co.uk/forum/index.php/topic,18267.0.html
http://www.secretprojects.co.uk/forum/index.php/topic,12780.0.html
http://www.secretprojects.co.uk/forum/index.php/topic,12765.0.html

Moderators, feel free to re-arrange the above posts, I suggest the following families:
- MH.50 / 52 / 53 / 60 / 100 (early low-wing aircraft)

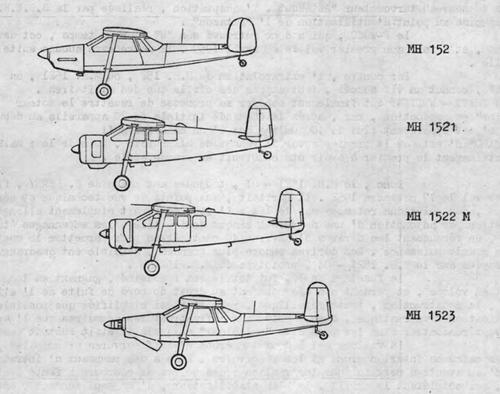

- MH.150 / 152 / 1521 (single-engine high-wing aircraft)
- MH.250 / 260 / 261 / 262 / 270 / 280 (twin-engine high-wing)
- MH.300 / 350 (smaller twin-engine)
- MH.500 (autogyro)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117

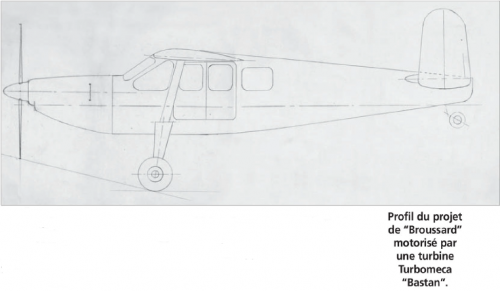

From Le Fana 519,

here is a Holste Broussard with turboprop Turbomeca Bastan engine as a Project.


Attachments

  • 1.png
    191.4 KB · Views: 84

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117

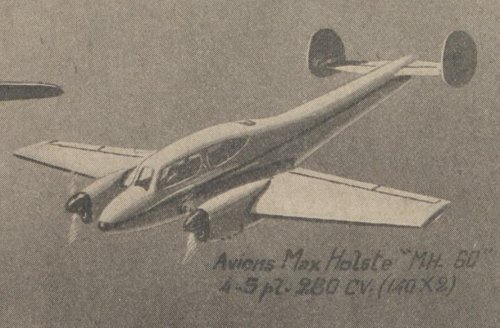

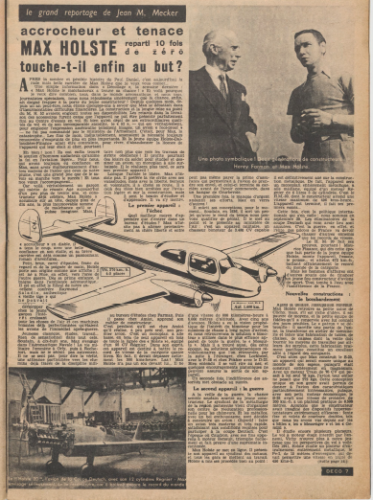

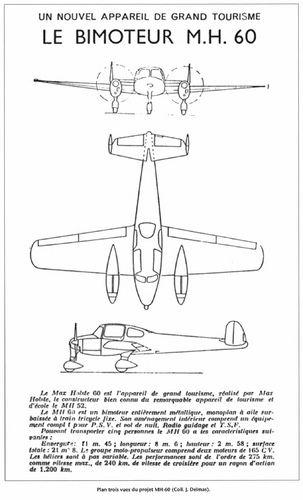

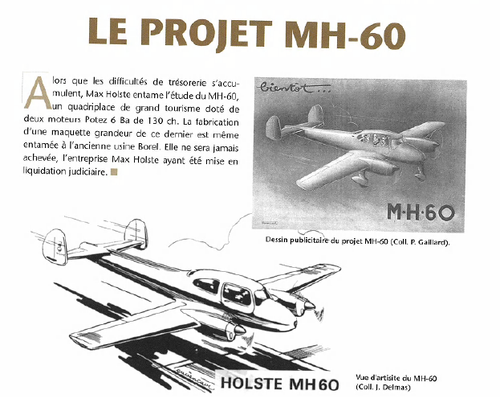

Fropm Decollage 8/1946,

the MH.60 Project.


Attachments

  • 1.png
    439.6 KB · Views: 65
  • 2.png
    610.9 KB · Views: 56

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117

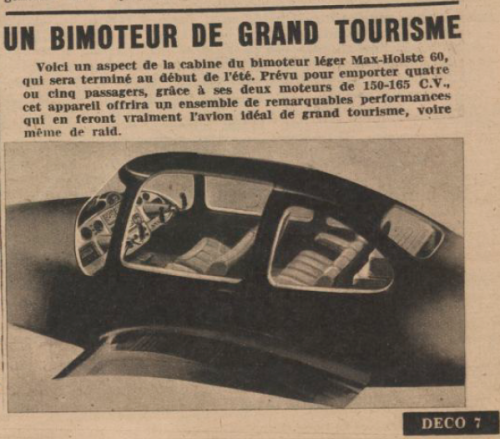

c460 said:
Cabin mock-up of the MH.60, from the book by Delarue.

From Decollage 1/1947.


Attachments

  • 1.png
    581.2 KB · Views: 66

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,288
Reaction score
683
Could a Turbo Broussard compete with Pilatus Turbo Porter and DHC Turbo Beaver?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Could a Turbo Broussard compete with Pilatus Turbo Porter and DHC Turbo Beaver?

Good question my dear Riggerrob,

but nothing about it in the issue,and also there is no hint in Les Avions de Max Holste ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117

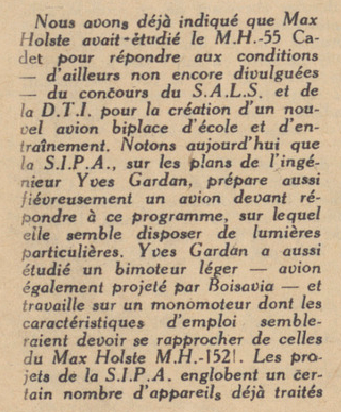

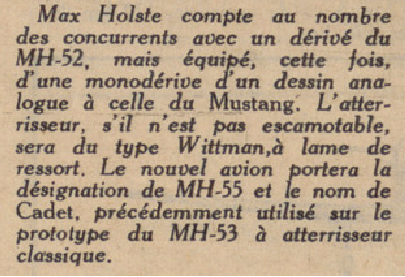

From Aviation magazine 1952,

the Holste MH-55 Cadet was a two-seat trainer airplane Project,developed from MH-52.


Attachments

  • MH-55.png
    155.9 KB · Views: 26
  • MH-55  II.png
    MH-55 II.png
    262.8 KB · Views: 24
