Max Holste - MH.250 / 260 / 261 / 262 / 270 / 280 prototypes/projects

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
I think, it once was on http://www.mapica.org/, that I've found the following
picture, that, apart from the well known types Broussard and Super Broussard
shows a drawing of an a/c (in the red ring), which seems to be smaller than the
Super Broussard and slightly bigger than the MH 350 light transport. Obviously
fitted with a rear loading ramp, it could have carried a car, but so far I couldn't
find any information. Anybody who knows more about this version,
which, that's for certain, strictly remained a project ?


Attachments

  • M_Holste_1.JPG
    31.3 KB · Views: 797

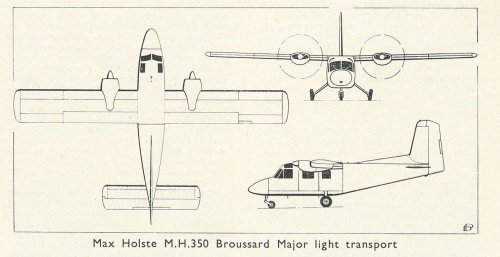

  • MH350.jpg
    99.5 KB · Views: 722

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
Cool idea, but looking at the fin, I'm afraid not, because a twin-boom probably
would have twin fins of smaller size. Honestly, the longer I look at this picture,
I think I was wrong, saying this aircraft would have been smaller than the MH.250
Super Broussard. Perhaps it is a transport version of the MH.250 with a loading
ramp ?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,208
Hi,

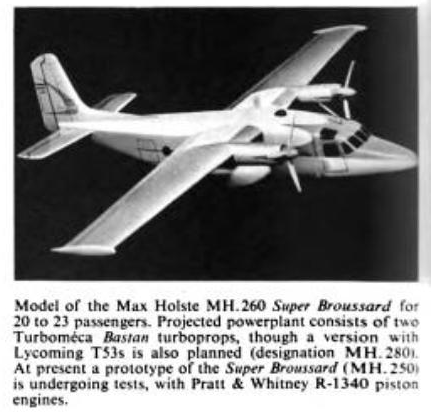

The Max Holste MH-280 was a project to alternative powerplanet
to the Bastan as Lycoming T53 fitted with MH-260.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
Sorry for reviving this old thread, but browsing through the Cuny book,
it just came to my mind, that the aircraft I asked for more than a year ago,
may be the MH.261, mentioned as contender for the "Avions de coopèration"
contest.

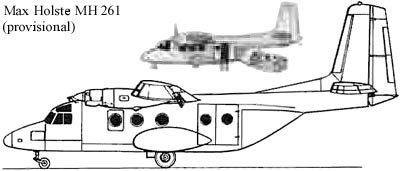

Beg your pardon for the lousy quality of the picture, it's just a blow-up from
the one posted below.
And as we now have a lot of members more, than at the end of 2006, maybe
one of them can shed new light on this theme ... ;)


Attachments

  • MH261.jpg
    4.2 KB · Views: 533

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,766
Reaction score
1,258
I think you're on to something there, Jens.

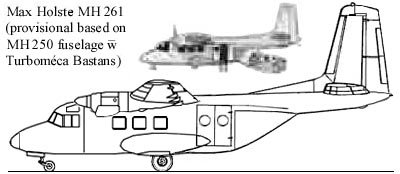

The drawing is hard to read but looks a lot like an MH 260 with a ramp.

From what I can make out, I'm guessing clamshell rear doors and a slightly shorter front fuselage to balance weight of the doors/ramp. The boom section of the rear fuselage has obviously been raised and the tail fin/fillet looks different as well.


Attachments

  • max-holste-mh-261.jpg
    21.8 KB · Views: 573

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
Thank you, what puzzled me, was the impression, that it is shorter, than
the MH.260, but you may have found an explanation. I'll try to find other
examples for such a conversion.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,766
Reaction score
1,258
In your image, the nose cone looks shorter as well. I've assumed that was from foreshortening. But perhaps the nose profile was more like the MH 350 than the MH 260?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312

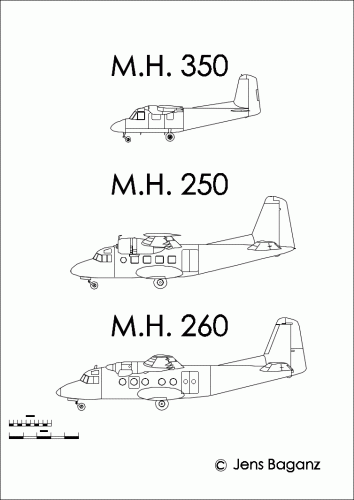

I was thinking about the MH.350, too, but I think, this type would
have been too small for carrying a jeep. But you're right, the nose
really seems to be shorter, than that of the MH.260. Maybe the MH.250 ?


Attachments

  • MH.GIF
    30.5 KB · Views: 230

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,766
Reaction score
1,258
Jens, the MH 350 nose looks right but now I'm wondering about an MH 250 base. Based on your side views, the MH 250 nose looks less pointed (as compared with the MH 261). But the MH 250 fuselage length (fore and aft) and window type/positions (which were hard to 'read' on the original) look spot on.

So ... a revised drawing which basically puts the raised tail/clamshell doors onto an MN 350 fuselage but with Bastans instead of R-1340s. The vertical tail is a bit of a mishmash (the MH 350 tailcone is a better fit but the overall shape of the MH 260 tailfin looks closer).

Of course, it is also possible that I am mistaken on the engines altogether. They looked 'pointy' to me and I read that as turboprops. A simpler answer than my MH 250/'260 mélange is the engines are still radials (perhaps with spinners?).


Attachments

  • max-holste-mh-261-mod.jpg
    23.6 KB · Views: 65

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
You're probably right with the turbo-props, I think. I have no informations
about the competition for the light transport/"Avions de coopèration", other
than the Cuny book, but all contenders I know, are turbo-prop powered
(Br.945, HD.150, Super Communaute, Sipa 271, Potez 870, don't know the
Nord 3500 and the MS.915 ).
I think, we can rule out the MH.350 as the base for the shown aircraft, as long
as the vehicle, which is unloaded isn't just a motor bike. Fuselage width would
have been under 2 meters.


Attachments

  • MH-350_topview.GIF
    9.5 KB · Views: 52

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,208
Hi,

the Max Holse MH-270 projected as a version of MH-250
with turboprop engines.


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
46
Hello ,Jemiba
I'm sure you already know it :
I have a 3 views of the M.H 261 military version of the Super Broussard with 2xBastan-V ,but it looks bigger than the type your pic shows .

Your type seems to be more related to the Broussard-Major
Cheers
Richard


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312

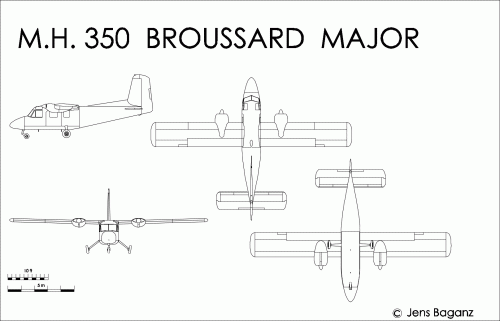

"Your type seems to be more related to the Broussard-Major "

Well, I had the same thoughts about this type, too, but some measurement
on the 3-view of the MH.350 shows, that the fuselage width would have been
about 1.5 m (about 5 ft ;) ), so loading a jeep probably wasn't realistic, only
loading a motorbike ...


Attachments

  • MH-350_Broussard-Major.GIF
    46.3 KB · Views: 679

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312

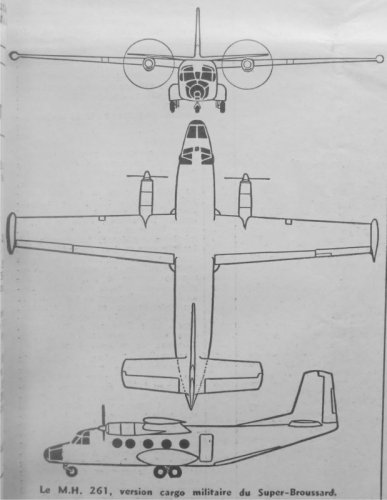

From Les Ailes April 1960, the Max Holste contender for the
"programme d'avion STOL de coopération", the military version
of the MH.260:


Attachments

  • MH-261_militaire.jpg
    44.5 KB · Views: 547

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
234

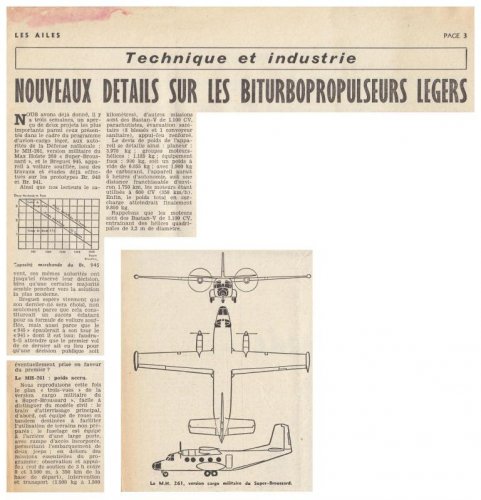

Dear Boys and Girls, here is part of an article in French about the Max Holste MH-261 Super-Broussard twin-engine STOL light military transport "project" which was a mililtary utility version of the MH-260 Super-Broussard light airliner. The MH-261 Super-Broussard remained a "project"......

This is part of a larger article about the contenders for a 1960 Armée de l'Air competition for an army co-operation light transport and the other contenders were:-

Avions Marcel Dassault MD-415 Communauté (prototype).
Max Holste MH-260 Super Broussard (prototype).
Bréguet Br.945 (project).

The article comes from the 27th January 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Max Holste MH-261 Super-Broussard project - Les Ailes - No. 1,810 - 27 Janvier 1961.......jpg
    Max Holste MH-261 Super-Broussard project - Les Ailes - No. 1,810 - 27 Janvier 1961.......jpg
    91.9 KB · Views: 494

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312

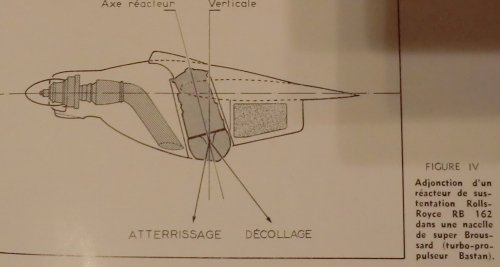

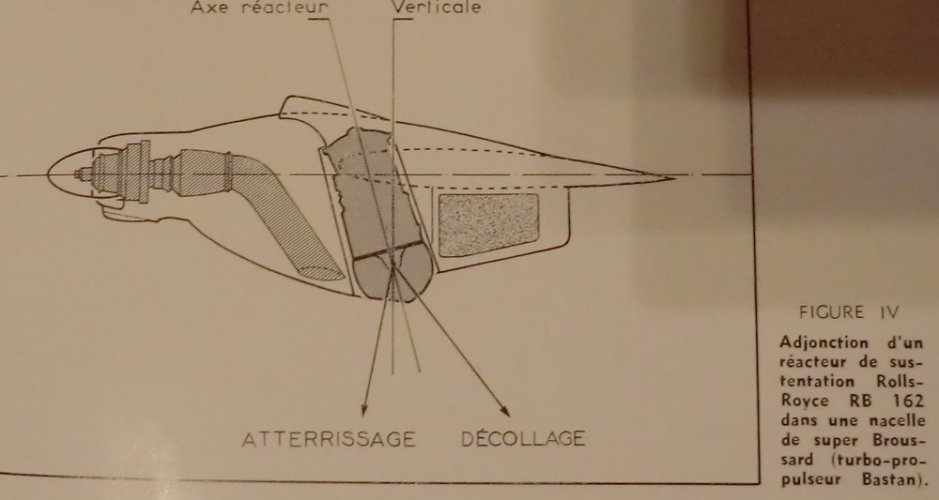

In "L'Air et l'espace", February 1962, I've found a proposal by Nord Aviation to fit a RR RB 162 liftengine to each
nacelle for the Bastan engines, probably improving STOL performance dramatically, although no data was given
in the article.


Attachments

  • CIMG2658.JPG
    98.9 KB · Views: 385

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,402
Reaction score
142
Website
cluttonfred.info

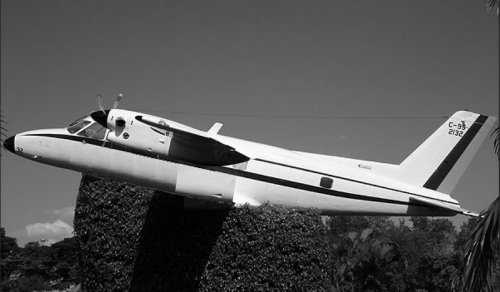

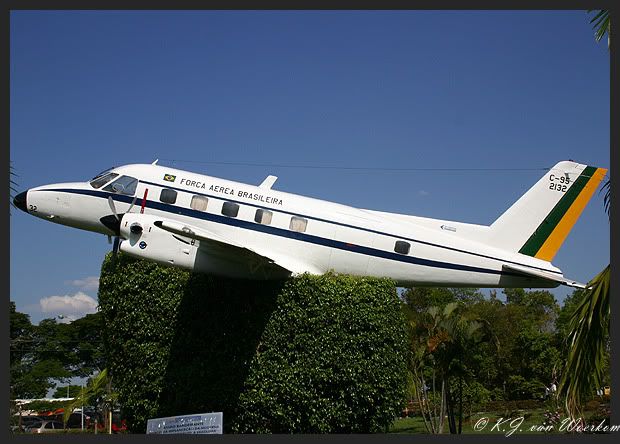

If you detect any similarity between this design and the early Embraer Banderainte, there is a logical reason. Consulting engineer on the project was...Frenchman Max Holste! Here is Banderainte prototype no. 4:



Jemiba said:
From Les Ailes April 1960, the Max Holste contender for the
"programme d'avion STOL de coopération", the military version
of the MH.260:


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
Good clue, thank you Mole !

Becames more obvious, if transforming the Bandeirante a little bit, sorry for the
rough, just quick work.


Attachments

  • Bandeirante_high_wing.jpg
    80.1 KB · Views: 173

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
Hi,

hesham said:
the Max Holse MH-270 projected as a version of MH-250
with turboprop engines.

Interesting, can you tell me the source for the MH.270 designation? It does not appear in the book Les avions Max Holste.
The MH.250 with turboprops was really built as the MH.260.

hesham said:
The Max Holste MH-280 was a project to alternative powerplanet
to the Bastan as Lycoming T53 fitted with MH-260.

Same question, the book mentions a project of MH.260 with T-53 but does not give the name, can you tell me the source for this name?

Adrien


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,939
Reaction score
5,208
You are right my dear Skyblazer,


and for My dear C460,and the MH.260 with T-53 was called MH.280.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31

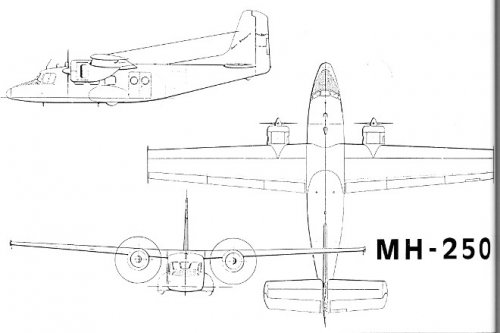

The MH.250 with PW R-1340 S3H1-G 600hp engines, one prototype was built.
A variant with more powerful Wright R-1300 800hp engines was considered.

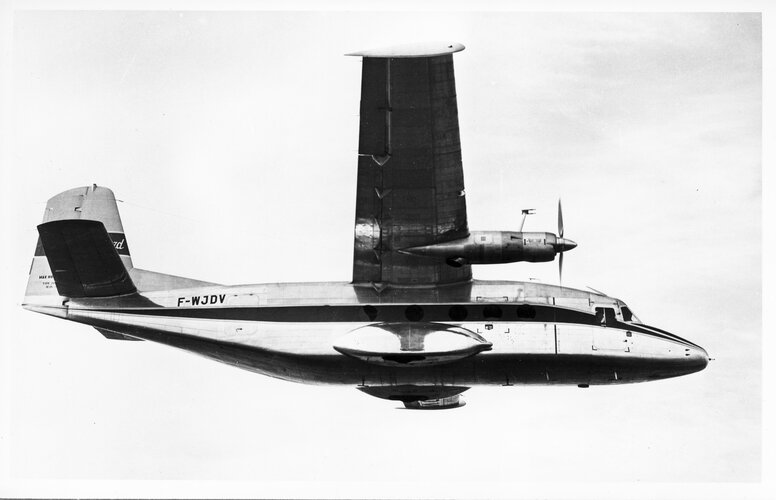

The MH.260 was a derivative with turboprop engines. The single prototype had Turbomeca Bastan III and later Bastan IV.
Variants with other turboprop engines were planned: MH.270 with Bristol Siddeley P.182 and MH.280 with Lycoming T-53:
http://www.flightglobal.com/pdfarchive/view/1959/1959%20-%200880.html?search=MH.270

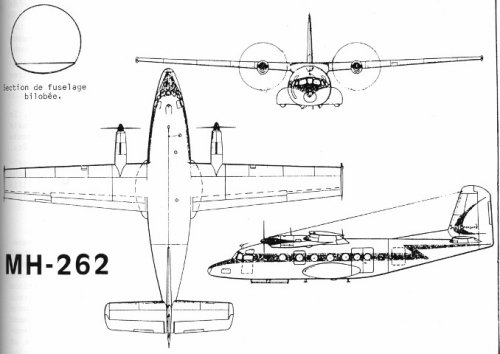

The MH.262 was a pressurized derivative. Its development was taken over by Nord Aviation, and it was built under a modified form as the N.262.


Attachments

  • MH.250_plan_TU-MHs.jpg
    38.5 KB · Views: 108

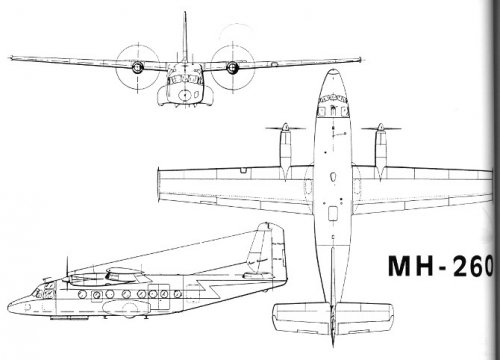

  • MH.260_plan_TU-MHs.jpg
    45.4 KB · Views: 104
  • MH.262_plan_TU-MHs.jpg
    52.3 KB · Views: 101

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31

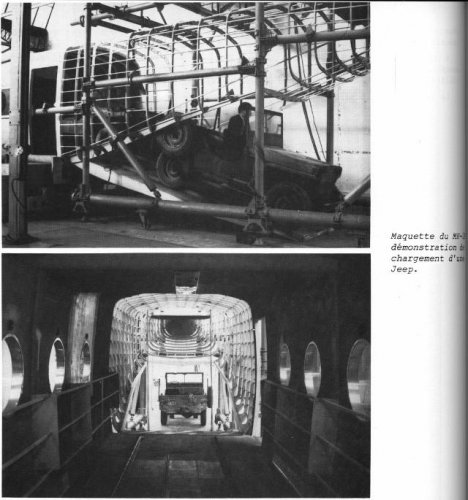

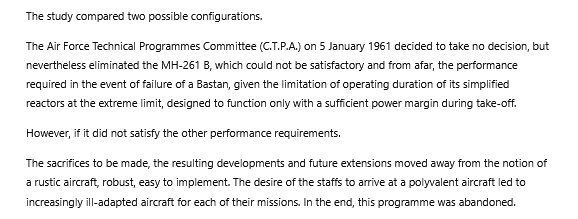

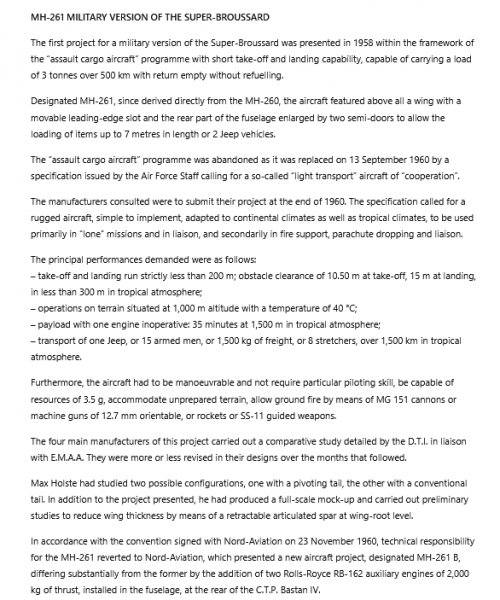

The MH.261 was a military version of the MH.260. Various configurations were studied: with two half-doors, with pivoting rear fuselage or with an articulated cargo ramp. A partial mock-up with cargo ramp was built by modifying the mock-up for the civilian model.


Attachments

  • MH.261_TU-MHs.jpg
    71.1 KB · Views: 32

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31

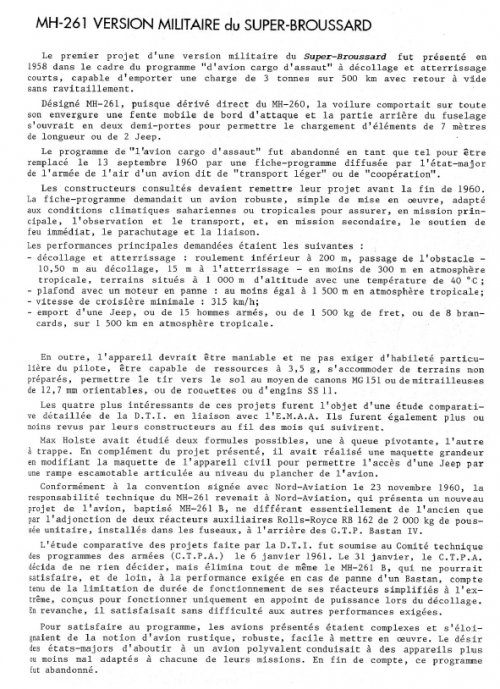

The version with RB-162 auxiliary engines was developed by Nord-Aviation in late 1960 and called MH.261 B.
Source: Les avions Max Holste by Delarue.
Adrien


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
Comparison of MH.262 and Nord 262, from Les avions Max Holste by Delarue.


Attachments

  • MH.262_N.262_plan_TU-MHs.jpg
    33.2 KB · Views: 51

Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
73
Reaction score
25
Dear Colleagues; I hope that my question is appropriate in this topic: Would anybody know, why Max Holste went to Brasil and joined EMBRAER?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
What I found in "Die Flugzeuge von Embraer und anderer lateinamerikanischer Flugzeugbauer
ab 1945" is, that Max Holste was on a journey through South America and was invited by Ozires
Silva, then leader of the design team of the IPD and tasked with the develpment of a successor to
the Beech 18, still in service with the FAB. After nightlong discussions about this project, Holste agreed
to join this highly motivated design team.


Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
73
Reaction score
25
Thanks, Jemiba. I have seen this statement as well when I was browsing the net for information today. At another place it was written that he returned to France in his late years after he had emigrated to Brasil. That sounds as if Max Holste had left France (and his company) for good and leaves me with the question if he had lost all influnence/control on his own company in France in these days...


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
Avions Max Holste merged, or better was taken over by Cessna after running into financial
difficulties and later became Reims Aviation AFAIK a French subsidiary of Cessna, producing
Cessna aircraft only, until the company gained orders for production of aircraft components
by Dassault. Maynot have been an environment for an ambitioned designer ... :-\


Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
73
Reaction score
25
A good point, the one with the "ambitioned engineer". Thank you.


c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31
Hi Kuno,

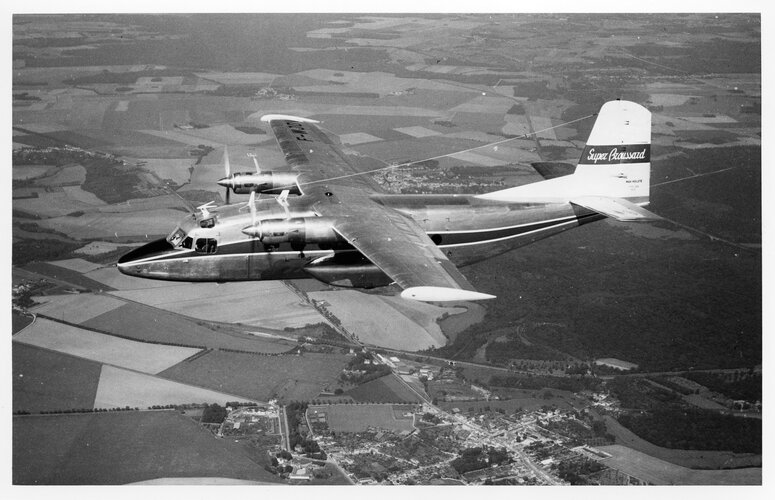

In the book by Jacques Delarue, who was a close associate of Max Holste, the reason is not given in detail. But it is clear that the hesitations about the configuration of the MH.250 / 260 / 262 (about the type of engines and the pressurized cabin), complicated by the negotiations with Nord Aviation and with the government, resulted in financial difficulties and disagreements among the officials of the Max Holste company.
On 18 May 1960, Cessna acquired 49 percent shares in the Max Holste company and started to press the designer to accept any agreement.
On 31 January 1961, Max Holste abandoned all the rights of the MH.260 design and derivatives to Nord Aviation, who made preseries examples of the MH.260 and developed the N.262. At about the same time, the designer was elaborating the MH.300 Broussard Major project with 390 hp engines. Cessna pressed for a different twin-engine aircraft with 260 hp powerplants taken from the Cessna 310, but Max Holste was reluctant and proposed the MH.350 instead. There was a project to build this one in Morocco.
Jacques Delarue only says that the Moroccan project was supported by Holste and Clostermann for "fundamentally different" reasons, but does not elaborate. Soon after, the two men clashed, and Max Holste had to resign at a shareholder meeting on 9 August 1961. He sold his shares in the company against the rights on the MH.350 design, and the company had to change name, becoming Reims Aviation.

After that, Max Holste directed a design team in Cagnes-sur-Mer, with some former employees, who worked on the MH.500 autogyro. In 1964, Max Holste went to Morocco, hoping to create an aircraft industry there building the MH.350. Delarue hints that people at Reims Aviation used their connections with Moroccan authorities to make this fail.

After that, he went to Brazil. It is said that he had former connections with South Africa and Brazil, and opted for the latter. His hope was to create an aircraft industry and build the MH.360 (derivative from the MH.350). He was received by Ozires Silva at the CTA at Sao José dos Campos, and started the study PAR-6504 that would become the EMB-100 Bandeirante.

Reading the book, it seems clear that Max Holste was very independent-minded, and was unhappy when someone else wanted to modify his own projects. When Embraer was created and started to build a design team to make modifications to the EMB-100, which would become the series production EMB-110, Max Holste left the company and worked as an independent consultant on other projects.

Adrien


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,302
Reaction score
1,312
It obviously was a difficult time for designers like Max Holste, who probably still were used to
have more or less absolute power in their companies. But companies had to merge or just vanished.
And that other companies, often from the US fought hard to increase their market shares, more wealthy,
than most European ones and maybe even with political support, made matters not easier.
Another example may be W.E.W. Petter, who eventually left the aviation industry completely.


Kuno

ACCESS: Confidential
Joined
Dec 14, 2008
Messages
73
Reaction score
25
Merci & Dankeschoen for your both explanations.
It seems as if Max Holste was also not the "easiest" person.

Top
