Ladies and Gentleman,

Let me introduce you the first unconventional project from my country... :) LVL-1 and LVL-2 (Light Training Aircraft) were developed for Slovak Air Force from 1979 at Military Aviation University in Košice. The head of the project was Ing. Radomir Orlita. LVL-1 had compared to LVL-2 much conventional tail surfaces and less powerful engine. LVL-2 was all-metal light airplane for basic pilot training and limited air fire support. Sized down (1:10) mockup was built, but project ended after 10 years due to a lack of money and turbulent political situation.

Some specifications of LVL-2:

Engine: M-337 A/V 500S with push propeller
Landing gear: triangular, main wheels were fixed
Wingspan: 7,3 m
Max. take off weight: 850 kg
Max. speed: 310 km/h
Cruise speed: 285 km/h
Minimal speed without flaps: 110 km/h
Climb speed after take-off: 9 m/s
Take off distance (in grass): 156 m

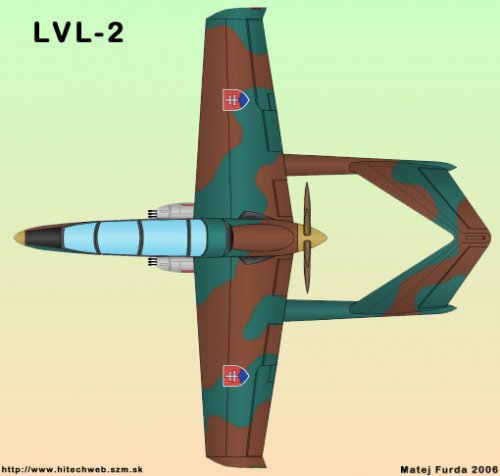

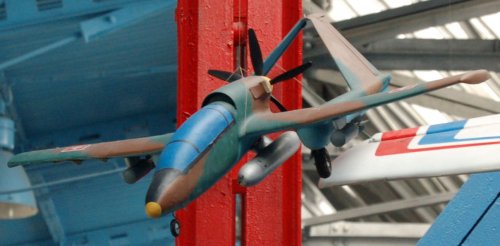

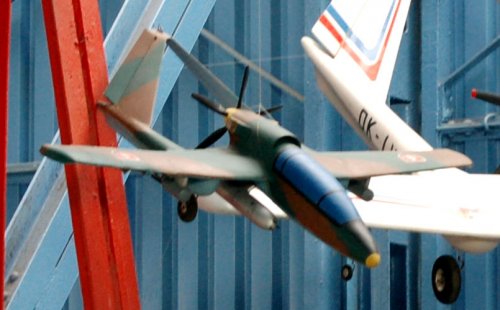

Attachments

  • LVL-2a.JPG
    74.1 KB · Views: 440
  • LVL-2b.JPG
    113.2 KB · Views: 442
  • LVL-2c.JPG
    19.2 KB · Views: 482

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,149
Reaction score
41
Website
cmeunier.chez-alice.fr
boxkite said:

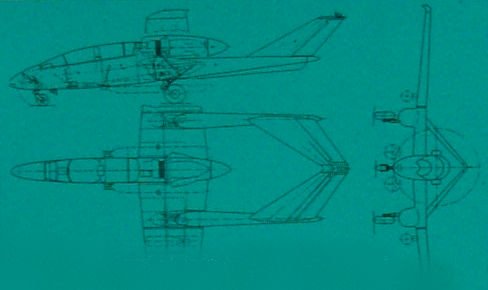

Here come the simple side views from Václav Němeček's "Československá letadla" vol 2 ...
Tophe, are you here to read this?
Belated thanks Boxkite (I come back from holidays) while I have this book, even wonderful, yes!
But Matej's LVL-2 is new for me, thanks! Question: for what Czechoslovak words are the initials LVL? (I guess a L is for Let? for Aircraft, but the complete name would be even better).


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
852
Reaction score
170
With my poor knowledge of Czech and Slovak language letadel is the word for aircraft. LET was a company or design bureau, wasn't it, Matej?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
168
Website
www.hitechweb.genezis.eu
LVL-2 4

There are only a few true czechoslovakian words, and they are all slang. Officially there is only Slovak and Czech language, and this one is from Slovak language, because it was developed in Košice, what is the second biggest town in Slovakia.

L - ľahké - light
V - výcvikové - training
L - lietadlo - aircraft

Abbreviation "Let" is used for "Letov" aviation plant in Czech republic. Or with small "l" it means also "flight".


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
168
Website
www.hitechweb.genezis.eu

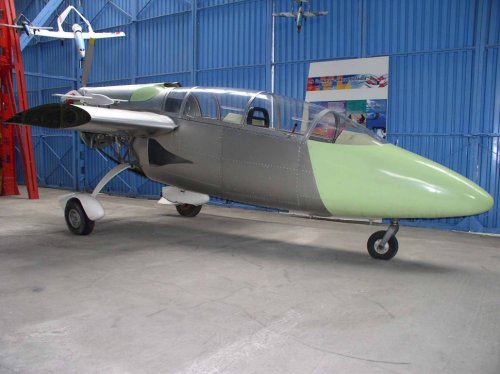

I found that there was also unfinished prototype (!) of this design. I studied five years in Kosice, but NEVER saw it. How is it possible is the mystery for me... ???


Attachments

  • LVL-2.jpg
    125.7 KB · Views: 314

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
168
Website
www.hitechweb.genezis.eu

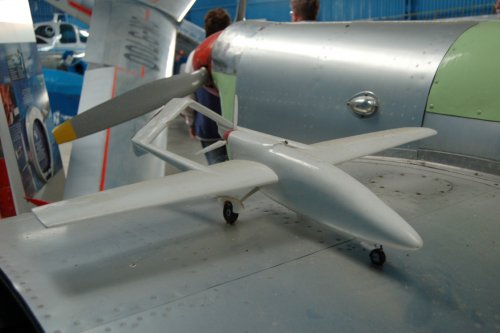

And only week ago I found out, that on the last photo that I posted is a small model placed on the mockup. Where the hell were my eyes then ??? Here is it in detail:


Attachments

  • LVL-2.JPG
    158.3 KB · Views: 187

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,658
Reaction score
4,634

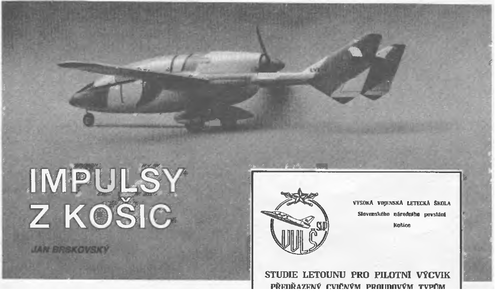

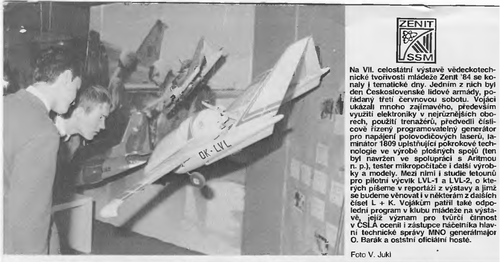

From L+K 11/1984.


Attachments

  • 1   11-1984.png
    1 11-1984.png
    131.3 KB · Views: 122

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,658
Reaction score
4,634

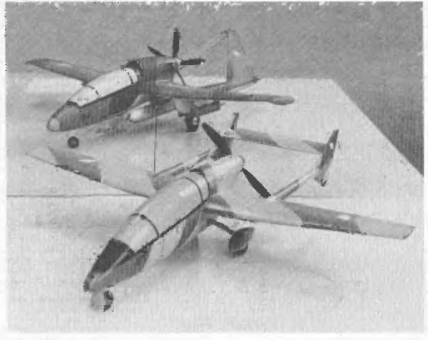

Also from L+K 17/1984


Attachments

  • 1   17-1984.png
    1 17-1984.png
    400.7 KB · Views: 97
