Boeing and Lockheed civilian jetliners from 1950

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128

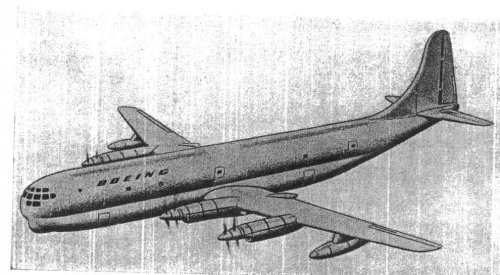

These I found in an olf (L'ala d'Italia) Italian magazine from 1950. First is a turboprop version of the Stratocruiser. Data are: max weight 75 metric tons; payload 10 metric tons; passengers 73-87, wing span 43 m, fuel load 34000 liters; cruise speed 580 km/h; engines were to be 4 T-40 turboprops. Same magazine stated that Boeing was thinkig of a jet augmented Stratocruiser (two jets). Data for this version: max weight 69-75 metric tons; payload 8.4 metric tons; passengers 61-75; span, fuel load and cruise speed same as the turboprop version.

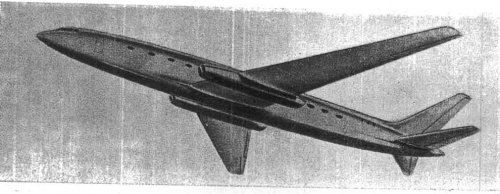

Second projects is a Lockeed design for a pure jet trasport Data are: max weight 68 metric tons; passenger 40-50; cruise speed at 12000 m 850 km/h; range 5600 KM. Any more info on these two (expecially the Lockeed one)?


Attachments

  • Stratocruiser_turbo.jpg
    51.1 KB · Views: 336
  • Lockeed_jet_1950.jpg
    33.2 KB · Views: 373

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,477
Reaction score
206
Well done Boxkite ;)

mmm..A lot of information about Model 367 variants but I can't find the exact number for this Model 377 iteration :(


Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
617
Reaction score
273
I remember Boeing devising an early jet airliner design in 1949, but I didn't know Lockheed was working on a jet airliner design before the Boeing 707 came into being.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,475
Lockheed designed various jet airliners from 1945 onwards. Your post is pretty pointless - I'm not sure why we need to know you didn't know something.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,918
Reaction score
1,167
Website
www.aerospaceprojectsreview.com

Attachments

  • L-151.jpg
    82.9 KB · Views: 101

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498

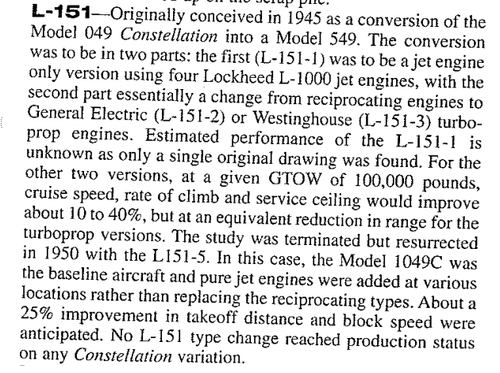

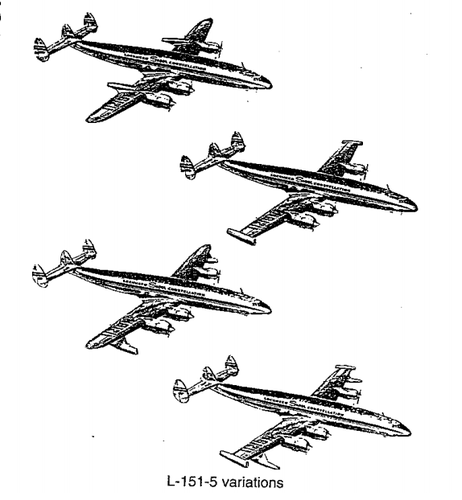

The L-151 generally and drawing L-151-5.


Attachments

  • a.png
    83.5 KB · Views: 57
  • b.png
    119.5 KB · Views: 56
