Letov KBL-12 - 1953 Jet Trainer

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,771
Reaction score
1,269
Richard recommended the intriguing Minijets site:
http://www.secretprojects.co.uk/forum/index.php/topic,5681.0.html

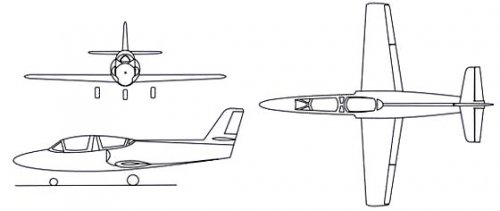

This 1953 Ljubliana jet trainer project lept out:
http://minijets.org/typo3/index.php?id=160

Project (1953) : Letov KBL-12

Two-seat tandem trainer. Turbomeca Palas, 150 Kp.

Span 6.50 m, Length 7.50 m, Height 2.45 m, Wing Area 6.5 m², Track 1.80 m
Maximum speed 550 km/h, Cruising speed 450 km/h, Radius of action 500 km


Attachments

  • Letov-KBL-12.jpg
    19.7 KB · Views: 186

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,971
Reaction score
5,260

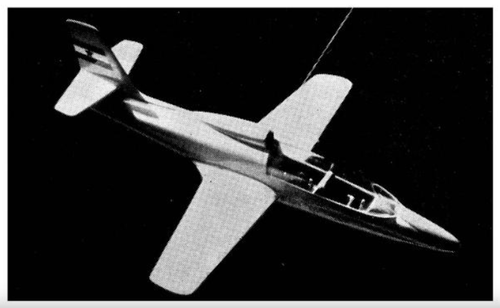

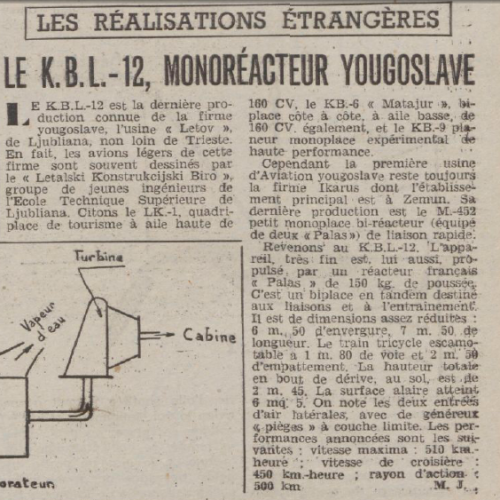

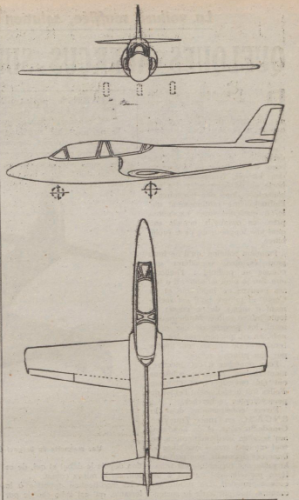

From Ailes 2/1956.


Attachments

  • 1.png
    251.2 KB · Views: 62
  • 2.png
    468.7 KB · Views: 55

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,971
Reaction score
5,260

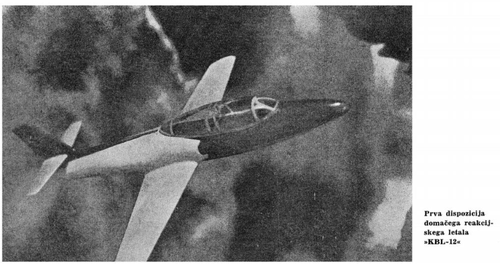

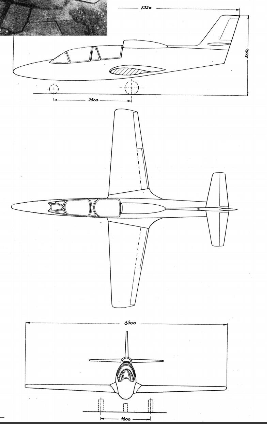

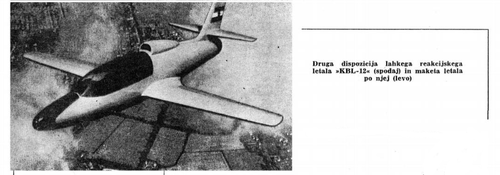

From Krila 2/1956,

there was two versions,or early one and final one.


Attachments

  • 1.png
    219.3 KB · Views: 39
  • 2.png
    354.1 KB · Views: 46
  • 3.png
    44.7 KB · Views: 50
  • 4.png
    119.9 KB · Views: 62

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,771
Reaction score
1,269

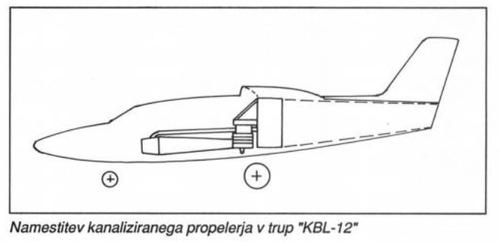

Wow, a ducted-fan variant! It would be interesting to know what powerplant they intended.
