Lockheed XP-49

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,068
Reaction score
4,177
Website
www.amazon.com

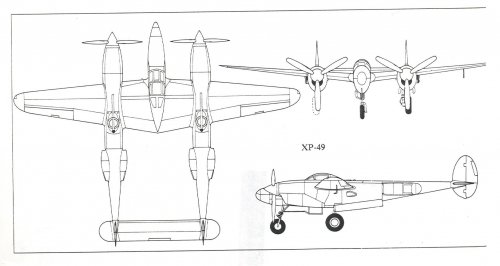

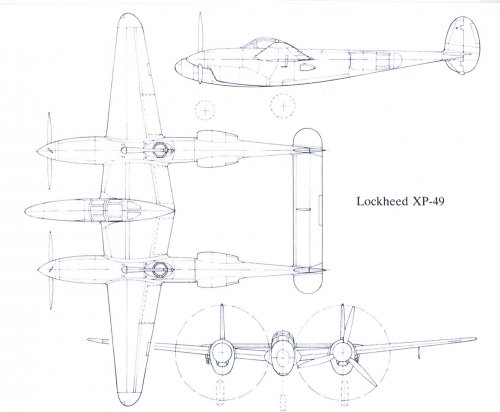

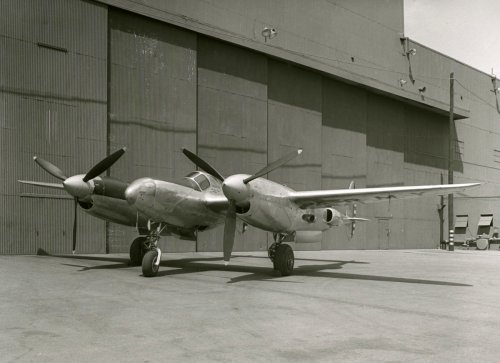

Lockheed XP-49 info


Attachments

  • Escanear0001.jpg
    179.3 KB · Views: 742
  • Escanear0002.jpg
    106.3 KB · Views: 632
  • Escanear0003.jpg
    74.4 KB · Views: 556
  • Escanear0004.jpg
    130.5 KB · Views: 567
  • Escanear0005.jpg
    113.5 KB · Views: 566
  • Escanear0006.jpg
    222.1 KB · Views: 157

Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,068
Reaction score
4,177
Website
www.amazon.com

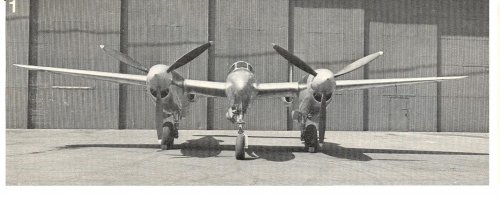

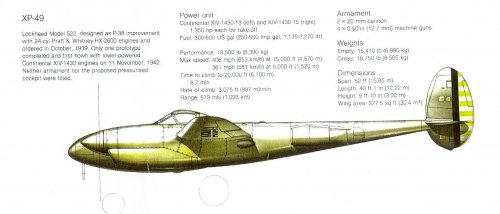

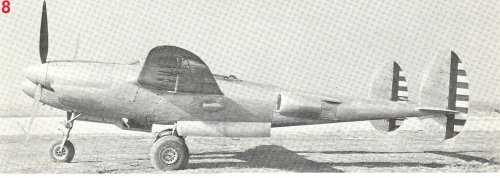

Lockheed XP-49 info -post-2


Attachments

  • Escanear0009.jpg
    183.2 KB · Views: 124
  • Escanear0008.jpg
    217.2 KB · Views: 125
  • Escanear0007.jpg
    215 KB · Views: 113

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
Carl Haddon was chief project engineer on the XP-49 program but search as I have using his name and the names Hibbard, Johnson and Hawkins I've yet to find the patent on this aircraft. Has anybody out there discovered the patent on the XP-49? Thanks in advance. -SP


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Steve Pace said:
Carl Haddon was chief project engineer on the XP-49 program but search as I have using his name and the names Hibbard, Johnson and Hawkins I've yet to find the patent on this aircraft. Has anybody out there discovered the patent on the XP-49? Thanks in advance. -SP

What makes you think the XP-49 would have required a separate patent from that of the XP-38? It's not like it was radically different in configuration, design or technology, right?


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
Skyblazer said:
Steve Pace said:
Carl Haddon was chief project engineer on the XP-49 program but search as I have using his name and the names Hibbard, Johnson and Hawkins I've yet to find the patent on this aircraft. Has anybody out there discovered the patent on the XP-49? Thanks in advance. -SP

What makes you think the XP-49 would have required a separate patent from that of the XP-38? It's not like it was radically different in configuration, design or technology, right?
Right - but I was thinking that a patent might have been applied for. If so, I would like to see it. That's all there was to my request. -SP


memaerobilia

ACCESS: Confidential
Senior Member
Joined
Oct 29, 2009
Messages
137
Reaction score
8
Website
www.memaerobilia.com
I know the XP-49 was three and a half feet longer than the standard P-38. But that does not help me, if the photo does not show them next to each other? How do you tell a P-38 from an XP-49, from an XP-58 VISUALLY? Are there different cowl openings or other Obvious features? Of course the are so many diffent models of P-38s, which does not help the situation.
As Skyblazer has noted, the company istself, describes the XP-49 as "a modified P-38"with supercharged Continental engines that gave it 230hp more hp than the contemporary Allisons, and the most powerful Lightining. and with pressurized cabin.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60
memaerobilia said:
I know the XP-49 was three and a half feet longer than the standard P-38. But that does not help me, if the photo does not show them next to each other? How do you tell a P-38 from an XP-49, from an XP-58 VISUALLY? Are there different cowl openings or other Obvious features? Of course the are so many diffent models of P-38s, which does not help the situation.
As Skyblazer has noted, the company istself, describes the XP-49 as "a modified P-38"with supercharged Continental engines that gave it 230hp more hp than the contemporary Allisons, and the most powerful Lightining. and with pressurized cabin.

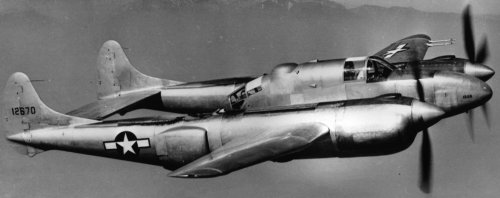

The XP-58 looked very different indeed. -SP


Attachments

  • LAH14A.jpg
    478.4 KB · Views: 64

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
memaerobilia said:
How do you tell a P-38 from an XP-49, from an XP-58 VISUALLY?

Ooooohhh!! The XP-58 looked completely different!

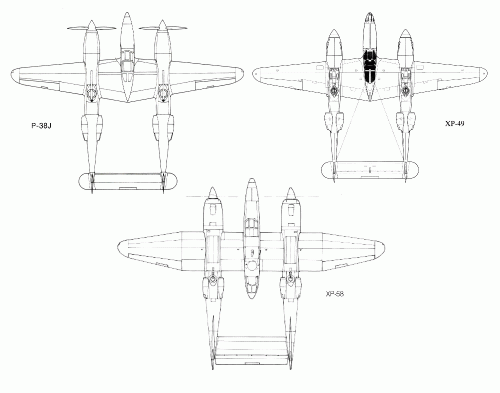

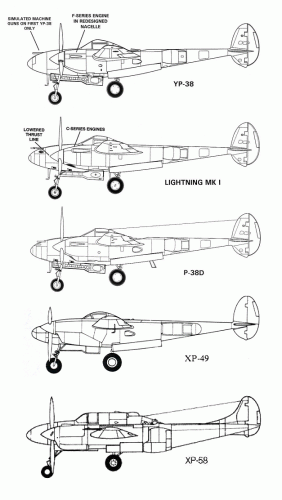

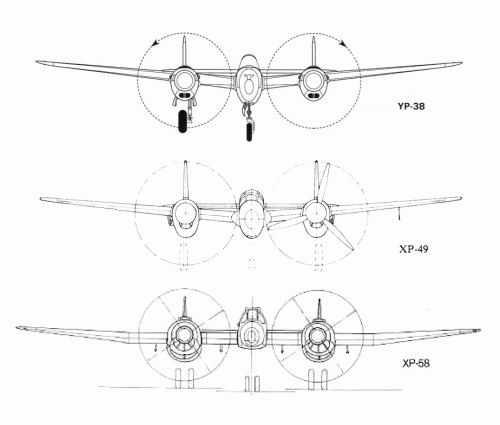

As you can see in these compared views, the P-49 was merely a variant of the P-38 (with a few differences of course, but still a variant of Basic Model 22), while the P-58 was something else. This is especially apparent in front view.

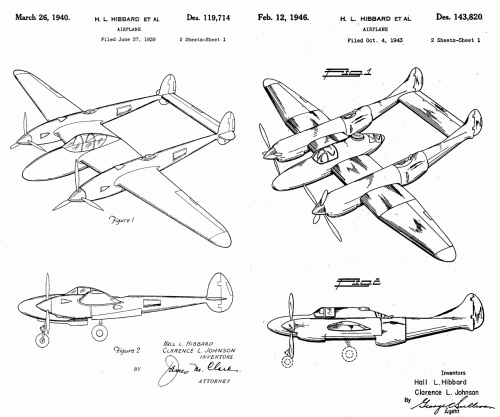

I'm also adding the compared patents for the P-38 and P-58. Clearly, since these are Design Patents, not technical ones, the P-49 falls under the same general design as the P-38 in my opinion.
(NOTE: these images were prepared for design comparison purposes — all views are not exactly to scale with one another)


Attachments

  • comparison4.gif
    115.8 KB · Views: 121
  • comparison3.gif
    100.6 KB · Views: 134
  • comparison2.gif
    80.9 KB · Views: 152
  • comparison1.gif
    50.7 KB · Views: 122

iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
499
Reaction score
409
memaerobilia said:
I know the XP-49 was three and a half feet longer than the standard P-38. But that does not help me, if the photo does not show them next to each other? How do you tell a P-38 from an XP-49, from an XP-58 VISUALLY? Are there different cowl openings or other Obvious features? Of course the are so many diffent models of P-38s, which does not help the situation.
As Skyblazer has noted, the company istself, describes the XP-49 as "a modified P-38"with supercharged Continental engines that gave it 230hp more hp than the contemporary Allisons, and the most powerful Lightining. and with pressurized cabin.
If you compare a a view of the P-38 with the P-49 drawings in this thread, the P-49's canopy lines, the rake of the nacelle chin intakes, the length of the tail boom,s and the larger radiator ducts on the booms are all fairly distinctive.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
memaerobilia said:
I know the XP-49 was three and a half feet longer than the standard P-38. But that does not help me, if the photo does not show them next to each other?

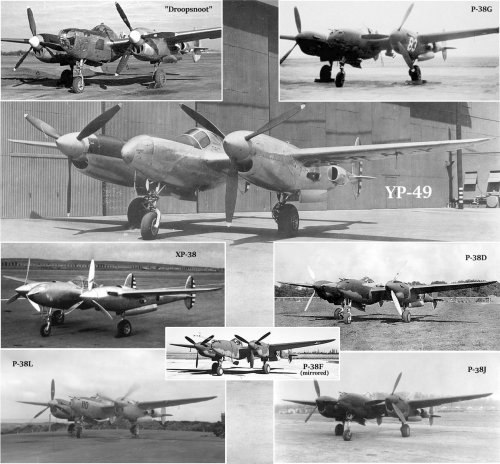

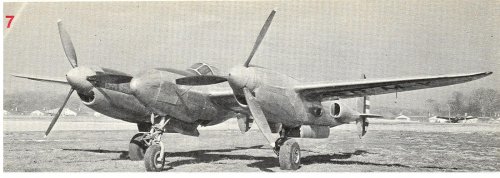

Several versions of the Lightning from almost exactly the same angle.


Attachments

  • comparison5.jpg
    508.7 KB · Views: 115

memaerobilia

ACCESS: Confidential
Senior Member
Joined
Oct 29, 2009
Messages
137
Reaction score
8
Website
www.memaerobilia.com
Well I thank you ALL, very much for the hard work to put up so many comparable illustrations. yes the XP-58 MAY look VERY different from SOME angles, but a 3/4 front view, with the extended center fuselage & cockpit mostly blocked out by the wings, is still going to challenge my own ID. A lot of the photos have such a pose, and after looking at them all, for hours, they certainly start to look more alike, than Different.

I think I need to put them aside and start fresh, again, tomorrow. There are PR Text sheets that came loose, for Each of the XP-49 and the XP-58, but I have not been able to positively link those loose sheets to any specific photo....yet. I Have been able to eliminate a fair number, where I can see military numbers on nose or tail, or specific info as to ID that is on the back with company stamps and dates. Will let you know when I get them sorted out.

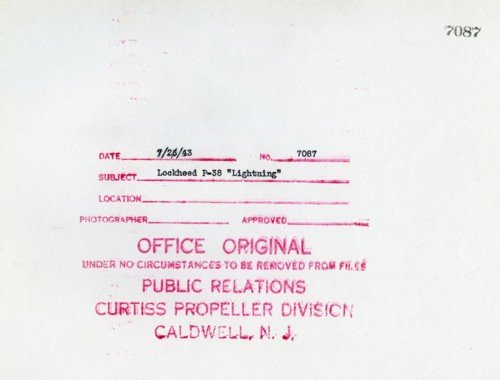

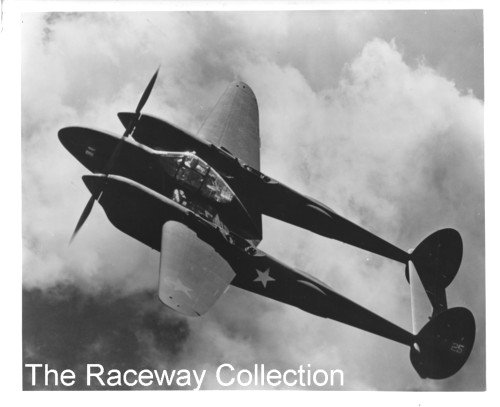

Some of the photos are not as good as others. For example, I know this is not the 49 or 58

And, again, Thank you. :)


Attachments

  • 38035s.jpg
    30.3 KB · Views: 51
  • 38033i.jpg
    32.3 KB · Views: 67

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,919
Reaction score
928
One obvious difference between P-38 and P-49 (if seen from the angle in reply #12) is the windscreen's shape. The P-38's sort of follows the top contour of the central nacelle, the P-49's is a deeper cut.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60

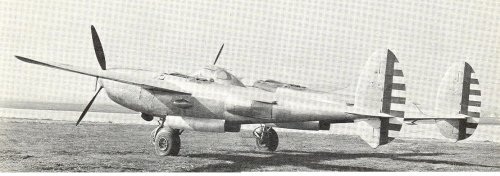

It appears to me that it's vertical stabilizers/rudders are shaped different as well. -SP


Attachments

  • XP-49.jpg
    7.7 KB · Views: 400
  • XP-58.jpg
    99.1 KB · Views: 411
  • P-38J.jpg
    46.4 KB · Views: 413

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Steve Pace said:
It appears to me that it's vertical stabilizers/rudders are shaped different as well. -SP

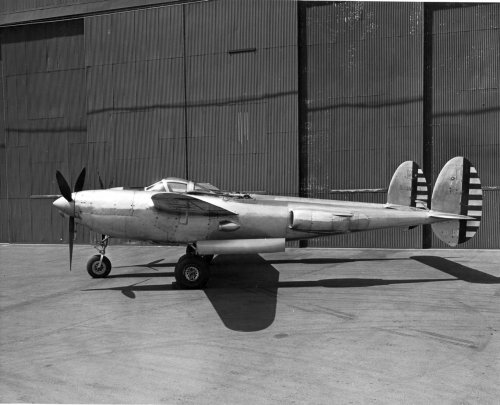

Well, yeah. Longer tails means also enlarged fins, I guess.


Attachments

  • Lockheed XP-49 left side view.jpg
    Lockheed XP-49 left side view.jpg
    241.1 KB · Views: 370
  • XP_49_01SM_1267828237_3168.jpg
    242.2 KB · Views: 352

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
60

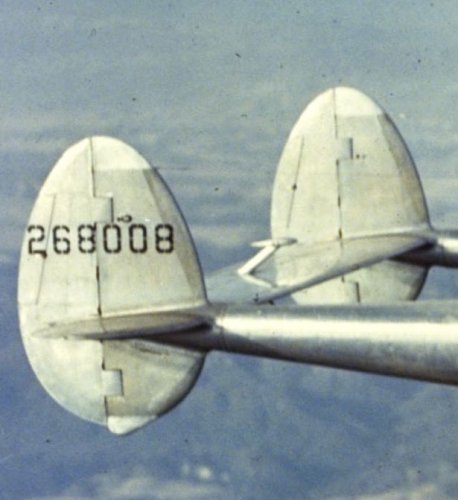

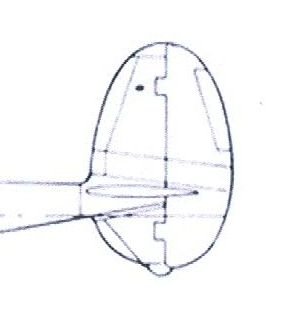

They were not as pear-shaped as on the P-38 (more oval-shaped). -SP


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
152
Reaction score
20
I'd venture to say the P-49's fin/rudder was a P-38 unit with a parallel-section spacer, maybe ten inches high, inserted right above the boom. A quick way to increase area without a redesign.


iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
499
Reaction score
409
Apteryx said:
I'd venture to say the P-49's fin/rudder was a P-38 unit with a parallel-section spacer, maybe ten inches high, inserted right above the boom. A quick way to increase area without a redesign.

You are almost certainly right. I never noticed before, but the resulting discontinuity in the curvature of the fin's leading edge is clear in the side view.


DWG

ACCESS: Top Secret
Joined
Feb 11, 2007
Messages
1,358
Reaction score
1,491
There's a fairly easy tell-tale so long as the nacelle isn't just a silhouette. The P-38s all have a small intake just aft of the spinner, roughly level with the wing leading edge, the XP-49 has a smooth nacelle with no intake.
